JET 14-Inch Deluxe Pro Woodworking Bandsaw

1. Prodotto finitoview

The JET 14-Inch Deluxe Pro Woodworking Bandsaw (Model JWBS-14DXPRO) is designed for precise woodworking applications, offering features that enhance control and durability. This bandsaw is suitable for various cutting tasks, including resawing, scroll sawing, and cutting bowl blanks.

Figura 1: Fronte view of the JET 14-Inch Deluxe Pro Woodworking Bandsaw.

Caratteristiche principali:

• 12-Inch Resaw Capacity: Allows for cutting larger pieces of wood.
• Cast Iron Frame: Provides increased strength and rigidity for stable operation.
• Upper and Lower Ball Bearing Guides: Reduces friction for enhanced blade performance and extended blade life.
• Quick-Release Blade Tension: Facilitates fast and effortless blade adjustments.
• Enclosed Stand with Storage Shelf: Offers convenient storage and helps maintain an organized workspace.
• High Tension Spring Design: Ensures greater blade tensioning for consistent performance.
• Poly-V Belt Drive System: Provides two speeds for precise control over various materials.
• Retractable Blade Guard: Adjustable from 0 to 12 inches for versatility with different workpiece sizes.
• Blade Guide Post with Rack and Pinion Adjustment: Allows for accurate positioning of the blade guides.
• Facile-View Blade Tracking Window: Enables monitoring of blade position during operation for safety.

2. Istruzioni per l'installazione

This section details the steps for assembling and preparing your JET 14-Inch Deluxe Pro Woodworking Bandsaw for operation. The product is shipped with the main saw unit, base, trunnion, table, and an instruction manual.

2.1 Disimballaggio e montaggio

1. Carefully unpack the main saw unit and the base from their packaging. It is recommended to use the packaging materials for leverage during assembly.
2. Position the main carton containing the saw unit onto a sturdy table or bench, lying on its side.
3. Attach the base to the main saw body using the provided hardware. Ensure all connections are secure.
4. With assistance, gently tip the assembled unit upright onto the floor.
5. Install the work table and trunnion.
6. Ensure the stand supports are properly attached for stability.

Figure 2: The enclosed stand with a storage shelf.

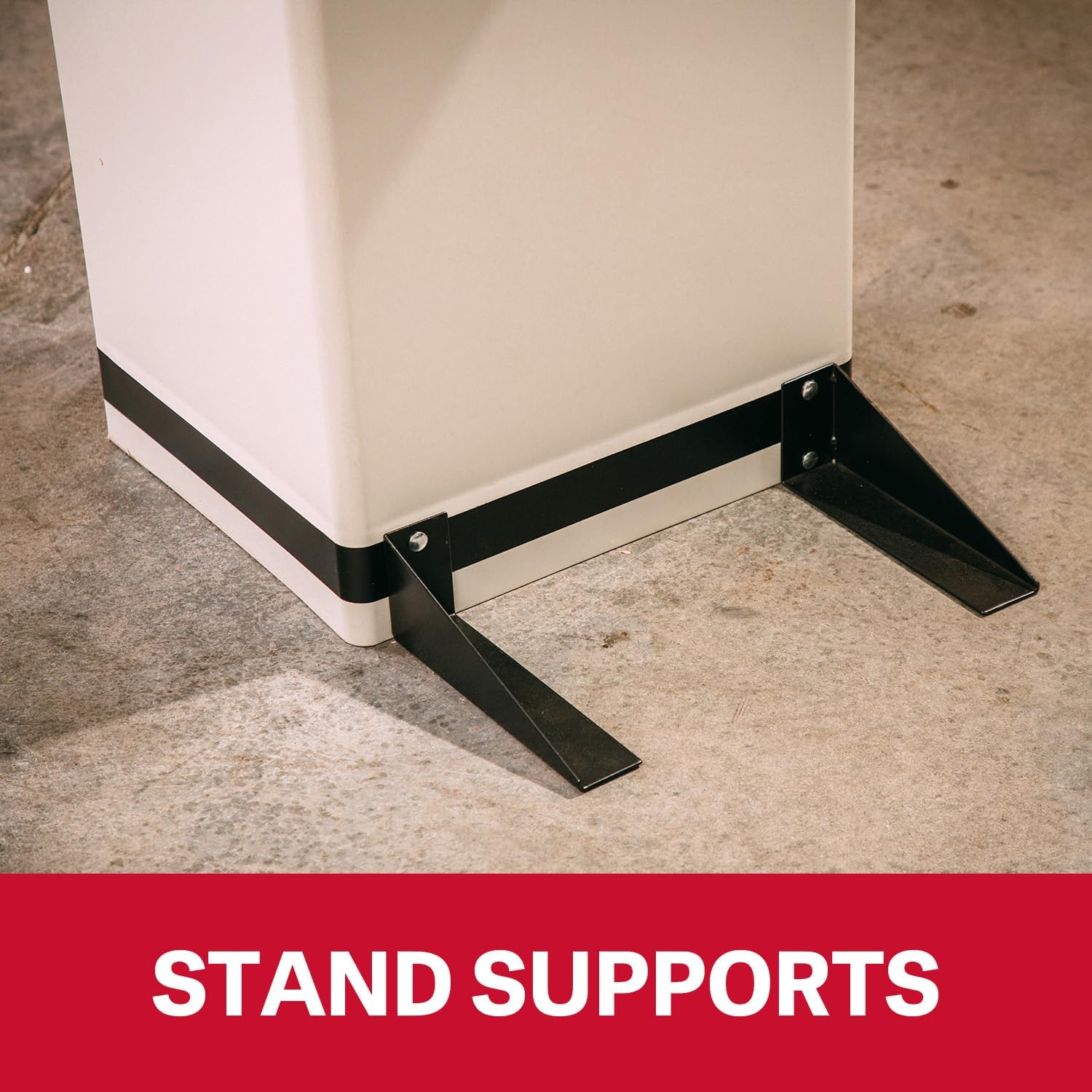

Figure 3: Detail of the stand supports.

2.2 Installazione e tensionamento della lama

1. Install the appropriate blade for your task.
2. Adjust the blade tension using the quick-release blade tensioning mechanism. Refer to the detailed manual for specific tensioning guidelines.
3. Ensure the upper and lower ball bearing guides are correctly positioned and adjusted to support the blade.

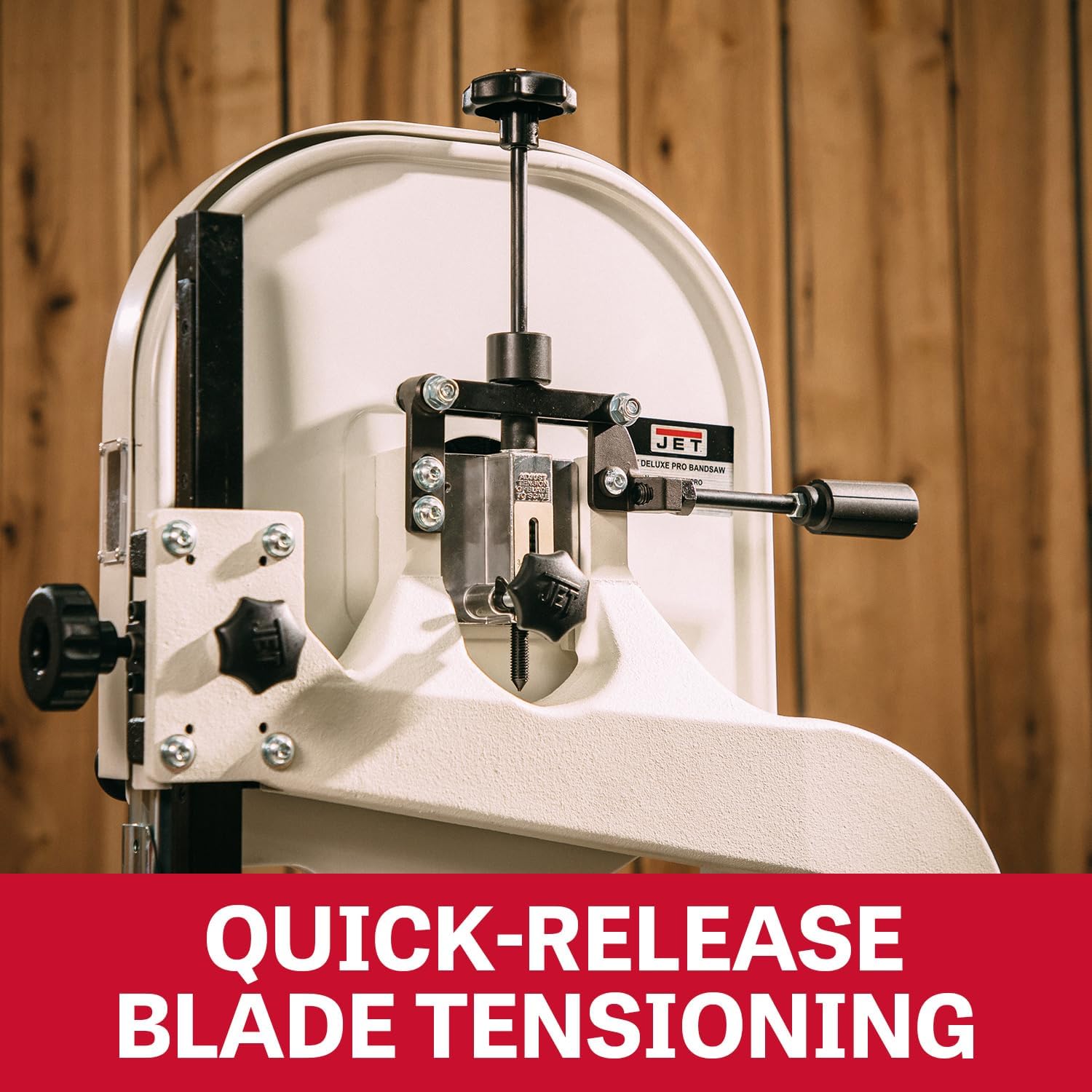

Figure 4: Close-up of the quick-release blade tensioning system.

2.3 Table and Guide Adjustments

1. The work table can tilt 10 degrees left and 45 degrees right. Adjust the table angle as required for your specific cuts.
2. Utilize the blade guide post with rack and pinion adjustment to set the blade guides just above the workpiece height.

Figure 5: The table can tilt 45 degrees right and 10 degrees left.

Figure 6: The rack and pinion blade guide post for precise adjustments.

2.4 Power and Speed Settings

1. Connect the bandsaw to a 115V or 230V power source as appropriate for your model.
2. The poly-v belt drive system offers two speeds. Select the appropriate speed for the material and type of cut you are performing.

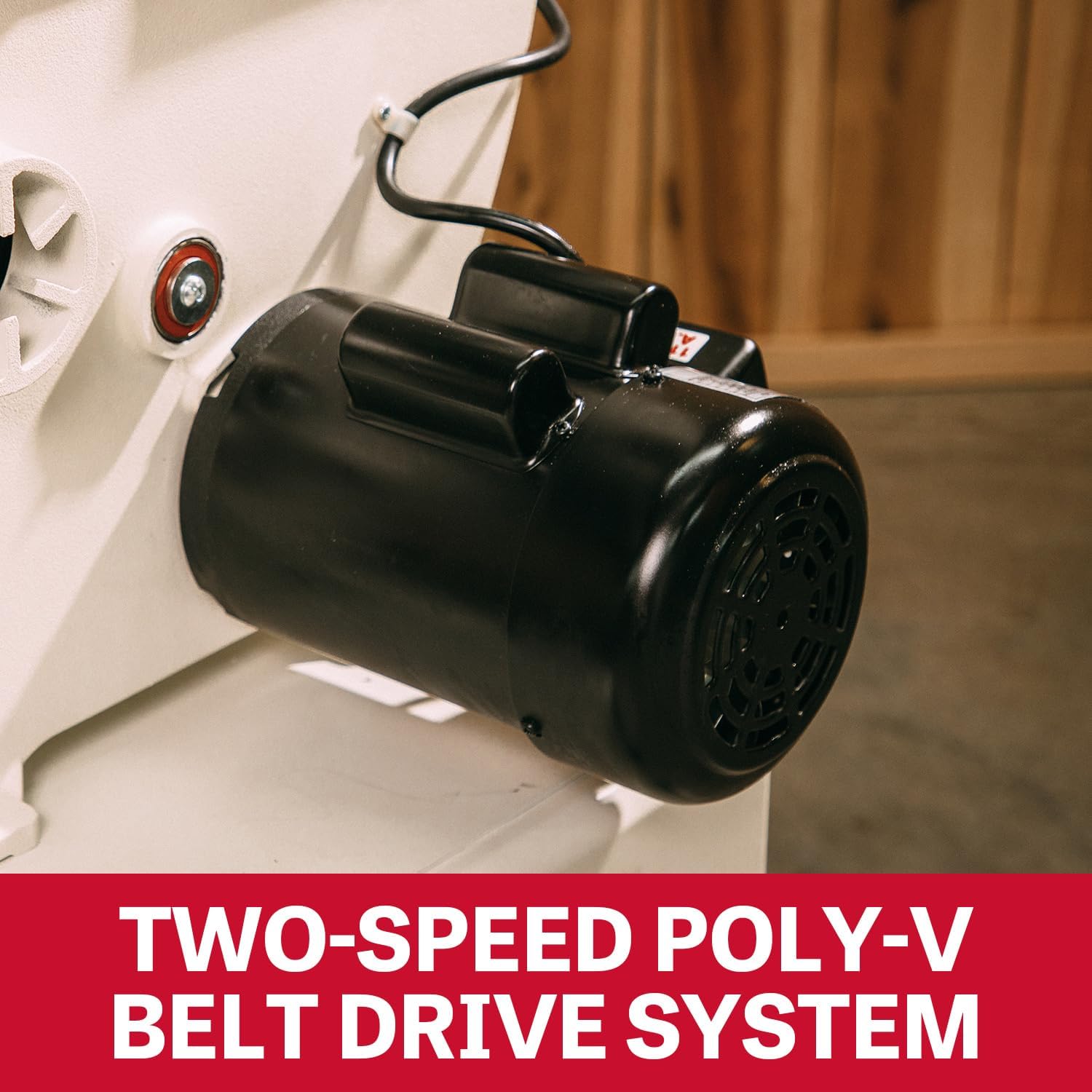

Figure 7: The two-speed poly-v belt drive system.

3. Istruzioni per l'uso

Always wear appropriate safety gear, including eye protection, when operating the bandsaw. Ensure the workpiece is stable and properly supported.

3.1 Resawing Lumber

Resawing involves cutting a thick piece of lumber into thinner sections.

1. Loosen the tension nut on the rack and raise the blade guide rack above your maximum cutting height.
2. Tighten the tension nut and place the lumber piece in the saw.
3. Plan your cut so that the thinner piece is on the outside of the blade.
4. Using a push block, slide the workpiece through the blade with slow, light, consistent pressure.
5. For safety, use a push stick as you complete your cuts.

3.2 Scroll Sawing

Scroll sawing allows for intricate cuts and patterns.

1. Trace your desired cut pattern onto the workpiece.
2. Move the fence out of the way to provide amplo spazio di lavoro.
3. Lower the blade guides to just above the height of the workpiece.
4. Turn on the dust collection system and the bandsaw.
5. Begin moving the workpiece through the saw, using slow movements and light, consistent pressure to follow the traced pattern.
6. Reposition the workpiece as needed to complete the cut.

3.3 Cutting Bowl Blanks

This technique is used to prepare wood for turning bowls.

1. Find the center of your bowl blank by drawing diagonal lines from corner to corner.
2. Set a compass to slightly less than the desired radius and draw a circle to outline the bowl blank.
3. Raise the blade guard slightly above the height of your blank and tighten the tension on the rack.
4. Move the fence out of the way.
5. Accendi la sega.
6. Rotate the bowl blank through the saw to cut each corner section, maintaining consistent, light pressure to avoid forcing the blade.
7. Once all cuts are complete, turn the bandsaw off.

4. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della sega a nastro.

4.1 Blade and Guide Inspection

• Periodically check the blade tension and adjust as necessary to prevent blade drift and ensure clean cuts.
• Inspect the upper and lower ball bearing guides for wear and proper alignment. Correctly adjusted guides reduce friction and extend blade life.
• Utilize the easy-view blade tracking window to monitor blade position and ensure it is tracking correctly.

4.2 Raccolta della polvere

• Connect a dust collection system to the 4-inch dust port to keep your workspace clean and prevent sawdust buildup, which can affect performance and safety.
• Regularly empty the dust collection bag or container.

Figure 8: The 4-inch dust port for connecting a dust collection system.

5. Risoluzione Dei Problemi

Questa sezione fornisce soluzioni ai problemi più comuni che potrebbero verificarsi durante il funzionamento.

5.1 Blade Drift

• If the blade drifts during a cut, check the blade tension. Insufficient tension can cause the blade to wander.
• Inspect the blade guides for proper adjustment and wear. Misaligned or worn guides can lead to blade drift.

5.2 Wood Debris Accumulation

• If small wood debris falls between the table insert and the blade, immediately stop the saw.
• Remove the debris before resuming operation to prevent damage to the blade or workpiece.

6. Specifiche

7. Garanzia e supporto

The JET 14-Inch Deluxe Pro Woodworking Bandsaw (Model JWBS-14DXPRO) is backed by a comprehensive warranty.

7.1 Informazioni sulla garanzia

Questo prodotto viene fornito con un Garanzia di 5 anno for residential use. If used for commercial or industrial purposes, the warranty defaults to a Garanzia di 2 annoSi prega di conservare la prova d'acquisto per eventuali reclami in garanzia.

Figure 9: The 5-Year Warranty badge.

7.2 Assistenza clienti

For technical assistance, parts, or service inquiries, please refer to the contact information provided in your product packaging or visit the official JET Tools websito.
