TIMEX Expedition Chronograph T49747 Men's Watch Instruction Manual

Introduzione

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your TIMEX Expedition Chronograph T49747 watch. Please read this guide thoroughly to ensure proper use and care of your timepiece.

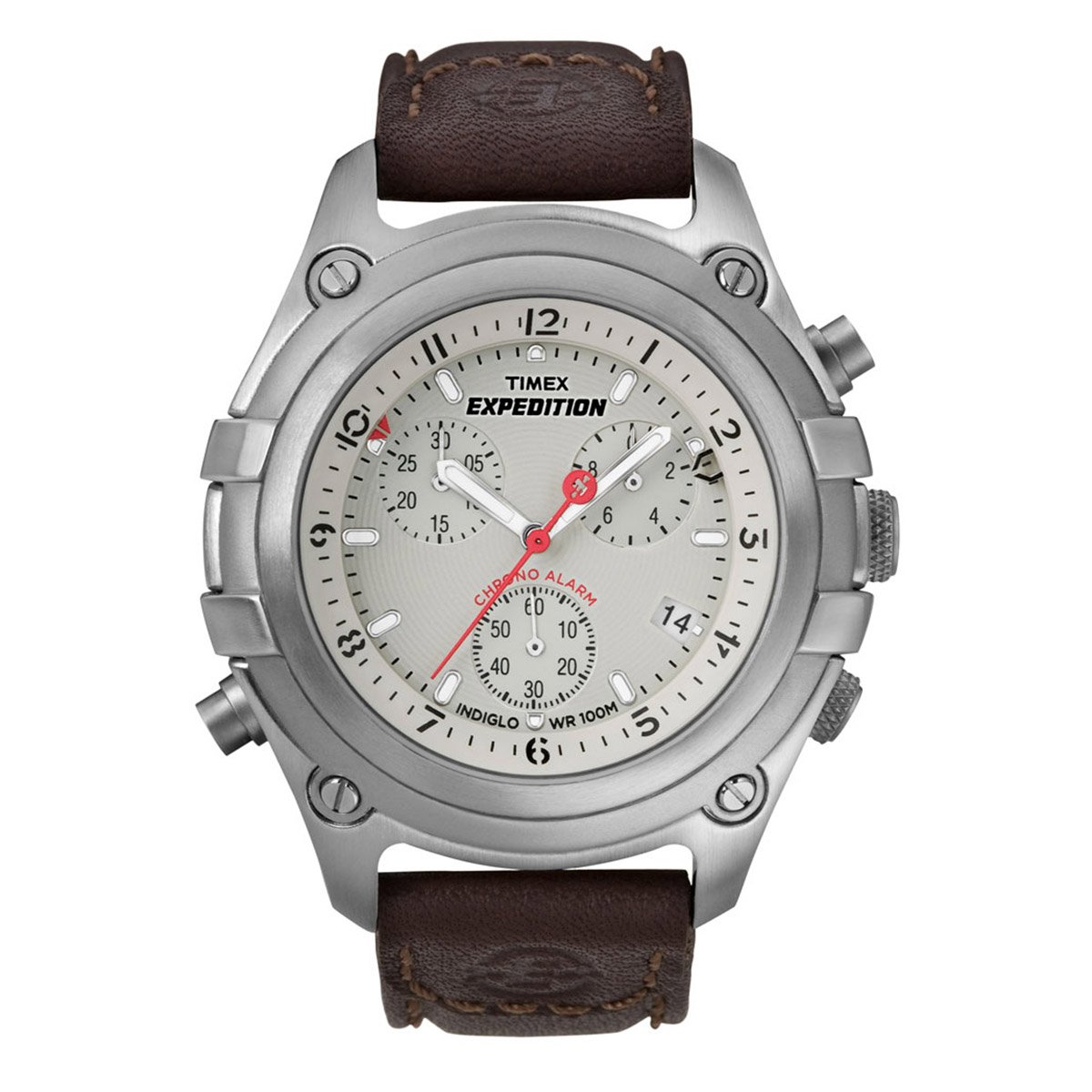

Image: The TIMEX Expedition Chronograph T49747 watch, featuring a white dial and a brown leather strap.

Impostare

1. Impostazione dell'ora

1. Estrarre la corona fino alla secondo clic posizione.
2. Ruotare la corona in senso orario o antiorario per impostare le lancette delle ore e dei minuti sull'ora desiderata.
3. Per avviare l'orologio, riportare la corona nella posizione normale.

2. Impostazione della data

1. Estrarre la corona fino alla primo clic posizione.
2. Ruotare la corona in senso orario o antiorario per impostare la data.
3. Riportare la corona nella posizione normale.

3. Chronograph Hand Reset

Se le lancette del cronografo non tornano alla posizione zero, procedere come segue:

1. Estrarre la corona fino alla secondo clic posizione.
2. Press the top pusher (A) repeatedly to advance the chronograph seconds hand.
3. Press the bottom pusher (B) repeatedly to advance the chronograph minute hand.
4. Once all chronograph hands are aligned to the 12 o'clock (zero) position, push the crown back in to the normal position.

Istruzioni per l'uso

1. Utilizzo del cronografo

• A inizio the chronograph, press the top pusher (A).
• A fermare the chronograph, press the top pusher (A) again.
• A reset the chronograph to zero, press the bottom pusher (B) while the chronograph is stopped.

2. Luce notturna Indiglo

To activate the Indiglo night-light, press and hold the crown (C) for a few seconds. The entire dial will illuminate for easy viewin condizioni di scarsa illuminazione.

3. Funzione di allarme

This watch features an alarm function. Refer to the detailed instructions provided in the full product manual for setting and activating the alarm. Typically, the alarm is set by pulling the crown to a specific position and rotating it to align the alarm hand with the desired time.

Manutenzione

1. Sostituzione della batteria

The watch is powered by a quartz movement and requires a battery. When the watch stops or the Indiglo light dims significantly, the battery may need replacement. It is recommended to have the battery replaced by an authorized TIMEX service center to ensure proper sealing and water resistance.

2. Pulizia

Clean your watch regularly with a soft, dry cloth. For water-resistant models, a slightly damp È possibile utilizzare un panno e procedere all'asciugatura. Evitare l'uso di detergenti chimici o materiali abrasivi.

3. Resistenza all'acqua

This watch has a water resistance depth of 100 metri. This means it is suitable for swimming and snorkeling, but not for high-impact water sports or diving. Ensure the crown is fully pushed in before any contact with water. Do not operate the pushers or crown while the watch is wet.

Risoluzione dei problemi

1. Orologio non in esecuzione

• Ensure the crown is fully pushed into the normal operating position.
• If the watch still does not run, the battery may need to be replaced.

2. Le lancette del cronografo non si azzerano

Refer to the "Chronograph Hand Reset" section under Setup for detailed instructions on how to recalibrate the chronograph hands.

3. Indiglo Not Working

• Ensure the battery is not low. A dim or non-functional Indiglo is often an indicator of a low battery.
• Press and hold the crown firmly.

Specifiche

Garanzia e supporto

Informazioni sulla garanzia

Questo prodotto viene fornito con un 1 anni di garanzia del produttore from the date of purchase. To claim your warranty, you must produce either the original bill copy/invoice or the warranty card at any authorized Timex service center.

Assistenza clienti

For any service-related inquiries or feedback, please contact Timex India customer support:

• Numero verde: 1800 419 2727 (Monday to Sunday, 10:00 am to 7:00 pm, except government holidays)
• E-mail: custservice@timexindia.com, feedback@timexindia.com

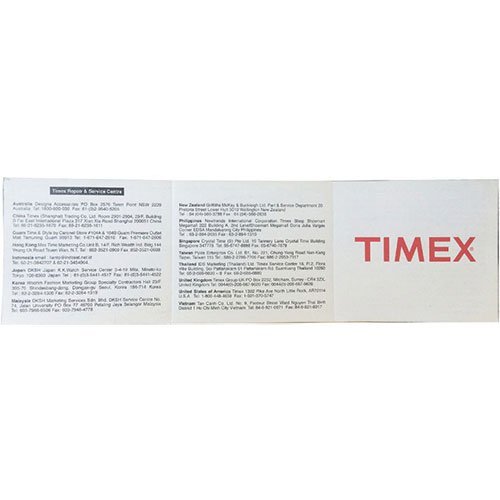

Image: A leaflet displaying Timex repair and service center contact information for various regions.
