Pyle KTHSP85p 4-Room In-Ceiling Home Speaker System

Introduzione

Grazie per l'acquistoasing the Pyle KTHSP85p 4-Room In-Ceiling Home Speaker System. This system is designed to provide high-quality audio distribution across four distinct zones in your home or office. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new speaker system. Please read this manual thoroughly before installation and retain it for future reference.

Informazioni sulla sicurezza

• Sicurezza elettrica: Always ensure that all power to audio equipment is turned off before making any connections. Incorrect wiring can cause damage to your equipment or pose an electrical hazard.
• Posizionamento dei relatori: Ensure that the ceiling material can safely support the weight of the speakers. Avoid installing speakers near water sources or in excessively humid environments.
• Cablaggio: Use appropriate gauge speaker wire for your installation. Consult a professional if you are unsure about wiring requirements.
• Livelli del volume: Prolonged exposure to high volume levels can cause permanent hearing damage. Operate the system at comfortable listening levels.
• Manutenzione: Non tentare di riparare questo prodotto da soli. Affidare tutte le operazioni di manutenzione a personale di assistenza qualificato.

Contenuto della confezione

Si prega di controllare il contenuto del pacco per assicurarsi che tutti gli articoli siano presenti e integri:

• Eight (8) 5.25-inch In-Ceiling Speakers
• One (1) 4-Channel High Power Stereo Speaker Selector with Volume Control

Se qualche articolo risulta mancante o danneggiato, contattare immediatamente il rivenditore.

Impostare

This section guides you through the installation of the in-ceiling speakers and the connection of the speaker selector.

1. Installazione degli altoparlanti

1. Scegli la posizione: Select appropriate locations in your ceiling for each of the eight speakers. Ensure there are no obstructions (e.g., electrical wires, plumbing, studs) behind the chosen spots.
2. Ritagliare: Using a template (often included with speakers or available from manufacturer), carefully mark and cut a circular opening in the ceiling. The recommended cut-out dimension is 6 1/2 inches (16.5 cm) in diameter with a depth of 2 5/8 pollici (6.7 cm).
3. Cablaggio: Run speaker wires from the location of your speaker selector to each speaker opening. Ensure sufficient length for connections. Strip approximately 1/2 inch (1.2 cm) of insulation from the ends of the speaker wires.
4. Collegare gli altoparlanti: Connect the positive (+) terminal of the speaker wire to the red terminal on the speaker, and the negative (-) terminal of the speaker wire to the black terminal on the speaker.
5. Montare gli altoparlanti: Insert the speaker into the cut-out. Most in-ceiling speakers use a dog-leg mounting system. Tighten the mounting screws evenly until the speaker is securely fastened to the ceiling. Do not overtighten.

2. Speaker Selector Connection

The speaker selector allows you to connect up to four pairs of speakers to a single stereo amplifier/receiver and control their volume independently.

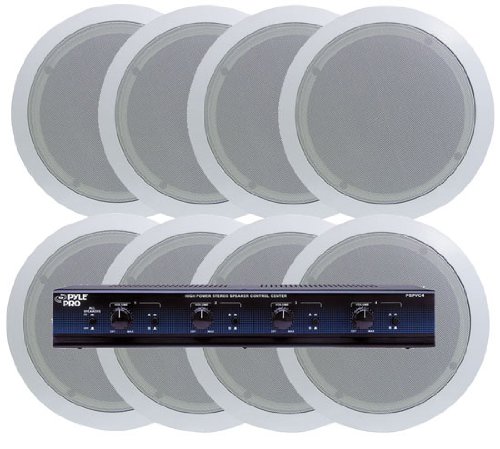

This image displays the main components of the Pyle KTHSP85p system: the central speaker selector unit and two of the eight in-ceiling speakers. The speaker selector features individual volume controls for each zone.

1. Connect Speakers to Selector: Connect the speaker wires from each pair of in-ceiling speakers to the corresponding 'Speaker Output' terminals (Zone 1, Zone 2, Zone 3, Zone 4) on the rear of the speaker selector. Ensure correct polarity (+ to + and - to -). Each zone will accommodate two speakers (one left, one right).
2. Collegare Amplifier to Selector: Connect the speaker output terminals of your stereo amplifier or receiver to the 'Amplifier Input' terminals on the rear of the speaker selector. Again, observe correct polarity.
3. Accensione: Once all connections are secure, you may power on your amplifier/receiver and the speaker system.

Operativo

The Pyle KTHSP85p system is designed for straightforward operation.

• Selezione zona: The speaker selector unit features individual buttons or switches for each of the four zones. Pressing a button will engage or disengage the speakers in that specific zone.
• Controllo del volume: Each zone on the speaker selector has an independent rotary volume control knob. Turn the knob clockwise to increase the volume for that zone and counter-clockwise to decrease it.
• Volume principale: The overall system volume is controlled by your connected amplifier or receiver. Use the individual zone volume controls for fine-tuning the sound level in each room.

Manutenzione

Proper care will ensure the longevity and performance of your speaker system.

• Pulizia: Dust the speaker grilles and the speaker selector unit regularly with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, but ensure no moisture enters the unit.
• Evitare i liquidi: Do not spray cleaning liquids directly onto the speakers or selector.
• Condizioni ambientali: Keep the system away from extreme temperatures, direct sunlight, and high humidity.

Risoluzione dei problemi

If you encounter issues with your Pyle KTHSP85p system, refer to the following common problems and solutions:

• No Sound from a Zone:
  • Ensure the specific zone button on the speaker selector is engaged.
  • Check the volume knob for that zone; it may be turned down completely.
  • Verify all speaker wire connections for that zone at both the speaker and the selector.
  • Confermare il amplifier/receiver is powered on and playing audio.
• No Sound from Any Zone:
  • Check the connections between your amplifier/receiver and the speaker selector.
  • Assicurati che amplifier/receiver is powered on and its volume is not muted or set too low.
  • Verify the audio source connected to your amplifier/receiver is functioning correctly.
• Suono distorto:
  • Reduce the volume on both the speaker selector and your amplificatore/ricevitore.
  • Check for loose or shorted speaker wire connections.
  • Ensure the impedance of your speakers (8 Ohms) is compatible with your amplifier and the speaker selector (handles 100 Watts per channel with minimum 8 Ohms).

Specifiche

Garanzia e supporto

I prodotti Pyle sono progettati per garantire affidabilità e prestazioni. Per informazioni specifiche sulla garanzia, consultare la scheda di garanzia inclusa con l'acquisto o visitare il sito Web ufficiale Pyle. website. If you require technical assistance or have questions regarding your KTHSP85p system, please contact Pyle customer support through their official channels.
