Manuale utente della pistola termica BLACK+DECKER

Introduzione

Thank you for choosing the BLACK+DECKER Heat Gun, model KX2200K-QS. This powerful tool is designed for a variety of applications requiring concentrated heat. Its advanced features, including an automatic switch-off and an auto-reset thermostat, ensure safe and consistent operation by monitoring the internal temperature and preventing overheating. The heating elements are temporarily switched off if the temperature becomes too high, while ventilation continues to cool the unit rapidly, maintaining a stable temperature output during continuous use.

Figure 1: BLACK+DECKER Heat Gun KX2200K-QS and included accessories.

Informazioni sulla sicurezza

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating the heat gun.

• Assicurarsi che l'area di lavoro sia ben ventilata.
• Non dirigere la pistola termica verso persone o animali.
• Evitare di toccare l'ugello caldo o gli accessori durante e subito dopo l'uso.
• Non utilizzare la pistola termica vicino a materiali o gas infiammabili.
• Scollegare sempre l'utensile quando non è in uso o prima di eseguire la manutenzione.
• Store the tool in a dry place, out of reach of children.

Prodotto finitoview

Familiarize yourself with the components of your BLACK+DECKER Heat Gun.

Figure 2: Key components of the Heat Gun.

• Ugello: The hot air outlet.
• Two Speed Switch: Controlla la velocità del flusso d'aria.
• Fessure di ventilazione: Essential for cooling the motor and internal components.

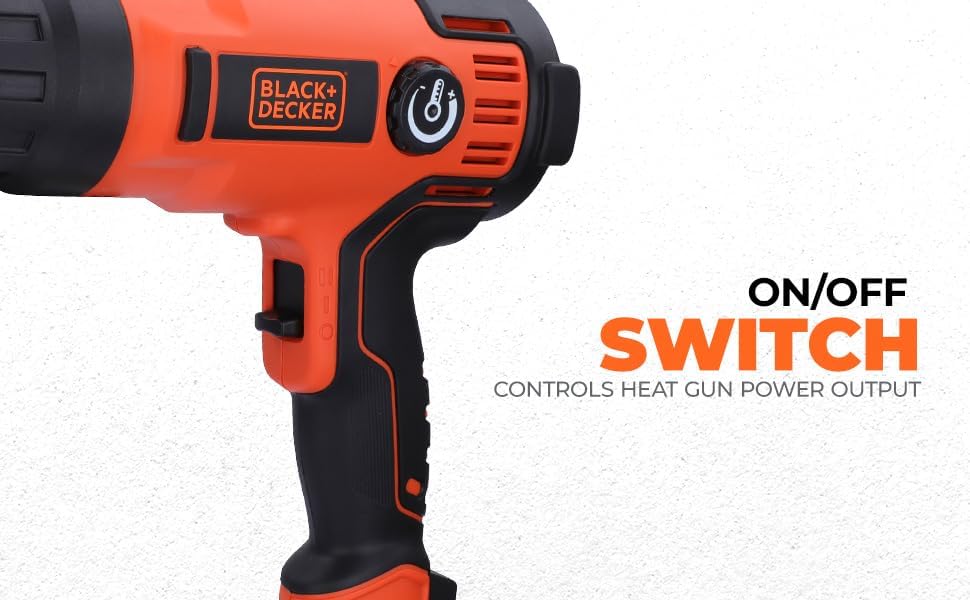

Figure 3: The ON/OFF Switch, which controls the heat gun's power output.

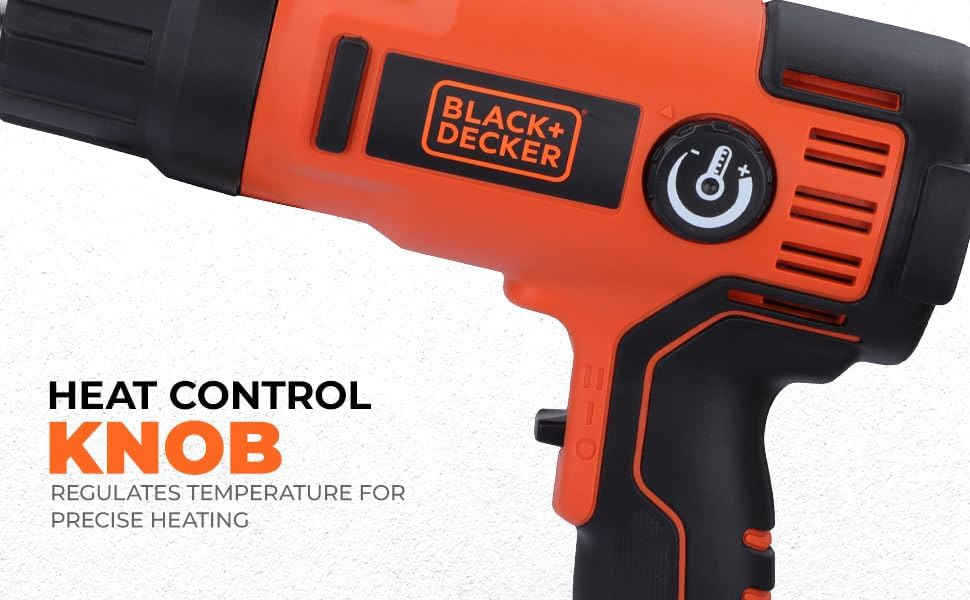

Figure 4: The Heat Control Knob, used to regulate temperature for precise heating.

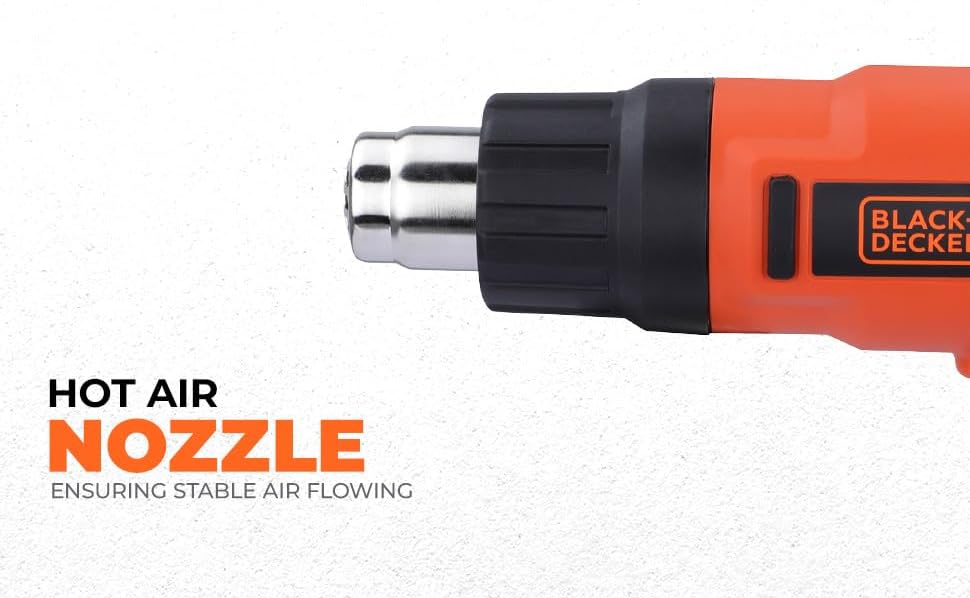

Figure 5: The Hot Air Nozzle, designed to ensure stable air flowing.

Impostare

Before first use, ensure the heat gun is properly set up for your task.

1. Disimballaggio: Carefully remove the heat gun and all accessories from the packaging. Inspect for any damage.
2. Allegato accessorio: Select the appropriate nozzle or accessory for your application. Attach it firmly to the hot air nozzle of the heat gun. Ensure it is securely fitted before operation.
3. Collegamento elettrico: Plug the heat gun into a suitable 230V power outlet. Ensure the power cord is not damaged and is positioned to avoid tripping hazards.

Istruzioni per l'uso

Follow these steps for safe and effective operation of your heat gun.

1. Accensione: Switch the heat gun ON using the ON/OFF switch located on the handle.
2. Regola il flusso d'aria: Use the two-speed switch to select the desired airflow speed (low or high) based on your application.
3. Imposta temperatura: Rotate the Heat Control Knob to adjust the temperature. The temperature range is approximately 65°C to 650°C. Start with a lower temperature and gradually increase if needed for your specific task.
4. Applicazione: Direct the hot air stream towards the workpiece. Maintain a safe distance to avoid scorching or damaging the material. Move the heat gun steadily to ensure even heat distribution.
5. Protezione automatica dal surriscaldamento: The integrated auto-reset thermostat will monitor the device's temperature. If the temperature becomes too high, the heating elements will automatically switch off, while the fan continues to run to cool the unit. Once cooled, the heating elements will reactivate. This feature ensures continuous operation and prevents damage from overheating.
6. Spegni: When finished, switch the heat gun OFF and allow it to cool down completely before storing. The fan may continue to run for a short period after switching off to aid cooling.

Figure 6: Proper handling of the heat gun during operation.

Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della pistola termica.

• Pulizia: After each use, ensure the tool is unplugged and cool. Wipe the exterior with a damp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Fessure di ventilazione: Keep the ventilation slots clear of dust and debris to prevent overheating. Use a soft brush or compressed air to clean them.
• Ispezione del cavo: Ispezionare regolarmente il cavo di alimentazione per verificare la presenza di eventuali segni di danni, tagli o sfilacciamenti. Se danneggiato, farlo sostituire da un tecnico qualificato.
• Magazzinaggio: Store the heat gun and its accessories in a clean, dry place, preferably in its original case, away from direct sunlight and extreme temperatures.

Risoluzione dei problemi

If you encounter issues with your heat gun, refer to the following common problems and solutions.

Specifiche

Detailed technical specifications for the BLACK+DECKER Heat Gun KX2200K-QS.

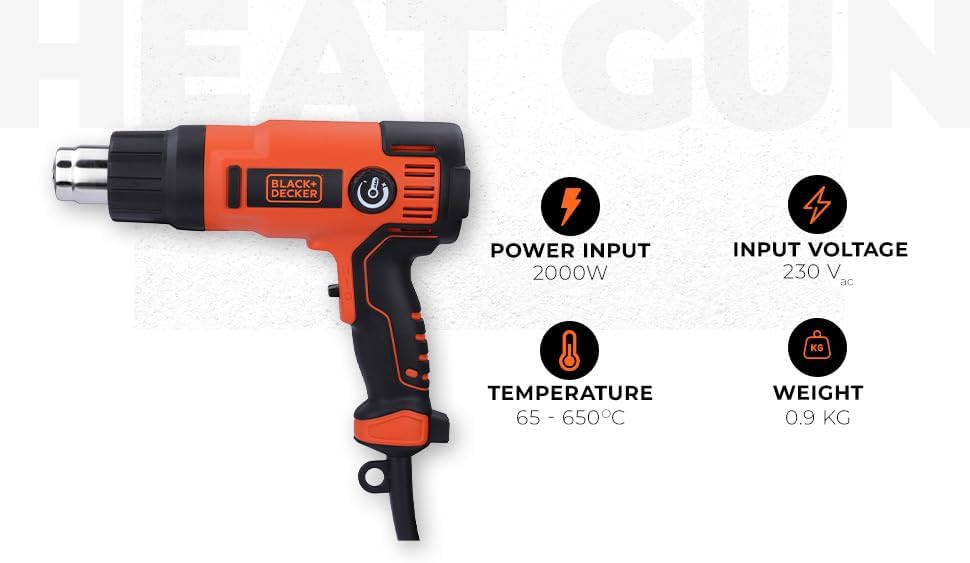

Figure 7: Key specifications of the Heat Gun.

Garanzia e supporto

Per informazioni sulla garanzia, fare riferimento alla documentazione inclusa con l'acquisto o visitare il sito ufficiale BLACK+DECKER website. For any technical assistance, parts, or service, please contact our customer support team.

Figure 8: BLACK+DECKER Customer Care Contact Information.

• Telefono: 1800-203-0644 (dal lunedì al sabato, dalle 09:00 alle 06:00 IST, esclusi i giorni festivi)
• E-mail: SBD-CUSTOMERCOMMUNICATIONS@SBDINC.com
• WhatsApp: +91 96060 55835
• Rete di servizi: Over 500+ authorized service centers.
