Mars 21786 115-volt Lift Condensate Pump User Manual

1. Introduzione

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Mars 21786 115-volt Lift Condensate Pump. Please read these instructions thoroughly before installation and keep them for future reference.

Prodotto finitoview

The Mars 21786 condensate pump is designed to remove condensate from air conditioning systems, high-efficiency furnaces, dehumidifiers, and other equipment that produces condensate. It features a robust design for reliable performance and ease of servicing.

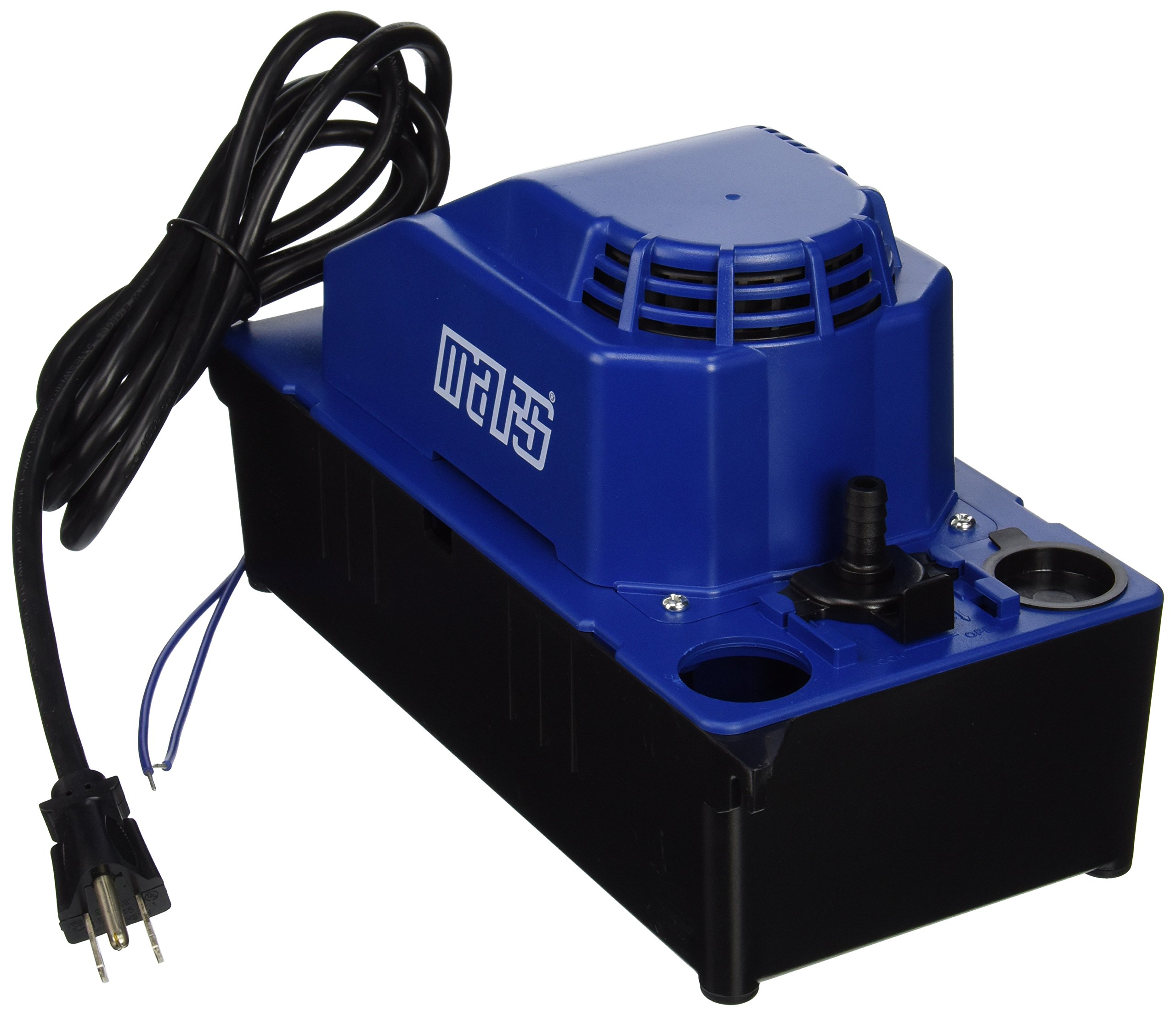

Figura 1: Mars 21786 115-volt Lift Condensate Pump. This image displays the pump's blue plastic housing and various connection points for condensate lines and electrical wiring.

Caratteristiche principali

• Quick Release Check Valve: Facilitates fast and efficient servicing without needing to remove the condensate line.
• Interruttore di sicurezza integrato: Can be wired to shut down equipment or activate a high-level alarm, preventing overflow.
• Capacità di pompaggio: Capable of pumping up to 125 gallons per hour.
• Voltage: Operates on 115 volts.

2. Informazioni sulla sicurezza

AVVERTIMENTO: To reduce the risk of electric shock, always disconnect power to the pump before performing any service or maintenance.

• Ensure the pump is installed by a qualified technician in accordance with all local electrical and plumbing codes.
• Non utilizzare la pompa se il cavo o la spina sono danneggiati.
• Do not pump flammable liquids or chemicals. This pump is designed for water condensate only.
• Ensure the pump is installed on a level surface to ensure proper operation.
• Tenere i bambini e il personale non autorizzato lontano dalla pompa durante il funzionamento.

3. Configurazione e installazione

Un'installazione corretta è fondamentale per il funzionamento affidabile della pompa di scarico della condensa.

3.1 Montaggio della pompa

• Place the pump on a firm, level surface near the condensate source.
• Ensure there is adequate space for maintenance and ventilation.

3.2 Condensate Inlet Connection

• Connect the condensate drain line from your equipment to one of the inlet ports on the pump reservoir.
• Use appropriate tubing and clampper garantire una tenuta stagna.

3.3 Collegamento della linea di scarico

• Connect a discharge tube (typically 3/8" or 1/2" ID) to the pump's discharge outlet.
• Route the discharge line upwards to a suitable drain, ensuring it does not exceed the pump's maximum lift height (16 feet for this model).
• Avoid kinks or sharp bends in the discharge line.

3.4 Collegamento elettrico

• The pump requires a 115-volt, 60 Hz power supply.
• Plug the pump into a properly grounded electrical outlet.
• Cablaggio dell'interruttore di sicurezza: The integrated safety switch has normally open (NO) and normally closed (NC) contacts.
  • For equipment shutdown: Wire the NC contacts in series with the low voltage thermostat circuit of the HVAC unit. When the water level rises too high, the switch opens, shutting down the equipment.
  • For high-level alarm: Wire the NO contacts to an external alarm system. When the water level rises too high, the switch closes, activating the alarm.

4. Istruzioni per l'uso

The Mars 21786 condensate pump operates automatically.

• Once properly installed and connected to power, the pump will activate when the condensate level in the reservoir reaches a predetermined height.
• The pump will then discharge the condensate through the discharge line until the water level drops, at which point it will automatically shut off.
• The pump is designed for continuous duty within its specified capacity of 125 gallons per hour.

Test iniziale

After installation, pour a small amount of water (approximately 1-2 liters) into the pump's reservoir to verify proper operation. The pump should activate, discharge the water, and then shut off. Check for any leaks.

5. Manutenzione

Regular maintenance ensures optimal performance and extends the life of your condensate pump.

5.1 Cleaning the Reservoir and Float Switch

• Frequenza: Inspect and clean every 3-6 months, or more frequently in dusty environments.
• Procedura:
  1. Togliere l'alimentazione alla pompa.
  2. Disconnect the inlet and discharge lines.
  3. Remove the pump cover (if applicable) or access the reservoir.
  4. Clean the inside of the reservoir and the float switch mechanism with a mild detergent and water. Remove any sludge, mold, or debris.
  5. Risciacquare abbondantemente e rimontare.

5.2 Quick Release Check Valve

• The quick release check valve allows for easy inspection and cleaning.
• To service, simply twist and pull the check valve assembly from the discharge outlet. Clean any debris and reinsert.

5.3 Inspecting Lines

• Periodically check inlet and discharge lines for blockages, kinks, or leaks.
• Assicurarsi che tutti i collegamenti siano sicuri.

6. Risoluzione Dei Problemi

Before attempting any repairs, always disconnect power to the pump.

7. Specifiche

8. Garanzia e supporto

Specific warranty details are not provided in the product information. For warranty claims or technical support, please contact Mars customer service directly.

Produttore: Mars
Manufacturer Contact Information: SANDY, UT, 84070 US
