Nerf N-Strike Elite Retaliator Blaster Model 98696 User Manual

Introduzione

The Nerf N-Strike Elite Retaliator Blaster is designed for customizable play, offering four different configurations to adapt to various scenarios. This manual provides essential information for safe and effective use of your blaster.

Informazioni sulla sicurezza

WARNING: To avoid injury, do not aim at eyes or face. Use only darts designed for this product. Do not modify darts or dart blaster. Recommended for ages 8 and up.

Always wear eye protection when using the blaster.
Do not fire at close range.
Keep fingers clear of moving parts.
Ensure the blaster is unloaded when not in use.

Componenti

The Nerf N-Strike Elite Retaliator Blaster comes with the following components:

Main Blaster Unit
Stock rimovibile
Barrel Extension
Stability Handle (Assault Grip)
12-Dart Quick Reload Clip
12 freccette d'élite

Nerf N-Strike Elite Retaliator Blaster in packaging — Figure 1: Nerf N-Strike Elite Retaliator Blaster in its original packaging, showing the main blaster, stock, barrel extension, and darts.

Nerf N-Strike Elite Retaliator Blaster with all attachments — Figure 2: The Nerf N-Strike Elite Retaliator Blaster fully assembled with the stock, barrel extension, and stability handle attached.

Impostare

Collegamento di componenti

The Retaliator Blaster is designed for modular assembly, allowing for four different configurations. Components can be easily attached and detached.

Allega il calcio: Align the stock with the rear of the main blaster unit and slide it on until it clicks into place. The stock helps stabilize your shot.
Attach the Barrel Extension: Align the barrel extension with the front of the main blaster unit and twist or slide it on until secure. The barrel extension features top and bottom Tactical Rails for additional accessories.
Attach the Stability Handle: Slide the stability handle onto one of the Tactical Rails on the barrel extension or the main blaster unit. This grip enhances mobility and control.

Nerf N-Strike Elite Retaliator Blaster in pistol configuration — Figure 3: The Nerf N-Strike Elite Retaliator Blaster in a compact pistol configuration, without the stock or barrel extension.

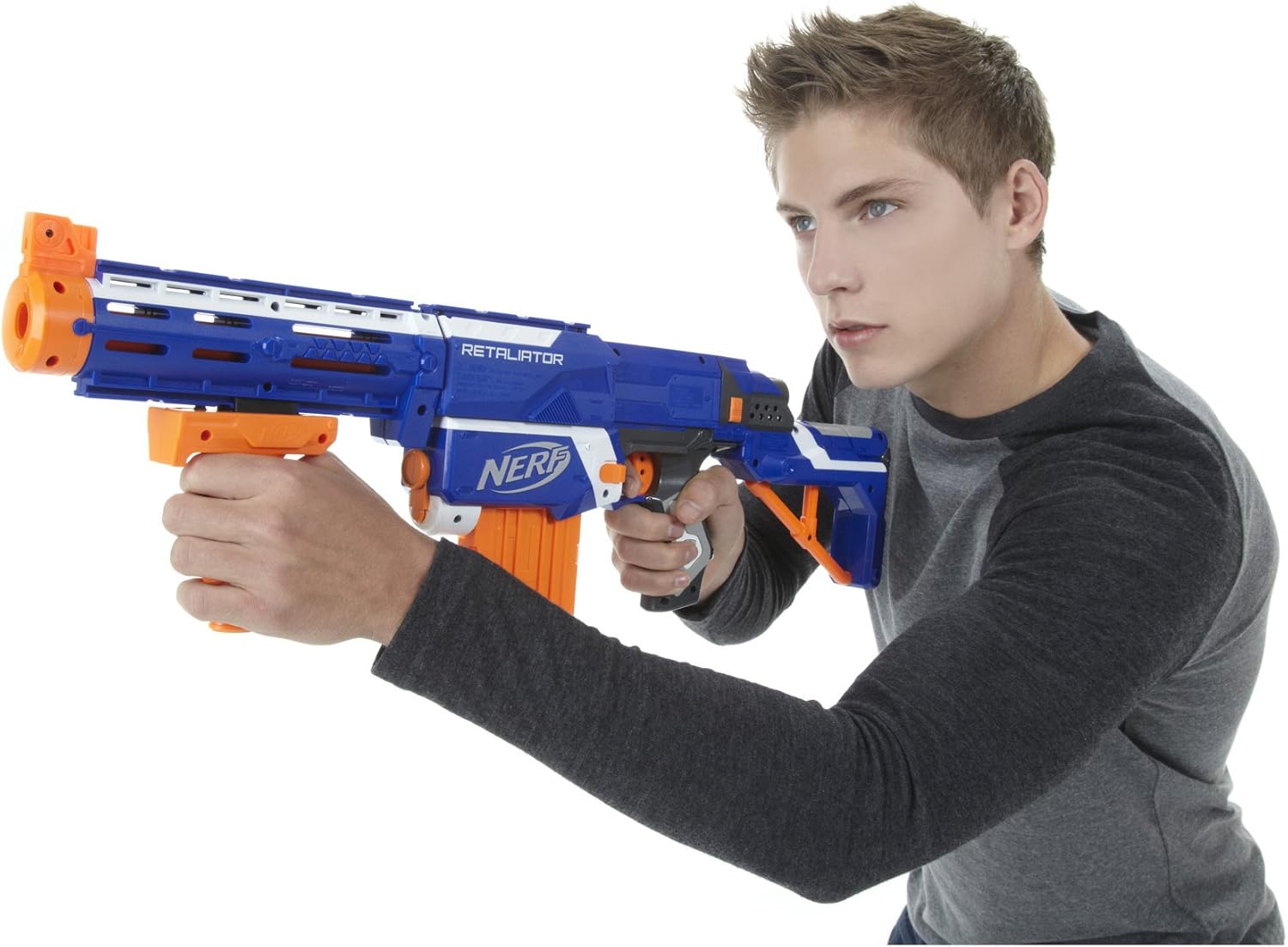

Nerf N-Strike Elite Retaliator Blaster with barrel extension and grip — Figure 4: The Nerf N-Strike Elite Retaliator Blaster with the barrel extension and stability handle attached, demonstrating a tactical configuration.

Operazione

Caricamento freccette

Load Elite Darts into the 12-dart Quick Reload Clip. Ensure darts are inserted in the direction indicated on the clip.
Insert one dart at a time and push down until fully seated. The clip can hold up to 12 darts.

Diagram showing how to load darts into the clip — Figure 5: Illustration demonstrating the correct method for loading darts into the Quick Reload Clip.

Inserting the Clip

Pull the SLIDE all the way back until the READY INDICATOR is orange. Keep the slide in the rearmost position.
Insert the loaded Quick Reload Clip into the main blaster unit. Ensure the arrow on the clip points away from the trigger. The clip will click into place.

Diagram showing how to insert the dart clip into the blaster — Figure 6: Illustration showing the process of inserting the loaded dart clip into the blaster and pulling back the slide.

Sparare con il blaster

Push the SLIDE all the way forward to chamber a dart.
Pull the trigger to fire.
To fire again, pull the SLIDE all the way back, then push it all the way forward to chamber another dart. Pull the trigger. Repeat this step until the clip is empty.

Diagram showing the firing sequence of the blaster — Figure 7: Illustration detailing the steps for firing the Nerf N-Strike Elite Retaliator Blaster, including priming and shooting.

Official Product Video: Nerf N-Strike Elite Retaliator Blaster Overview

Questo video fornisce un overview of the Nerf N-Strike Elite Retaliator Blaster, demonstrating its features and customizable configurations. It shows how to attach the stock, barrel extension, and grip, and highlights the blaster's dart capacity and firing range.

Manutenzione

Rimozione di un inceppamento

If a dart jam occurs, follow these steps:

If the SLIDE seems stuck, try pulling the TRIGGER first.
Check the BARREL area for a jammed dart. Pull the SLIDE all the way back. Open the JAM CLEARING DOOR and remove any jammed darts. Close the JAM CLEARING DOOR completely, as the blaster will not function if it is open.
Check the CLIP area for a jammed dart. Pull the SLIDE all the way back. Press the CLIP RELEASE button and remove the QUICK RELOAD CLIP. Remove any jammed darts.
Replace the CLIP and push the SLIDE all the way forward. This should load another dart.

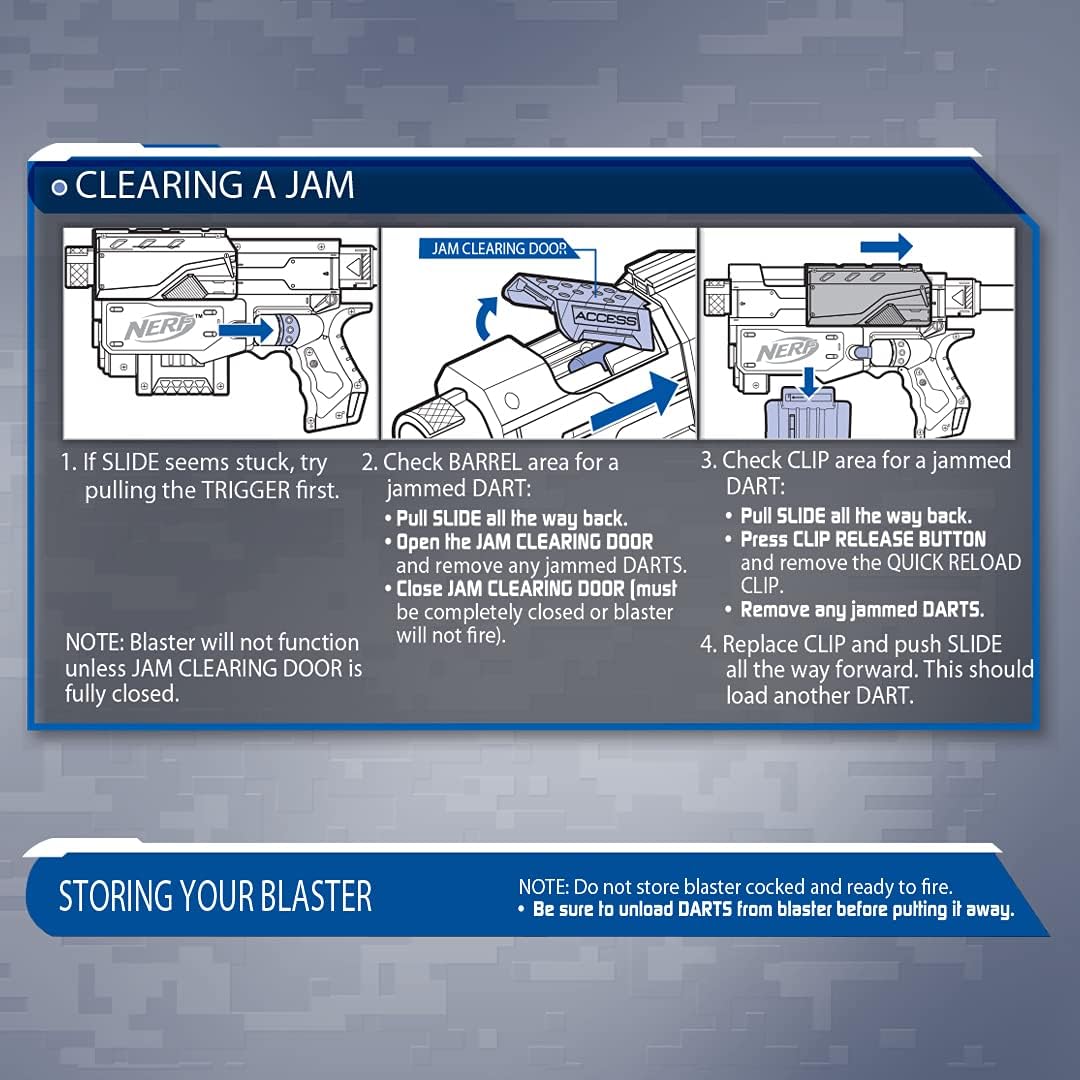

Diagram showing how to clear a dart jam — Figure 8: Illustration detailing the steps to clear a dart jam from the Nerf N-Strike Elite Retaliator Blaster, including opening the jam clearing door.

Storing Your Blaster

Do not store the blaster cocked and ready to fire.
Be sure to unload darts from the blaster before putting it away.

Risoluzione dei problemi

Problema	Possibile causa	Soluzione
Darts not firing or firing weakly.	Jammed dart, worn darts, slide not fully primed.	Clear any jams (refer to "Clearing a Jam"). Use new, undamaged Elite Darts. Ensure the slide is pulled back and pushed forward completely.
Clip not inserting or removing easily.	Slide not fully back, obstruction in clip well.	Ensure the slide is pulled all the way back. Check for any debris in the clip well. Press the clip release button firmly.
Attachments (stock, barrel) are loose.	Not fully engaged, worn connection points.	Ensure attachments are pushed or twisted until they click securely into place. If connections are worn, replacement parts may be needed (contact customer support).

Specifiche

Numero modello: 98696
Marca: Nerf
Produttore: Marchio
Tipo di materiale: Plastica
Peso dell'articolo: 150 grammi
Dimensioni dell'articolo: 2.99 x 19.02 x 11.5 pollici
Portata massima: Fino a 90 piedi (27 metri)
Capacità freccette: 12 Elite Darts (with included clip)
Età consigliata: 8+
Batterie richieste: NO
Assemblaggio richiesto: No (modular components attach easily)

Garanzia e supporto

Questo prodotto viene fornito con Nessuna garanzia as per manufacturer specifications. For any product inquiries or support, please contact Hasbro customer service directly.

You can visit the official Nerf store for more information and accessories: Nerf Official Store

Nerf 98696
