Pyle PLCM7500 Posteriore View Manuale utente del sistema di telecamere di backup per auto

1. Introduzione

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Pyle PLCM7500 Rear View Backup Car Camera System. This system is designed to enhance driving safety by providing a clear view of the area behind your vehicle, assisting with parking and reversing maneuvers.

Figure 1: Pyle PLCM7500 Rear View Backup Car Camera System components.

2. Cosa c'è nella scatola

Disimballare con cura tutti i componenti e assicurarsi che siano inclusi i seguenti articoli:

• 7-inch TFT/LCD Monitor
• Posteriore View Telecamera di backup
• Alimentazione e cablaggio
• Cavo video RCA
• Controllo remoto senza fili
• Mounting Hardware (for monitor and camera)
• Manuale dell'utente (questo documento)

Figure 2: All components included in the Pyle PLCM7500 package.

3. Caratteristiche principali

• Telecamera di retromarcia: Rugged rear view camera with true color reproduction (656x492px), low lux performance, and a wide 170° viewing angle. Features an adjustable swivel angle.
• Widescreen Monitor: HD 7-inch TFT/LCD display with a 16:9 widescreen ratio. Supports PAL/NTSC video systems and connects via dual RCA jacks.
• Dashboard Mountable: Both the camera and monitor are designed for easy mounting. The camera can be mounted to the license plate with its slim bar-style housing.
• Waterproof & Night Vision: The camera is IP-67 marine grade waterproof and fog resistant, ensuring reliable performance in various weather conditions. Equipped with night vision capabilities for low-light visibility.
• Linee di scala della distanza: Provides accurate distance scale lines on the monitor display to assist with precise parking and reversing.

Figure 3: Night Vision and Distance Scale Lines for enhanced safety.

Figure 4: Marine Grade Camera Construction for durability in all weather.

4. Configurazione e installazione

Proper installation is crucial for optimal performance. It is recommended to have a basic understanding of automotive wiring or seek professional assistance if unsure.

4.1. Schema elettrico sopraview

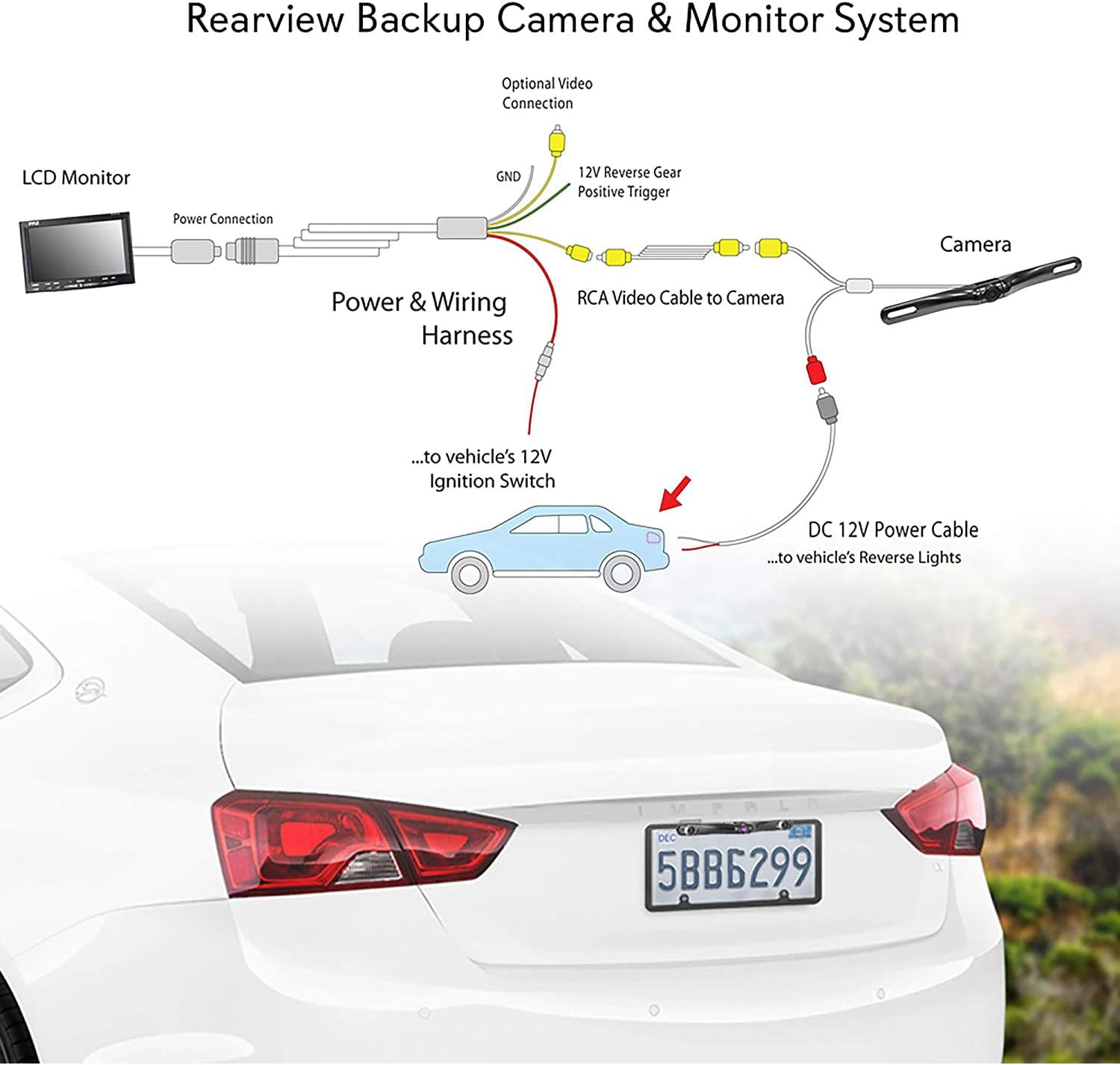

Figure 5: Wiring connections for the Pyle PLCM7500 system.

4.2. Fasi di installazione

1. Montaggio della fotocamera: Mount the camera above your license plate. Ensure the adjustment screws are facing downwards for correct image orientation. You may need to drill a small hole near the license plate to route the camera cables into the vehicle's interior.
2. Camera Power Connection: The camera has two leads: a yellow RCA video cable and a red power wire. Connect the red power wire to the 12V+ power lead of your vehicle's reverse light. Connect the black wire (ground) to a suitable ground source on your vehicle's frame.
3. Video Cable Routing: Route the long RCA video cable from the camera to the front of the vehicle where the monitor will be placed. This can be done by tucking it under interior trim pieces, along cable channels in door frame sills, or under carpeting. A wire fisher tool may be helpful.
4. Collegamento dell'alimentazione del monitor: The monitor can be powered via the included cigarette lighter adapter or by splicing into a 12V power lead (e.g., from the fuse box or behind the cigarette lighter socket).
5. Collegamento del grilletto inverso: The RCA video cable has a thin red wire running alongside it. This wire is crucial for automatically activating the monitor when reverse gear is engaged. Connect one end of this red wire to the 12V+ power lead of the reverse light (the same point where the camera's red power wire is connected). Connect the other end of this red wire to the green wire from the monitor's wiring bundle. This ensures the monitor powers on only when reverse is selected.
6. Montaggio del monitor: Mount the monitor on your dashboard using the provided mounting hardware. Avoid overtightening the mounting screws to prevent damage to the monitor casing.
7. Test di pre-installazione: Before final installation, it is highly recommended to connect all components on a table or floor to verify functionality and understand the wiring connections.

5. Funzionamento

Once installed, the system operates primarily when the vehicle is in reverse gear. The monitor will automatically display the camera feed.

5.1. Controlli del monitor

Figure 6: Front panel controls of the PLCM7500 monitor.

• 1. Potenza: Accende/spegne il monitor.
• 2. V1/V2 Switch: Toggles between Video Input 1 and Video Input 2 (if a second video source is connected).
• 3. Menù: Accede al menu delle impostazioni del monitor.
• 4. Negative Adjustment (-): Decreases selected setting value in menu.
• 5. Sensore remoto: Receives signals from the wireless remote control.
• 6. Positive Adjustment (+): Increases selected setting value in menu.
• 7. Mode (16:9 / 4:3 Display Switch): Changes the display aspect ratio.
• 8. SYS (Image Rotation): Rotates the image display.

5.2. Utilizzo del telecomando

The included wireless remote control provides convenient access to all monitor functions, mirroring the front panel buttons.

6. Manutenzione

To ensure the longevity and optimal performance of your Pyle PLCM7500 system, follow these maintenance guidelines:

• Pulizia: Utilizzare un morbido, damp panno per pulire lo schermo del monitor e l'obiettivo della fotocamera. Evitare detergenti abrasivi o solventi.
• Obiettivo della fotocamera: Periodically check the camera lens for dirt, mud, or snow, especially after driving in adverse conditions. A clear lens ensures a clear image.
• Connessioni: Assicurarsi che tutti i collegamenti elettrici siano sicuri e privi di corrosione.
• Protezione dalle intemperie: While the camera is waterproof, extreme temperatures or prolonged exposure to harsh elements can affect performance.

7. Risoluzione Dei Problemi

If you encounter issues with your Pyle PLCM7500 system, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact Pyle customer support.

8. Specifiche

9. Garanzia e supporto

I prodotti Pyle sono progettati per garantire affidabilità e prestazioni. Per informazioni specifiche sulla garanzia, consultare la documentazione inclusa con l'acquisto o visitare il sito ufficiale Pyle. websito.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Pyle customer service. You may also find additional resources, including a Certificate of Compliance, on the product's support page.

Nota importante: Questo prodotto contiene sostanze chimiche note allo Stato della California come causa di cancro e malformazioni congenite o altri danni all'apparato riproduttivo.
