GIVI 441A Windscreen Instruction Manual

1. Prodotto finitoview

The GIVI 441A transparent windscreen is designed to enhance the riding experience on Kymco Agility City 125 motorcycles. This accessory provides improved aerodynamic protection against wind, reducing rider fatigue and increasing comfort during travel. Constructed from high-quality acrylic or polycarbonate material, the windscreen offers durability and clear visibility.

Its specific design ensures a precise fit for the Kymco Agility City 125, facilitating straightforward installation without requiring modifications to the motorcycle's original structure. The windscreen measures 72 cm in width and 66 cm in height, offering optimal coverage.

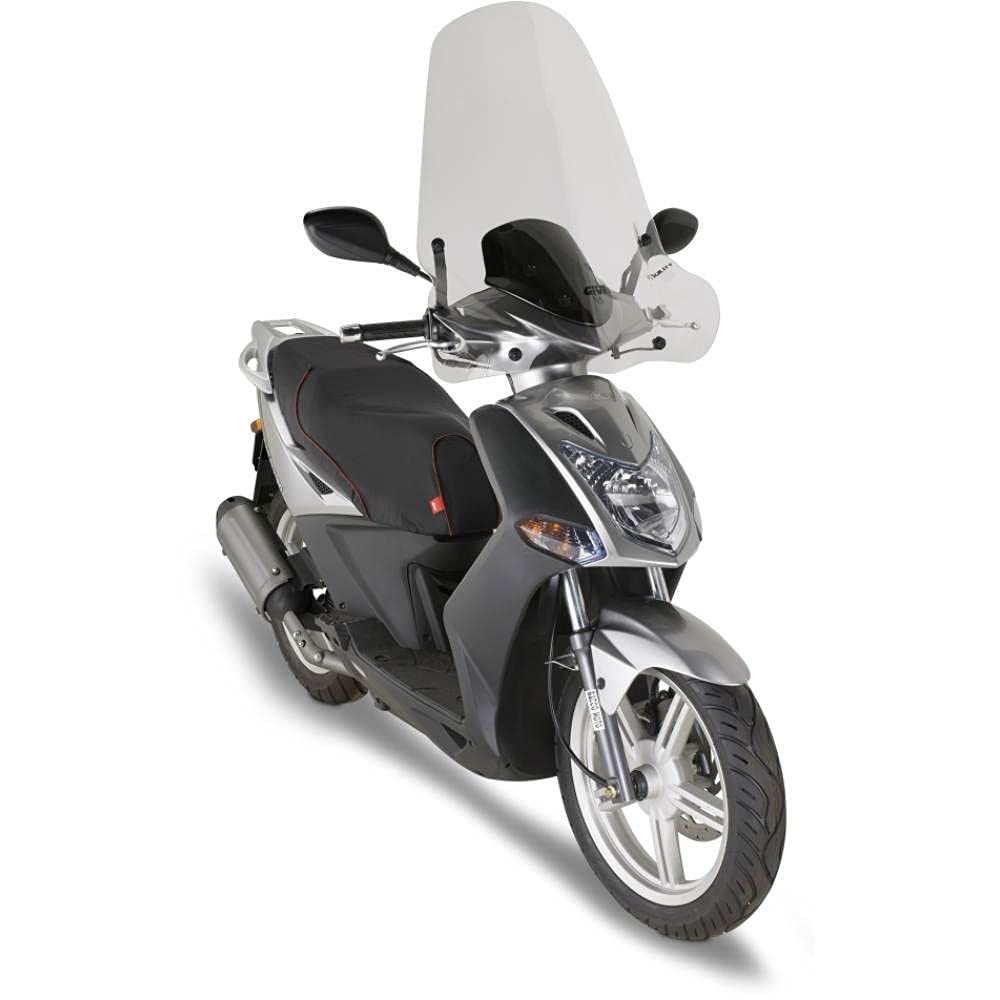

Figure 1.1: GIVI 441A Transparent Windscreen for Kymco Agility City 125.

2. Informazioni sulla sicurezza

Read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product or motorcycle.

• Installazione professionale consigliata: In caso di dubbi su un passaggio, rivolgersi a un meccanico di motociclette qualificato.
• Controllare i dispositivi di fissaggio: Regularly inspect all mounting hardware to ensure it remains securely tightened. Loose fasteners can lead to windscreen detachment during operation.
• Visibilità: Ensure the windscreen does not obstruct your field of vision. Clean the windscreen regularly to maintain clear visibility.
• Cura del materiale: Avoid using abrasive cleaners or cloths on the windscreen, as this can cause scratches and impair visibility.
• Fattori ambientali: Be aware that strong winds or extreme weather conditions may affect motorcycle handling with a windscreen installed.

3. Configurazione e installazione

This section provides general guidelines for installing the GIVI 441A windscreen. Please note that mounting hardware is not included with the windscreen and must be purchased separately or reused from existing components if compatible. The windscreen is designed for the Kymco Agility City 125 model.

3.1. Contenuto della confezione

• GIVI 441A Transparent Windscreen (2 pieces, referring to the screen itself and potentially a lower deflector or specific mounting points on the screen)
• Note: Mounting kit (brackets, bolts, washers) is sold separately.

3.2. Strumenti necessari (non forniti)

• Appropriate wrenches and/or Allen keys for your specific mounting kit.
• Screwdrivers (Phillips and/or flathead, depending on mounting kit).
• Chiave dinamometrica (consigliata per un serraggio preciso).

3.3. Fasi di installazione

1. Preparare la motocicletta: Parcheggiare la motocicletta su una superficie stabile e piana. Spegnere il motore e togliere la chiave.
2. Identificare i punti di montaggio: Locate the designated mounting points on your Kymco Agility City 125. These are typically near the handlebars or front fairing. Refer to your motorcycle's service manual or the specific GIVI mounting kit instructions for exact locations.
3. Fissare le staffe (se applicabile): If your mounting kit includes separate brackets, attach them to the motorcycle's frame or handlebar mounts according to the kit's instructions. Do not fully tighten at this stage.
4. Position the Windscreen: Carefully align the GIVI 441A windscreen with the mounting points on the brackets or directly on the motorcycle.
5. Secure the Windscreen: Insert the appropriate bolts and washers through the windscreen's holes and into the mounting points. Hand-tighten all fasteners to allow for minor adjustments.
6. Regola allineamento: Ensure the windscreen is centered and properly aligned. Adjust as necessary for optimal fit and rider visibility.
7. Serraggio finale: Once satisfied with the alignment, progressively tighten all fasteners. Use a torque wrench if specified by the mounting kit instructions to avoid over-tightening, which can damage the windscreen or motorcycle components.
8. Controllo finale: Verify that the windscreen is securely mounted and does not interfere with steering, controls, or other motorcycle parts.

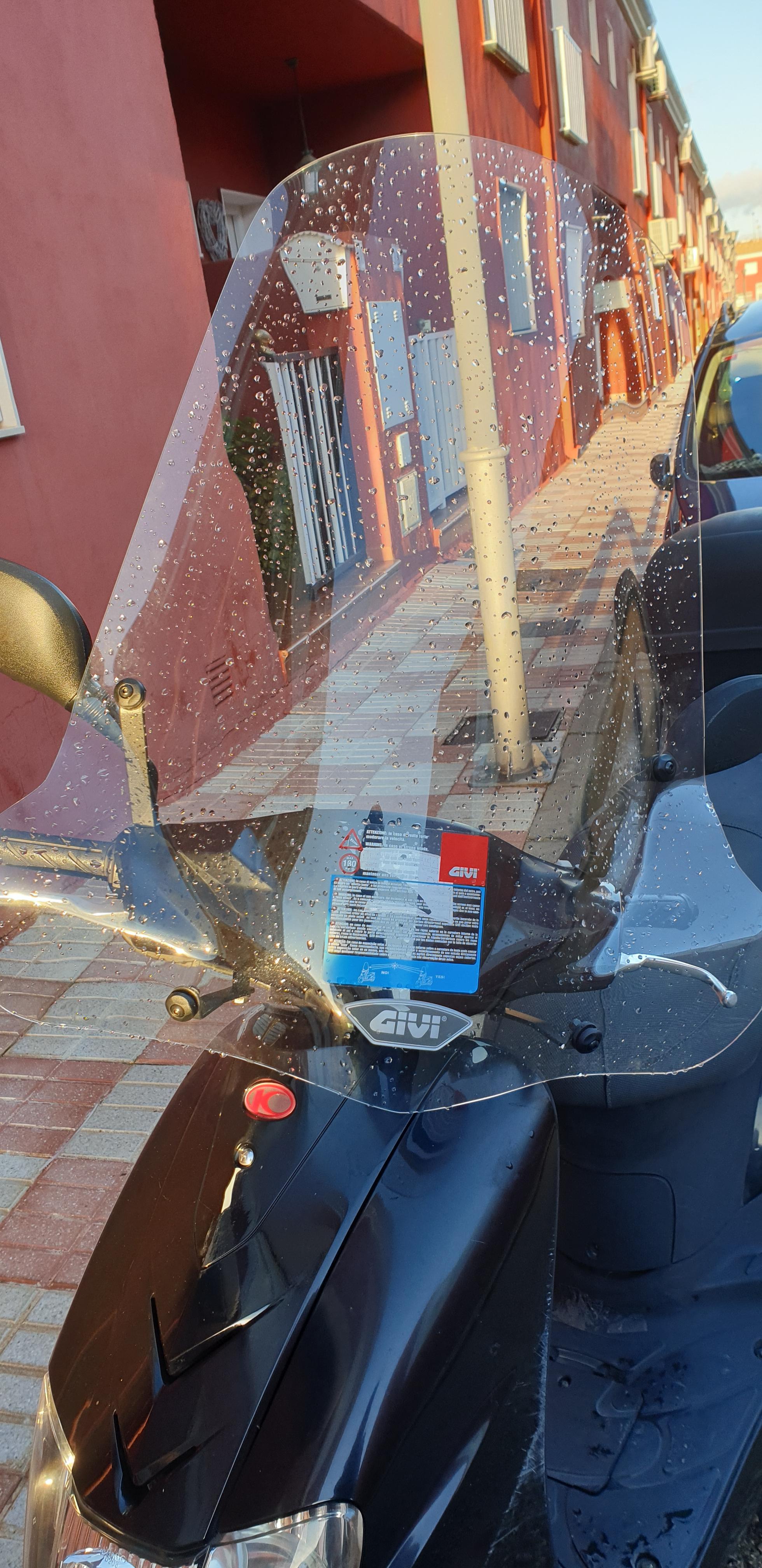

Figura 3.1: Esample of GIVI windscreen installed on a Kymco scooter. Note that specific mounting hardware may vary.

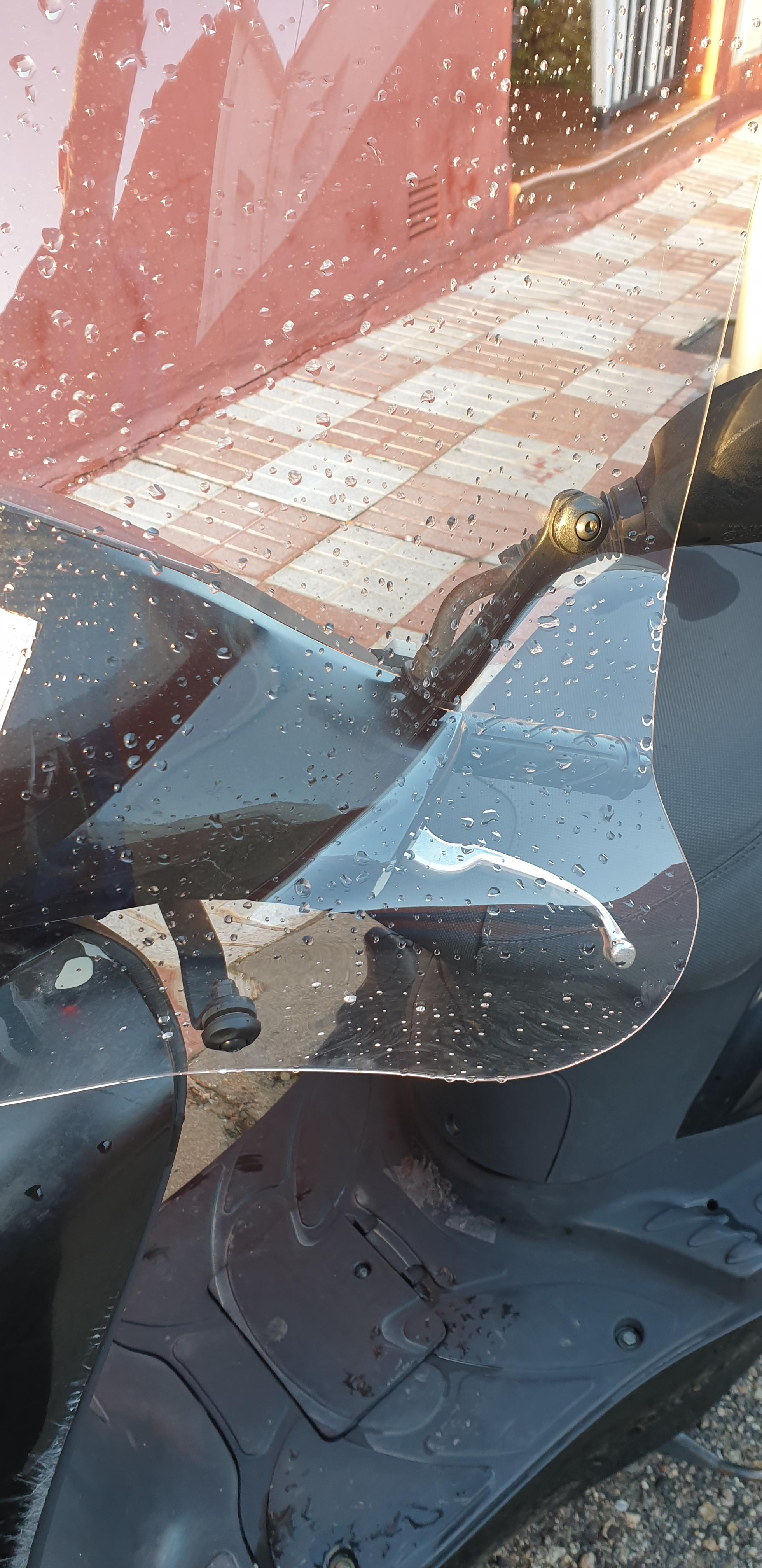

Figura 3.2: lato view of the GIVI windscreen installation, showing coverage.

4. Funzionamento e vantaggi

Once properly installed, the GIVI 441A windscreen provides several operational benefits for the rider:

• Protezione dal vento migliorata: The windscreen significantly reduces direct wind pressure on the rider's chest and head, especially at higher speeds. This minimizes fatigue on longer journeys.
• Comfort migliorato: By deflecting wind, the windscreen contributes to a more comfortable riding experience, particularly in colder weather or during extended periods of travel.
• Protezione dagli elementi: It offers a degree of protection against light rain, insects, and road debris, enhancing rider safety and cleanliness.
• Visibilità chiara: The transparent, high-quality material ensures an unobstructed view della strada da percorrere.

Always ensure the windscreen is clean and free from obstructions before riding to maintain optimal visibility.

5. Manutenzione

Proper maintenance will extend the life and maintain the clarity of your GIVI 441A windscreen.

5.1. Pulizia

• Pulizia delicata: Use only mild soap or a specialized plastic cleaner with a soft, non-abrasive cloth or sponge.
• Evitare prodotti chimici aggressivi: Do not use ammonia-based cleaners, window cleaners, or abrasive compounds, as these can damage the acrylic/polycarbonate material and cause hazing or cracking.
• Risciacquare abbondantemente: Rinse the windscreen with clean water to remove all soap residue.
• Dry Carefully: Air dry or gently wipe with a clean, soft microfiber cloth to prevent water spots.

5.2. Ispezione

• Controlli regolari: Periodically inspect the windscreen for any signs of cracks, deep scratches, or damage that could impair visibility or structural integrity.
• Hardware di montaggio: Regularly check all bolts, nuts, and brackets for tightness. Vibrations from riding can cause fasteners to loosen over time. Tighten any loose components immediately.

6. Risoluzione Dei Problemi

7. Specifiche del prodotto

• Modello: GIVI 441A
• Compatibilità: Kymco Agility City 125
• Dimensioni (larghezza x altezza): 72 cm x 66 cm (circa 28.3 pollici x 26 pollici)
• Materiale: High-quality Acrylic or Polycarbonate
• Colore: Trasparente
• Numero di pezzi: 2 (referring to the windscreen and potentially a specific mounting component or design aspect)
• Produttore: GIVI

8. Garanzia e supporto

GIVI products are manufactured to high standards. For information regarding warranty coverage, terms, and conditions, please refer to the official GIVI website or contact your authorized GIVI dealer.

For technical support, installation queries, or to purchase replacement parts, please contact GIVI customer service or your local GIVI distributor. Ensure you have your product model number (441A) and purchase details available when seeking support.
