Introduzione

This manual provides instructions for the proper installation, operation, and maintenance of the Samsung OEM Original Part: DA92-00147B Refrigerator Main Board PCB Assembly. This component is a critical part of your refrigerator's control system. Please read this manual thoroughly before attempting any installation or service.

Informazioni importanti sulla sicurezza: Always disconnect power to the refrigerator before servicing. Only qualified technicians should attempt installation or repair of this component. Failure to follow these instructions could result in electric shock, fire, or other personal injury or property damage.

Prodotto finitoview

The DA92-00147B Refrigerator Main Board PCB Assembly is an original equipment manufacturer (OEM) part designed for various Samsung refrigerator models. It serves as the central control unit, managing functions such as temperature regulation, defrost cycles, and compressor operation.

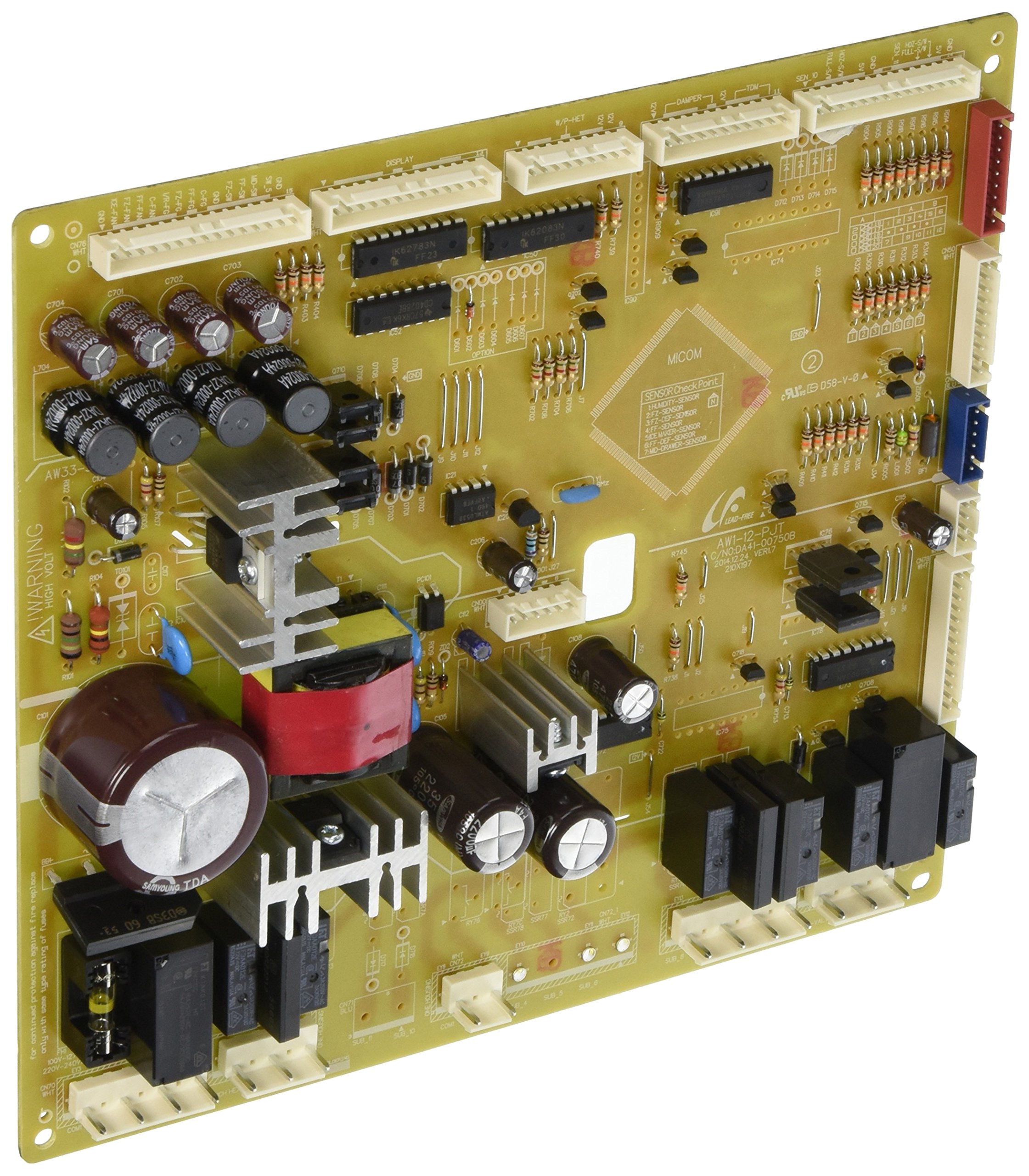

Immagine 1: Davanti view of the Samsung DA92-00147B Refrigerator Main Board PCB Assembly. This image shows the various connectors and components on the circuit board.

Caratteristiche principali:

• Genuine Samsung OEM part ensures compatibility and reliability.
• Controls essential refrigerator functions.
• Designed for specific Samsung refrigerator models.

Istruzioni per l'installazione

Strumenti necessari:

• Set di cacciaviti (a croce e a taglio)
• Pinza a becchi lunghi
• Multimetro (per i test, facoltativo ma consigliato)
• Cinturino da polso antistatico (consigliato)

Prima di iniziare:

1. Scollegare l'alimentazione: Unplug the refrigerator from the wall outlet or turn off the circuit breaker supplying power to the refrigerator. Verify power is off using a multimeter.
2. Accedi alla bacheca principale: The main board is typically located on the back of the refrigerator, often behind a metal or plastic cover. Refer to your specific refrigerator model's service manual for exact location and access procedures.
3. Collegamenti ai documenti: Before disconnecting any wires, take clear photos or make detailed diagrams of all wire connections to the existing main board. This will aid in correct reassembly.

Fasi di installazione:

1. Rimuovere la vecchia scheda: Carefully disconnect all wire harnesses and connectors from the old main board. Note any clips or screws holding the board in place and remove them.
2. Installa la nuova scheda: Position the new DA92-00147B main board in the same location as the old one. Secure it with the previously removed screws or clips.
3. Ricollegare i fili: Using your photos or diagrams, carefully reconnect all wire harnesses and connectors to the new main board. Ensure each connection is secure and correctly seated. Double-check all connections before proceeding.
4. Sostituisci la copertura: Reinstall any covers or panels that were removed to access the main board.
5. Ripristina alimentazione: Ricollegare il frigorifero alla presa a muro o accendere l'interruttore automatico.
6. Operazione di prova: Allow the refrigerator to power on and observe its operation. Check for proper cooling, light function, and any error codes.

Initial Operation and Configuration

After successful installation, the refrigerator's main board will typically initialize automatically. No specific user operation is required for the main board itself, as it functions as an internal control component.

Controlli post-installazione:

• Verify that the refrigerator powers on and the interior lights function.
• Check that the compressor starts and the refrigerator begins to cool.
• Monitor the temperature in both the fresh food and freezer compartments over several hours to ensure stable cooling.
• Listen for any unusual noises or observe any error codes on the display (if applicable to your model).

Refer to your refrigerator's user manual for instructions on setting desired temperatures and other user-facing functions.

Manutenzione

The DA92-00147B Refrigerator Main Board PCB Assembly is a sealed electronic component and does not require routine user maintenance. Any issues with the main board typically require replacement rather than repair.

General Refrigerator Maintenance Tips (to prolong component life):

• Keep the condenser coils clean to ensure efficient cooling and reduce strain on components.
• Garantire una corretta ventilazione intorno al frigorifero.
• Avoid overloading the refrigerator, which can lead to excessive compressor run times.

If you suspect an issue with the main board, consult the troubleshooting section or contact a qualified service technician.

Risoluzione dei problemi

This section provides general troubleshooting steps for issues that might be related to the main board. Always ensure power is disconnected before inspecting internal components.

Se le procedure di risoluzione dei problemi non risolvono il problema, si consiglia di contattare un tecnico qualificato per la riparazione degli elettrodomestici.

Specifiche

• Numero parte: DA92-00147B
• Informazioni sul modello: 8279179
• Marca: SAMSUNG
• Peso dell'articolo: 1.21 libbre (circa 0.55 kg)
• Dimensioni del prodotto: 1 x 1 x 1 pollici (circa 2.54 x 2.54 x 2.54 cm) - Note: These dimensions may refer to packaging or a generic placeholder. Actual board dimensions may vary slightly.
• Componenti inclusi: Unit (Main Board PCB Assembly)
• Compatibilità: Fits with various Samsung refrigerator models. Verify compatibility with your specific model before purchase.

Informazioni sulla garanzia

As an OEM part, the warranty for the DA92-00147B Refrigerator Main Board PCB Assembly is typically provided by the seller or Samsung, subject to their terms and conditions. Please retain your proof of purchase.

For specific warranty details, refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Warranty coverage usually applies to manufacturing defects and does not cover damage due to improper installation, misuse, or external factors.

Assistenza clienti

For technical assistance, installation guidance, or warranty claims, please contact:

• Servizio clienti Samsung: Visita il sito ufficiale Samsung website for support contact information specific to your region.
• Centri di assistenza autorizzati: Locate an authorized Samsung service center for professional repair.
• Supporto al rivenditore: Contact the retailer from whom you purchased the part for initial support or return inquiries.

When contacting support, please have your refrigerator model number, the part number (DA92-00147B), and proof of purchase readily available.
