Ocal HUB1-G 1-Inch PVC Coated Hub Instruction Manual

Introduzione

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Ocal HUB1-G 1-Inch PVC Coated Hub. The HUB1-G is designed for electrical conduit applications requiring corrosion resistance and a secure connection to enclosures.

Informazioni sulla sicurezza

Per evitare lesioni o danni alle apparecchiature, attenersi sempre alle seguenti linee guida di sicurezza:

• Scollegare l'alimentazione: Ensure all power to the electrical system is disconnected before beginning any installation or maintenance procedures.
• Personale qualificato: Installation and maintenance should only be performed by qualified electricians in accordance with all national and local electrical codes.
• Dispositivi di protezione individuale (DPI): Wear appropriate PPE, including safety glasses and gloves, during installation.
• Ispezionare i componenti: Before installation, inspect all components for any signs of damage. Do not install damaged parts.

Prodotto finitoview

The Ocal HUB1-G is a corrosion-resistant knockout hub featuring robust construction and a protective PVC coating. It is engineered to provide a reliable and sealed connection for 1-inch conduits.

Caratteristiche principali:

• Resistenza alla corrosione: Constructed from zinc or copper-free aluminum with a nominal 0.04-inch (40 mil) PVC coating bonded to the exterior.
• Connessione sicura: Features a hexagonal/splined body and locknut for fast and easy installation.
• Integrità della sigillatura: A captive sealing ring provides a complete 360-degree seal, even when the conduit is not perfectly perpendicular to the enclosure.
• Thermoplastic Insulation: Includes a 1-inch thermoplastic insulated throat.

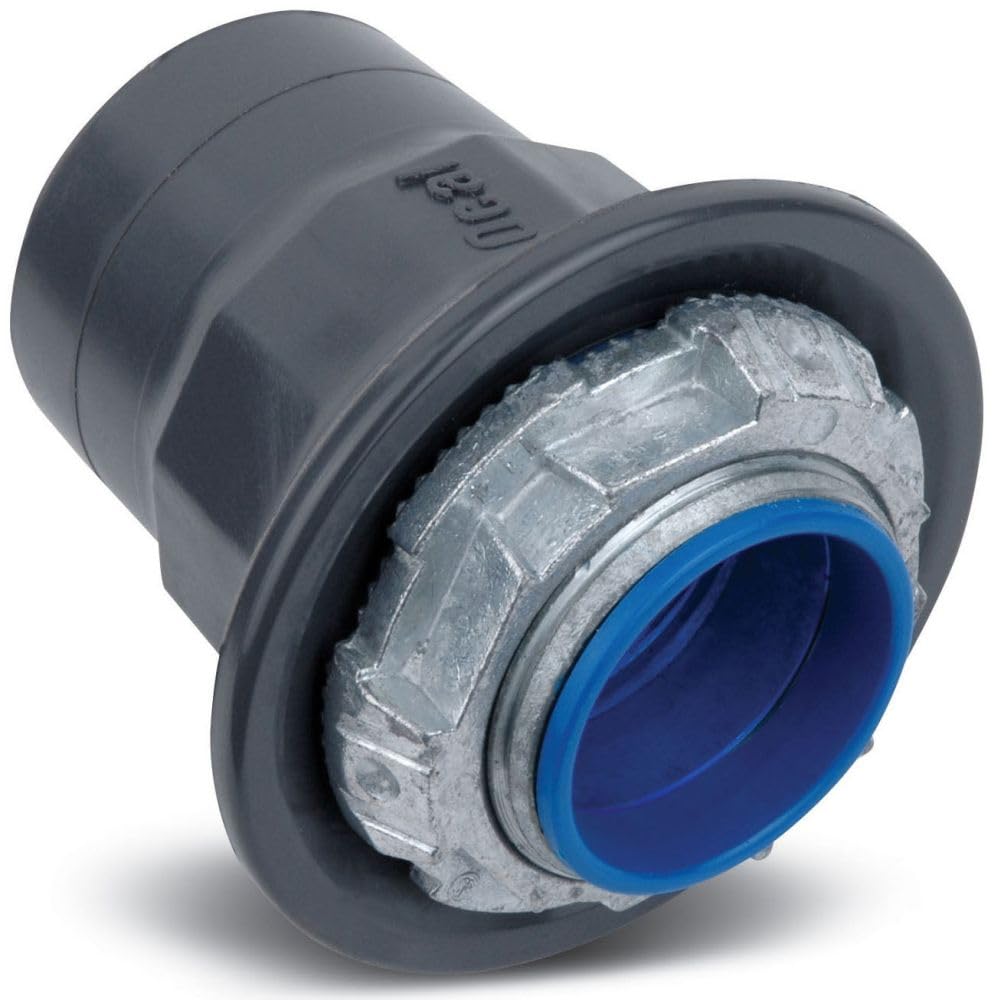

Figura 1: Dall'alto verso il basso view of the Ocal HUB1-G hub, highlighting the internal blue sealing ring and the metal locknut structure.

Configurazione e installazione

Follow these steps for proper installation of the Ocal HUB1-G hub:

1. Prepare Enclosure: Ensure the enclosure has a properly sized knockout or threaded opening for a 1-inch conduit.
2. Thread Hub: Thread the Ocal HUB1-G hub into the prepared opening of the enclosure.
3. Secure Locknut: Hand-tighten the hexagonal/splined locknut onto the hub from the inside of the enclosure.
4. Serraggio finale: Use an appropriate wrench to firmly tighten the locknut, ensuring a secure connection. The captive sealing ring should compress to create a complete 360-degree seal against the enclosure surface.
5. Collegare il condotto: Thread the 1-inch conduit into the hub. Ensure the conduit is fully engaged and tightened to prevent movement and maintain the seal.

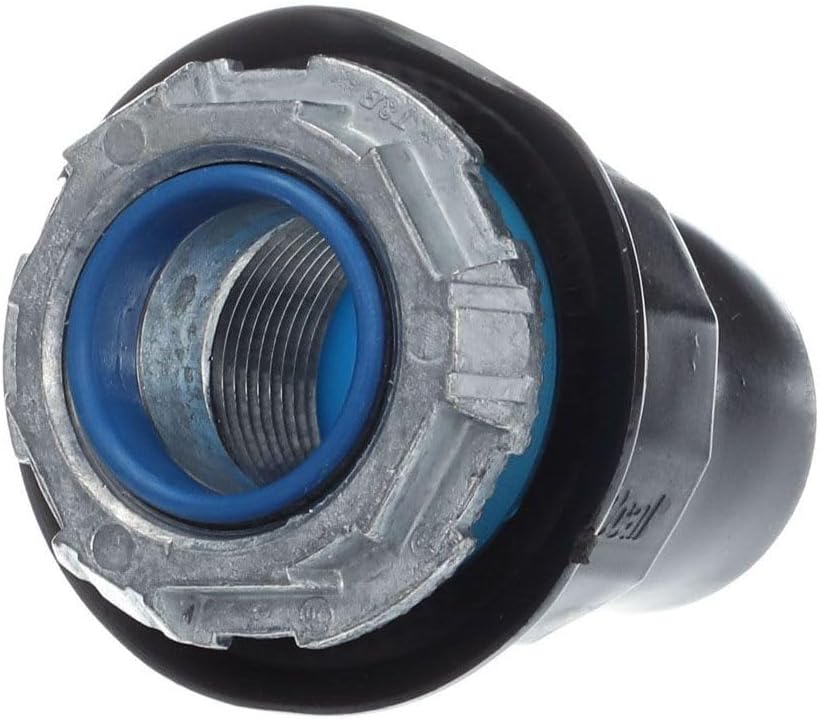

Figura 2: Angolato view of the Ocal HUB1-G, illustrating the threaded interior for conduit connection and the durable PVC exterior.

Operativo

Once correctly installed, the Ocal HUB1-G functions as a permanent, sealed, and corrosion-resistant connection point for electrical conduits to an enclosure. It requires no active operation.

Manutenzione

The Ocal HUB1-G is designed for minimal maintenance. However, periodic inspection is recommended:

• Ispezione visiva: Annually inspect the hub and its connection points for any signs of physical damage, cracking of the PVC coating, or corrosion.
• Integrità del sigillo: Verify that the sealing ring remains intact and that the connection to the enclosure is still tight and secure.
• Pulizia: If necessary, clean the exterior of the hub with a damp cloth. Avoid abrasive cleaners that could damage the PVC coating.

Figura 3: lato view of the Ocal HUB1-G, displaying the complete profile and threaded conduit connection point.

Risoluzione dei problemi

Should issues arise, consider the following:

• Collegamento allentato: If the conduit or hub feels loose, re-tighten the locknut and the conduit connection. Ensure the sealing ring is properly compressed.
• Signs of Corrosion: If significant corrosion is observed on the metal components despite the PVC coating, the hub may need to be replaced. Ensure the PVC coating is not compromised.
• Ingresso d'acqua: If water or moisture is found inside the enclosure at the hub connection, check the tightness of the hub and the integrity of the sealing ring. Re-installation or replacement may be necessary.

Specifiche

Informazioni sulla garanzia

Please note that the manufacturer's specifications indicate Nessuna garanzia for this product. For details regarding return policies, please refer to your point of purchase.

Supporto

For technical assistance or further inquiries regarding the Ocal HUB1-G 1-Inch PVC Coated Hub, please contact your distributor or the manufacturer directly. Ensure you have the model number (HUB1-G) available when seeking support.
