Jet JWL-1236 Wood Lathe Operator's Manual

1. Introduzione

This operator's manual provides essential information for the safe and efficient use of your Jet JWL-1236 Wood Lathe. It includes detailed sections on operation, technical specifications, wiring diagrams, a comprehensive parts list, and assembly breakdown. Please read this manual thoroughly before operating the machine to ensure proper understanding and to prevent injury or damage.

The original publication number for this manual is M-708359, with a revision date of September 2002. This reprinted version maintains the high quality and accuracy of the original documentation.

2. Istruzioni di sicurezza

Always prioritize safety when operating the Jet JWL-1236 Wood Lathe. Failure to follow these instructions can result in serious injury.

• Leggi l'intero manuale: Understand all operating procedures and safety warnings before starting the lathe.
• Indossare protezioni per gli occhi: Indossare sempre occhiali di sicurezza o una visiera protettiva per proteggersi dai detriti volanti.
• Utilizzare protezioni acustiche: L'esposizione prolungata al rumore può causare danni all'udito.
• Indossare abiti appropriati: Evitare abiti larghi, gioielli e capelli lunghi che potrebbero impigliarsi nelle parti in movimento.
• Mantenere pulita l'area di lavoro: Keep the area around the lathe clear of clutter and well-lit.
• Garantire una ventilazione adeguata: Wood dust can be hazardous. Use a dust collection system.
• Pezzo sicuro: Always ensure the workpiece is securely mounted before turning.
• Never Leave Running Lathe Unattended: Always turn off the machine and wait for it to stop completely before leaving.
• Disconnect Power Before Adjustments: Always unplug the lathe before changing tools, making adjustments, or performing maintenance.
• Use Sharp Tools: Dull tools can cause kickback and are less efficient.

3. Installazione e assemblaggio

Proper assembly and setup are crucial for the safe and effective operation of your JWL-1236 Wood Lathe.

1. Disimballaggio: Rimuovere con attenzione tutti i componenti dall'imballaggio. Verificare che tutti i pezzi siano presenti e che siano conformi alla lista di imballaggio.
2. Montaggio: Securely mount the lathe to a sturdy workbench or stand using appropriate hardware. Ensure the mounting surface is level and stable.
3. Headstock and Tailstock: Ensure the headstock and tailstock are properly aligned and secured. Refer to the detailed assembly breakdown in the full manual for specific instructions.
4. Supporto per utensili: Install the tool rest base and tool rest, ensuring it can be adjusted freely and locked securely.
5. Collegamento elettrico: Connect the lathe to a grounded electrical outlet with the correct voltage as specified on the motor nameplate. Do not use extension cords unless absolutely necessary and ensure they are rated for the lathe's power requirements.
6. Ispezione iniziale: Before first use, inspect all fasteners for tightness and check for any signs of damage during shipping.

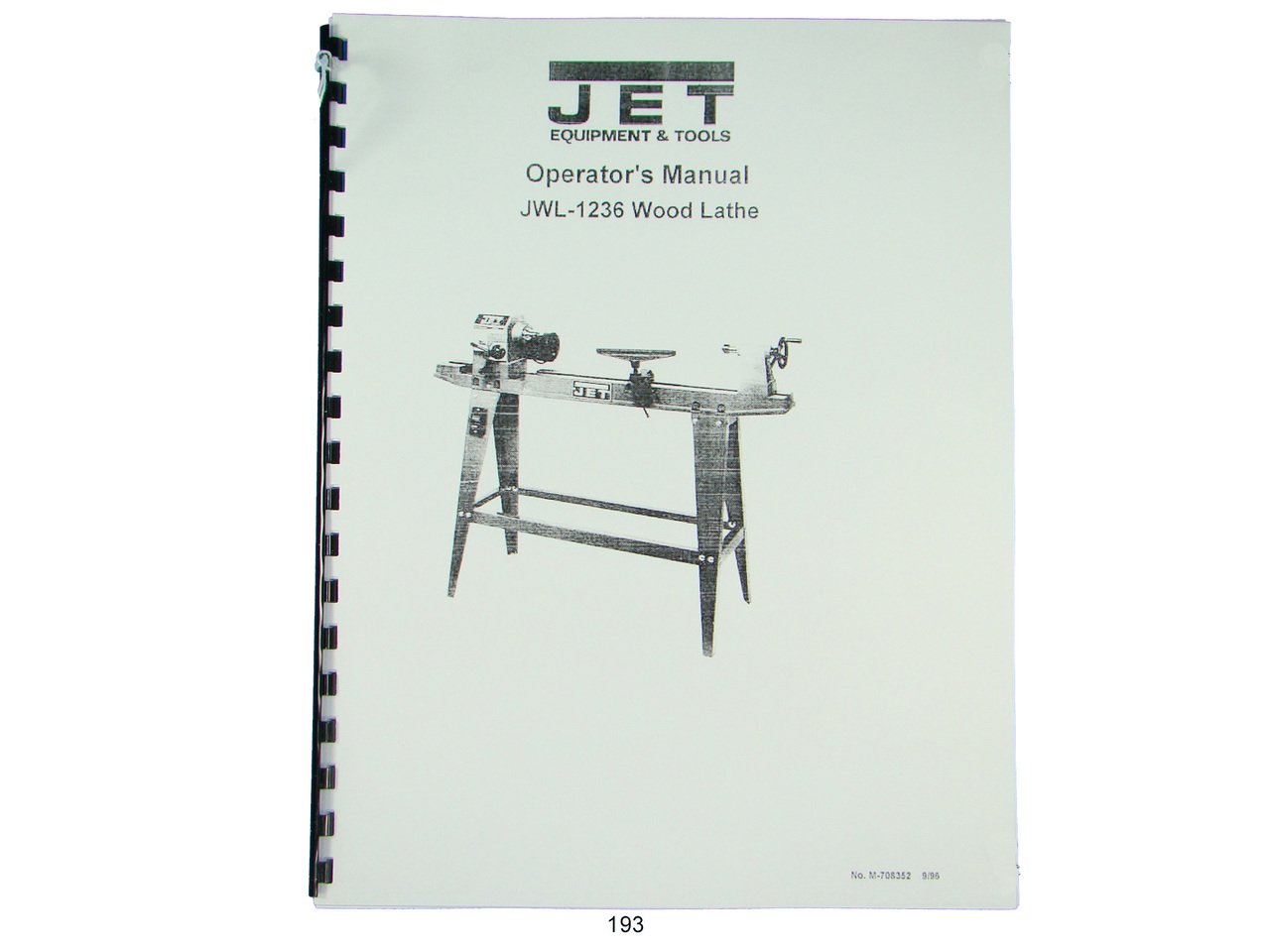

Figure 1: Cover of the Jet JWL-1236 Wood Lathe Operator's Manual. This image shows the front cover of the instruction manual, providing a visual reference for the document.

4. Istruzioni per l'uso

Follow these steps for safe and effective operation of your Jet JWL-1236 Wood Lathe.

1. Workpiece Selection: Choose wood free of knots, cracks, or other defects that could cause it to break apart during turning.
2. Montaggio del pezzo in lavorazione:
   • For spindle turning, secure the workpiece between the headstock drive center and the tailstock live center.
   • For faceplate turning, attach the workpiece securely to a faceplate using screws.
3. Adjusting Tool Rest: Position the tool rest as close as possible to the workpiece without touching it, and slightly below the centerline of the workpiece. Lock it securely.
4. Selezione della velocità: Choose an appropriate speed for the size and type of workpiece. Start at a lower speed and gradually increase as needed. Larger diameters and unbalanced pieces require slower speeds.
5. Avvio del tornio: Turn on the lathe and allow it to reach full speed before beginning to cut.
6. Turning Techniques:
   • Always present the cutting tool to the workpiece gradually and with control.
   • Use light cuts initially to round the workpiece and remove high spots.
   • Maintain a firm grip on the tool and keep your body balanced.
   • Move the tool rest frequently to keep it close to the cutting area.
7. Arresto del tornio: Turn off the power and wait for the workpiece to come to a complete stop before making any adjustments or removing the workpiece.

5. Manutenzione

Regular maintenance ensures the longevity and safe operation of your Jet JWL-1236 Wood Lathe.

• Pulizia: After each use, clean the lathe thoroughly, removing all wood dust and chips. Use compressed air or a brush; avoid using water directly on electrical components.
• Lubrificazione: Periodically lubricate moving parts such as the tailstock quill and lead screws according to the lubrication schedule provided in the full manual.
• Tensione della cinghia: Check the drive belt tension regularly. Adjust if too loose or too tight to prevent slippage or excessive wear.
• Affilatura degli utensili: Keep all turning tools sharp. Dull tools are less efficient and can be dangerous.
• Ispezione elettrica: Periodically inspect the power cord and plug for damage. Ensure all electrical connections are secure.
• Bedway Cleaning: Keep the lathe bedways clean and free of debris to ensure smooth movement of the tailstock and tool rest.

6. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your JWL-1236 Wood Lathe.

7. Specifiche

Key technical specifications for the Jet JWL-1236 Wood Lathe.

• Modello: JWL-1236
• Editore: Getto
• Publication Date of Manual: January 1, 1960 (Original manual)
• Peso dell'articolo manuale: 7 once
• ASIN: B00NGWFTAU
• Note: For detailed machine specifications (e.g., swing over bed, distance between centers, motor horsepower, spindle speeds), please refer to the full manual.

8. Parts List and Wiring Diagrams

A comprehensive parts list and detailed wiring diagrams are crucial for maintenance and repair. These are included in the complete Jet JWL-1236 Wood Lathe Operator's Manual.

• Elenco dei componenti: Provides exploded views and part numbers for all components, facilitating easy identification and ordering of replacement parts.
• Schemi elettrici: Illustrates the electrical connections and circuits of the lathe, essential for troubleshooting electrical issues and performing repairs.

For access to these detailed sections, please refer to the physical manual or official Jet support resources.

9. Supporto e garanzia

For technical assistance, replacement parts, or warranty information regarding your Jet JWL-1236 Wood Lathe, please contact Jet customer support directly. Refer to the contact information provided in the original manual or on the official Jet websito.

Note: This manual is a reprint of the original operator's manual. Warranty terms and conditions are subject to the policies of the manufacturer, Jet.
