Lifesafety Power FPO150/250-2C82D8PE4M1 Unified Power System User Manual

Prodotto finitoview

The Lifesafety Power FPO150/250-2C82D8PE4M1 is a MCLASS Unified Power System designed for access control applications. It integrates FlexPower power modules with Mercury Security access hardware into a single, compact, and UL Listed solution.

• Doppio volumetage Operazione: This unit provides both 12V and 24V DC dual voltage for access power.
• Lock Control Modules: Features two C8 lock control modules, offering sixteen access control inputs. These inputs support voltage or dry contact activation. It also provides sixteen outputs programmable for failsafe or failsecure operation at either 12V or 24V.
• Uscite ausiliarie: Includes two D8 modules, providing sixteen auxiliary Class 2 outputs. Each output is configurable for 12V or 24VDC operation.
• Design della custodia: The MCLASS enclosure is constructed from painted steel, featuring a removable backplate. It comes equipped with a lock, two keys, and a tampinterruttore er per una maggiore sicurezza.

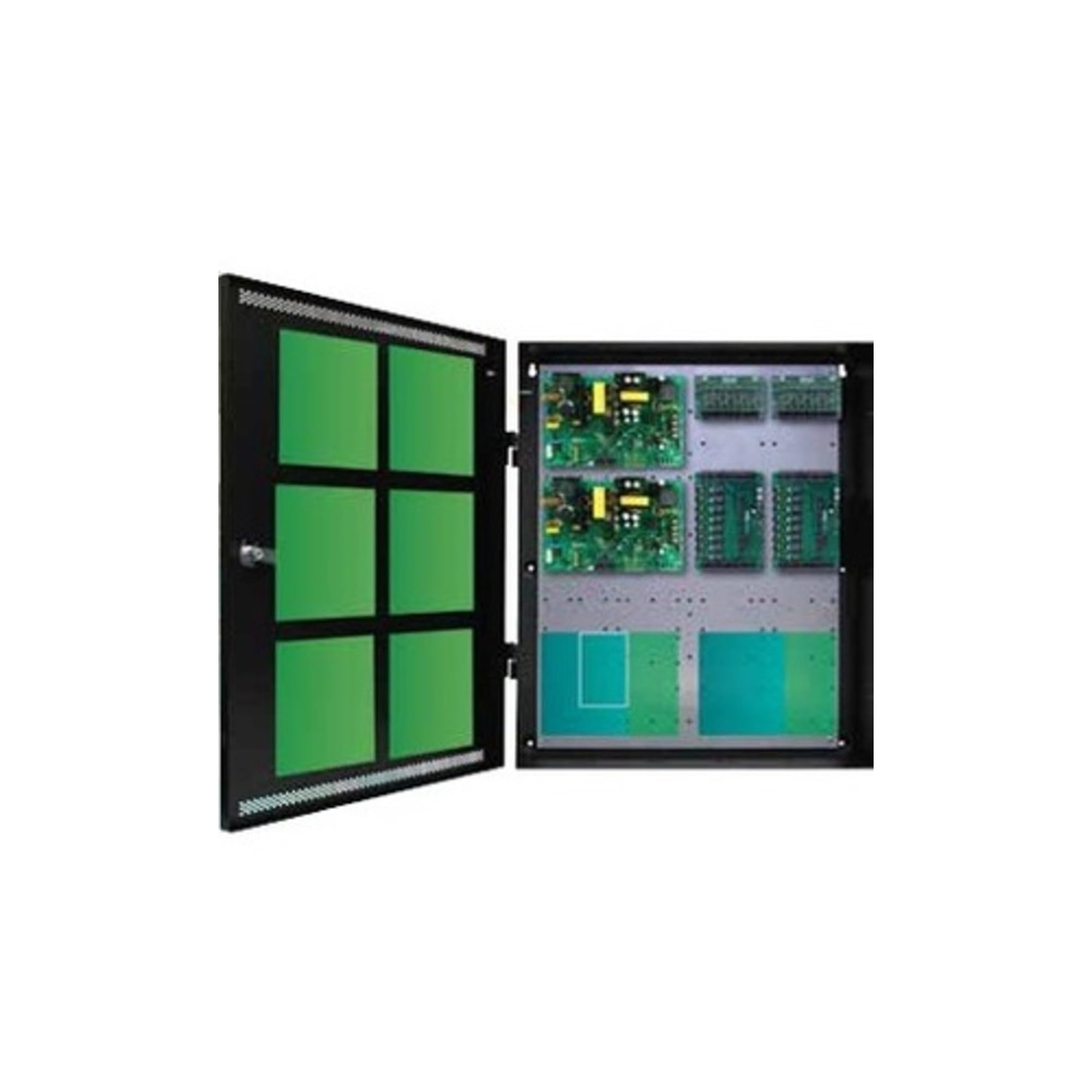

Image: Lifesafety Power FPO150/250-2C82D8PE4M1 Unified Power System. This image displays the front view of the power system unit, highlighting its robust enclosure and internal components.

Configurazione e installazione

Proper installation is crucial for the safe and reliable operation of the FPO150/250-2C82D8PE4M1 system. It is recommended that installation be performed by qualified personnel in accordance with all local and national electrical codes.

1. Disimballaggio: Carefully unpack the unit and inspect for any shipping damage. Retain all packaging materials.
2. Montaggio: Securely mount the enclosure to a stable surface using appropriate hardware. Ensure adequate ventilation around the unit.
3. Cablaggio: Connect the AC input power according to the wiring diagram provided with the unit. Ensure all connections are secure and properly insulated.
4. Collegamenti del modulo: Connect the access control hardware (Mercury Security) and other peripheral devices to the C8 lock control modules and D8 auxiliary modules as required by your system design. Pay close attention to voltage requirements (12V or 24V DC) for each output.
5. Batteria di backup (opzionale): If using battery backup, connect the batteries to the designated terminals, observing correct polarity.
6. Accensione iniziale: Before applying power, double-check all connections. Apply AC power and verify proper operation of all connected devices.

Refer to the detailed wiring diagrams and installation guides included with your specific product for precise connection instructions.

Istruzioni per l'uso

The FPO150/250-2C82D8PE4M1 system operates automatically once properly installed and configured. Its primary function is to provide stable and regulated power to connected access control and security devices.

• Indicatori di stato dell'alimentazione: Observe the LED indicators on the power modules and control boards to monitor the system's status, including AC presence, DC output, and battery charge status. Consult the specific module documentation for LED indicator meanings.
• Configurazione dell'uscita: The C8 and D8 modules allow for flexible configuration of outputs (12V/24V, failsafe/failsecure). Ensure these settings align with the requirements of your connected devices. Configuration is typically done during the initial setup phase.
• Tampehm interruttore: The enclosure includes a tamper switch that can be connected to an alarm system to detect unauthorized access to the unit.

No routine user interaction is typically required for the core operation of the power supply itself, beyond monitoring its status and ensuring connected devices function correctly.

Manutenzione

Regular maintenance helps ensure the longevity and reliable performance of your Lifesafety Power system.

• Ispezione visiva: Ispezionare periodicamente l'unità per individuare eventuali segni di danni, collegamenti allentati o eccessivo accumulo di polvere.
• Pulizia: Keep the enclosure clean and free of dust. Use a soft, dry cloth for cleaning. Do not use liquid cleaners directly on the unit.
• Controllo della batteria (se applicabile): If a battery backup is installed, check the battery condition annually. Replace batteries as recommended by the manufacturer or if they show signs of degradation.
• Ventilazione: Assicurarsi che le aperture di ventilazione non siano ostruite per evitare il surriscaldamento.

Always disconnect AC power before performing any maintenance inside the enclosure.

Risoluzione dei problemi

Questa sezione fornisce le procedure di base per la risoluzione dei problemi più comuni. Per problemi più complessi, contattare l'assistenza tecnica.

• Nessuna potenza in uscita:
  • Check if AC input power is present and the circuit breaker has not tripped.
  • Verificare che tutti i collegamenti elettrici siano saldi.
  • Inspect fuses on the power modules; replace if blown (ensure correct rating).
• Batteria non in carica:
  • Ensure batteries are correctly connected with proper polarity.
  • Check battery health; old or faulty batteries may not accept a charge.
  • Verify AC input power is stable.
• Connected Devices Malfunctioning:
  • Confermare che l'uscita voltage (12V or 24V) configured on the C8/D8 modules matches the requirements of the connected device.
  • Check for short circuits or overloads on individual outputs.
  • Ensure proper wiring between the power system and the connected device.

If issues persist after performing these checks, consult the detailed product documentation or contact Lifesafety Power technical support.

Specifiche

Garanzia e supporto

According to the product information, this item is sold with Nessuna garanzia. Users are advised to verify warranty terms with their point of purchase or distributor at the time of acquisition.

For technical assistance, product inquiries, or support regarding the Lifesafety Power FPO150/250-2C82D8PE4M1 Unified Power System, please contact Lifesafety Power customer service or your authorized dealer. Ensure you have your model number and any relevant purchase information available when seeking support.

You may find additional resources and contact information on the official Lifesafety Power websito: www.lifesafetypower.com
