Pyle Dual Channel Wireless Microphone System

Introduzione

Grazie per l'acquistoasing the Pyle Dual Channel Wireless Microphone System. This system is designed to provide clear, reliable audio for various applications, including PA systems, karaoke, DJ parties, and presentations. With its dual-channel VHF fixed frequency design, it offers a broad audio response range and low distortion, ensuring high-quality sound performance. Please read this manual thoroughly before operating the unit to ensure proper use and to maximize its performance.

Cosa c'è nella scatola

Carefully unpack the contents and ensure all items are present and in good condition:

• Base del ricevitore
• (2) Microfoni palmari wireless

Image showing the contents of the Pyle PDWM2135 package: the receiver base, two handheld microphones, and AA batteries.

Caratteristiche

The Pyle PDWM2135 system offers a range of features for optimal performance:

• Funzionamento a doppio canale: Allows for simultaneous use of two microphones.
• VHF Fixed Frequency: Provides stable signal transmission with broad audio response.
• Bassa distorsione: Ensures clear and high-quality audio output.
• Independent Mic Volume Control: Each microphone has its own volume knob on the receiver for balanced audio mixing.
• Convenient Power Switch: Both receiver and microphones feature ON/OFF switches.
• Indicatori di stato a LED: Receiver includes LED lights for power and RF signal status.
• Dual Independent Antennas: Per una migliore ricezione del segnale.
• 1/4" Mono Cable Output: Easy connection to mixers, amplificatori o altoparlanti.
• Design portatile: Adatto sia per interni che per esterni.

Davanti view of the Pyle PDWM2135 Dual Channel Wireless Microphone System, showing the receiver base with two microphones.

Impostare

Per configurare il tuo sistema di microfoni wireless, segui questi passaggi:

1. Installa le batterie: Open the battery compartment of each handheld microphone and insert two 'AA' batteries, ensuring correct polarity.
2. Alimentare il ricevitore: Connect the receiver base to a standard AC power outlet using the integrated power cable. The Power LED on the receiver should illuminate.
3. Connetti al sistema audio: Use a 1/4" mono cable (included) to connect the 'AUDIO OUT' jack on the back of the receiver to the microphone input of your mixer, amplificatore o altoparlante amplificato.

A hand connecting a 1/4-inch audio connector jack to the back of the Pyle wireless receiver.

Diagram illustrating compatibility with various devices such as PA systems, amplifiers, mixers, and karaoke machines.

Operativo

Una volta completata la configurazione, puoi iniziare a utilizzare il tuo sistema microfonico:

1. Accensione dei microfoni: Slide the power switch on each handheld microphone to the 'ON' position. The microphone's indicator light should illuminate.
2. Controllare il segnale: The RF (Radio Frequency) indicator lights on the receiver will illuminate when a signal is received from the corresponding microphone (VOL-A or VOL-B).
3. Regola volume: Use the 'VOL-A' and 'VOL-B' knobs on the receiver's front panel to adjust the individual volume levels of each microphone. Start with the volume low and gradually increase it to a comfortable listening level.
4. Intervallo ottimale: The system operates effectively up to 165 feet (50 meters) in open areas. Maintain a clear line of sight between the microphones and the receiver for best performance.

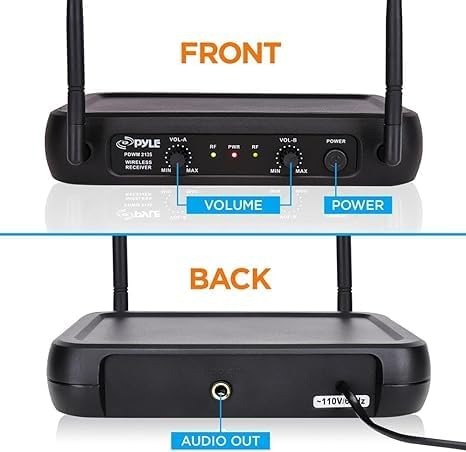

Dettagliato view of the Pyle wireless receiver's front panel showing volume controls and power button, and the back panel with the audio output.

Image depicting the wireless range of up to 165 feet between the microphone and the receiver.

Manutenzione

To ensure the longevity and optimal performance of your Pyle wireless microphone system, follow these maintenance guidelines:

• Pulizia: Use a soft, dry cloth to clean the receiver and microphones. Do not use abrasive cleaners, waxes, or solvents.
• Magazzinaggio: Quando non viene utilizzato per lunghi periodi, conservare il sistema in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Sostituzione della batteria: Replace microphone batteries when the audio quality degrades or the microphone indicator light dims. Always use fresh 'AA' batteries. Remove batteries if the microphones will not be used for a long time to prevent leakage.
• Maneggiare con cura: Evitare di far cadere i microfoni o il ricevitore, poiché ciò potrebbe causare danni interni.

Risoluzione dei problemi

If you encounter any issues with your system, refer to the following table for common problems and solutions:

Specifiche

Detailed technical specifications for the Pyle PDWM2135:

Image showing the dimensions of the Pyle wireless receiver base.

Garanzia e supporto

Pyle products are designed and manufactured to the highest standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Pyle websito.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please visit the Pyle USA websul sito o contattare il servizio clienti. Le informazioni di contatto sono in genere riportate sulla confezione del prodotto o sul marchio ufficiale. websito.

Risorse online:

• Pyle USA Official Websito: Visita il negozio Pyle su Amazon
• Manuale utente (PDF): Manuale Scarica il PDF
