Manuale utente della radio bidirezionale Motorola Talkabout T465

1. Introduzione

The Motorola Talkabout T465 Rechargeable Two-Way Radio Bundle is designed for clear and dependable communication, ideal for outdoor adventures, emergencies, and staying connected when cellular service is unavailable. This manual provides essential information for setting up, operating, and maintaining your T465 radios.

2. Informazioni sulla sicurezza

Before using your Motorola Talkabout T465 radios, please read all safety instructions carefully. Failure to do so may result in injury or damage to the product.

• Sicurezza della batteria: Use only approved Motorola rechargeable batteries or 3 AA alkaline batteries. Do not mix battery types. Dispose of batteries properly.
• Avvertenza sulla Proposta 65: Questo prodotto può contenere sostanze chimiche note allo Stato della California come causa di cancro e difetti alla nascita o altri danni riproduttivi.
• Protezione dell'udito: Use the lowest volume necessary to hear clearly. Prolonged exposure to loud volumes may cause hearing damage.
• Interferenza: Spegnere la radio nelle aree in cui è vietato l'uso delle radio ricetrasmittenti, come negli ospedali o sugli aerei.

3. Contenuto della confezione

Your Motorola Talkabout T465 bundle includes:

• 2 ricetrasmittenti T465
• 2 x Micro-USB Wall Charging Cables
• 2 x Rechargeable NiMH Battery Packs (or use 2 AA batteries per radio)
• Clip 2 x cinghie
• 2 x Earbuds with Push-to-Talk (PTT) Microphone
• 1 x Custodia da trasporto
• User Guide and Accessory Sheet (English and French)

4. Impostazione

4.1 Installazione della batteria

Your T465 radios can be powered by either the included rechargeable NiMH battery packs or 3 AA alkaline batteries (not included). To install:

1. Assicurarsi che la radio sia spenta.
2. Rimuovere il coperchio del vano batteria sul retro della radio.
3. Insert the NiMH battery pack or 3 AA batteries, observing the polarity markings.
4. Replace the battery compartment cover, ensuring it clicks securely into place to maintain water resistance.

4.2 Ricarica delle batterie

To charge the rechargeable NiMH battery packs:

1. Connect the Micro-USB charging cable to the charging port on the side of the radio.
2. Plug the other end of the cable into a standard USB wall adapter.
3. The battery indicator on the radio display will show charging status. A full charge typically takes 8.5 hours.

4.3 Fissaggio della clip da cintura

To attach the belt clip, align the clip with the slots on the back of the radio and slide it down until it locks into place.

5. Utilizzo della radio

5.1 Accensione/spegnimento e volume

1. Accensione: Rotate the On/Off/Volume knob clockwise until you hear a click and the display illuminates.
2. Spegni: Rotate the On/Off/Volume knob counter-clockwise until you hear a click and the display turns off.
3. Regola volume: Ruotare la manopola On/Off/Volume per aumentare o diminuire il volume di ascolto.

5.2 Selezione del canale

Your T465 radio has 22 channels. To select a channel:

1. Premere il tasto Menu finché il numero del canale non lampeggia.
2. Utilizzare il Up or Giù pulsanti per selezionare il canale desiderato.
3. Premere il tasto Menu di nuovo il pulsante o il PTT pulsante per confermare la selezione.

5.3 Codici sulla Privacy

Privacy codes help reduce interference by filtering out transmissions from other users on the same channel. Your T465 radios offer 121 privacy codes.

1. Premere il tasto Menu due volte il pulsante finché il numero del codice privacy non lampeggia.
2. Utilizzare il Up or Giù pulsanti per selezionare il codice di privacy desiderato.
3. Premere il tasto Menu di nuovo il pulsante o il PTT pulsante per confermare. Nota: per comunicare, entrambe le radio devono essere sullo stesso canale e con lo stesso codice di privacy.

5.4 Pulsante Push-to-Talk (PTT)

The PTT button is located on the side of the radio. It has two power settings:

• Alta potenza: Press the upper part of the PTT button for maximum range. This consumes more battery.
• Bassa potenza: Press the lower part of the PTT button for shorter range, conserving battery life.

To transmit, press and hold the PTT button, speak clearly into the microphone, and release the button to listen.

5.5 Call/Page Tone

To send a call tone to alert other radios in your group, briefly press the Call button (often a musical note icon) on the front of the radio.

5.6 Blocco tastiera

Per evitare modifiche accidentali alle impostazioni, tenere premuto il tasto Menu button until the lock icon appears on the display. Repeat to unlock.

6. Funzionalità avanzate

6.1 NOAA Weather Radio and Alerts

Your T465 radio can receive NOAA Weather Radio broadcasts, providing real-time weather information and alerts.

1. Premere il tasto Modalità button until the weather channel icon appears.
2. Utilizzare il Up or Giù pulsanti per selezionare un canale meteo.
3. The radio can be set to automatically alert you to severe weather conditions. Consult the full user guide for detailed setup of weather alerts.

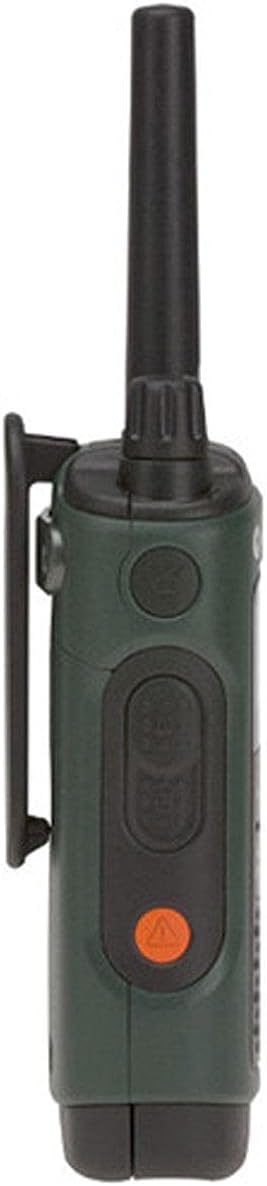

6.2 Emergency Alert Button

The T465 features an orange Emergency Alert button on the side. Pressing and holding this button will activate an audible alert on your radio and other compatible Motorola radios within range, set them to maximum volume, and enable hands-free transmission (VOX) for a period, allowing you to speak without holding the PTT button.

6.3 Torcia incorporata

The radio includes a built-in LED flashlight for convenience in low-light conditions. To activate, press the dedicated flashlight button (often located on the top or side). Press again to turn off.

6.4 VibraCall™ Alert

For discreet communication, the VibraCall™ feature provides a silent vibrating alert instead of an audible tone. This is useful in quiet environments or when you need to avoid startling game during hunting.

7. Manutenzione

Proper care ensures the longevity and performance of your T465 radios.

• Pulizia: Utilizzare un morbido, damp panno per pulire l'esterno della radio. Non utilizzare detergenti abrasivi o solventi.
• Cura della batteria: Store batteries in a cool, dry place. If not using the radios for an extended period, remove alkaline batteries to prevent leakage. Recharge NiMH batteries periodically to maintain their capacity.
• Resistenza all'acqua: The T465 is rated IP44 waterproof, meaning it is protected against splashing water from any direction. Ensure all ports and battery covers are securely closed to maintain water resistance. Do not submerge the radio.

8. Risoluzione Dei Problemi

If you encounter issues with your T465 radios, try the following:

• Nessun potere: Check battery installation and charge level. Replace alkaline batteries if depleted.
• Scarsa portata/interferenza: Ensure both radios are on the same channel and privacy code. Move to an area with fewer obstructions (e.g., buildings, dense foliage). Range can be significantly reduced by terrain and conditions.
• Cannot Hear Other Radios: Verify volume is up. Check that privacy codes match. Ensure radios are within range.
• La radio non si carica: Check USB cable connection and wall adapter. Ensure battery pack is correctly inserted.

9. Specifiche

10. Garanzia e supporto

10.1 Informazioni sulla garanzia

The Motorola Talkabout T465 Two-Way Radio Bundle comes with a Garanzia limitata di 1 anno from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For full terms and conditions, please refer to the warranty card included in your package or visit the Motorola Solutions websito.

10.2 Assistenza clienti

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Motorola Solutions customer support. Contact information can typically be found on the Motorola Solutions website or on the accessory sheet included with your product.
