Hermex CEMA-3R Lock Handle Instruction Manual

1. Introduzione

Welcome to your new Hermex CEMA-3R Lock Handle. This manual provides detailed instructions for the proper installation, operation, and maintenance of your lock to ensure optimal performance, security, and longevity. Please read this manual thoroughly before beginning installation or use.

2. Informazioni importanti sulla sicurezza

• Always read and understand all instructions before installing or using the product.
• Durante l'installazione, utilizzare dispositivi di sicurezza adeguati, come guanti e protezioni per gli occhi.
• Ensure all components are securely fastened to prevent accidental injury or product malfunction.
• Tenere le parti di piccole dimensioni e gli utensili fuori dalla portata dei bambini.
• Do not modify the lock handle or its components, as this may compromise security and void the warranty.

3. Contenuto della confezione

Verifica che tutti i componenti elencati di seguito siano presenti nel tuo pacchetto:

• Exterior Lever Handle Assembly
• Gruppo maniglia leva interna
• Latch Mechanism (Tubular Latch)
• Piastra d'urto
• Viti di montaggio
• Chiavi (2x)

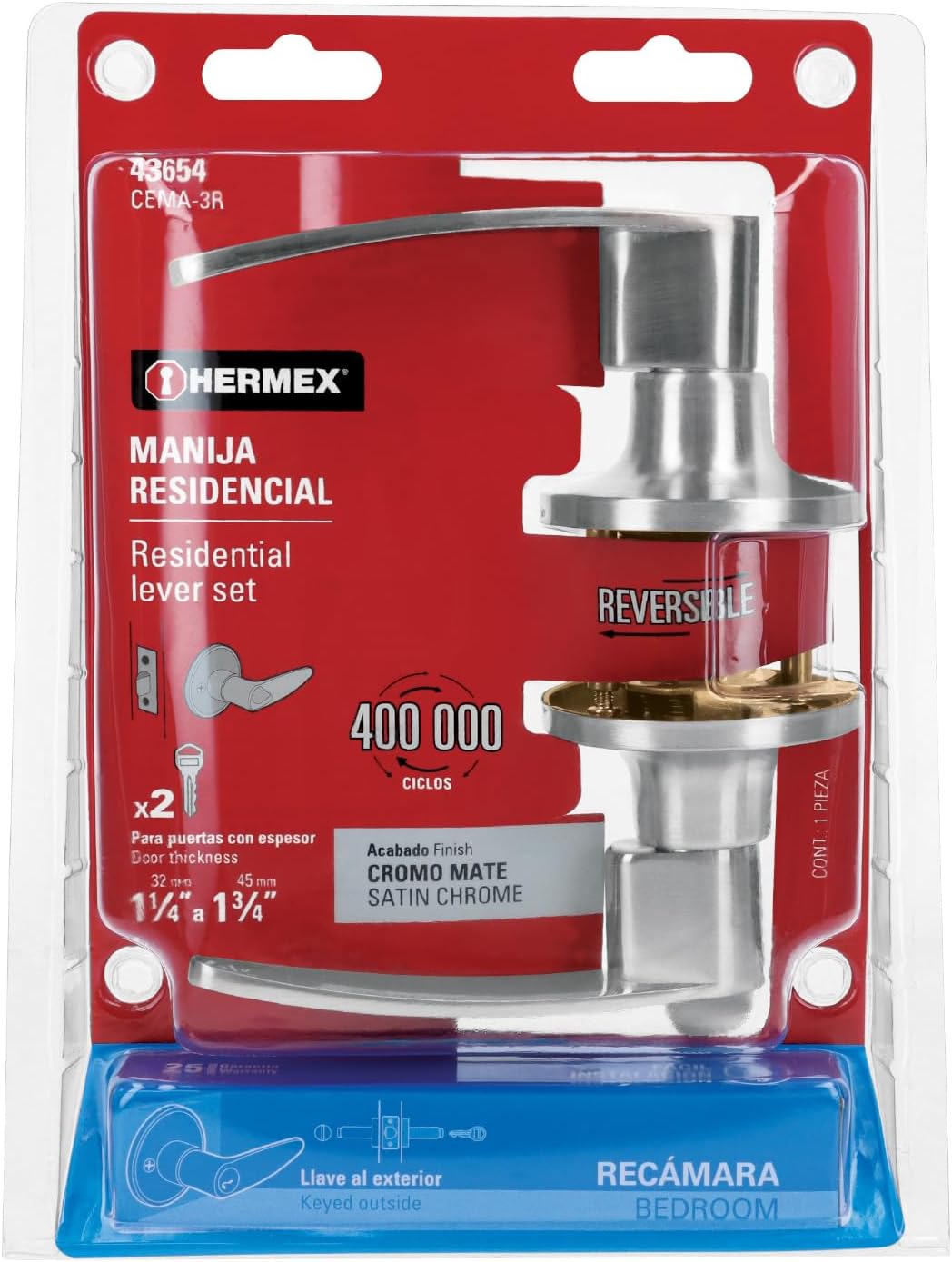

Figure 3.1: The Hermex CEMA-3R lock handle packaging, showing the residential lever set, reversible design, satin chrome finish, and two keys. The packaging indicates it is keyed outside and suitable for bedroom use.

4. Specifiche del prodotto

• Marca: Hermex
• Modello: CEMA-3R
• Tipo di blocco: Mortise Lock (Tubular Mechanism)
• Materiale: Brass (Cylinder, Handle)
• Fine: Chrome Matt (Polished)
• Colore: Chrome, Brass
• Caratteristica speciale: Facile da installare
• Dimensioni articolo (L x P x A): 6.1 x 4.72 x 0.01 inches (Product dimensions)
• Peso dell'articolo: 1.87 libbre (0.85 chilogrammi)
• Numero di pezzi: 1
• Tipo di controller: Controllo manuale
• Forma: Rettangolare
• Batterie richieste: NO

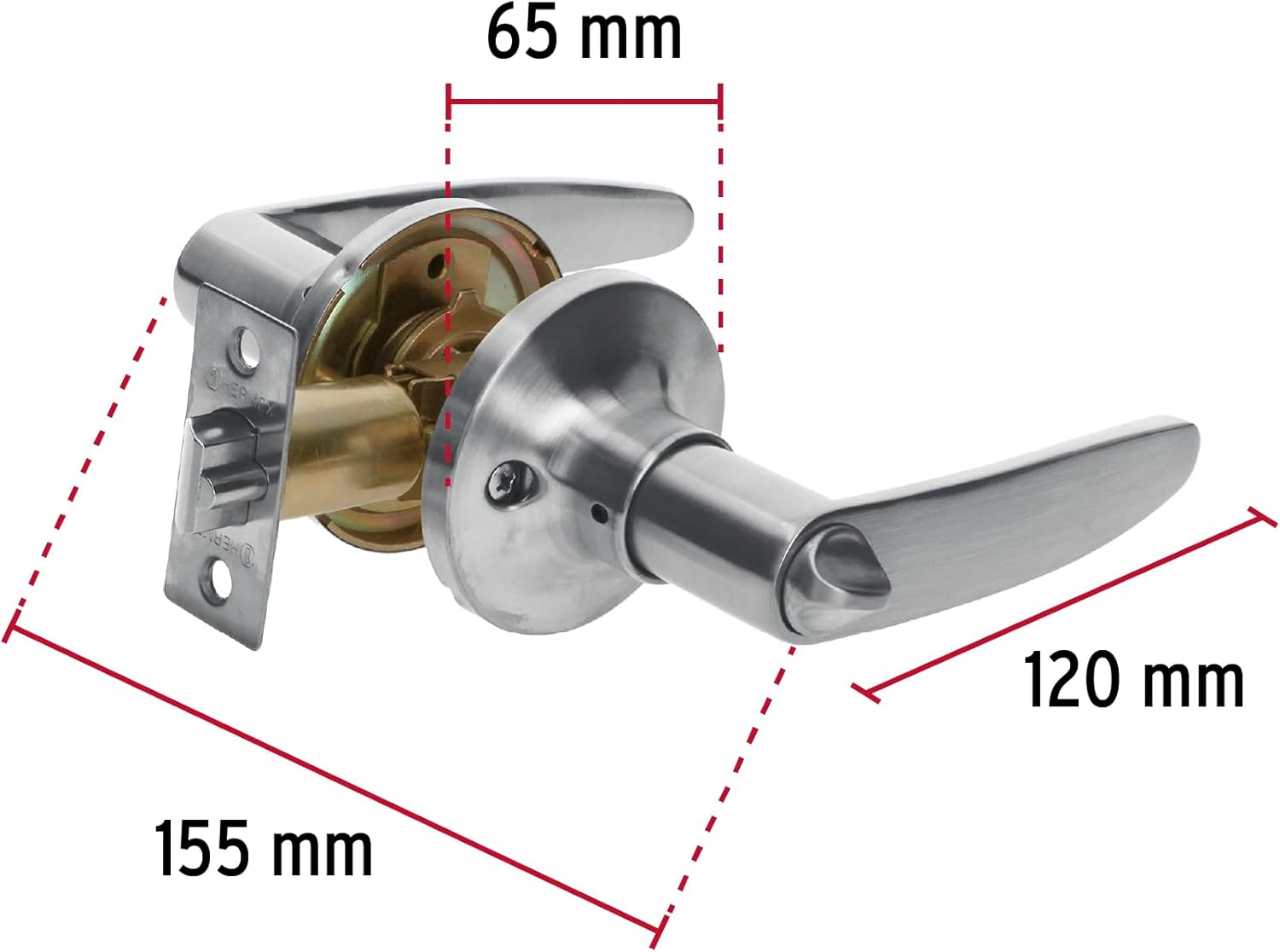

Figure 4.1: Dimensional drawing of the Hermex CEMA-3R lock handle, showing a total length of 155 mm, a backset of 65 mm, and a handle length of 120 mm.

5. Guida all'installazione

5.1 Strumenti necessari

• Cacciavite con testa Phillips
• Nastro di misurazione
• Matita
• Drill (optional, for new installations)
• Wood Chisel (optional, for new installations)

5.2 Installazione passo passo

Follow these steps to install your Hermex CEMA-3R lock handle:

1. Prepara la porta: If installing on a new door, mark and drill holes for the lock body and latch mechanism according to standard door lock templates. For existing doors, ensure the existing holes are clean and correctly sized.
2. Installare il meccanismo di chiusura: Insert the tubular latch mechanism into the edge bore hole of the door. Ensure the bevel of the latch bolt faces the door frame. Secure it with the provided screws.
3. Install the Exterior Lever: Insert the exterior lever assembly through the door, aligning its spindle with the latch mechanism.
4. Install the Interior Lever: Place the interior lever assembly onto the door, aligning it with the exterior assembly and the latch mechanism.
5. Assicurare l'assemblaggio: Fasten the interior and exterior lever assemblies together using the long mounting screws provided. Ensure the lock is square and level before tightening the screws completely. Do not overtighten.
6. Installare la piastra di battuta: Mark the position of the latch bolt on the door frame. Chisel out a shallow recess for the strike plate and secure it with screws. Ensure the latch bolt engages smoothly with the strike plate.
7. Prova la serratura: Close the door and test the lock from both the interior and exterior using the key. Ensure the latch retracts and extends smoothly, and the lock operates correctly.

Figure 5.1: The fully assembled Hermex CEMA-3R lock handle, showcasing its chrome matt finish and brass cylinder components.

Figura 5.2: Un esploso view of the Hermex CEMA-3R lock handle, illustrating its various internal and external components before assembly.

Figura 5.3: dettagliata view of the lock handle components, highlighting the tubular mechanism, metal latch, solid brass cylinder, and a security device designed to prevent unauthorized entry using cards.

6. Funzionamento

The Hermex CEMA-3R lock handle is designed for straightforward operation:

• To Open from Outside: Insert the key into the cylinder and turn it to retract the latch bolt. Turn the lever handle to open the door.
• To Lock from Outside: Turn the key to extend the latch bolt into the strike plate. Remove the key.
• To Open from Inside: Simply turn the interior lever handle to retract the latch bolt and open the door.
• To Lock from Inside: The interior lever typically does not have a locking mechanism for this model, providing easy egress. The lock is primarily secured from the exterior with a key.

Figure 6.1: Illustration of the traditional key security system. This lock uses flat keys with combination notches located only on the upper side, providing standard security.

7. Manutenzione

Proper maintenance will extend the life and functionality of your lock handle:

• Pulizia: Pulire le superfici esterne con un panno morbido eamp cloth. Avoid abrasive cleaners or solvents, as they can damage the finish.
• Lubrificazione: Periodically apply a small amount of graphite-based lubricant (do not use oil-based lubricants) into the keyway and on the latch bolt mechanism to ensure smooth operation.
• Controlli periodici: Regularly check all screws and fasteners to ensure they are tight. Loose components can affect the lock's performance and security.

8. Risoluzione Dei Problemi

If you encounter issues with your lock handle, refer to the following table for common problems and solutions:

9. Garanzia e assistenza clienti

9.1 Informazioni sulla garanzia

Hermex products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. Specific warranty terms may vary by region and retailer.

9.2 Assistenza clienti

For further assistance, technical support, or warranty inquiries, please contact your retailer or visit the official Hermex website. Please have your product model number (CEMA-3R) and proof of purchase ready when contacting support.
