HQRP Rechargeable Ni-MH Battery Instruction Manual

1. Introduzione

This manual provides essential information for the safe and effective use of your HQRP rechargeable Ni-MH batteries. These batteries are designed as a replacement power source for various Cobra two-way radio models, ensuring reliable communication.

Compatibilità del prodotto:

• Cobra PR350-WX
• Cobra vPR550-WX
• Cobra PR560-WX
• Cobra PR590
• Cobra PR650-WX
• Cobra PR900-DX
• Cobra PR945-DX

Please note: This is an HQRP branded replacement product and is not an Original Equipment Manufacturer (OEM) product. All brand names and logos mentioned are registered trademarks of their respective owners and are used solely for demonstrating compatibility.

2. Configurazione e installazione

Follow these steps to properly install your new HQRP Ni-MH battery pack into your compatible Cobra two-way radio.

1. Unpack the Batteries: Estrarre con cautela le batterie dalla confezione.
2. Individuare il vano batteria: Refer to your Cobra radio's original manual to locate and open the battery compartment. This is typically on the back of the radio.
3. Rimuovere le vecchie batterie (se applicabile): If replacing existing batteries, remove them and dispose of them according to local regulations.
4. Inserire nuove batterie: Insert the HQRP Ni-MH battery pack into the compartment, ensuring the contacts align correctly with the radio's terminals. The battery pack is designed to fit in one orientation. Do not force it.
5. Chiudi scomparto: Chiudere saldamente il coperchio del vano batterie.
6. Carica iniziale: For optimal performance, fully charge the battery pack before its first use. Refer to the 'Operating' section for charging instructions.

Immagine 1: anteriore view of the HQRP Ni-MH battery pack, displaying its label with voltage, capacità e avvertenze di sicurezza.

3. Operativo

Once installed, your HQRP Ni-MH battery pack operates like the original battery. Proper charging is crucial for battery longevity and performance.

3.1 Ricarica delle batterie

Always use the charger provided with your Cobra two-way radio or a compatible charger designed for Ni-MH batteries. Do not use chargers intended for other battery chemistries (e.g., Ni-Cd, Li-ion).

1. Collegare il caricabatterie: Plug your radio's charger into a power outlet.
2. Place Radio in Charger: Place the radio with the installed HQRP battery pack into the charging cradle or connect the charging cable to the radio. Ensure a secure connection.
3. Monitorare l'indicatore di carica: Observe the charging indicator light on your radio or charger. This light typically changes color or turns off when charging is complete. Refer to your radio's manual for specific indicator behavior.
4. Carica completa: Allow the batteries to charge fully. Overcharging Ni-MH batteries for extended periods (days) can reduce their lifespan, though modern chargers often have overcharge protection.

3.2 Utilizzo generale

The battery pack provides power to your radio. When the radio indicates low battery, recharge the pack promptly to avoid deep discharge, which can shorten battery life.

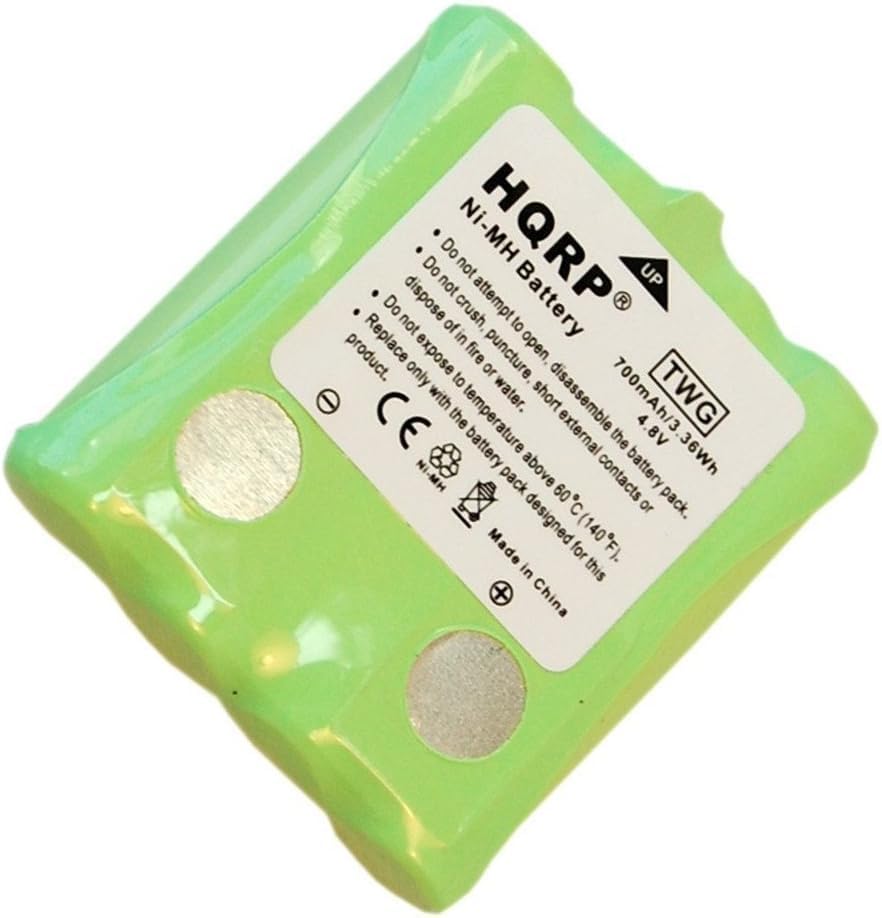

Immagine 2: Dall'alto verso il basso view of the HQRP Ni-MH battery pack, highlighting the electrical contacts for proper connection.

4. Manutenzione

Proper maintenance extends the life and performance of your HQRP Ni-MH batteries.

• Ricarica regolare: Recharge batteries when they are low, but avoid frequent partial charges if possible. Ni-MH batteries benefit from occasional full discharge/recharge cycles to prevent memory effect, though it is less pronounced than in Ni-Cd batteries.
• Magazzinaggio: If storing the batteries for an extended period, charge them to about 50-70% capacity and store them in a cool, dry place. Avoid extreme temperatures.
• Contatti per la pulizia: Periodically clean the battery contacts on both the battery pack and the radio with a clean, dry cloth to ensure good electrical connection.
• Evitare danni fisici: Do not drop, crush, or puncture the battery pack. Physical damage can lead to internal short circuits or leakage.

5. Informazioni sulla sicurezza

Adhere to the following safety guidelines to prevent injury or damage to the battery and radio.

• Non tentare di aprire o smontare il pacco batteria. This can expose internal components and lead to electric shock or chemical burns.
• Do not crush, puncture, or short external contacts. Short-circuiting can cause overheating, fire, or explosion.
• Non smaltire nel fuoco o nell'acqua. Batteries can explode or leak harmful substances when exposed to fire or water.
• Non esporre a temperature superiori a 60°C (140°F). High temperatures can damage the battery and pose a risk of fire or explosion.
• Sostituire solo con la batteria progettata per questo prodotto. Using incompatible batteries may result in damage to the radio or personal injury.
• Tenere fuori dalla portata dei bambini.
• Riciclare responsabilmente. Smaltire le batterie usate secondo le normative locali.

WARNING for California residents pursuant to CA Proposition 65: This product may expose you to chemicals known to the State of California to cause: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

6. Risoluzione Dei Problemi

If you encounter issues with your HQRP Ni-MH battery pack, consider the following common solutions:

• La batteria non si carica:
  • Ensure the battery pack is correctly seated in the radio and the radio is properly placed in the charger.
  • Verify that the charger is plugged into a working power outlet.
  • Clean the battery and charger contacts with a dry cloth.
• Short operating time after full charge:
  • The battery may not be fully charged. Ensure it charges until the indicator shows completion.
  • If the battery is old, its capacity may have degraded over time. Consider replacing it.
  • Ensure the radio is not operating in a high-power consumption mode unnecessarily.
• La radio non si accende:
  • Controllare che la batteria sia installata correttamente e completamente carica.
  • Ensure the radio's power button is functioning.

If problems persist after attempting these solutions, consult the original Cobra radio manual or contact HQRP customer support.

7. Specifiche

8. Garanzia e supporto

Your HQRP Ni-MH battery pack comes with a warranty to ensure your satisfaction.

• Periodo di garanzia: This product includes a 200-day warranty from the date of purchase.
• Richieste di garanzia: For warranty claims or technical support, please contact HQRP customer service through the retailer where the product was purchased.
• Disclaimer: This product is a replacement part and is not manufactured by Cobra. HQRP is an independent brand.
