Weslo CST 4.4 Spinning Bike Instruction Manual

1. Informazioni importanti sulla sicurezza

Before beginning any exercise program, consult with your physician. This is especially important for individuals over the age of 35 or those with pre-existing health conditions. Read all instructions before using this equipment. Weslo assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

• Tenere i bambini e gli animali domestici lontano dall'apparecchiatura.
• Place the equipment on a level surface with at least 0.6 meters (2 feet) of clearance around it.
• Ispezionare l'attrezzatura prima di ogni utilizzo per verificare la presenza di parti allentate o segni di usura. Non utilizzarla se danneggiata.
• Indossare abbigliamento sportivo e scarpe da ginnastica adeguati.
• The maximum user weight capacity for this spinning bike is 114 kg (250 libbre).
• Always maintain proper balance while exercising.
• Interrompere immediatamente l'esercizio se ci si sente deboli, storditi o si avverte dolore.

2. Contenuto della confezione

Carefully remove all components from the packaging and place them on a clear, flat surface. Ensure all parts are present before assembly. If any parts are missing or damaged, contact customer service.

Immagine: Oltreview of the Weslo CST 4.4 Spinning Bike, showing its main components. This image represents the complete product after assembly.

• Telaio principale
• Stabilizzatori anteriori e posteriori
• Reggisella e sella
• Manubrio e reggisella
• Pedali (sinistro e destro)
• Kit hardware (bulloni, rondelle, dadi, utensili)
• Porta borraccia

3. Istruzioni di montaggio

Assembly typically requires two people. Ensure you have adequate space and the included tools (or your own adjustable wrench and Allen keys).

1. Fissare gli stabilizzatori: Fissare gli stabilizzatori anteriore e posteriore al telaio principale utilizzando i bulloni e le rondelle forniti. Assicurarsi che siano serrati saldamente per evitare oscillazioni.
2. Installa i pedali: Identificare il pedale sinistro (L) e quello destro (R). Il pedale sinistro si avvita in senso antiorario, mentre quello destro in senso orario. Serrare saldamente con una chiave inglese.
3. Montare il reggisella e la sella: Insert the seat post into the frame and secure it at the desired height using the adjustment knob. Attach the seat to the seat post.
4. Fissare il reggisella e il manubrio: Inserire il tubo del manubrio nel telaio e fissarlo. Fissare il manubrio al tubo.
5. Installare il portaborraccia: Attach the water bottle holder to the designated mounting points on the frame.

4. Funzionamento

Once assembled, the Weslo CST 4.4 Spinning Bike is ready for use. Familiarize yourself with the controls before starting your workout.

4.1 Regolazione della resistenza

The bike features a friction resistance mechanism with an adjustable knob. Turn the knob clockwise to increase resistance and counter-clockwise to decrease it. There are approximately 7 levels of resistance, allowing for varied intensity workouts.

4.2 Quick Stop Brake

For immediate stopping of the flywheel, press down firmly on the resistance adjustment knob. This will engage the emergency brake, bringing the flywheel to a rapid halt.

4.3 Inizio dell'allenamento

Mount the bike, ensuring your feet are securely placed in the pedal straps. Begin pedaling at a comfortable pace. Adjust resistance as needed throughout your workout.

Image: A woman demonstrating proper riding posture on the Weslo CST 4.4 Spinning Bike during a workout.

Image: A man demonstrating proper riding posture on the Weslo CST 4.4 Spinning Bike during a workout.

5. Regolazioni

La corretta regolazione del sedile e del manubrio è fondamentale per garantire il comfort e l'efficacia dell'esercizio.

5.1 Regolazione del sedile

The seat can be adjusted both vertically and horizontally. Loosen the respective adjustment knobs, move the seat to the desired position, and then tighten the knobs securely. For optimal pedaling, your knee should have a slight bend at the bottom of the pedal stroke.

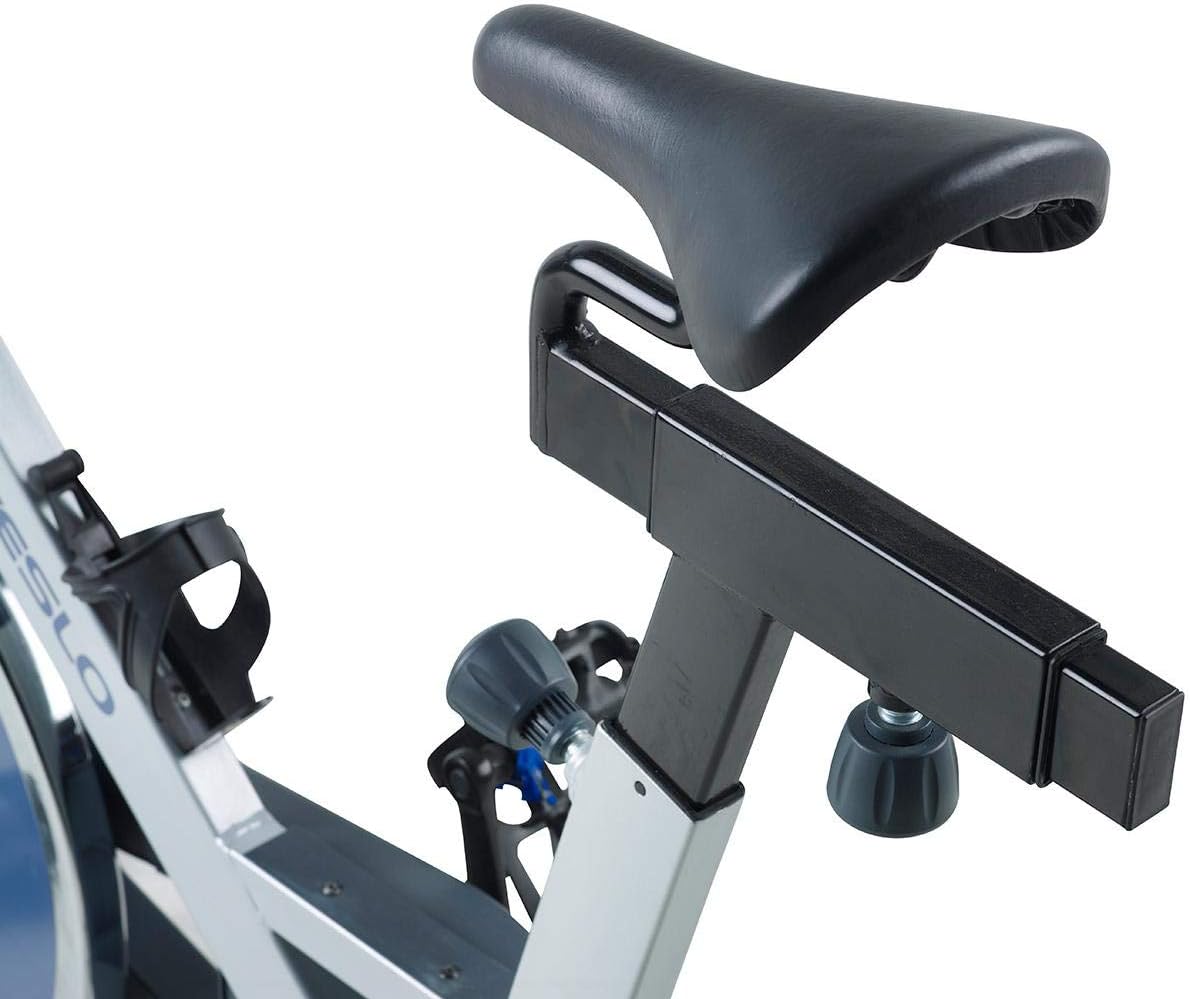

Immagine: Primo piano view of the seat and its adjustment mechanisms on the Weslo CST 4.4 Spinning Bike, highlighting the vertical and horizontal adjustment points.

5.2 Regolazione del manubrio

The multi-position handlebars can be adjusted vertically. Loosen the adjustment knob on the handlebar post, raise or lower the handlebars to a comfortable height, and then tighten the knob. Ensure the handlebars are at a height that allows for a comfortable, slightly forward-leaning posture without straining your back or shoulders.

5.3 Cinghie per pedali

The pedals are equipped with adjustable straps and clips. Place your feet into the clips and tighten the straps to secure your feet. This ensures efficient power transfer and prevents your feet from slipping during intense workouts.

6. Manutenzione

Regular maintenance will ensure the longevity and optimal performance of your Weslo CST 4.4 Spinning Bike.

• Pulizia: Pulisci la bici dopo ogni utilizzo con un pannoamp panno per rimuovere sudore e polvere. Evitare detergenti abrasivi.
• Lubrificazione: Periodically check the chain drive system. If it appears dry or noisy, apply a small amount of bicycle chain lubricant.
• Controllo hardware: Regularly inspect all bolts, nuts, and screws. Tighten any that have become loose.
• Volano: Keep the flywheel clean and free of debris. Do not apply lubricants to the flywheel or brake pad, as this will affect resistance.
• Magazzinaggio: Conservare la bicicletta in un luogo asciutto e fresco, lontano dalla luce solare diretta e da temperature estreme.

6.1 ruote di trasporto

The bike is equipped with front-mounted transport wheels for easy relocation. To move the bike, lift the rear stabilizer and roll the bike on its front wheels.

Image: A woman demonstrating the use of the front-mounted transport wheels to easily move the Weslo CST 4.4 Spinning Bike.

7. Risoluzione Dei Problemi

If you encounter issues with your spinning bike, refer to the following common problems and solutions:

• La bici è instabile o traballa: Ensure the bike is on a level surface. Check and tighten all assembly bolts, especially those on the stabilizers.
• Resistance is too loose or too tight: Adjust the resistance knob. If the resistance mechanism feels unresponsive, check the connection between the knob and the brake pad.
• Squeaking or grinding noise: Inspect the chain drive for debris or lack of lubrication. Apply bicycle chain lubricant if necessary. Check for any loose parts that might be rubbing.
• Pedals are loose: Re-tighten the pedals. Remember the left pedal is reverse-threaded.

Se i problemi persistono, contatta l'assistenza clienti per ulteriore assistenza.

8. Specifiche

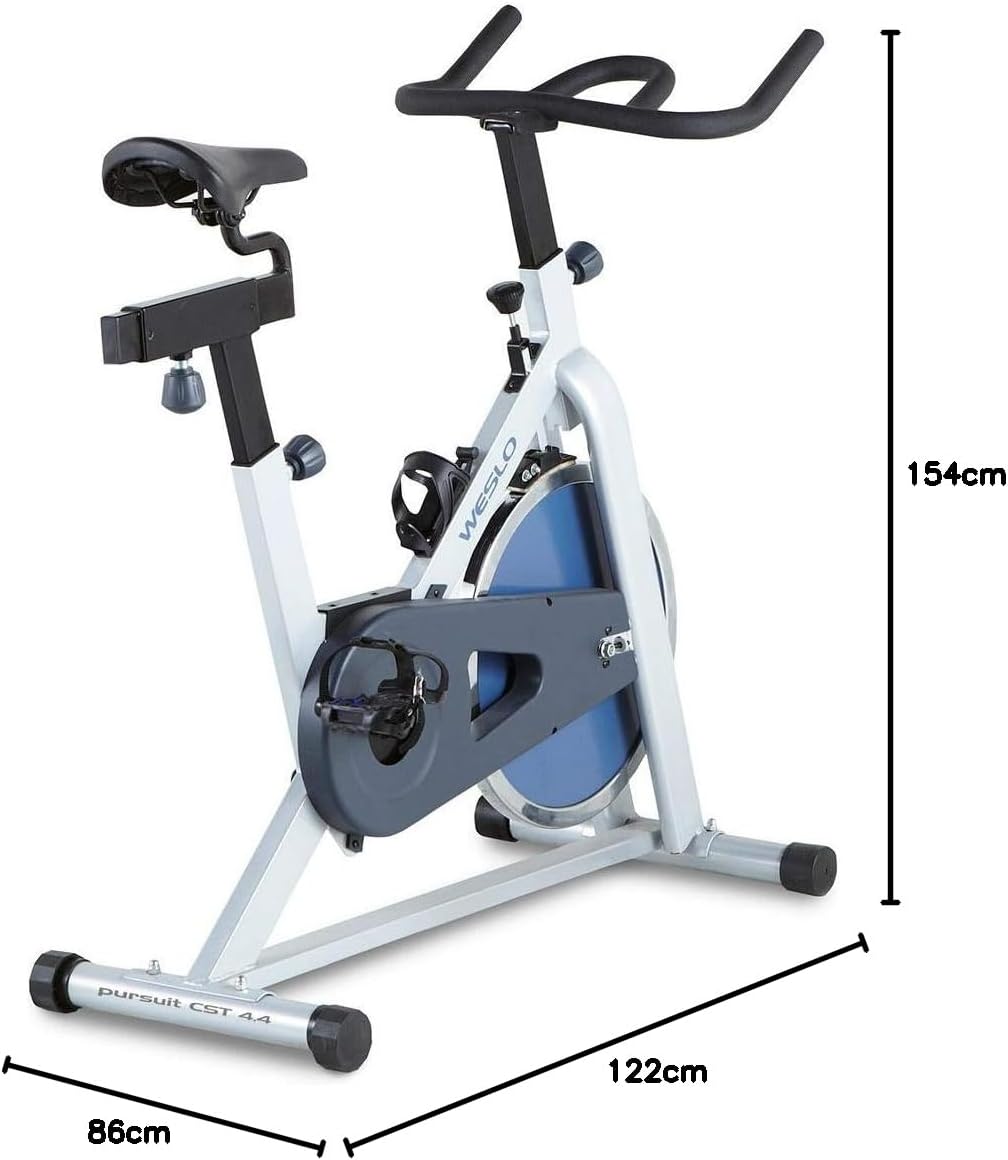

Image: Diagram showing the approximate dimensions of the Weslo CST 4.4 Spinning Bike: 122 cm length, 86 cm width, and 154 cm height (note: height in image is 154cm, but spec says 99cm. Using 99cm from spec as it's more likely for handlebar height, 154cm might be max extension or a different measurement point. Will use 99cm from spec and mention image discrepancy if needed, but for now, stick to spec for text and image for visual aid).

9. Garanzia e supporto

This Weslo CST 4.4 Spinning Bike comes with a Garanzia di 6 mesi dalla data di acquisto. La presente garanzia copre i difetti di fabbricazione in normali condizioni d'uso.

For warranty claims, technical support, or to order replacement parts, please contact Weslo customer service. Keep your proof of purchase for warranty validation.

• Fare riferimento alle informazioni di contatto fornite sulla confezione del prodotto.
• Have your model number (WLEX82014) and serial number (if applicable) ready when contacting support.
