ARRIS C250 V2 250mm RC Quadcopter FPV Racing Drone

Introduzione

This manual provides essential information for the safe and effective operation of your ARRIS C250 V2 250mm RC Quadcopter FPV Racing Drone. Please read this manual thoroughly before operating the drone to ensure proper setup, flight, and maintenance. The ARRIS C250 V2 is a high-performance FPV racing drone designed for experienced users.

Linee guida di sicurezza

• Utilizzare sempre il drone in aree aperte, lontano da persone, animali, edifici e ostacoli.
• Mantenere una distanza di sicurezza dal drone durante il volo.
• Do not fly near airports or in restricted airspace. Check local regulations before flying.
• Ensure the battery is fully charged and securely mounted before each flight.
• Inspect propellers for damage before each flight. Replace any damaged propellers immediately.
• Never attempt to catch the drone while its propellers are spinning.
• Evitare di volare in caso di vento forte o condizioni meteorologiche avverse.
• Tenere mani e viso lontani dalle eliche in rotazione.
• This product is not a toy and is intended for adult use only.

Prodotto finitoview e componenti

The ARRIS C250 V2 is an advanced FPV racing drone featuring a robust design and integrated electronics for optimal performance. Key components include:

• ARRIS C250 V2 Frame
• Radiolink AT9 Transmitter and Receiver
• ARRIS 4S 1500mAh LiPo Battery
• ARRIS X2205 2300KV Brushless Motors
• Flycolor S-Tower 4-in-1 ESC + F3 Flight Controller + OSD + PDB
• ARRIS 5042 3-blade Propellers
• ARRIS XAT700M FPV Mini Camera
• 5.8G FPV Video Transmitter (TX) and Antenna
• Cicalino

Figura 1: Oltreview of the ARRIS C250 V2 FPV Racing Drone with key components labeled, including motors, propellers, battery, FPV camera, and video transmitter.

Figura 2: dettagliata view highlighting the XT60 Female Plug, 4-in-1 ESC with FC, PDB Tower, and the 5.8G FPV Racing TX Antenna.

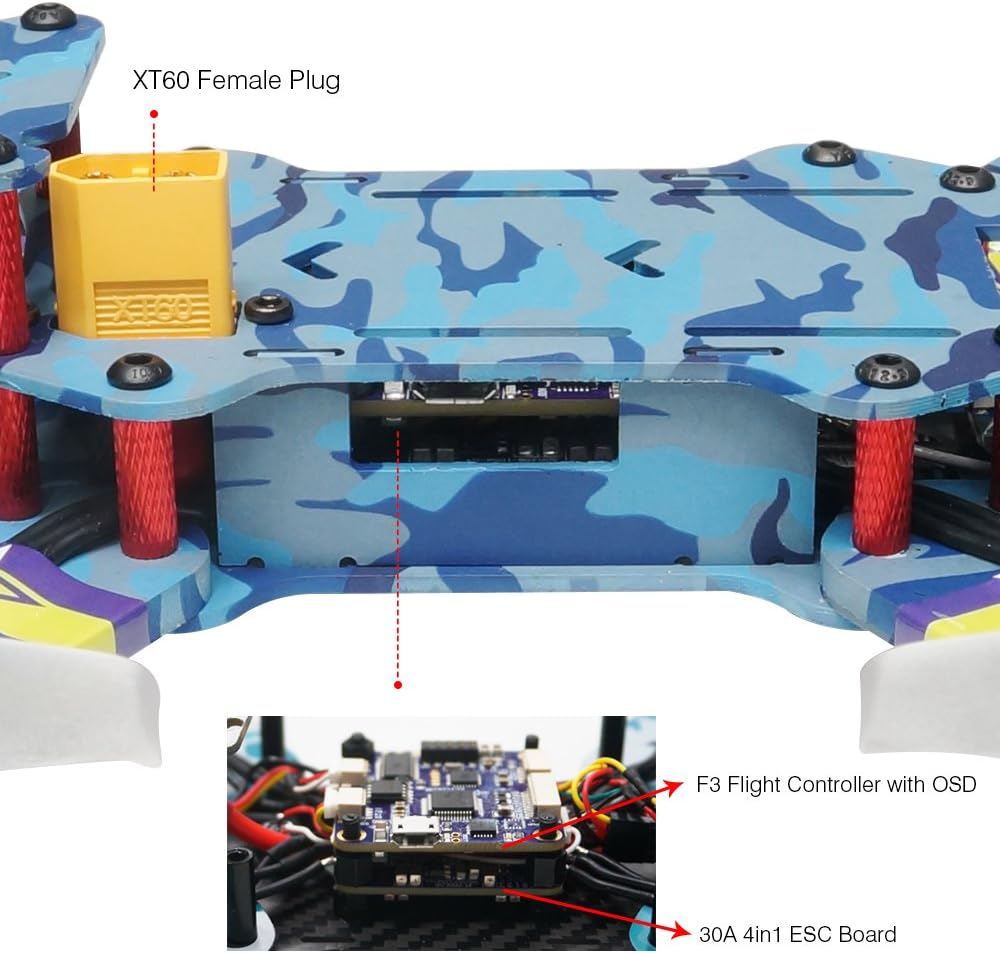

Figure 3: Close-up of the integrated Flycolor S-Tower, showing the F3 Flight Controller with On-Screen Display (OSD) and the 30A 4-in-1 ESC Board.

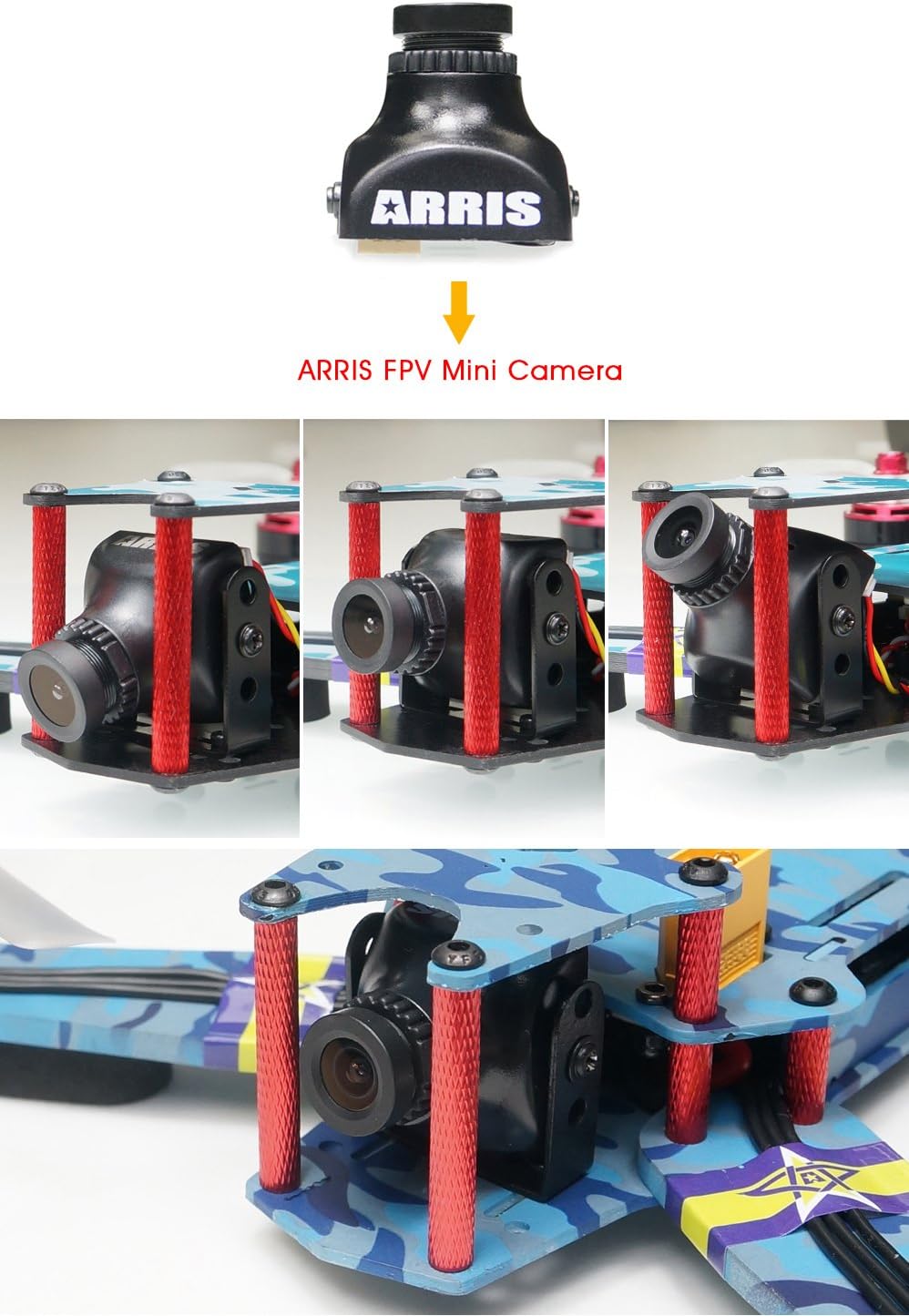

Figure 4: The ARRIS FPV Mini Camera, demonstrating its adjustable angle feature for optimal FPV viewing.

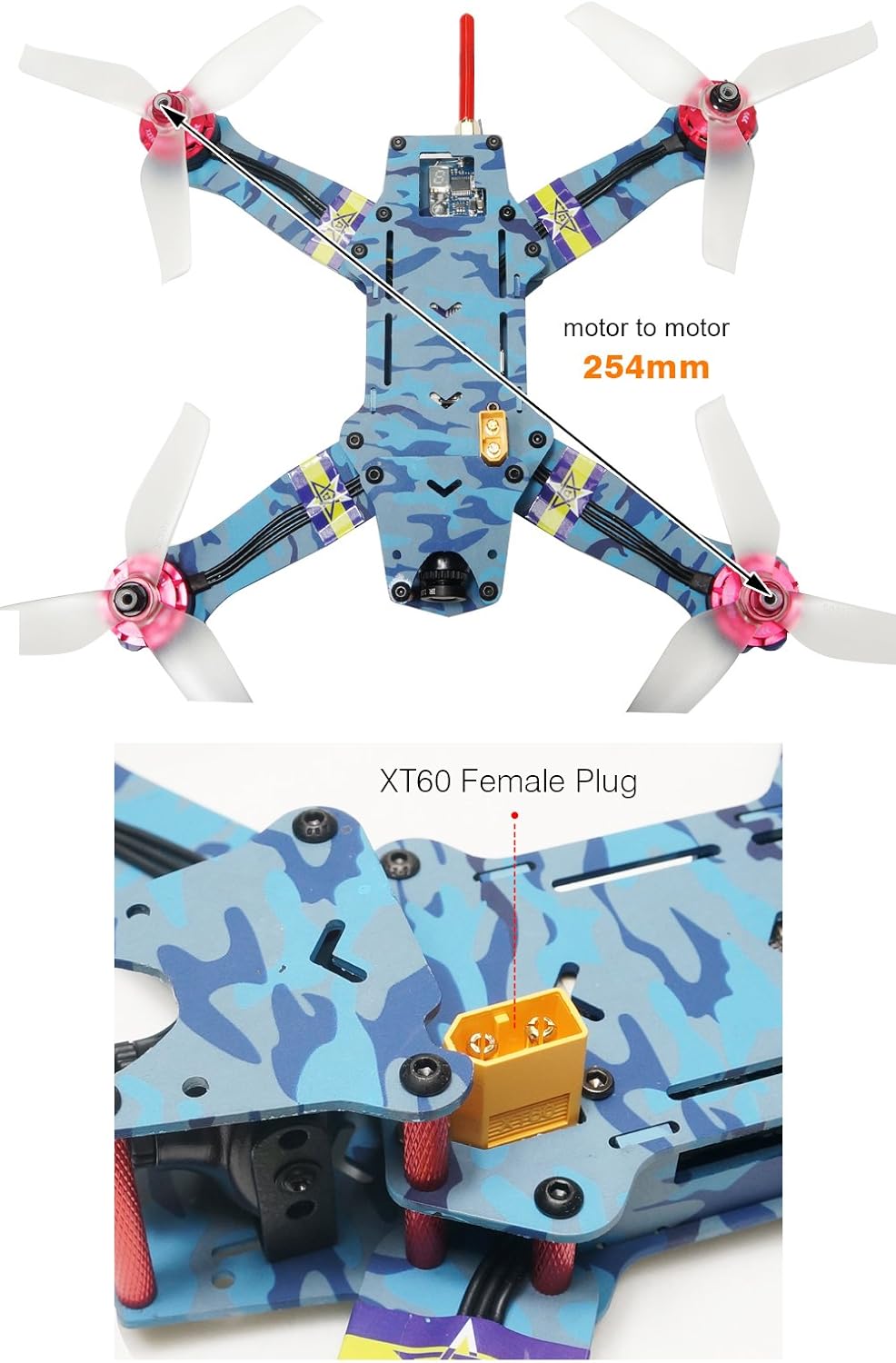

Figura 5: Dall'alto verso il basso view illustrating the 254mm motor-to-motor diagonal distance of the ARRIS C250 V2 frame.

Figura 6: lato view highlighting the super narrow 23mm arms and the placement of the ARRIS FPV Racing 5.8G TX Antenna.

Figura 7: Anteriore e posteriore views of the assembled ARRIS C250 V2 drone, showcasing il suo design compatto.

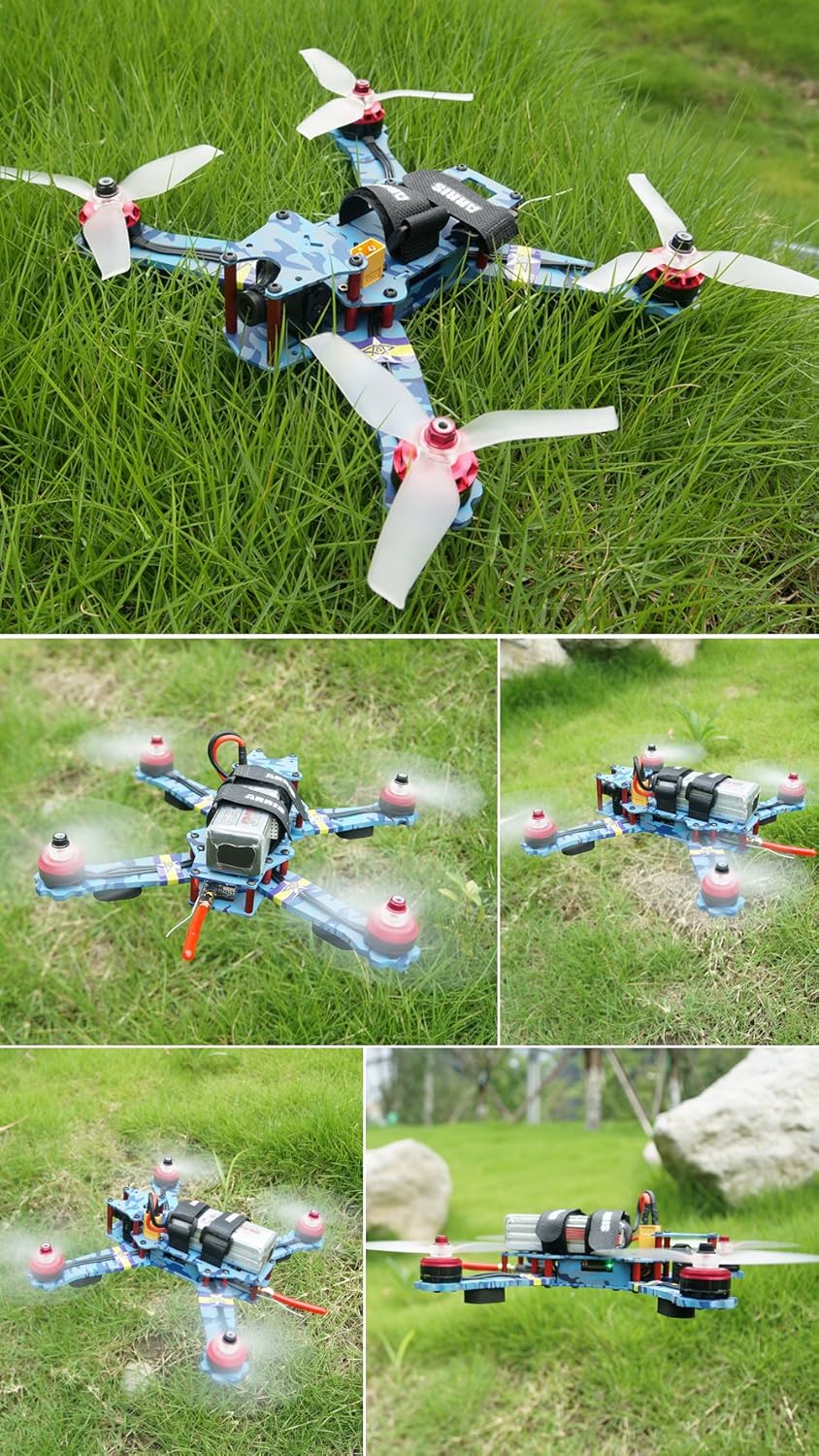

Figure 8: The ARRIS C250 V2 drone positioned in a grassy outdoor environment, ready for flight.

Figure 9: The complete package contents, including the ARRIS C250 V2 drone, Radiolink AT9 transmitter, 4S 1500mAh LiPo battery, and spare propellers.

Impostare

1. Batteria in carica

The ARRIS C250 V2 includes a 4S 1500mAh LiPo battery. A compatible LiPo battery charger (e.g., Skyrc Imax B6AC V2, not included) is required. Always charge the battery in a fire-safe location and never leave it unattended during charging. Follow the instructions provided with your battery charger for safe operation.

2. Transmitter Setup (Radiolink AT9)

Your drone comes pre-bound to the Radiolink AT9 transmitter. Familiarize yourself with the transmitter's controls and switches. The default configuration typically includes:

• Inserimento/Disinserimento: A three-way switch is usually assigned for arming the motors and switching between flight modes (e.g., Level, Acro).
• Cicalino: A two-way switch may be assigned to activate the built-in buzzer for locating the drone after a crash.

Refer to the Radiolink AT9 manual for detailed programming and calibration instructions. While the drone is ready-to-fly (RTF), understanding your transmitter's capabilities is crucial for advanced control.

3. Installazione dell'elica

Ensure propellers are installed correctly. Each motor has a specific rotation direction. Match the propellers (clockwise/counter-clockwise) to the corresponding motors as indicated by the motor rotation and propeller markings. Securely fasten the propellers to the motors. Incorrect propeller installation can lead to unstable flight or loss of control.

4. Controlli pre-volo

• Verificare che tutte le eliche siano saldamente fissate e non danneggiate.
• Confirm the battery is fully charged and properly secured to the drone.
• Check that the FPV camera angle is set to your preference.
• Power on the transmitter first, then connect the drone's battery.
• Perform a range check of the radio control system in a safe area.
• Ensure the FPV video feed is clear and stable before takeoff.

Istruzioni per l'uso

1. Inserimento e disinserimento

To arm the motors, move the designated arming switch on your Radiolink AT9 transmitter to the 'armed' position. The motors will typically spin slowly, indicating they are ready for flight. To disarm, move the switch back to the 'disarmed' position. Always disarm the drone immediately after landing or in case of an emergency.

2. Modalità di volo

The ARRIS C250 V2 typically supports multiple flight modes, configurable via the F3 Flight Controller. Common modes include:

• Angle/Level Mode: Provides self-leveling assistance, making it easier for beginners to control.
• Acro/Rate Mode: Offers full manual control without self-leveling, preferred by experienced FPV pilots for racing and freestyle maneuvers.

Switch between modes using the assigned switch on your transmitter. Start with Angle mode if you are new to FPV racing drones.

3. Comandi di volo di base

The Radiolink AT9 transmitter uses standard RC control inputs:

• Acceleratore (leva sinistra su/giù): Controlla la velocità del motore e l'altitudine.
• Imbardata (levetta sinistra sinistra/destra): Ruota il drone orizzontalmente.
• Passo (levetta destra su/giù): Tilts the drone forward/backward.
• Rotola (levetta destra sinistra/destra): Tilts the drone left/right.

Practice these controls in a simulator or a safe, open area before attempting aggressive maneuvers.

4. Funzionamento del sistema FPV

Power on your FPV goggles or monitor after the drone is powered on. Ensure your FPV receiver is tuned to the correct 5.8GHz channel matching the drone's 5.8G 200mW TX. The OSD (On-Screen Display) integrated into the F3 Flight Controller will provide real-time flight data such as battery voltage, flight time, and current mode directly on your FPV feed.

Manutenzione

1. Pulizia

Regularly clean your drone to remove dirt, grass, and debris from the frame, motors, and electronics. Use a soft brush or compressed air. Avoid using liquids directly on electronic components.

2. Sostituzione dell'elica

Inspect propellers before and after each flight for cracks, bends, or chips. Damaged propellers can cause vibrations, reduce efficiency, and lead to unstable flight. Replace them with genuine ARRIS 5042 3-blade propellers.

3. Cura della batteria

• Conservare le batterie LiPo in un luogo fresco e asciutto, idealmente in un sacchetto adatto alle batterie LiPo.
• Non sovraccaricare o scaricare eccessivamente le batterie LiPo.
• Never puncture or damage LiPo batteries.
• If a battery becomes puffed or damaged, discontinue use immediately and dispose of it safely according to local regulations.

4. Aggiornamenti del firmware

Periodically check the ARRIS official website or support forums for firmware updates for the F3 Flight Controller and Flycolor S-Tower. Keeping firmware updated can improve performance and add new features. Follow official instructions carefully when performing updates.

Risoluzione dei problemi

• Il drone non si arma: Ensure the transmitter is powered on, the drone battery is connected, and the arming switch is correctly engaged. Check for any error messages on the OSD or flight controller LEDs.
• Loss of signal/control: Ensure your transmitter antenna is properly oriented and not obstructed. Fly within the recommended range. Check for potential radio interference.
• Unstable flight/vibrations: Inspect propellers for damage or incorrect installation. Check motor mounts for looseness. Ensure the flight controller is securely mounted.
• No FPV video feed: Verify the FPV camera and video transmitter are powered on and connected. Ensure your FPV receiver (goggles/monitor) is on the correct channel. Check antenna connections on both the drone and receiver.
• Il motore non gira: Check motor connections to the ESC. Inspect the motor for physical damage. If one motor is faulty, it may require replacement.

For more detailed troubleshooting or complex issues, consult online FPV forums, the ARRIS support website, or contact customer service.

Specifiche

Garanzia e supporto

For warranty information, technical support, or replacement parts, please refer to the official ARRIS website or contact your retailer. Keep your proof of purchase for warranty claims. Product specifications and features are subject to change without notice.
