E-WIN Gaming Racing Chair Charles Series Instruction Manual

1. Introduzione

This manual provides detailed instructions for the assembly, operation, and maintenance of your E-WIN Gaming Racing Chair Charles Series. Please read this manual thoroughly before use to ensure proper function and longevity of your chair. Keep this manual for future reference.

Image 1.1: E-WIN Gaming Racing Chair Charles Series.

2. Informazioni sulla sicurezza

• Assicurarsi che tutti i componenti siano fissati saldamente prima dell'uso.
• Non salire sulla sedia.
• Evitare di posizionare oggetti pesanti sullo schienale o sui braccioli della sedia.
• Durante le regolazioni, tenere mani e dita lontane dalle parti mobili.
• Non utilizzare la sedia se qualche componente risulta danneggiato o mancante. Contattare l'assistenza clienti per la sostituzione dei pezzi.
• Capacità di peso massima: 330 libbre (150 kg).

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare il montaggio. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

• Schienale
• Base del sedile
• Braccioli (2)
• Cilindro di sollevamento a gas
• Coperchio per ascensore a gas
• Base a stella
• Rotelle (5)
• Piastra del meccanismo
• Cuscino di supporto lombare
• Cuscino poggiatesta
• Hardware Kit (bolts, washers, Allen key)

4. Installazione e assemblaggio

The E-WIN Gaming Racing Chair is designed for straightforward assembly, with most hardware pre-installed to simplify the process. Assembly typically takes approximately 30 minutes.

1. Fissare le rotelle alla base a stella spingendole con decisione nei fori finché non scattano in posizione.
2. Inserire il cilindro del pistone a gas nel foro centrale della base a stella. Posizionare il coperchio del pistone a gas sopra il cilindro.
3. Attach the mechanism plate to the underside of the seat base using the provided bolts. Ensure the front of the mechanism faces the front of the seat.
4. Align the seat base with the gas lift cylinder and firmly push down to secure it.
5. Attach the armrests to the seat base using the pre-installed bolts.
6. Attach the backrest to the seat base and armrests using the remaining bolts.
7. Fissare il poggiatesta e i cuscini di supporto lombare come desiderato.

5. Istruzioni per l'uso

Your E-WIN Gaming Racing Chair offers multiple adjustment options for personalized comfort.

5.1. Regolazione dell'altezza

To adjust the chair's height, pull the lever located on the right side of the seat upwards. While pulling the lever, stand up to raise the chair or remain seated to lower it. Release the lever at the desired height.

5.2. Backrest Tilt Adjustment

The backrest can be tilted and locked at various angles from 85° to 155°. Pull the lever on the left side of the seat upwards to unlock the backrest. Lean back or forward to the desired angle, then release the lever to lock it in place.

Image 5.1: Backrest tilt angles for various activities.

5.3. Funzione di oscillazione

To enable the rocking function, pull the height adjustment lever outwards. Push the lever inwards to lock the chair in an upright position.

5.4. Regolazione del bracciolo

The armrests are adjustable up and down. Press the button on the side of each armrest and move it to your preferred height. Release the button to lock the armrest.

5.5. Funzione girevole

La sedia è dotata di una funzione girevole a 360°, che consente una facile rotazione.

6. Manutenzione

Regular maintenance helps preserve the appearance and functionality of your E-WIN Gaming Racing Chair.

• Pulizia: Pulisci la pelle PU con un panno morbido eamp cloth. For tougher stains, use a mild soap solution and dry immediately. Avoid harsh chemicals or abrasive cleaners.
• Hardware: Controllare periodicamente tutti i bulloni e le viti per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario.
• Ruote: Pulire regolarmente le rotelle per rimuovere polvere e detriti che potrebbero ostacolare il movimento fluido.
• Parti mobili: Avoid lubricating the gas lift cylinder or other moving parts unless specifically instructed by customer support.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua sedia, fai riferimento alle seguenti soluzioni comuni:

• La sedia non si regola in altezza: Assicurarsi che la leva del pistone a gas sia completamente innestata. Se il problema persiste, potrebbe essere necessario sostituire il cilindro del pistone a gas.
• La sedia è traballante: Check all assembly bolts and ensure they are securely tightened. Verify the casters are fully inserted into the star base.
• Rumori stridenti: Identify the source of the squeak. Often, re-tightening bolts or applying a small amount of silicone spray to pivot points (avoiding the gas lift) can resolve this.
• Le rotelle non girano fluidamente: Rimuovere eventuali capelli o detriti dalle ruote piroettanti.

For persistent issues or concerns not addressed here, please contact E-WIN customer support.

8. Specifiche

Detailed specifications for the E-WIN Gaming Racing Chair Charles Series:

8.1. Dimensioni oltreview

Image 8.1: Key dimensions of the E-WIN Gaming Racing Chair.

8.2. Material and Ergonomic Design

The chair features premium PU leather for durability and breathability, combined with an ergonomic design to support the natural curvature of the spine.

Image 8.2: Premium PU leather with breathable properties.

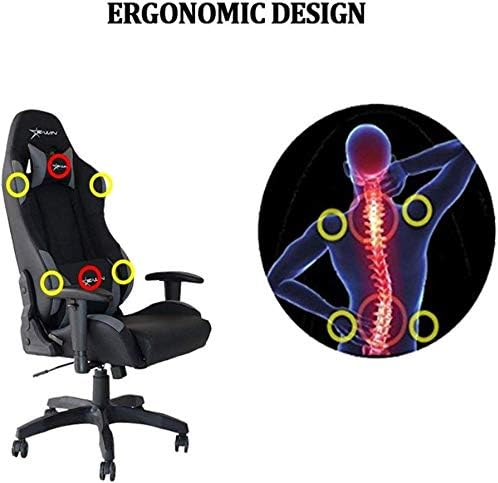

Image 8.3: Ergonomic design for optimal body support.

8.3. Internal Construction

The E-WIN chair utilizes a robust internal construction for enhanced durability and comfort, featuring an integrated metal frame and high-density foam. This construction differs from some other chairs that may use less durable materials like plywood or simpler metal frames.

Video 8.1: This video demonstrates the internal construction and material quality of the E-WIN gaming chair compared to other brands, highlighting the use of elastic bands, metal frame, and high-density integrated foam in the E-WIN chair.

Immagine 8.4: Varie views illustrating the chair's design and structural elements.

9. Garanzia e supporto

The E-WIN Gaming Racing Chair Charles Series comes with a 2-year manufacturer warranty under normal use. For warranty claims, technical assistance, or any product-related inquiries, please contact E-WIN customer support.

Conservare la prova d'acquisto per la convalida della garanzia.
