Green Valley Adventure 625 Rear Bicycle Carrier (Model 160625) Instruction Manual

Introduzione

Thank you for choosing the Green Valley Adventure 625 Rear Bicycle Carrier. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your bicycle carrier. Please read these instructions carefully before installation and use, and keep them for future reference. Proper installation and use are crucial for your safety and the safety of others.

Informazioni sulla sicurezza

AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza potrebbe causare gravi lesioni o danni alla proprietà.

• Leggere e comprendere sempre l'intero manuale di istruzioni prima dell'installazione e dell'uso.
• Do not exceed the maximum weight capacity of the carrier (refer to specifications) or your vehicle's towing/carrying capacity.
• Ensure all straps, bolts, and fasteners are securely tightened before each journey. Check regularly during long trips.
• Verify that the carrier and bicycles do not obstruct vehicle lights, license plates, or rear visibility. Use auxiliary lighting/license plate holders if necessary (sold separately).
• Drive cautiously, especially over bumps, during braking, and when cornering. Adjust driving speed to road conditions and load.
• Tenere presente che una volta installato il portabici, il veicolo aumenterà in lunghezza e larghezza.
• Remove the carrier when not in use to improve fuel efficiency and prevent theft.
• Keep children away from the carrier during installation and removal.
• Do not modify the carrier in any way. Use only original Green Valley replacement parts.

Contenuto della confezione

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• Main Carrier Frame
• Wheel Trays (3 sets)
• Bicycle Frame Holders (3 units)
• Mounting Straps/Hardware for Vehicle Attachment
• Manuale di istruzioni

Configurazione e installazione

Follow these steps carefully to ensure proper and secure installation of your Green Valley Adventure 625 bicycle carrier.

1. Disimballaggio e ispezione iniziale

Carefully remove all components from the packaging. Lay them out on a clean, flat surface. Inspect each part for any signs of damage or manufacturing defects. Refer to the "Package Contents" section to ensure all items are present.

2. Assembling the Carrier Frame

Connect the main carrier frame sections according to the diagrams provided. Ensure all locking pins or bolts are fully engaged and tightened. Attach the wheel trays to the main frame, ensuring they are spaced correctly for typical bicycle wheelbases. Secure the bicycle frame holders to the vertical support arms.

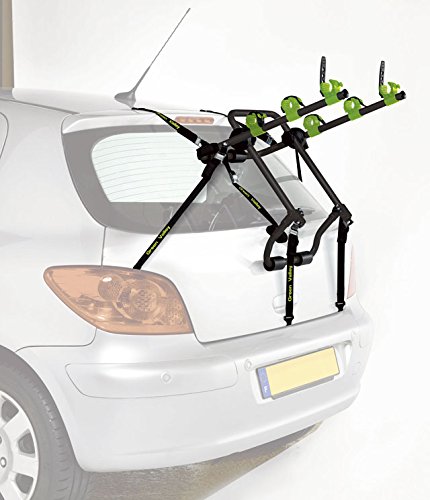

Figure 1: Assembled Green Valley Adventure 625 Rear Bicycle Carrier.

3. Mounting to the Vehicle

Position the carrier on the rear of your vehicle, ensuring the support pads rest firmly and evenly on the vehicle's surface. Attach the mounting straps to secure anchor points on your vehicle (e.g., trunk lid edges, bumper). Tighten all straps evenly and firmly, ensuring the carrier is stable and does not wobble. Re-check strap tension after driving a short distance.

Istruzioni per l'uso

1. Caricamento delle biciclette

1. Assicurarsi che il portabici sia montato saldamente sul veicolo.
2. Place the first bicycle into the innermost position, with its wheels resting in the wheel trays.
3. Secure the bicycle frame using the provided frame holders. Ensure the frame is firmly gripped and cannot move.
4. Use the wheel straps to secure both wheels to the wheel trays.
5. Repeat for the remaining bicycles, alternating direction if necessary to prevent handlebars/pedals from colliding.
6. After loading all bikes, double-check all frame holders and wheel straps for tightness.

2. Scarico delle biciclette

Reverse the loading procedure. Release wheel straps, then frame holders, and carefully lift each bicycle off the carrier.

3. Driving with the Carrier

Always drive cautiously when the carrier is loaded. Avoid sudden braking, sharp turns, and high speeds. Periodically check the carrier and bicycle security during long journeys, especially after the first 15 minutes of driving. Be mindful of overhead clearances and increased vehicle length when parking or maneuvering.

Manutenzione

• Pulizia: Pulire regolarmente il trasportino con acqua e sapone neutro, soprattutto dopo l'esposizione a sale stradale o sporcizia. Risciacquare abbondantemente e asciugare.
• Lubrificazione: Periodically lubricate moving parts and hinges with a suitable lubricant to ensure smooth operation and prevent corrosion.
• Ispezione: Before each use, inspect all straps, bolts, and structural components for wear, damage, or corrosion. Replace any worn or damaged parts immediately.
• Magazzinaggio: Store the carrier in a dry, protected area when not in use to prolong its lifespan.

Risoluzione dei problemi

Specifiche

Informazioni sulla garanzia

Green Valley products are manufactured to high-quality standards and are guaranteed against defects in materials and workmanship for a period specified by local regulations from the date of purchase. This warranty does not cover damage caused by improper installation, misuse, neglect, accidents, or normal wear and tear. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, please refer to the documentation included with your product or contact Green Valley customer support.

Assistenza clienti

If you have any questions regarding the installation, operation, or maintenance of your Green Valley Adventure 625 Rear Bicycle Carrier, please contact our customer support team. For the most up-to-date contact information, please visit the official Green Valley websito o fare riferimento alla confezione del prodotto.

Quando contatti l'assistenza, tieni a portata di mano il numero del modello (160625) e la data di acquisto.
