ODOMY Thermostatic Shower Mixer (Model Librao-T001) Instruction Manual

1. Introduzione

Thank you for choosing the ODOMY Thermostatic Shower Mixer, Model Librao-T001. This product is designed to provide a consistent and comfortable showering experience by automatically maintaining your desired water temperature. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Figure 1: ODOMY Thermostatic Shower Mixer, Model Librao-T001. This image shows the main unit of the thermostatic shower mixer with its chrome finish and control knobs.

2. Informazioni sulla sicurezza

• Chiudere sempre l'alimentazione idrica principale prima di procedere a qualsiasi installazione o manutenzione.
• Assicurarsi che tutti i collegamenti siano ben saldi per evitare perdite.
• The safety button temperature is set at 38°C to prevent scalding. Do not override this feature without understanding the risks.
• In caso di dubbi su una qualsiasi fase dell'installazione, consultare un idraulico qualificato.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare l'installazione.

• Thermostatic Shower Mixer Unit
• Wall Mount Adapters (typically 2)
• Guarnizioni/rondelle di tenuta
• Manuale di istruzioni (questo documento)

4. Specifiche

Figure 2: Dimensional drawing of the ODOMY Thermostatic Shower Mixer, showing key measurements including the 27cm (10.63 inch) length and 15cm (5.91 inch) inlet spacing.

Figure 3: Illustration highlighting the premium solid brass construction of the shower mixer, emphasizing its durability and quality materials.

5. Configurazione e installazione

Proper installation is crucial for the optimal performance and longevity of your thermostatic shower mixer.

5.1 Prima dell'installazione

• Chiudere l'alimentazione idrica principale del bagno.
• Ensure the wall surface and installation holes are clean and free of debris.
• Confirm that your hot water pipe is on the left and cold water pipe is on the right, as viewed from the front. This is standard for thermostatic mixers.
• Verify the distance between your hot and cold water inlets is approximately 150mm (5.91 inches).

5.2 Passaggi di installazione

1. Attach the wall mount adapters to your existing hot and cold water pipes. Ensure a secure, leak-free connection using appropriate sealing materials.
2. Position the thermostatic shower mixer onto the wall mount adapters. The inlet connection size is G 3/4" and the outlet connection size is G 1/2".
3. Secure the mixer to the wall mount adapters. The left side of the mixer controls water regulation (flow), and the right side controls temperature.
4. Once the mixer is securely mounted, slowly turn on the main water supply and check for any leaks.

Figure 4: Diagram illustrating the inlet and outlet connections of the shower mixer. It shows the G 3/4" inlet and G 1/2" outlet, with labels for hot (H) and cold (C) water connections.

6. Istruzioni per l'uso

The ODOMY Thermostatic Shower Mixer is designed for ease of use and precise temperature control.

6.1 Controllo del flusso d'acqua

• The left handle controls the water flow. Turn it to adjust the intensity of the water output.

6.2 Controllo della temperatura

• The right handle controls the water temperature. Rotate it to select your desired temperature.
• The mixer features an intelligent thermostat that automatically balances cold and hot water pressure to maintain a stable temperature.
• A safety button is integrated at 38°C (100.4°F) to prevent accidental scalding. To set a temperature higher than 38°C, you must press and hold this red button while rotating the handle.
• The adjustable temperature range is from 20°C to 50°C.

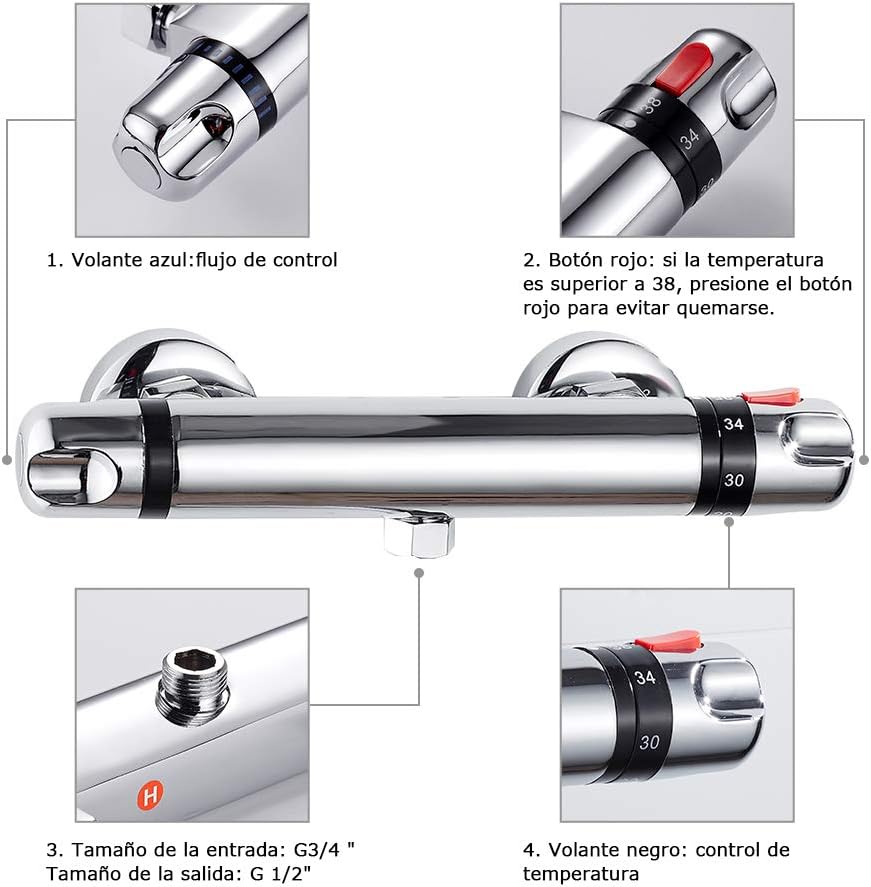

Figure 5: Image showing the control points on the shower mixer. The left knob is labeled "Control the flow" and the right knob is labeled "Control the temp", with hot and cold water inlets also indicated.

Figura 6: dettagliata view of the thermostatic cartridge and control mechanisms. This image highlights the temperature control lock, smart thermostat, high precision temperature control, and the brass check valve, explaining their functions.

7. Manutenzione

Regular maintenance helps ensure the long-term performance and efficiency of your ODOMY Thermostatic Shower Mixer.

• Pulizia dell'esterno: Clean the chrome finish with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can damage the finish.
• Addressing Hard Water Deposits: In areas with hard water, mineral deposits (calcium) can accumulate within the mixer, potentially affecting temperature control. If you notice inconsistent temperature or reduced flow, it may be necessary to clean the internal components, particularly the screens where water mixes. This can often be done by disassembling the unit and soaking affected parts in a vinegar solution. It is recommended to consult a professional if you are not comfortable performing this task.

8. Risoluzione Dei Problemi

9. Garanzia e supporto

For information regarding warranty coverage or technical support, please refer to the product packaging or contact ODOMY customer service directly.

Produttore: Librao
Marca: ODOMY
