1. Prodotto finitoview
This manual provides instructions for the GUESS Women's U1053L3 watch, featuring a pink silicone strap, rose gold-tone casing, and multi-function capabilities including day, date, and 24-hour displays. The watch is designed for daily wear with durable materials and a stylish aesthetic.

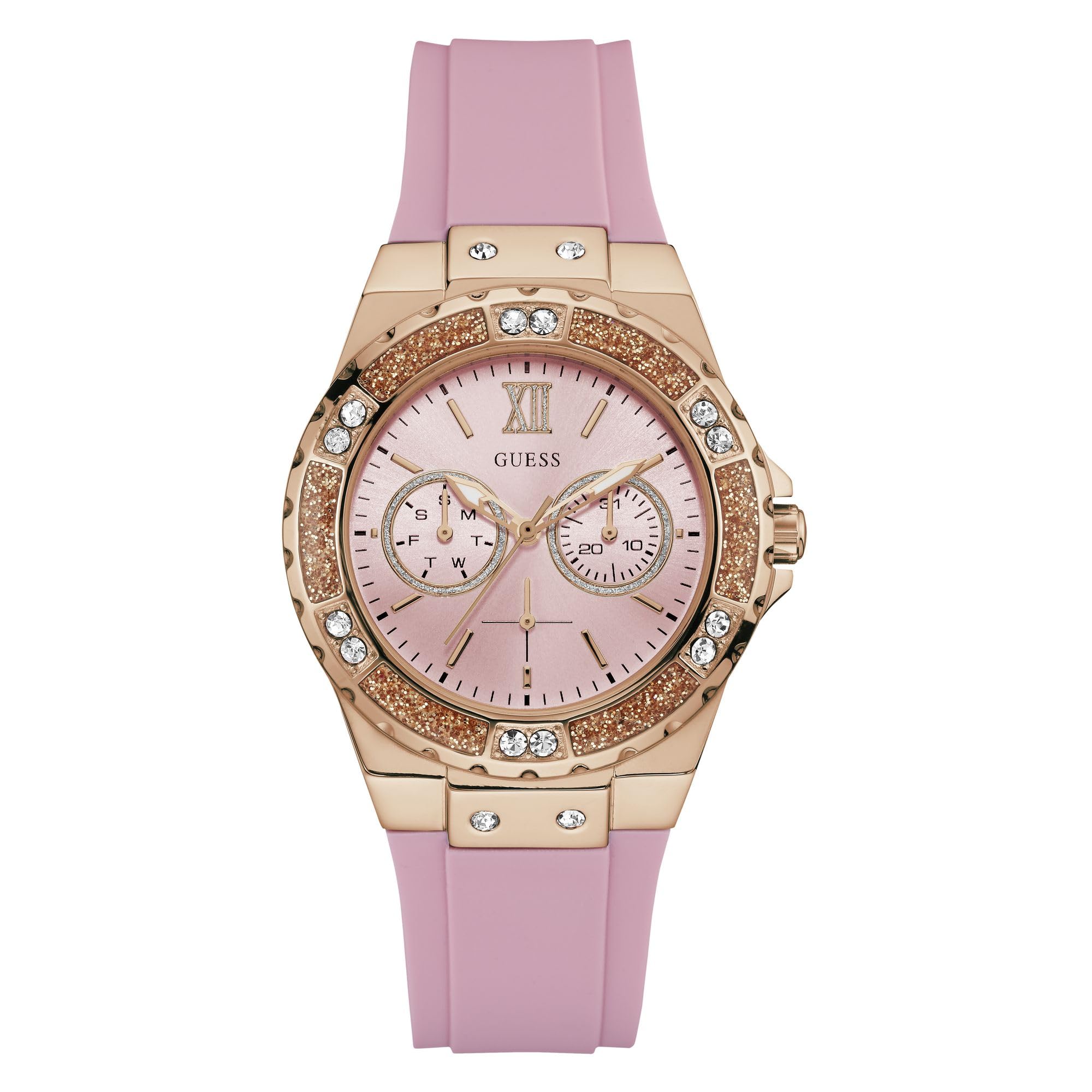

Figura 1: Fronte view of the GUESS Women's U1053L3 Watch, showcasing the pink silicone strap, rose gold-tone case, and crystal accents.
Caratteristiche principali:
- Quadrante multifunzione: Displays day, date, and 24-hour time.
- Caso: 38.5 mm polished round stainless steel, rose gold-tone, with crystal accents.
- Cristallo: Durable mineral crystal for scratch protection.
- Cinghia: Comfortable pink stain-resistant silicone with a rose gold-tone buckle closure.
- Resistenza all'acqua: Resistente all'acqua fino a 165 piedi (50 metri).
2. Configurazione e regolazione iniziale
2.1 Impostazione dell'ora e della data
- Estrarre la corona: Gently pull the crown (the knob on the side of the watch) to position 2. This is the outermost position.
- Imposta l'ora: Rotate the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time. Ensure to account for AM/PM if setting the date.
- Imposta la data: Push the crown halfway in to position 1. Rotate the crown to adjust the date display.
- Imposta il giorno: The day sub-dial is typically synchronized with the time setting. If needed, continue rotating the crown in position 2 to advance the time until the correct day is displayed.
- Spingere la corona: Once the time, date, and day are set, push the crown back into its original position (position 0) to start the watch movement.
Figura 2: lato view dell'orologio, evidenziando la corona per la regolazione dell'ora e della data.
2.2 Regolazione del cinturino
The silicone strap features a traditional buckle closure for easy adjustment. To adjust, simply thread the strap through the buckle and secure it at the desired length. Ensure the watch fits snugly but comfortably on your wrist.
Figure 3: Close-up of the rose gold-tone buckle on the pink silicone strap.
3. Funzionamento
3.1 Using Multi-function Sub-dials
The GUESS U1053L3 watch includes three sub-dials on its face, typically indicating the day of the week, the date of the month, and a 24-hour format. These functions are generally set in conjunction with the main time setting via the crown, as described in Section 2.1.
- Quadrante secondario del giorno: Indica il giorno corrente della settimana.
- Quadrante secondario della data: Indica il giorno corrente del mese.
- Quadrante secondario 24 ore: Visualizza l'ora corrente nel formato 24 ore, utile per distinguere AM/PM.
4. Manutenzione
4.1 Pulizia dell'orologio
Per preservare l'aspetto e la longevità del tuo orologio:
- Pulire la cassa e il cristallo con un panno morbido e asciutto.
- For the silicone strap, use a mild soap and water solution with a soft brush, then rinse thoroughly and dry. Avoid harsh chemicals.
- Ensure the crown is pushed in completely before cleaning to prevent water entry.
4.2 Resistenza all'acqua
This watch is water resistant up to 165 feet (50 meters). This means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Avoid operating the crown or pushers when the watch is wet or submerged to prevent water damage.
4.3 Sostituzione della batteria
The watch is powered by one Lithium Metal battery (included). When the watch stops running, it indicates the battery needs replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and water resistance.
5. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Orologio non in funzione | Batteria scarica o corona non premuta. | Push the crown fully in. If still not running, replace the battery. |
| Data/giorno non cambia | Incorrectly set or insufficient power. | Re-set the time and date/day as per Section 2.1. Ensure the crown is fully pushed in. |
| Condensa all'interno del cristallo | Temperature changes or water ingress. | Evitare sbalzi di temperatura estremi. In caso di sbalzi di temperatura gravi o persistenti, rivolgersi a un professionista. |
6. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | U1053L3 |
| Marca | INDOVINA |
| Materiale della cassa | Acciaio inossidabile |
| Diametro della cassa | 39 millimetri |
| Spessore della cassa | 11 millimetri |
| Materiale della fascia | Silicone |
| Larghezza di banda | 21 millimetri |
| Lunghezza della banda | 8.5 pollici |
| Tipo di cristallo | Minerale |
| Movimento | Quarzo giapponese |
| Tipo di visualizzazione | Analogico |
| Profondità di resistenza all'acqua | 165 piedi (50 metri) |
| Peso dell'articolo | 2.8 once |
| Batteria | 1 batteria al litio metallico (inclusa) |
| Produttore | Sequel International |
7. Garanzia e supporto
7.1 Garanzia del produttore
This GUESS watch is covered by a manufacturer's warranty provided by Sequel International. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration of coverage. The warranty typically covers manufacturing defects but may not cover damage resulting from improper use, accidents, or unauthorized repairs.
7.2 Assistenza clienti
For technical assistance, warranty claims, or service inquiries, please contact Sequel International, the manufacturer of GUESS watches. Contact information can usually be found on the warranty card or the official GUESS Watches websito.
8. Video di prodotto
8.1 Watch Sizing Guide
This video provides a visual guide to understanding watch case sizes and how they appear on different wrist sizes, helping you determine the ideal fit for your GUESS watch.
8.2 GUESS Stainless Steel Casual Watch Overview
An official manufacturer video showcasing the design and features of a GUESS stainless steel casual watch, similar in style and function to the U1053L3 model.
