Manuale di istruzioni

1. Introduzione

This manual provides essential information for the safe and effective use of your Technical Precision 6.3V1W-M replacement light bulbs. These bulbs are designed as direct replacements for Izumi 6.3V1W-M models, offering reliable illumination for compatible applications. Please read this manual thoroughly before installation and operation.

2. Prodotto finitoview e componenti

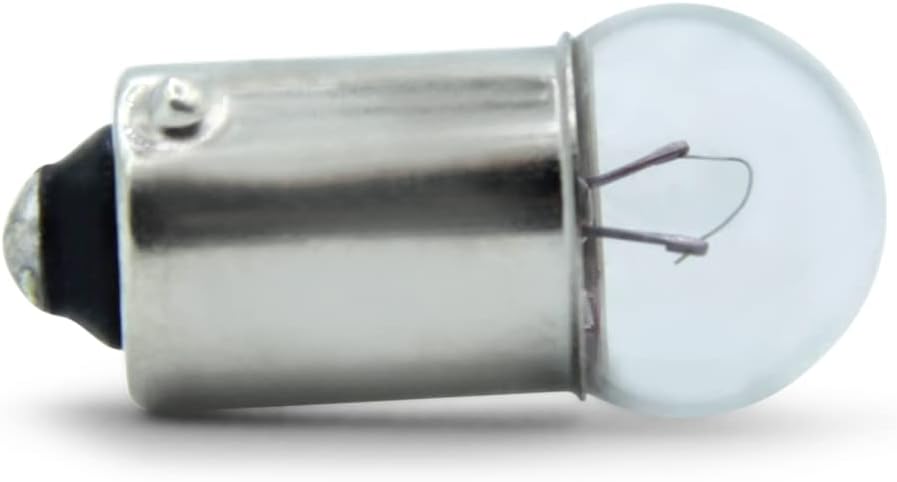

The Technical Precision 6.3V1W-M is a miniature incandescent light bulb, typically used in various low-voltage applications. Each pack contains 10 units of these bulbs.

• Tipo di lampadina: Incandescent
• Tipo di base: BA9S (Miniature Bayonet)
• Voltage: 6.3 Volt
• Cosatage: 1 Watt
• Colore chiaro: Bianco caldo
• Luminosità: 1 lumen
• Vita media: Circa 5000 ore
• Materiale: Copper base, clear glass envelope
• Dimensioni: Circa 0.94 pollici di lunghezza

3. Specifiche

4. Installazione / Configurazione

Follow these steps to safely install your replacement light bulb:

1. La sicurezza prima di tutto: Before attempting to replace any light bulb, ensure the power to the fixture or device is completely turned off. If possible, unplug the device or switch off the circuit breaker controlling the power supply.
2. Consenti raffreddamento: If the previous bulb was recently in use, allow it to cool down completely before handling to prevent burns.
3. Rimuovere la vecchia lampadina: Gently twist or pull the old bulb from its socket, depending on the socket type. For BA9S bases, typically a push-and-twist motion is required to release the bulb from its bayonet fitting.
4. Ispezionare la presa: Check the socket for any debris, corrosion, or damage. Ensure it is clean and dry before inserting the new bulb.
5. Inserire la nuova lampadina: Align the pins on the base of the new Technical Precision 6.3V1W-M bulb with the slots in the socket. Push the bulb gently into the socket and twist clockwise until it locks into place. Do not force the bulb.
6. Verifica adattamento: Ensure the bulb is seated firmly and correctly in the socket.
7. Ripristina alimentazione: Once the new bulb is securely installed, restore power to the fixture or device.
8. Test: Accendere la luce per confermare il corretto funzionamento.

Nota: Always ensure the replacement bulb's voltage e cosatage match the requirements of your fixture to prevent damage or malfunction.

5. Istruzioni per l'uso

Once the Technical Precision 6.3V1W-M light bulb is correctly installed in a compatible fixture, its operation is controlled by the power switch of that fixture or device. Simply turn on the power to illuminate the bulb. There are no specific operating controls on the bulb itself.

6. Manutenzione

These light bulbs require minimal maintenance:

• Pulizia: If the bulb becomes dusty, ensure the power is off and the bulb is cool. Gently wipe the glass with a soft, dry, lint-free cloth. Avoid using liquid cleaners or abrasive materials.
• Gestione: When handling the bulb, especially during installation or removal, try to hold it by its metal base rather than the glass envelope to avoid transferring oils from your skin, which can reduce bulb life.
• Magazzinaggio: Store unused bulbs in their original packaging in a cool, dry place to protect them from damage.

7. Risoluzione Dei Problemi

If your Technical Precision 6.3V1W-M light bulb is not functioning as expected, consider the following:

• La lampadina non si accende:
  • Assicurarsi che l'apparecchio sia alimentato elettricamente.
  • Check if the bulb is securely seated in the socket. Re-insert if necessary, ensuring the pins are aligned.
  • Verify that the fixture itself is receiving power (e.g., check circuit breaker, wall switch).
  • Confirm that the fixture's voltage e cosatage requirements match the bulb's specifications.
  • Test the bulb in another known working fixture, or test another known working bulb in the current fixture to isolate the issue.
• Lampeggia la lampadina:
  • This often indicates a loose connection. Turn off power, remove the bulb, and re-insert it firmly.
  • Check the socket for any loose wires or corrosion. (Consult a qualified electrician if wiring issues are suspected).
  • Assicurarsi che l'alimentazione elettrica sia stabile e non fluttuante.
• Bulb Burns Out Quickly:
  • Verificare che il volume dell'apparecchiotage does not exceed the bulb's rated voltage (6.3 V). Sovraccaricotage will significantly shorten bulb life.
  • Ensure adequate ventilation around the bulb if it's enclosed, as excessive heat can reduce lifespan.

If troubleshooting steps do not resolve the issue, the bulb may be faulty and require replacement.

8. Garanzia e supporto

Technical Precision is committed to providing quality lighting solutions. As a small business, we value your satisfaction.

For support or inquiries regarding your Technical Precision 6.3V1W-M replacement light bulbs, please refer to the seller information on your purchase platform or visit the official Technical Precision store page for contact details. While specific warranty terms may vary by retailer, we stand by the quality of our products.

You can find more information about Technical Precision and our product offerings by visiting our Amazon store: Negozio di precisione tecnica.
