Introduzione

The ApexDesk Elite Pro Series 60x27 Electric Height Adjustable Standing Desk offers a versatile and ergonomic workspace solution, enabling users to effortlessly transition between sitting and standing positions. This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your new desk, ensuring optimal performance and longevity.

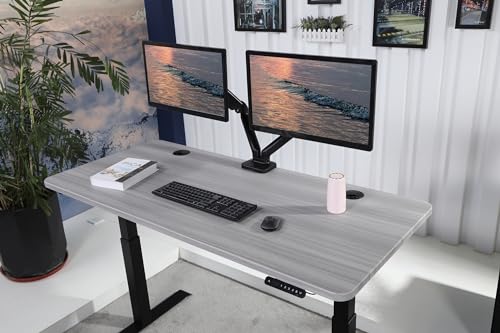

Figure 1: ApexDesk Elite Pro Series 60x27 Curved Oak Standing Desk in a home office setting.

Istruzioni di installazione

Assembling your ApexDesk Elite Pro Series desk is designed to be straightforward, typically taking less than an hour with two people. All necessary assembly tools are included. Please ensure you have adequate space and assistance before beginning.

Disimballaggio e ispezione

1. Carefully unpack all components from the packaging. The desk may arrive in multiple boxes (e.g., top, frame, motors).
2. Verificare che tutte le parti elencate nella lista di imballaggio siano presenti e integre.

Figure 2: Multi-box shipment diagram, indicating separate packages for the desk top, frame, and motors.

Fasi di assemblaggio

1. Begin by assembling the desk frame according to the detailed instructions provided in the included manual. Ensure all connections are secure.
2. Attach the electric dual motors to the frame.
3. Carefully place the 60" x 27" Curved Oak desktop onto the assembled frame. Secure it using the provided hardware.
4. Connect the programmable memory controller and power cables. Utilize the built-in cable management features to organize wires neatly, preventing tangles during height adjustments.

Figure 3: Underside of the desk frame, illustrating the motor and cable management system.

Considerazioni importanti

• The maximum weight capacity for this desk is 225 lbs. Do not exceed this limit.
• Per garantire sicurezza e facilità di installazione, si consiglia di effettuare il montaggio in due persone.
• Ensure proper legroom and clearance around the desk for comfortable use and to prevent stability issues.

Istruzioni per l'uso

The ApexDesk Elite Pro Series desk features electric height adjustment with a programmable memory controller, allowing for seamless transitions between sitting and standing positions.

Regolazione dell'altezza

1. Locate the programmable memory controller, typically mounted on the front edge of the desk.
2. Use the up and down arrow buttons to manually adjust the desk height to your desired level. The desk can adjust from a minimum height of 29 inches to a maximum height of 48 inches.

Figure 4: User seated at the desk, demonstrating a comfortable sitting position.

Figure 5: User standing at the desk, demonstrating an ergonomic standing position.

Programmable Memory Settings

The controller features 4 preset memory settings to save your preferred sitting and standing heights.

1. Regolare la scrivania all'altezza desiderata utilizzando le frecce su/giù.
2. Press the 'M' button, then press one of the numbered preset buttons (1, 2, 3, or 4) to save the current height.
3. To recall a saved height, simply press the corresponding numbered preset button. The desk will automatically move to that position.

Gestione dei cavi

The desk includes integrated cable management features to keep your workspace tidy and prevent cables from interfering with height adjustments.

• Utilize the cable tray located underneath the desktop to route and secure power cords and data cables.
• The desktop also features built-in power outlets and USB charging ports for convenient access.

Figura 6: View of the desk's underside, highlighting the cable management tray for an organized setup.

Manutenzione

Regular maintenance ensures the longevity and smooth operation of your ApexDesk Elite Pro Series desk.

Pulizia

• Pulisci la superficie del desktop con un panno morbido eamp cloth and a mild cleaner. Avoid abrasive cleaners or solvents that could damage the laminated finish.
• Pulisci il telaio metallico con adamp cloth. Ensure no liquids enter the motor or control unit.

Ispezione

• Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Inspect power cords and connections for any signs of wear or damage. Replace damaged components immediately.
• Ensure the desk's movement is smooth and free of obstructions.

Risoluzione dei problemi

If you encounter issues with your ApexDesk Elite Pro Series desk, refer to the following common troubleshooting steps:

Desk Not Responding

• Controllare la connessione di alimentazione: Ensure the desk is properly plugged into a functional power outlet.
• Sistema di ripristino: Unplug the desk from the power source for 10-15 seconds, then plug it back in. This can often resolve minor electronic glitches.
• Controllo del controller: Ensure the controller cable is securely connected to the motor control box.

Regolazione dell'altezza non uniforme

• Ostacoli chiari: Ensure there are no objects obstructing the desk legs or the lifting mechanism.
• Distribuzione del peso: Verify that the weight on the desktop is evenly distributed and does not exceed the maximum capacity of 225 lbs.
• Ricalibrazione: Refer to the full product manual for specific recalibration procedures if the desk consistently moves unevenly.

Rumori insoliti durante il funzionamento

• Identifica la fonte: Listen carefully to pinpoint the source of the noise.
• Lubrificazione: If the noise is a squeak or grind, a small amount of silicone-based lubricant on moving parts (if accessible and recommended by the manufacturer) might help. Avoid oil-based lubricants.
• Contatta l'assistenza: If the noise persists or indicates a mechanical issue, contact ApexDesk customer support.

Specifiche

Figura 7: Dall'alto verso il basso view of the desk, illustrating the 60" width, 27" depth, and curved design.

Informazioni sulla garanzia

The ApexDesk Elite Pro Series desk comes with a manufacturer's warranty to cover defects in materials and workmanship.

• Garanzia elettronica: A 2-year warranty is provided for the electronic components of the desk, including the motors and control unit.
• For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official ApexDesk websito.

Assistenza clienti

For further assistance, technical support, or warranty claims, please contact ApexDesk customer service.

• Visit the official ApexDesk websito per FAQ, risorse aggiuntive e informazioni di contatto.
• When contacting support, please have your model number (ET60-OAK) and UPC (604034683552) readily available.
