1. Introduzione
This manual provides essential information for the safe installation, operation, and maintenance of the Bryant BR-115 15A 120/240V 1-Pole Circuit Breaker. Please read this manual thoroughly before installation or use and retain it for future reference. This device is designed to protect electrical circuits from overcurrents, which can result from overloads or short circuits.
Avviso di sicurezza:
- Electrical work should only be performed by qualified personnel.
- Prima di lavorare sui circuiti elettrici, scollegare sempre l'alimentazione dal pannello di servizio principale.
- La mancata osservanza di queste istruzioni può causare lesioni gravi o mortali.
2. Prodotto finitoview
The Bryant BR-115 is a 15 Amp, 1-pole circuit breaker designed for use in 120/240V electrical systems. It features a standard circuit breaker type and is intended for panel mount applications. This breaker is UL Listed and CSA certified, ensuring compliance with safety standards.

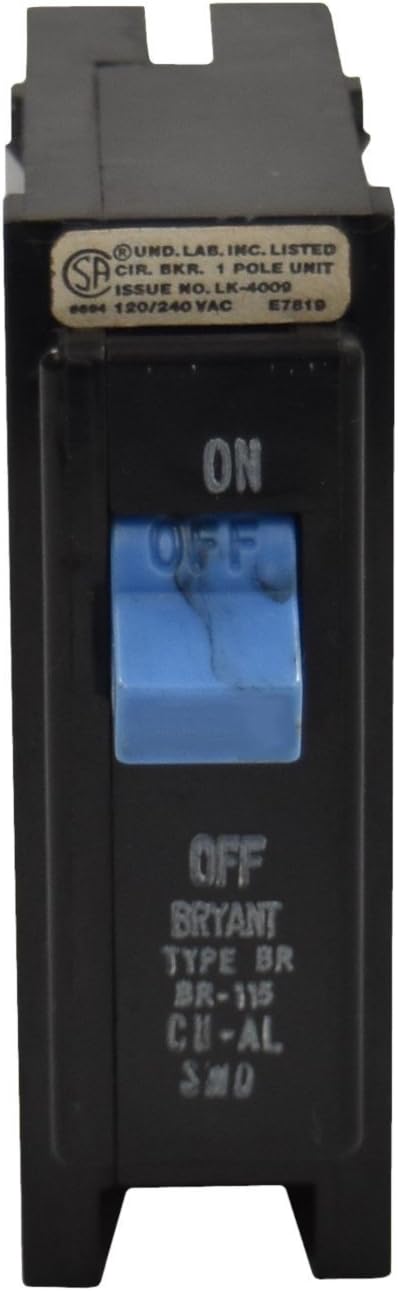

Figura 1: Davanti view of the Bryant BR-115 15A 1-Pole Circuit Breaker. The image shows the black housing, a blue ON/OFF toggle switch, and labels indicating "ON", "OFF", "BRYANT", "TYPE BR", "BR-115", "CU-AL", and certification marks from UL and CSA. The switch is currently in the "OFF" position.
Caratteristiche principali:
- Valutazione attuale: 15 Amps
- Voltage Valutazione: 120/240 Volt CA
- Numero di poli: 1
- Interrupting Capacity (AIC): 10,000 Amps
- Tipo di montaggio: Montaggio a pannello
- Compatibilità cavi: Copper (CU) and Aluminum (AL)
- Certificazioni: Certificato UL, certificato CSA
3. Installazione
Importante: L'installazione deve essere eseguita da un elettricista qualificato, nel rispetto di tutti i codici elettrici nazionali e locali.
- Disconnessione dell'alimentazione: Locate the main service panel and turn off the main circuit breaker to completely de-energize the electrical system. Verify power is off using a voltagetester.
- Accesso al pannello: Rimuovere con cautela il coperchio del quadro elettrico.
- Breaker Slot Selection: Identify an available slot in the panel's bus bar for a 1-pole circuit breaker.
- Installazione:
- Hook the rear clip of the BR-115 breaker onto the bus bar stab.
- Press the front of the breaker firmly until it snaps securely into place.
- Cablaggio:
- Connect the circuit wire (load wire) to the terminal screw on the breaker. Ensure the wire gauge is appropriate for a 15A circuit.
- Tighten the terminal screw to the manufacturer's specified torque (refer to panel label or breaker markings for exact torque values). This breaker is compatible with both copper and aluminum wiring.
- Copertura del pannello: Riposizionare il coperchio del quadro elettrico, assicurandosi che tutte le aperture siano adeguatamente sigillate.
- Ripristino dell'energia: Riaccendere l'interruttore generale.
- Prova: Test the circuit to ensure proper operation and verify that the breaker trips when an overload or short circuit condition is present (e.g., using a circuit breaker tester, if available).
4. Istruzioni per l'uso
The Bryant BR-115 circuit breaker features a simple ON/OFF toggle switch for operation.
- Per attivare: Push the blue toggle switch firmly to the "ON" position.
- Per spegnere: Push the blue toggle switch firmly to the "OFF" position.
- Interruttore scattato: If the breaker trips due to an overload or short circuit, the toggle switch will move to a central or "tripped" position (often between ON and OFF). To reset a tripped breaker:
- First, turn the breaker completely to the "OFF" position.
- Then, push the breaker firmly to the "ON" position.
If the breaker immediately trips again, there is likely a persistent fault in the circuit. Do not repeatedly reset the breaker without investigating the cause.
5. Manutenzione
Gli interruttori automatici richiedono generalmente una manutenzione minima. Tuttavia, si consiglia un'ispezione periodica.
- Ispezione visiva: Annually, or as needed, inspect the breaker for any signs of physical damage, discoloration, or loose connections. Ensure the toggle switch operates smoothly.
- Pulizia: If necessary, gently clean the exterior of the breaker with a dry, non-abrasive cloth. Do not use liquids or solvents.
- Verifica della connessione: Periodically, with power disconnected, verify that the wire connections to the breaker terminals are secure. Loose connections can cause overheating.
- Prova: While not typically required for residential breakers, some commercial or industrial applications may recommend periodic operational testing. Consult local electrical codes and manufacturer guidelines.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'interruttore scatta immediatamente dopo il ripristino. | Persistent short circuit or severe overload in the circuit. | Disconnect all appliances/devices on the circuit. Reset the breaker. If it holds, reconnect devices one by one to identify the faulty one. If it still trips, consult a qualified electrician to inspect wiring. |
| L'interruttore scatta frequentemente. | Circuit is overloaded (too many devices drawing power). | Reduce the load on the circuit by moving some devices to another circuit or using fewer devices simultaneously. |
| L'interruttore non scatta in caso di sovraccarico. | Faulty breaker or incorrect breaker rating for the circuit. | This is a serious safety concern. Immediately disconnect power to the circuit and have a qualified electrician inspect and replace the breaker if necessary. |
| L'interruttore risulta caldo al tatto. | Sovraccarico, collegamento allentato o guasto interno. | Immediately disconnect power to the circuit. Check for overloads or loose connections. If the issue persists, replace the breaker. Consult an electrician. |
7. Specifiche
| Attributo | Valore |
|---|---|
| Marca | Bryant Electric |
| Numero di modello | BR-115 |
| Valutazione attuale | 15 Amps |
| Voltage Valutazione | 120/240 Volt CA |
| Numero di poli | 1 |
| Capacità di interruzione (AIC) | 10,000 Amps (10K) |
| Tipo di interruttore | Standard |
| Tipo di montaggio | Montaggio a pannello |
| Compatibilità del filo | Copper (CU) and Aluminum (AL) |
| Certificazioni | Certificato UL, certificato CSA |
| Codice UPC | 653829073788 |
| Peso dell'articolo | Circa 0.01 once |
8. Garanzia e supporto
For specific warranty information and technical support, please refer to the official Bryant Electric website or contact their customer service directly. Warranty terms typically cover manufacturing defects and vary by region and product. Always ensure you have your product model number (BR-115) and purchase date available when contacting support.
Produttore: BRYANT
Websito: Eaton (Bryant Electric) Official Websito (This is a common parent company for Bryant Electric products)
