Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your Pyle PLMTR4A 4-Channel Marine Amplifier. Designed for marine environments, this amplifier delivers powerful and clear audio performance for your boat's stereo system. Please read this manual thoroughly before use to ensure proper setup and to maximize your listening experience.
Cosa c'è nella scatola
Image: Contents of the Pyle PLMTR4A package, including the amplifier, wiring connectors, and mounting screws.
- Pyle PLMTR4A 4-Channel Marine Amppiù vivace
- Connettori di cablaggio
- Viti di montaggio
Caratteristiche del prodotto
- Impermeabile e resistente agli agenti atmosferici: L'audio amplifier features an IP-65 marine rating, robust construction, and an integrated power wiring harness to withstand harsh weather conditions.
- Potenza massima 1500 Watt: Questo amplifier delivers a maximum power output of 1500 watts. It includes anti-thump turn-on and soft start/stop features for energy efficiency. It is compatible with speaker impedances of 2 to 4 Ohms and has adjustable volume control.
- 4-Canale Amplificatore: The Pyle PLMTR4A model is designed as a 4-channel marine amplifier, capable of powering any boat stereo speaker and universally compatible. It is equipped with wired RCA, AUX, and MP3 audio inputs.
- Protezione da cortocircuito: Equipped with a robust heat sink and protections against thermal overload and speaker short circuits, it safeguards the amplifier and your vehicle's electrical system. Operates on 12V DC with a 10A fuse.
- Compatto e leggero: IL amplifier is compact with precise dimensions of 15.75 cm x 8.9 cm x 5.3 cm and is lightweight, weighing only 1.04 kg.
Image: Close-up of the Pyle PLMTR4A amplifier highlighting its waterproof and weather-resistant design, with water droplets on the surface.
Image: The Pyle PLMTR4A amplifier displaying its compact dimensions (15.75 cm x 8.9 cm x 5.3 cm) and 1500 Watts Max power rating, with a boat in the background.
Configurazione e installazione
Proper installation is crucial for optimal performance and safety. Ensure the amplifier is mounted in a secure, well-ventilated location away from direct heat sources and excessive moisture, despite its waterproof rating.
Collegamenti elettrici

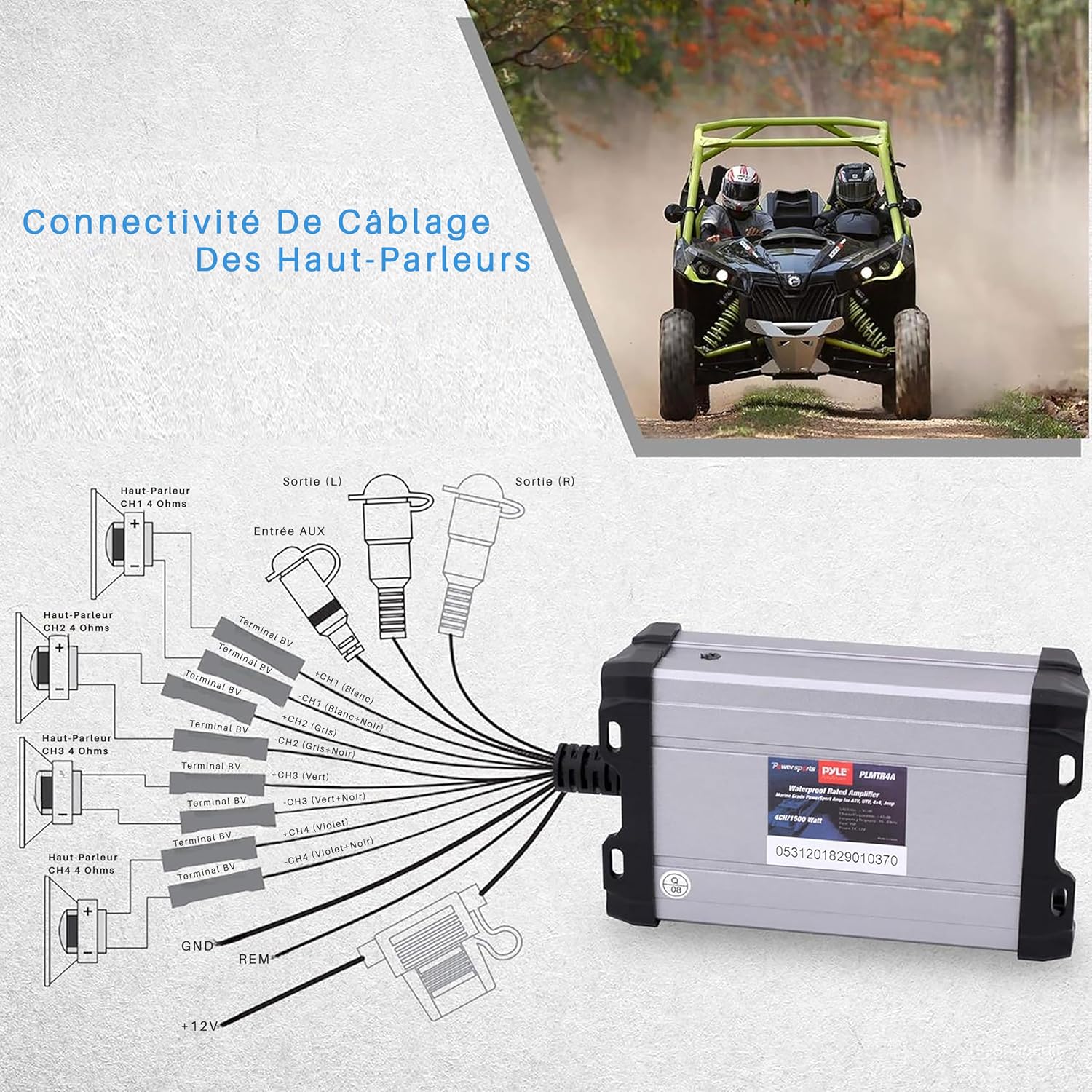

Image: Detailed wiring diagram for the Pyle PLMTR4A amplifier, showing connections for power, ground, remote, AUX input, and four speaker channels.
- Connessione di alimentazione (+12V): Connect the +12V terminal to the positive terminal of your vehicle's battery. Use a 10A fuse (included) as close to the battery as possible.
- Collegamento a terra (GND): Connect the GND terminal to a clean, unpainted metal surface on the vehicle's chassis or directly to the negative terminal of the battery. Ensure a solid connection to prevent noise.
- Accensione remota (REM): Connect the REM terminal to the remote output of your head unit or a switched 12V source. This turns the amplifier acceso e spento con il tuo stereo.
- Audio Input (AUX/RCA/MP3): Connect your audio source (head unit, MP3 player, etc.) to the amplifier's input terminals using RCA or AUX cables.
- Uscita altoparlante: Connect your marine speakers to the amplifier's speaker output terminals (CH1, CH2, CH3, CH4). Ensure correct polarity (+ to + and - to -) for each speaker. The amplifier supports 2 to 4 Ohm speaker impedance.
Montaggio
Use the provided mounting screws to secure the amplifier to a flat, stable surface. Ensure there is adequate space around the amplifier for air circulation to prevent overheating.
Image: The Pyle PLMTR4A amplifier neatly installed on the dashboard of a boat, demonstrating its compact size and suitability for marine integration.
Operazione
Once properly installed, operating your Pyle PLMTR4A amplifier is straightforward.
- Accensione/spegnimento: IL amplifier will automatically turn on when your head unit or connected 12V source is activated (via the REM wire) and turn off when the source is de-activated.
- Controllo del volume: Adjust the volume using the adjustable volume control knob on the amplifier or through your connected audio source. Start with a low volume and gradually increase it to a comfortable listening level.
- Selezione input: Ensure your audio source is correctly connected to the desired input (RCA, AUX, or MP3).
- Regolazione del guadagno: IL amplifier may have a gain control. This should be set to match the output voltage of your head unit. Consult your head unit's manual for its output voltage. Start with the gain at its minimum setting and slowly increase it until the sound is clear and powerful without distortion.
Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | Pilo |
| Numero di modello | PLMTR4A |
| Colore | Nero |
| Tecnologia di connettività | Ausiliario, RCA |
| Tipo di controllore | Manopola |
| Caratteristica speciale | Subwoofer, RCA |
| Dispositivi compatibili | Boat Stereo Speaker |
| Tipo di connettore | RCA |
| Modalità di uscita audio | Stereo, Surround |
| Configurazione del canale audio surround | 4.0 |
| Dimensioni del prodotto | 15.75 cm x 8.9 cm x 5.3 cm (circa 6.2 x 3.5 x 2.1 pollici) |
| Potenza massima in uscita | 1500 Watt |
| Impedenza dell'altoparlante | Da 2 a 4 ohm |
| THD | 0.1% |
| Rapporto segnale/rumore | > 95 dB |
| Separazione dei canali | > 65 dB |
| Risposta in frequenza | da 10 Hz a 40 kHz |
| Volume di eserciziotage | 12V CC |
| Fusibile | 10A |
Risoluzione dei problemi
If you encounter issues with your Pyle PLMTR4A amplifier, fare riferimento ai seguenti problemi comuni e alle relative soluzioni:
- Nessun potere:
- Check the power (+12V) and ground (GND) connections for secure contact.
- Verificare che il fusibile da 10 A sia intatto. Sostituirlo se bruciato.
- Ensure the remote turn-on (REM) wire is connected to a switched 12V source and receiving power when the stereo is on.
- Nessun suono:
- Confirm all audio input (RCA/AUX) cables are securely connected to both the amplifier e la sorgente audio.
- Check speaker wire connections for correct polarity and secure contact.
- Ensure the volume on both the amplifier and the audio source is turned up.
- Verificare che la sorgente audio sia in riproduzione.
- Suono distorto:
- Ridurre il volume su amplifier o la sorgente audio.
- Adjust the gain setting on the amplifier. If set too high, it can cause distortion.
- Check speaker impedance. Ensure it is within the 2-4 Ohm range supported by the amppiù vivace.
- Controllare i cavi degli altoparlanti per verificare che non siano danneggiati o in cortocircuito.
- AmpSurriscaldamento del lifier:
- Assicurare il amplifier has adequate ventilation. Clear any obstructions around the heat sink.
- Verify speaker impedance is not too low, which can cause the amplifier a lavorare di più e surriscaldarsi.
- Ridurre le impostazioni del volume o del guadagno.
Manutenzione
To ensure the longevity and optimal performance of your Pyle PLMTR4A Marine Amplifier, seguire queste linee guida per la manutenzione:
- Pulizia: Pulire regolarmente l'esterno del amplifier con un morbido, damp cloth to remove dust and salt residue. Avoid using harsh chemicals or abrasive cleaners.
- Connessioni: Periodically check all wiring connections (power, ground, remote, audio, speaker) to ensure they remain secure and free from corrosion.
- Ventilazione: Assicurarsi che il amplifier's heat sink and surrounding area remain clear of debris to allow for proper airflow and prevent overheating.
- Magazzinaggio: Se il amplifier will not be used for an extended period, especially during off-season, ensure it is clean and stored in a dry, cool environment.
Garanzia e supporto
The Pyle PLMTR4A Marine Amplifier comes with a manufacturer's warranty of 30 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or further assistance, please refer to the contact information provided on the official Pyle website or your retailer's support channels. Please have your model number (PLMTR4A) and proof of purchase ready when contacting support.
