1. Introduzione
This manual provides essential information for the safe operation, assembly, and maintenance of your Razor MX650 and MX500 Dirt Rocket Electric Motocross Bikes. These electric dirt bikes are designed for off-road adventure, offering a thrilling experience with high-torque motors and durable construction. The orange MX650 is suitable for individuals aged 16 years or older, supporting riders up to 220 pounds. The red MX500 is designed for individuals aged 14 years or older, supporting riders under 175 pounds.

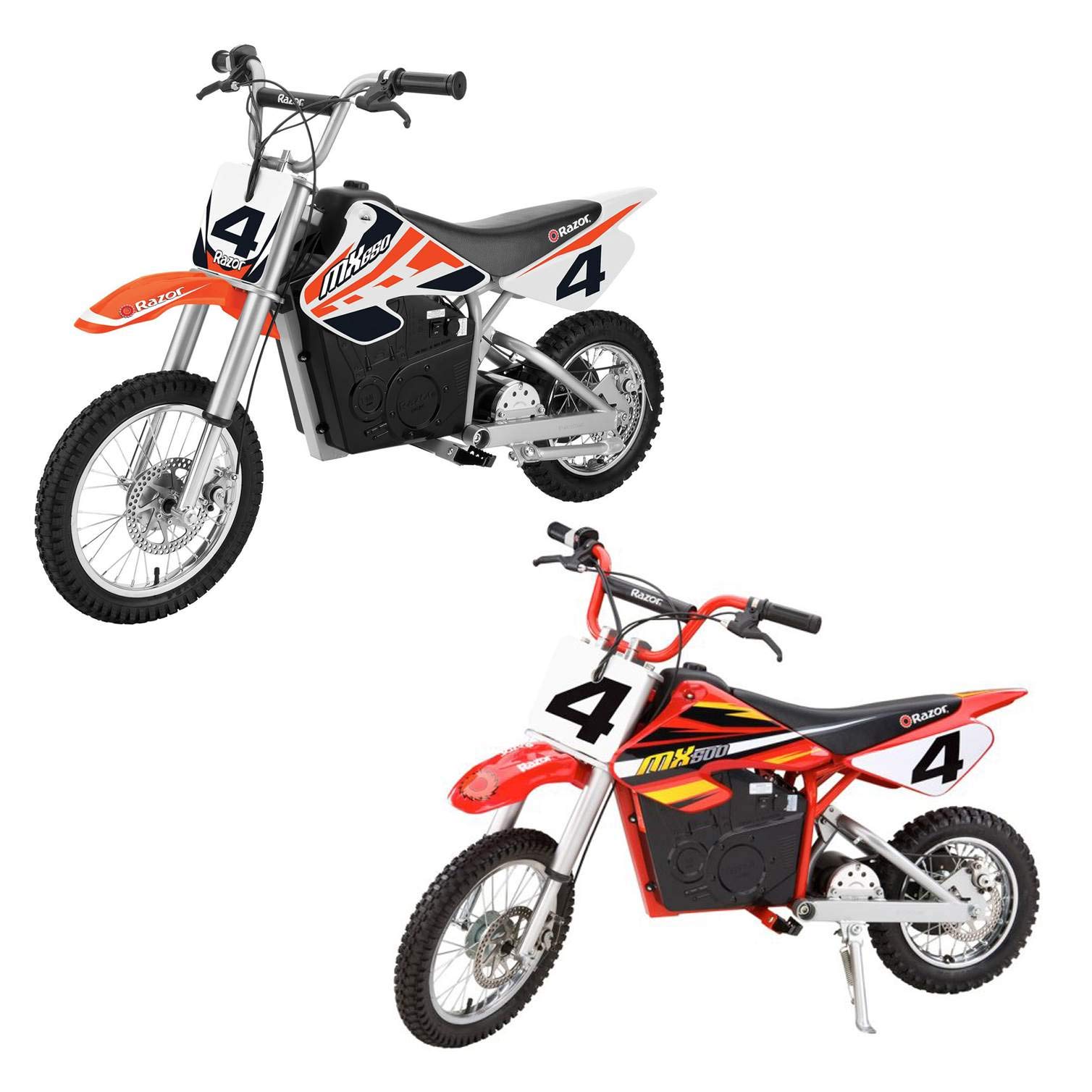

Image: The Razor MX650 and MX500 Dirt Rocket Electric Motocross Bikes, ready for use.
2. Informazioni sulla sicurezza
Always prioritize safety when operating the Razor Dirt Rocket bikes. Riders must wear appropriate safety gear, including a helmet, elbow pads, and knee pads. Adult supervision is recommended, especially for younger riders. Ensure the rider meets the minimum age and weight requirements for each model:
- Modello MX650: For ages 16 years and up, maximum weight 220 pounds.
- Modello MX500: For ages 14 years and up, maximum weight 175 pounds.
Avoid riding on public roads, in traffic, or in areas with pedestrians. Always check local regulations regarding electric vehicle use. Regularly inspect the bike for any loose parts, damage, or wear before each ride.
Image: A sizing guide illustrating appropriate rider heights and weights for various Razor Dirt Rocket models, including the MX500 and MX650.
3. Impostazione
3.1. Assemblaggio
Your Razor Dirt Rocket bikes require minimal assembly. The main steps typically involve attaching the handlebars, front fender, and number plate. Refer to the detailed assembly video below for visual guidance.
Video: Detailed assembly instructions for the Razor MX350 Dirt Rocket, which shares similar assembly steps with the MX500 and MX650 models.
Attacco manubrio
Attach the handlebars to the fork using the provided brackets and a 6mm Allen wrench. Ensure they are securely tightened and aligned for comfortable riding.
Immagine: Primo piano view of the Razor MX650 handlebars, showing the grip, brake lever, and throttle mechanism.
Front Fender and Number Plate
Secure the front fender to the bike's frame using the appropriate fasteners. Then, attach the number plate to the front of the handlebars. These components are designed to click into place or be secured with minimal tools.
Image: A static view of the Razor MX650 Dirt Rocket, highlighting the front fender and number plate.
3.2. Ricarica iniziale
Before the first ride, fully charge the battery. The initial charge time is recommended to be 12 hours, even if the charger indicator light turns green sooner. Subsequent recharges typically take 8 to 12 hours, but should not exceed 24 hours.
3.3. Gonfiaggio dei pneumatici
The pneumatic knobby tires require proper inflation for optimal performance and safety. Inflate both front and rear tires to 45 PSI (Pounds per Square Inch). Use a standard bicycle pump or an electric air pump. Regularly check tire pressure before each ride.
Image: A close-up of the Razor MX650's rear wheel, showcasing the pneumatic knobby tire and the chain-driven motor mechanism.
4. Istruzioni per l'uso
4.1. Accensione/spegnimento
Locate the power button, typically on the side of the bike's frame. Press it to turn the bike on. An indicator light will illuminate. To turn off, press the power button again.
4.2. Accelerazione
The Razor Dirt Rocket bikes feature an easy twist-grip acceleration control on the right handlebar. Gently twist the grip towards you to accelerate. Release the grip to reduce speed.
Image: A rider demonstrating the Razor MX650 Dirt Rocket in action, highlighting the riding posture and the bike's design.
4.3. Frenata
The bikes are equipped with a hand-operated rear brake. Squeeze the brake lever on the left handlebar to engage the rear brake and slow down or stop the bike.

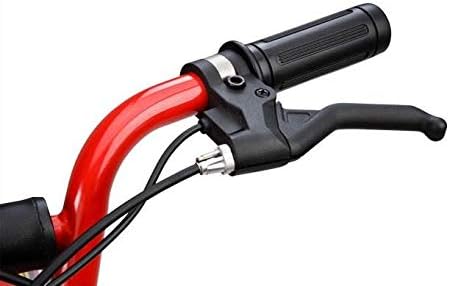

Image: A close-up of the Razor MX500's handlebar, showing the hand-operated brake lever for the rear wheel.
4.4. Continuous Use
On a single full charge, the bikes provide approximately 30 to 40 minutes of continuous use, depending on rider weight, terrain, and riding style.
4.5. Foot Pegs and Kickstand
The bikes feature foldable foot pegs for safety, which will fold up in case of a fall. A retractable kickstand is also included for convenient parking.
Image: A rider on the Razor MX500 Dirt Rocket, showcasing the bike's smaller frame and design suitable for younger riders.
5. Manutenzione
5.1. Ricarica
Always charge the battery after each use. Connect the charger to the charging port on the bike and then to a standard wall outlet. The charger's indicator light will typically show red during charging and turn green when fully charged. Recommended recharge time is 8-12 hours, but do not exceed 24 hours.
5.2. Pressione dei pneumatici
Maintain tire pressure at 45 PSI. Under-inflated tires can affect performance and battery life, while over-inflated tires can lead to a less comfortable ride and potential tire damage.
5.3. Lubrificazione della catena
The chain-driven motor requires periodic lubrication to ensure smooth operation and extend the life of the drivetrain. Use a suitable chain lubricant and apply it evenly to the chain, wiping off any excess.
5.4. Pulizia generale
Pulisci regolarmente la bici con un pannoamp cloth. Avoid using harsh chemicals or high-pressure water sprays, as these can damage electrical components or finishes. Keep the motor and battery areas free from dirt and debris.
6. Risoluzione Dei Problemi
If you encounter issues with your Razor Dirt Rocket, consider the following common troubleshooting steps:
- La bici non si accende: Ensure the power button is fully engaged and the battery is charged. Check all electrical connections.
- Perdita di potenza/velocità lenta: The battery may need recharging. Verify tire pressure is at 45 PSI. Check for any obstructions in the drivetrain.
- I freni non funzionano in modo efficace: Inspect the brake cable for proper tension and ensure the brake pads are making full contact with the drum. Adjust as necessary.
- Rumori insoliti: Check the chain for proper tension and lubrication. Inspect for any loose components or foreign objects.
Se i problemi persistono dopo aver provato questi passaggi, contattare l'assistenza clienti.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Rasoio |
| Nomi dei modelli | MX650, MX500 |
| Motor (MX650) | High-torque, chain-driven electric motor |
| Motor (MX500) | Motore elettrico da 500 watt |
| Top Speed (MX650) | Fino a 17 miglia orarie |
| Top Speed (MX500) | Fino a 15 miglia orarie |
| Recommended Age (MX650) | 16 anni e oltre |
| Max Rider Weight (MX650) | 220 libbre |
| Recommended Age (MX500) | 14 anni e oltre |
| Max Rider Weight (MX500) | 175 libbre |
| Batteria | Rechargeable sealed lead-acid battery system |
| Tempo di utilizzo continuo | 30 to 40 minutes on a single charge |
| Pneumatici | Oversized pneumatic knobby tires (16-inch front, 14-inch rear for MX500) |
| Materiale del telaio | Acciaio ad alta resistenza |
| Caratteristiche aggiuntive | Soft rubber grips, easy twist acceleration, hand-operated rear brake, retractable kickstand, shatterproof plastic fairings and fenders |
| Codice UPC | 840023802294 |
8. Garanzia e supporto
8.1. Informazioni sulla garanzia
Specific warranty details for the Razor MX650 and MX500 Dirt Rocket Electric Motocross Bikes are not provided in this document. Please refer to the product packaging or the official Razor websito per le informazioni più aggiornate sulla garanzia.
8.2. Assistenza clienti
For further assistance, technical support, or to inquire about parts, please contact Razor customer support:
- Telefono: Numero di parte 1-866-467-2967
- E-mail: CUSTOMERSUPPORT@RAZORUSA.COM
- Websito: Visita www.rasoio.com per FAQ e risorse aggiuntive.
