1. Prodotto finitoview
The YOUTHINK Electricity Usage Monitor is designed to measure the power consumption of electronic devices. It helps users identify high-energy-cost appliances, save energy, and reduce carbon dioxide emissions. This device features an upgraded blue-backlit LCD display for clear visibility and includes overload protection for safe operation.

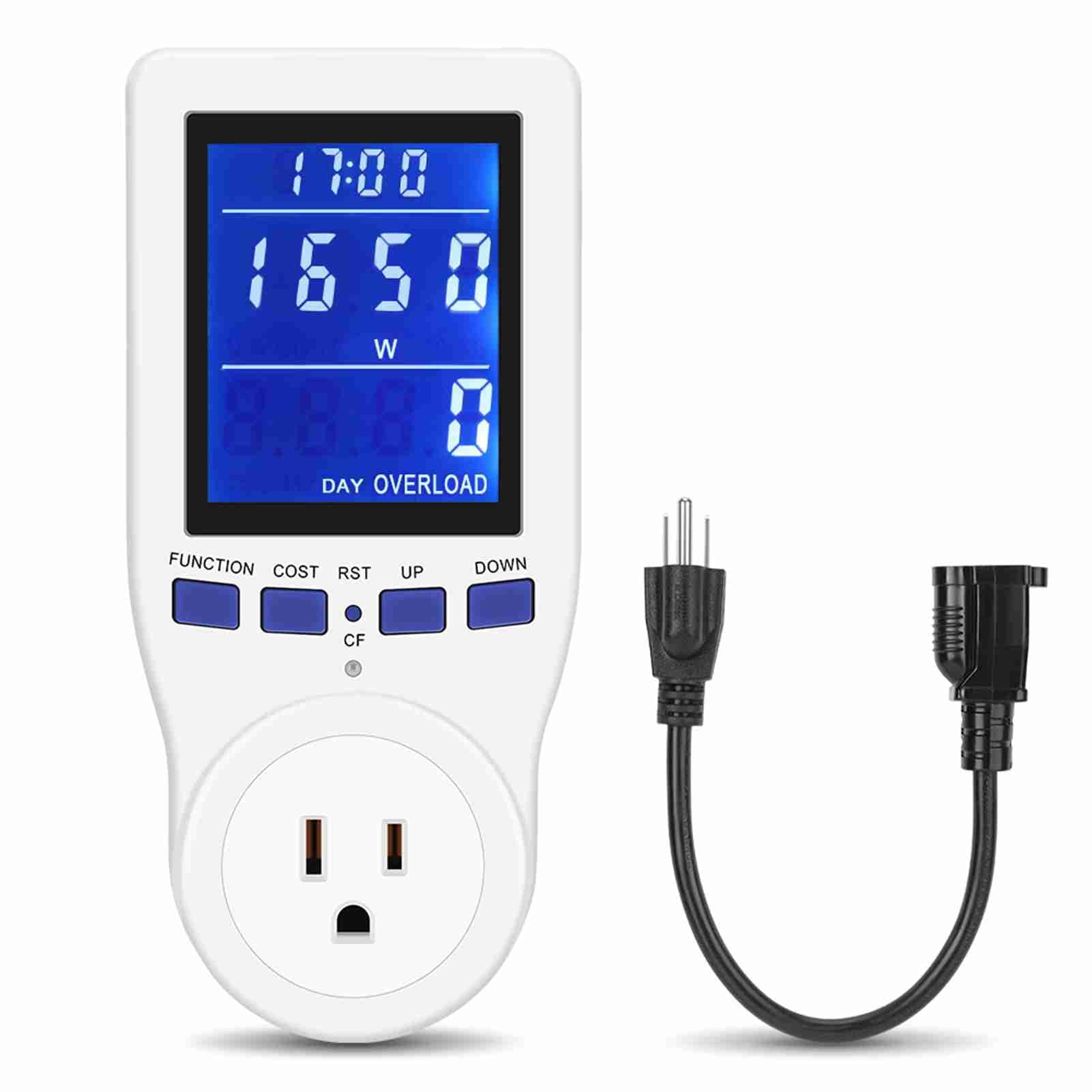

Figura 1: Fronte view of the YOUTHINK Electricity Usage Monitor.
2. Istruzioni per l'installazione
- Disimballare: Carefully remove the electricity usage monitor from its packaging.
- Collegare: Insert the monitor into a standard wall outlet.
- Collegare l'apparecchio: Plug the appliance you wish to monitor into the socket on the front of the electricity usage monitor.
- Accensione: Ensure the appliance is powered on to begin monitoring its electricity usage.
Figure 2: The electricity monitor in use, showing real-time monitoring of an appliance.
2.1 Important Considerations for Placement
When plugging the monitor into a power strip or multi-outlet, be aware that the monitor's size may block adjacent sockets. Using an extension cable can improve outlet utilization.
Figure 3: Illustration showing how the monitor can block adjacent sockets and how an extension cable can resolve this.
3. Istruzioni per l'uso
Display LCD 3.1
The monitor features an upgraded blue-backlit LCD display with a 180° full-width field of view, ensuring data is clearly visible even in low-light conditions. The display shows various parameters such as time, power, energy, voltage, e altro ancora.
Figure 4: The monitor's LCD display, highlighting its 180° wide viewangolo di inclinazione per letture chiare.
3.2 pulsanti di navigazione
The monitor has several buttons for navigating through different display modes and settings:
- FUNZIONE: Press to cycle through the 8 different measurement modes.
- COSTO: Used for setting cost parameters (refer to advanced settings for details).
- RST (Reimposta): Resets accumulated data.
- SOTTOSOPRA: Used for adjusting values in setting modes.
3.3 Modalità di misurazione
The monitor offers 8 distinct modes for comprehensive energy analysis:
- Time / CO₂ Emissions (CO₂/KG) / Quantity Display
- Tempo / Vol.tage (V) / Frequency (Hz) Display
- Time / Current (A) / Frequency (Hz) Display
- Time / Cumulative Electrical Quantity (KWh) Display
- Time / Cost Display
- Time / Power Factor Display
- Time / Maximal Power (W) Display
- Time / Minimum Power (W) Display
Figure 5: Visual representation of the 8 measurement modes available on the monitor.
3.4 Funzione di conservazione dei dati
The monitor is equipped with a data hold function. This means that the last recorded data will be saved even if you unplug the appliance from the meter or remove the meter from the wall outlet. This allows for convenient data review without loss.
Figure 6: The monitor displaying data, illustrating the data hold function.
4. Caratteristiche di sicurezza
4.1 Protezione da sovraccarico
The monitor includes an overload protection feature. If the power consumption of the connected appliance exceeds the rated power of 1650W, the LCD will display "OVERLOAD" and emit an audible warning. The device will automatically disconnect the power supply to prevent damage and ensure safety. It is recommended to avoid using the monitor with high-power devices for extended periods.
Figure 7: The monitor's display showing an "OVERLOAD" warning, indicating the activation of the overload protection feature.
5. Manutenzione
- Pulizia: Wipe the monitor with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Magazzinaggio: Conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
- Gestione: Evitare di far cadere il dispositivo o di sottoporlo a forti impatti.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il display è vuoto | Non collegato; alimentazione spentatage; malfunzionamento del dispositivo. | Ensure the monitor is securely plugged into a live outlet. Check household power. If problem persists, contact support. |
| Viene visualizzato il messaggio "SOVRACCARICO" | L'apparecchio collegato supera i 1650 W. | Unplug the high-power appliance immediately. Do not use the monitor with appliances exceeding its rated capacity. |
| Letture errate | Improper connection; internal error. | Ensure the appliance is fully plugged into the monitor. Try resetting the monitor. |
| I pulsanti non rispondono | Problema temporaneo del software. | Unplug the monitor from the wall outlet for a few seconds, then plug it back in. |
7. Specifiche
- Marca: SI PENSA
- Modello: 794419951090
- Fonte di energia: Elettrico con cavo
- Colore: Bianco
- Dimensioni articolo (L x P x A): 9.45 x 3.54 x 3.54 pollici
- Volume di esercizio minimotage: 120 Volt
- Tipo di misurazione: Amperometro
- Dispositivi compatibili: All electronic devices with standard power plugs
- Potenza nominale massima: 1650W (for overload protection)
8. Garanzia e supporto
YOUTHINK is committed to product quality. If you encounter any issues or are not satisfied with your Electricity Usage Monitor, please contact our customer support. We take full responsibility for the product quality of our household kilowatt meters.
For support, please refer to the contact information provided with your purchase or visit the official YOUTHINK websito.
