Technical Precision Replacement UVMAX C4 Light Bulb User Manual

1. Introduzione

This manual provides essential instructions for the safe and effective use of your Technical Precision Replacement UVMAX C4 Light Bulb. This bulb is designed as a replacement for VIQUA UVMAX C4 systems. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

Image 1.1: Conceptual representation of a 40W Germicidal UV Light Bulb.

2. Informazioni sulla sicurezza

WARNING: Ultraviolet (UV-C) radiation is harmful to skin and eyes.

• Non guardare mai direttamente un UV illuminato lamp. Direct exposure can cause severe eye damage (photokeratitis).
• Avoid direct exposure of skin to UV radiation. UV-C light can cause skin burns and increase the risk of skin cancer.
• Ensure the UV system is completely powered off and disconnected from the electrical supply before attempting any installation, replacement, or maintenance.
• Handle the bulb by its base or ends to avoid touching the glass, as oils from your skin can reduce its effectiveness and lifespan.
• Dispose of used bulbs according to local regulations for fluorescent lamps, as they contain mercury.
• Tenere fuori dalla portata dei bambini.

Always follow the safety guidelines provided by the manufacturer of your UV system (e.g., VIQUA UVMAX C4 system) when installing or replacing this bulb.

3. Installazione

Follow these steps to safely install the Technical Precision Replacement UVMAX C4 Light Bulb into your compatible UV system.

1. Disconnessione dell'alimentazione: Locate the power source for your UV system and completely disconnect it. This is a critical safety step to prevent electrical shock and UV exposure.
2. Raffreddare: Allow the existing UV lamp to cool down completely before handling.
3. Rimuovere la vecchia lampadina: Carefully remove the old UV lamp from its socket. Refer to your UV system's original manual for specific instructions on how to safely remove the lamp and quartz sleeve (if applicable).
4. Inspect Quartz Sleeve (if applicable): If your system uses a quartz sleeve, inspect it for cracks or damage. Clean the quartz sleeve with a soft cloth and a mild cleaning solution if it appears dirty or has mineral deposits. Ensure it is completely dry before reinstallation.
5. Installare una nuova lampadina: Gently insert the new Technical Precision Replacement UVMAX C4 Light Bulb into the lamp socket. Ensure the pins align correctly with the socket. Do not force the bulb. Handle the bulb by its ceramic ends or plastic base, avoiding contact with the glass tube.

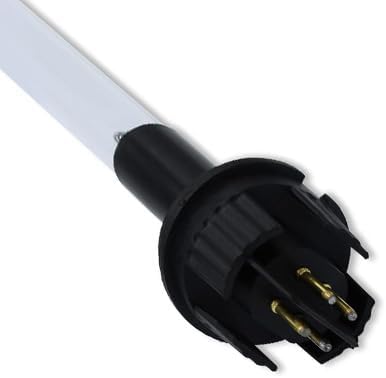

Immagine 3.1: Primo piano view of the bulb's 4-pin base, showing the connection points for installation.

6. Connessioni sicure: Ensure the bulb is firmly seated in the socket. Reassemble any components that were removed, such as the lamp connector or protective cap, following your UV system's instructions.
7. Riconnessione dell'alimentazione: Once the bulb is securely installed and all components are reassembled, reconnect the power to your UV system. The system should indicate proper operation (e.g., an indicator light).

Immagine 3.2: Figura intera view of the Technical Precision Replacement UVMAX C4 Light Bulb.

4. Funzionamento

After successful installation, the Technical Precision Replacement UVMAX C4 Light Bulb will operate automatically as part of your UV system. Ensure the system is powered on and functioning according to its manufacturer's guidelines.

• The bulb emits UV-C light when powered, which is used for germicidal purposes within the UV system.
• Do not attempt to operate the bulb outside of its intended UV system housing.
• Monitor your UV system's indicator lights or alarms to confirm proper operation and bulb status.

5. Manutenzione

Regular maintenance ensures the longevity and effectiveness of your UV system and the replacement bulb.

• Sostituzione della lampadina: The average lifespan of this UV bulb is approximately 10,000 hours of operation. It is recommended to replace the bulb annually, even if it appears to be working, as its UV-C output diminishes over time. Refer to your UV system's manual for specific replacement schedules.
• Pulizia del manicotto di quarzo: If your system uses a quartz sleeve, it should be cleaned periodically (e.g., every 3-6 months) to remove any mineral deposits or fouling that can block UV light transmission. Always disconnect power before cleaning.
• Disposizione: When replacing the bulb, dispose of the old bulb responsibly according to local hazardous waste regulations, as it contains small amounts of mercury.

6. Risoluzione Dei Problemi

If your UV system is not functioning correctly after installing the replacement bulb, consider the following common issues:

For issues not covered here, or if problems persist, consult the original manual for your UV system or contact a qualified service technician.

7. Specifiche

Image 7.1: Diagram illustrating key features and approximate dimensions of the UV bulb.

8. Garanzia e supporto

For warranty information or technical support regarding your Technical Precision Replacement UVMAX C4 Light Bulb, please contact Technical Precision directly.

Please have your product model number (UVMAX C4-AX-1VFK-2) and purchase details available when contacting support.

Note: This bulb is a replacement part and is not manufactured by VIQUA. For support related to your VIQUA UVMAX C4 system itself, please refer to the VIQUA manufacturer's documentation.
