1. Introduzione
Thank you for choosing the Technical Precision replacement battery for PEP BOYS 29HM-850. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new battery. Please read this manual thoroughly before use and retain it for future reference.
2. Informazioni sulla sicurezza
Batteries contain sulfuric acid, which is corrosive, and produce explosive gases. Improper handling can cause severe injury or death. Always follow these safety precautions:
- Indossare protezioni per gli occhi: Always wear safety glasses or goggles and face shield when working with batteries.
- Indossare indumenti protettivi: Wear gloves and protective clothing to prevent contact with battery acid.
- Ventilazione: Work in a well-ventilated area to disperse hydrogen gas.
- No Smoking/Sparks/Flames: Keep all ignition sources away from batteries.
- Evitare i cortocircuiti: Do not allow metal tools or jewelry to contact both battery terminals simultaneously.
- Primo soccorso in caso di contatto con l'acido: If acid contacts skin or eyes, flush immediately with water for at least 15 minutes and seek medical attention.
- Smaltimento corretto: Smaltire le batterie usate in modo responsabile presso un centro di riciclaggio autorizzato. Non smaltirle insieme ai rifiuti domestici.
3. Prodotto finitoview
The Technical Precision replacement battery is designed to meet the specifications of the PEP BOYS 29HM-850 model, providing reliable power for your vehicle or equipment.

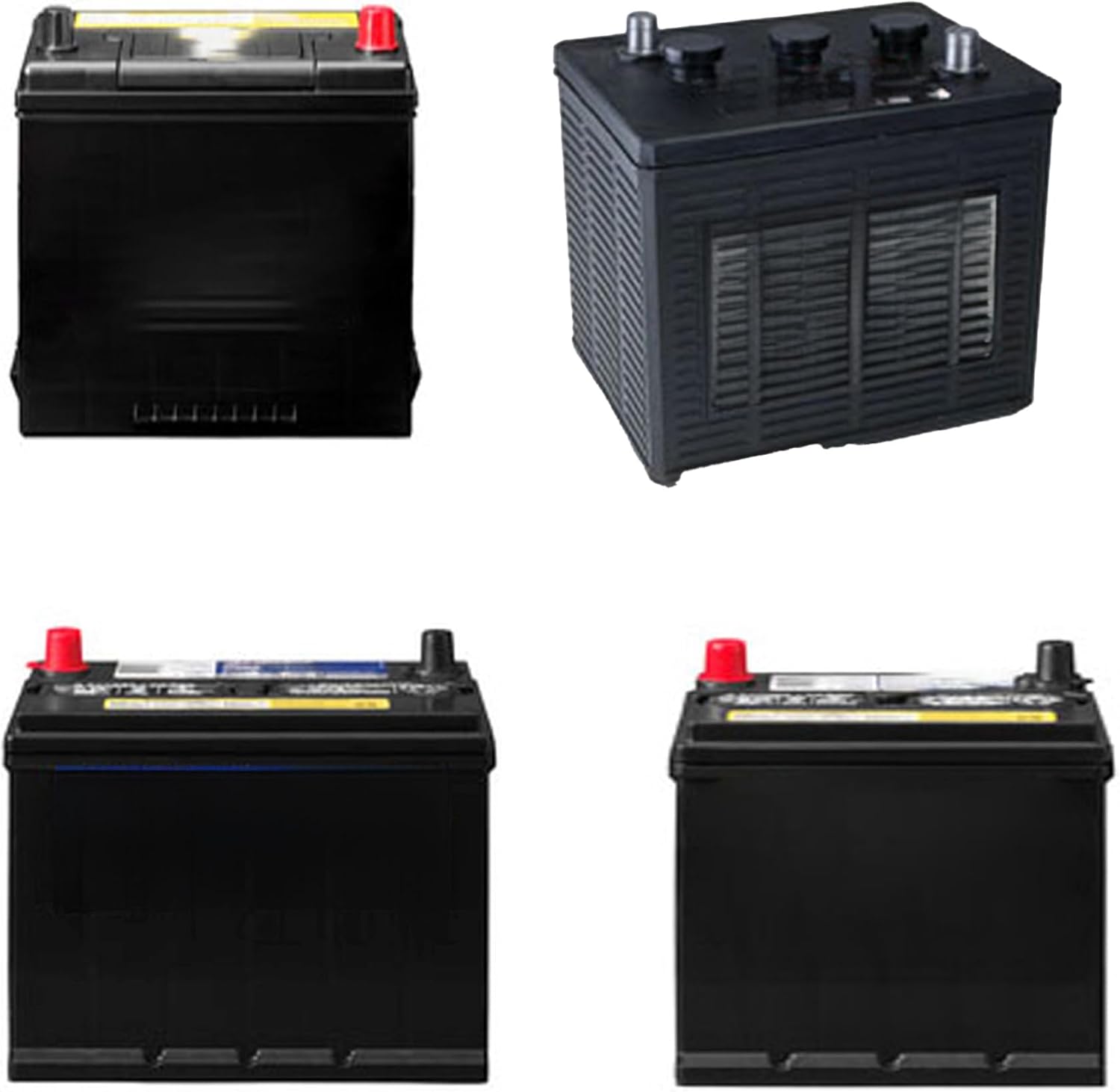

This image displays the Technical Precision replacement battery, which is a black rectangular unit with terminals on top. The positive terminal is typically marked with red, and the negative with black. The battery is designed to replace the PEP BOYS 29HM-850 model.
4. Configurazione (installazione)
Follow these steps for safe battery installation. Refer to your vehicle's owner's manual for specific instructions.
- Preparazione: Ensure the vehicle's ignition is off and all accessories are turned off. Wear appropriate safety gear.
- Scollegare la vecchia batteria: First, disconnect the negative (black) cable from the old battery, then disconnect the positive (red) cable. Remove any hold-down clamps.
- Rimuovere la vecchia batteria: Carefully lift and remove the old battery. Batteries are heavy; use proper lifting techniques or assistance.
- Pulisci il vano batteria e i cavi: Clean the battery tray and cable terminals with a wire brush and a battery terminal cleaner solution to remove corrosion.
- Inserire una nuova batteria: Place the new Technical Precision battery securely in the battery tray.
- Collegare la nuova batteria: First, connect the positive (red) cable to the positive terminal, then connect the negative (black) cable to the negative terminal. Ensure connections are tight.
- Batteria sicura: Reinstallare qualsiasi blocco di fissaggioamps to secure the battery in place.
- Controllo finale: Double-check all connections and ensure no tools are left near the battery.
5. Operativo
Once installed, the battery operates as part of your vehicle's electrical system. It provides power for starting the engine and running electrical components when the engine is off. The vehicle's charging system will recharge the battery during operation.
6. Manutenzione
Regular maintenance extends battery life and ensures optimal performance:
- Mantenere puliti i terminali: Periodically inspect battery terminals for corrosion. Clean with a wire brush and baking soda solution if necessary. Apply a thin coat of dielectric grease to prevent future corrosion.
- Check Hold-Down: Ensure the battery is securely held in its tray to prevent vibration damage.
- Check Charge Level (if applicable): For batteries with removable caps, check electrolyte levels periodically and top up with distilled water if low (do not overfill). This battery is typically a sealed, maintenance-free unit, so this step may not apply.
- Evitare scariche profonde: Avoid leaving lights on or accessories running when the engine is off for extended periods, as this can deeply discharge the battery and shorten its lifespan.
- Assistenza stagionale: In extreme temperatures, ensure the battery is fully charged. Cold weather reduces battery capacity, and hot weather can accelerate internal degradation.
7. Risoluzione Dei Problemi
Se riscontri problemi con la batteria, prendi in considerazione i seguenti problemi comuni e le relative soluzioni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il motore gira lentamente o non gira affatto | Low battery charge, corroded terminals, faulty starter/alternator | Charge battery, clean terminals, test charging system/starter |
| Le luci si abbassano o tremolano | Basso volume della batteriatage, loose connections | Check battery charge, tighten connections |
| Battery constantly needs recharging | Faulty charging system (alternator), parasitic drain, old battery | Have charging system checked, identify and fix parasitic drain, replace battery if old |
| Corrosione sui terminali | Acid leakage, improper ventilation, loose connections | Clean terminals, ensure proper ventilation, tighten connections, consider professional inspection |
If problems persist after attempting these solutions, it is recommended to consult a qualified automotive technician.
8. Specifiche
- Numero modello: 29HM-850
- Marca: Precisione tecnica
- Produttore: Precisione tecnica
- ASIN: B07LBG2KP7
- Data prima disponibilità: 27 giugno 2018
- Unit per sale: 1
9. Garanzia e supporto
For specific warranty information regarding your Technical Precision replacement battery, please refer to the documentation provided at the time of purchase or contact the seller directly. Technical Precision is the third-party seller for this product.
For technical support or inquiries, please contact the seller, Technical Precision, through the platform where the purchase was made or via their official contact channels.
