DEWALT N557843 Circular Saw Upper Guard Instruction Manual

Prodotto finitoview

This document provides instructions for the DEWALT N557843 OEM Circular Saw Upper Guard. This component is a genuine replacement part designed for specific DEWALT circular saw models.

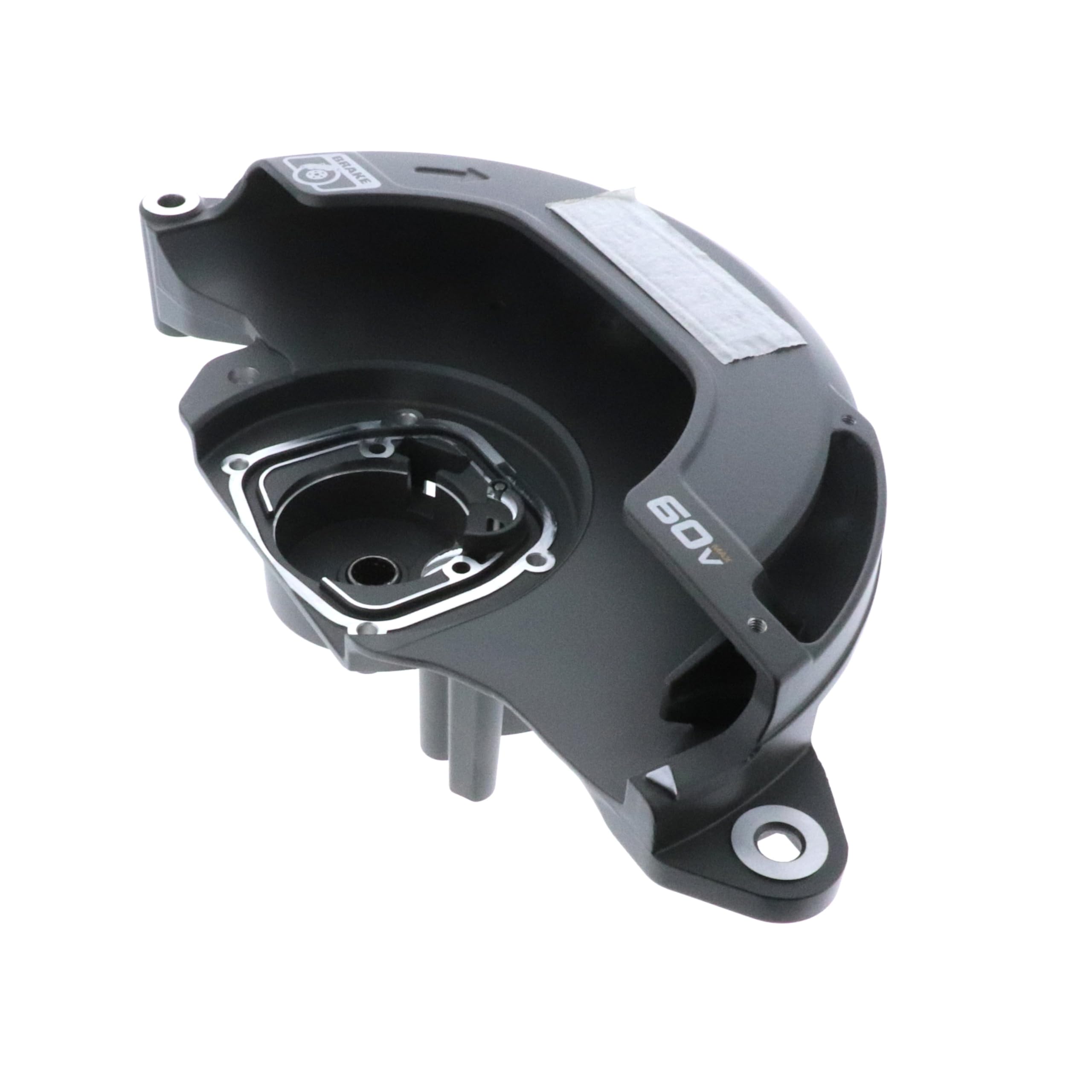

Image 1: The DEWALT N557843 Circular Saw Upper Guard, shown from an angled perspective. This is the main component for replacement.

The upper guard is a critical safety component that covers the top portion of the saw blade, protecting the user from accidental contact and directing sawdust away from the cutting line.

Informazioni sulla sicurezza

Always disconnect the power tool from its power source before performing any assembly, adjustments, or maintenance. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling power tool components. Refer to your circular saw's main instruction manual for comprehensive safety guidelines.

Configurazione e installazione

This section outlines the general procedure for replacing the upper guard. Specific steps may vary slightly depending on your circular saw model.

1. Preparare la sega: Ensure the circular saw is unplugged or its battery is removed. Place the saw on a stable, clean workbench.
2. Access the Guard Area: Depending on your saw model, you may need to remove other components to access the upper guard mounting points. Consult your saw's specific service manual if unsure.
3. Remove the Old Guard: Carefully unfasten any screws, bolts, or clips securing the existing upper guard. Note the orientation and placement of all fasteners for reassembly.
4. Install the New Guard: Position the DEWALT N557843 replacement upper guard onto the saw. Align the mounting holes with the corresponding points on the saw body.


   Immagine 2: Uno sguardo più da vicino view of the DEWALT N557843 upper guard, highlighting the various mounting points and structural details.
5. Proteggere la guardia: Reinstall all fasteners, ensuring they are tightened securely. Do not overtighten.
6. Controllo della funzionalità: Once installed, manually check that the upper guard operates smoothly and does not impede the blade's rotation or the lower guard's movement.

Istruzioni per l'uso

The DEWALT N557843 upper guard is a passive safety component. Its operation is integrated with the circular saw's design. Ensure the guard is properly installed and free from damage before each use of the saw.

• Always verify that the upper guard is securely attached and not loose.
• Do not operate the saw if the upper guard is damaged, cracked, or missing.
• The guard helps contain debris; however, always wear eye protection.

Manutenzione

Regular inspection and cleaning of the upper guard are essential for safe operation.

• Pulizia: Periodically clean the guard to remove sawdust and debris that may accumulate. Use a dry cloth or compressed air. Avoid solvents that may damage the plastic.
• Ispezione: Before each use, inspect the guard for any signs of damage, such as cracks, bends, or loose fasteners. Replace the guard immediately if any damage is found.
• Elementi di fissaggio: Check that all screws and bolts securing the guard are tight.

Risoluzione dei problemi

If you encounter issues with the upper guard, refer to the following common problems and solutions.

Specifiche

Garanzia e supporto

As an OEM replacement part, the DEWALT N557843 Upper Guard is typically covered under the warranty terms of the original DEWALT power tool or as a replacement part. For specific warranty details, please refer to the documentation provided with your DEWALT circular saw or contact DEWALT customer support directly.

For technical assistance or further inquiries, visit the official DEWALT websito o contattare il loro servizio clienti.
