Manuale d'uso

1. Introduzione

This manual provides essential information for the safe and effective use of the Technical Precision Replacement Battery for GE FANUC CNC POWER MATE E systems. Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage.

2. Informazioni sulla sicurezza

Attenersi sempre alle seguenti linee guida di sicurezza:

• NON FARE tentare di smontare, aprire o riparare il pacco batteria.
• NON FARE schiacciare, forare, cortocircuitare i contatti esterni o smaltire nel fuoco o nell'acqua.
• NON FARE conservare a temperatura superiore a 60°C (140°F).
• Sostituire esclusivamente con la batteria specificatamente progettata per questo prodotto.
• La nuova batteria deve essere completamente carica prima dell'uso.
• Read instructions in operating guide to reduce risk of fire or burns before using the battery.
• Tenere fuori dalla portata dei bambini.
• Smaltire le batterie usate secondo le normative locali.

Failure to follow these instructions can result in fire, explosion, or other hazards.

3. Prodotto finitoview

This product is a high-quality replacement lithium-ion battery pack designed for use with GE FANUC CNC POWER MATE E systems. It provides reliable power for the specified equipment.

Figura 3.1: Davanti view of the Technical Precision replacement battery pack. This image shows the main body of the battery, which is cylindrical and blue, with a black label indicating "Lithium-ion Battery Pack," "3.0VDC," "2000mAh," and "6.0Wh." Red and black wires extend from one end, terminating in a brown plastic connector.

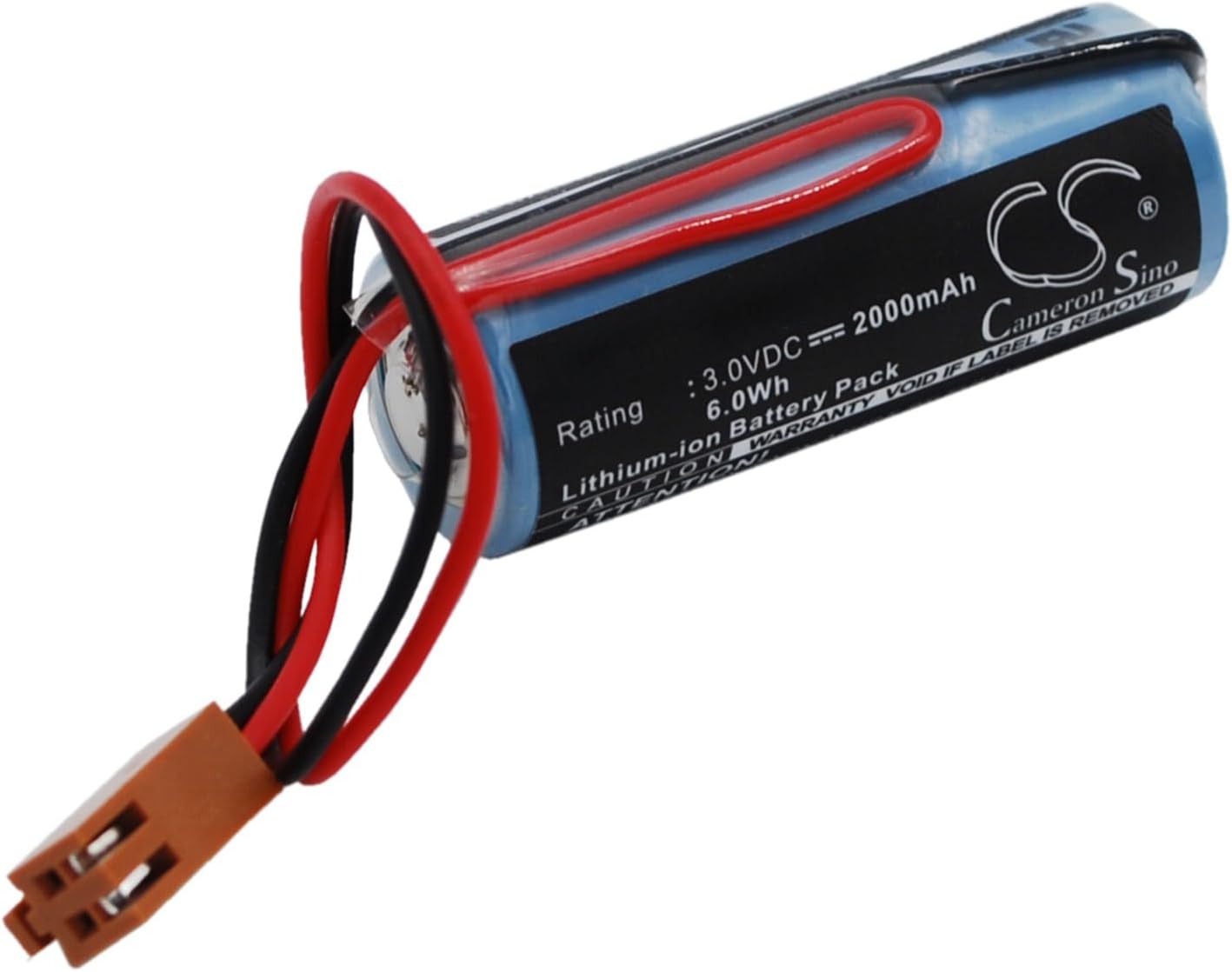

Figura 3.2: Angolato view of the replacement battery pack. This perspective highlights the battery's cylindrical shape and the label, which includes the "Cameron Sino" brand logo and warnings such as "CAUTION WARRANTY VOID IF LABEL IS REMOVED" and "ATTENTION! NEW BATTERY PACK MUST BE FULLY CHARGED BEFORE USE." The red and black wires and the brown connector are also visible.

Figura 3.3: Posteriore view of the replacement battery pack. This image displays the reverse side of the battery, showing additional warning labels and manufacturer information. Text visible includes "DO NOT CRUSH, PUNCTURE SHORT EXTERNAL CONTACTS OR DISPOSE OF IN FIRE OR WATER" and "DO NOT STORE ABOVE 60°C (140°F)." The wires and connector are also visible.

Figura 3.4: Angolo dall'alto verso il basso view of the replacement battery pack. This view provides a clearer look at the label, including the "Model No.: CS-FNC10SL" and "Part No.: A98L-0031-0006" information, along with the rating details. The wires and connector are positioned to the left.

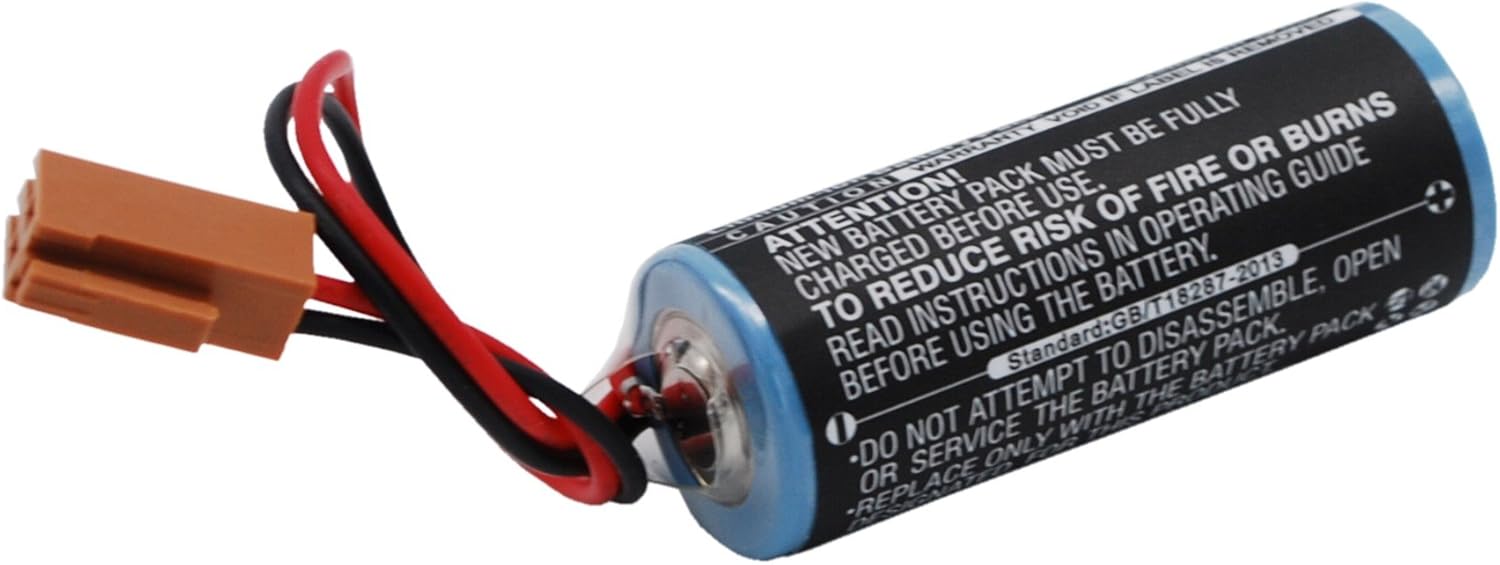

Figura 3.5: Bottom-up angled view of the replacement battery pack. This image emphasizes the safety warnings printed on the battery's label, such as "DO NOT ATTEMPT TO DISASSEMBLE, OPEN OR SERVICE THE BATTERY PACK" and "REPLACE ONLY WITH THE BATTERY PACK DESIGNATED FOR THIS PRODUCT." The brown connector and wires are visible on the left.

4. Configurazione e installazione

Before installing the new battery, ensure the GE FANUC CNC POWER MATE E system is powered off and disconnected from all power sources. Refer to your original equipment's service manual for specific battery replacement procedures.

1. Spegni: Completely shut down the CNC system and unplug it from the power outlet.
2. Individuare la batteria: Identify the location of the existing battery within the GE FANUC CNC POWER MATE E unit. This may require opening a service panel.
3. Scollegare la vecchia batteria: Carefully disconnect the old battery from its connector. Note the orientation of the connector to ensure correct installation of the new battery.
4. Rimuovere la vecchia batteria: Gently remove the old battery from its housing or mounting.
5. Installa una nuova batteria: Insert the new Technical Precision replacement battery into the designated slot or mounting area.
6. Collegare la nuova batteria: Connect the brown plastic connector of the new battery to the corresponding port on the CNC system. Ensure a secure and correct connection.
7. Pannello sicuro: Close and secure any service panels that were opened.
8. Carica iniziale: As per safety instructions, the new battery pack must be fully charged before initial use. Connect the CNC system to power and allow it to charge the battery as per the system's charging protocol.

In caso di dubbi su una qualsiasi fase dell'installazione, consultare un tecnico qualificato.

5. Istruzioni per l'uso

Once the replacement battery is installed and fully charged, the GE FANUC CNC POWER MATE E system should operate as intended. The battery primarily serves to maintain critical system memory and settings during power outages or when the main power is disconnected.

• Accensione: Power on your GE FANUC CNC POWER MATE E system as you normally would.
• Controllo del sistema: Verify that all system functions, especially those reliant on battery backup (e.g., memory retention, clock settings), are operating correctly.
• Funzionamento normale: Use your CNC system according to its original operating manual. The replacement battery functions seamlessly with the system's power management.

The battery itself does not require direct user interaction during normal operation. Its function is automatic.

6. Manutenzione

The Technical Precision replacement battery is designed for long-term, maintenance-free operation. However, observing the following general guidelines can help ensure its longevity:

• Temperatura: Operate the CNC system within its recommended temperature range. Avoid exposing the battery to extreme heat or cold, as this can degrade performance and lifespan.
• Ispezione fisica: Periodically inspect the battery and its connections for any signs of physical damage, corrosion, or loose connections. Ensure the battery label remains intact.
• Magazzinaggio: If the CNC system is to be stored for an extended period, ensure the battery is adequately charged before storage. Store the system in a cool, dry place.
• Sostituzione: Replace the battery when its capacity diminishes or if the CNC system indicates a battery fault. The lifespan of a battery depends on usage patterns and environmental conditions.

7. Risoluzione Dei Problemi

If you encounter issues after replacing the battery, consider the following:

For complex issues, contact Technical Precision customer support or a qualified CNC technician.

8. Specifiche

9. Garanzia e supporto

For warranty information or technical support regarding your Technical Precision replacement battery, please contact the manufacturer directly.

Produttore: Precisione tecnica

Refer to the product packaging or the Technical Precision official websito per le informazioni di contatto e i dettagli sulla garanzia più aggiornati.

Note: Warranty may be void if the battery label is removed or if the product is misused.
