1. Introduzione
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your NACHTIMOOR Queen Platform Metal Bed Frame. Please read this manual thoroughly before assembly and retain it for future reference.
The NACHTIMOOR Queen Platform Metal Bed Frame features a vintage Victorian style with a headboard and footboard. It is designed to provide a sturdy mattress foundation without the need for a box spring, offering under-bed storage space.
Caratteristiche principali:
- Classical Design: Fashionable appearance with retro headboard and footboard, designed to complement various bedroom decors.
- Sturdy Metal Frame Structure: Constructed from steel with welding platform structure and fixed screws for durability and stability.
- Riduzione del rumore: Integrated rubber strips reduce noise from metal friction, ensuring a quiet sleep environment.
- Mattress Anti-Slippage: Four parting slips on the panel prevent the mattress from moving.
- Spazio sotto il letto: 13 inches of clearance provides ampspazio per scatole di stoccaggio.
- Facile montaggio: All necessary parts and tools are included for convenient installation.
- Non è necessario alcun box spring: Progettato per il posizionamento diretto sul materasso.
2. Informazioni sulla sicurezza
- Leggere attentamente tutte le istruzioni prima del montaggio.
- Prima di iniziare il montaggio, assicurarsi che tutti i componenti siano presenti e integri. Non utilizzare se alcuni componenti risultano mancanti o rotti.
- Assemble the bed frame on a soft, non-abrasive surface (e.g., carpet or rug) to prevent scratching.
- Do not overtighten screws during assembly, as this may damage the frame. Tighten all screws firmly once assembly is complete.
- Controllare periodicamente tutti i collegamenti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
- Do not allow children to climb or play on the bed frame.
- Distribute weight evenly across the bed frame. The maximum support capacity is 550-660 lbs.
- Tenere le parti piccole lontano dalla portata dei bambini per evitare rischi di soffocamento.
3. Contenuto della confezione
Before starting assembly, verify that all components listed below are present in your package:
- Steel Bed Headboard
- Steel Bed Footboard
- Steel Bed Side Rails
- Steel Bed Base Cross Bars (Slats)
- Steel Bed Support Legs
- Manuale di istruzioni di montaggio
- Screws and Allen Key (Tools for assembly)

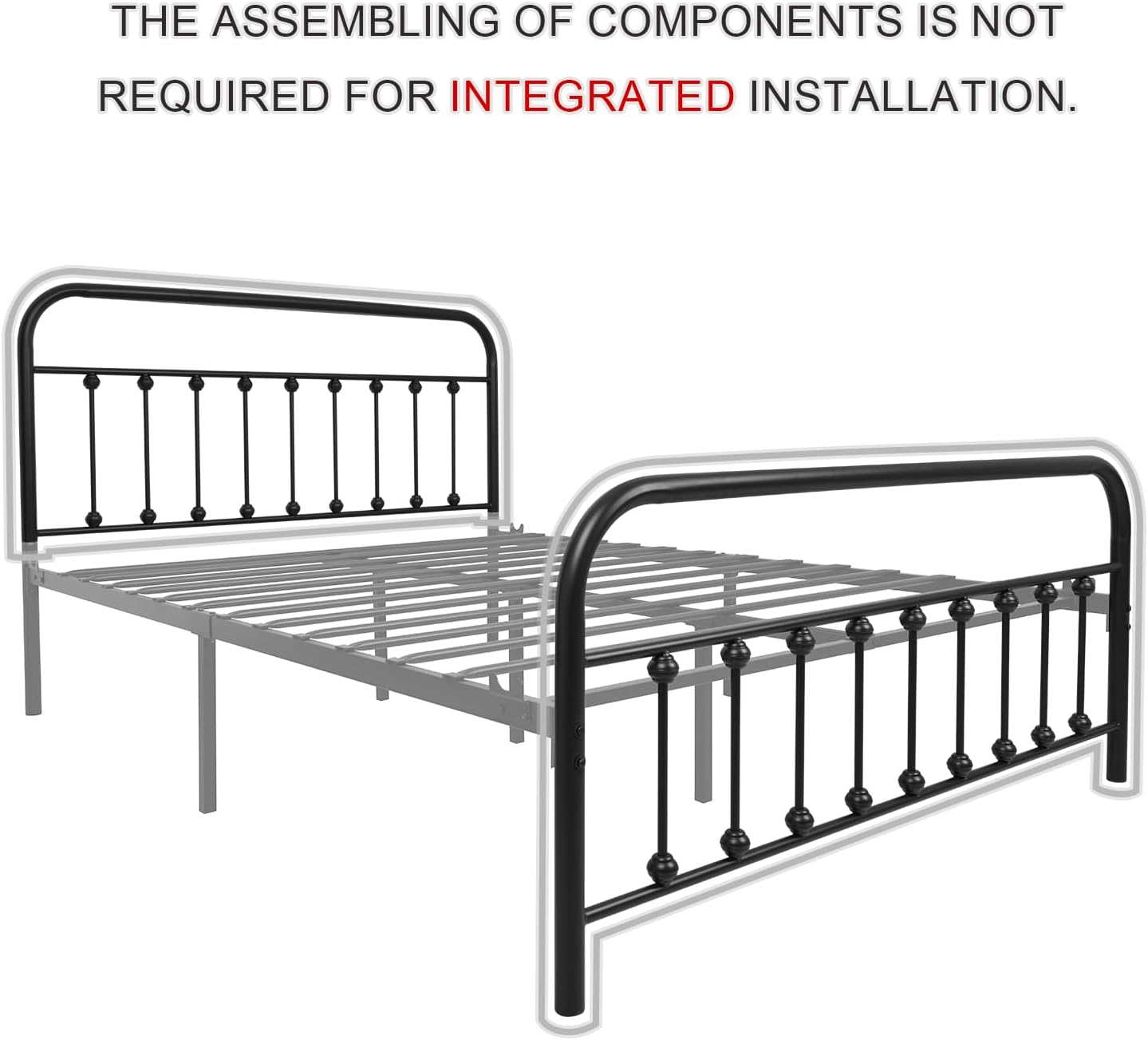

Figure 3.1: Integrated installation diagram, illustrating how the headboard, footboard, and side rails connect to form the bed frame structure.
4. Istruzioni per l'installazione e il montaggio
Il montaggio richiede in genere due persone e richiede circa 45-60 minuti. Seguire attentamente questi passaggi:
- Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio. Disporli su una superficie pulita e morbida per evitare graffi.
- Identificare le parti: Refer to the included assembly instruction manual to identify each component (e.g., headboard, footboard, side rails, support legs, slats).
- Fissare le guide laterali alla testiera: Connect the side rails to the headboard using the provided screws and Allen key. Do not fully tighten the screws yet.
- Fissare le guide laterali alla pedana: Connect the other end of the side rails to the footboard. Ensure the headboard and footboard are facing the correct direction. Do not fully tighten the screws.
- Installare le gambe di supporto centrali: Attach any central support legs to the main frame or crossbars as indicated in the specific assembly diagram.
- Posizionare le stecche: Position the metal slats across the bed frame. Ensure they are securely seated in their designated slots or attached with the provided fasteners. The rubber strips on the slats should face upwards to prevent mattress slippage and reduce noise.
- Stringere tutte le viti: Once all components are in place and aligned, systematically tighten all screws firmly. Do not overtighten.
- Controllo finale: Gently shake the assembled frame to ensure stability. Verify that all connections are secure.
Figure 4.1: The assembled bed frame without a mattress, highlighting the metal slat foundation.
Figura 4.2: Fronte view of the bed frame, illustrating the design of the headboard and footboard.
5. Istruzioni per l'uso (uso)
This bed frame is designed for use with a Queen-sized mattress. No box spring is required.
- Posizionamento del materasso: Carefully place your Queen-sized mattress directly onto the assembled metal slats. The integrated mattress stoppers (parting slips) will help prevent the mattress from shifting.
- Spazio sotto il letto: Utilize the 13 inches of clearance beneath the frame for storage. Compatible storage containers can be placed directly on the floor under the bed.
- Distribuzione del peso: Ensure weight is distributed evenly across the bed surface. Avoid concentrating heavy loads in one small area.
Figure 5.1: The NACHTIMOOR Queen Platform Metal Bed Frame fully assembled with a mattress and bedding.
Figure 5.2: Visual representation of the bed frame's design features, including noise reduction, mattress stability, under-bed storage, and non-slip feet.
6. Manutenzione
- Pulizia: Pulire la struttura metallica con un panno asciutto per rimuovere polvere e detriti. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi, che potrebbero danneggiare la finitura verniciata a polvere.
- Controllo del dispositivo di fissaggio: Periodically (e.g., every 3-6 months) inspect all screws and bolts. Retighten any loose fasteners to maintain stability and prevent squeaking.
- Protezione della superficie: The bed frame is equipped with non-slip feet caps to protect your flooring. Ensure these caps remain intact.
7. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il telaio del letto scricchiola | Elementi di fissaggio allentati; attrito tra parti metalliche. | Ensure all screws and bolts are securely tightened. The integrated rubber strips are designed to reduce noise; verify they are correctly positioned. |
| Il materasso scivola sul telaio | Mattress not properly seated; anti-slippage features not engaged. | Ensure the mattress is centered on the frame. Verify that the four parting slips on the panel are correctly installed and preventing movement. |
| Il telaio sembra instabile | Montaggio incompleto; collegamenti allentati. | Recheck all assembly steps. Ensure all screws are fully tightened. Verify that all support legs are making firm contact with the floor. |
| Parti mancanti | Errore di imballaggio. | Contact customer support immediately with your purchase details. Do not attempt to assemble with missing parts. |
8. Specifiche
- Dimensioni del prodotto: 83.5 cm L x 61 cm P x 43 cm A
- Misurare: Regina
- Colore: Nero
- Materiale: Metallo (acciaio)
- Tipo di finitura: Verniciato a polvere
- Ground To Item Distance (Under-Bed Clearance): 13 pollici
- Capacità di peso massima: 550-660 libbre
- Assemblaggio richiesto: SÌ
- Numero modello: C90132G
- Codice UPC: 824382134890
- Peso dell'articolo: 56 libbre
Figure 8.1: Detailed dimensions of the Queen size bed frame.
9. Informazioni sulla garanzia
The NACHTIMOOR Queen Platform Metal Bed Frame comes with a garanzia di cinque anni. This warranty covers manufacturing defects and ensures free replacement parts for the specified period. Please retain your proof of purchase for warranty claims.
10. Assistenza clienti
Should you have any questions regarding assembly, missing parts, product functionality, or warranty claims, please do not hesitate to contact our customer support team immediately. Provide your purchase details and model number (C90132G) for efficient assistance.
