Manuale di istruzioni per la lampada LED per la coltivazione Spider Farmer SF1000

Introduzione

The Spider Farmer SF1000 LED Grow Light is designed to provide a full spectrum lighting solution for all stages of plant growth, from seedling to flowering. Featuring high-efficiency Bridgelux diodes, this 100W light offers optimal light penetration and dimmable functionality. It is engineered for low power consumption and efficient heat dissipation, making it suitable for grow tents ranging from 60x60 cm to 90x90 cm.

This manual provides essential information for the safe and effective use of your SF1000 LED Grow Light. Please read all instructions carefully before installation and operation.

Istruzioni di installazione

Before beginning installation, ensure all components are present and undamaged. The package typically includes the LED grow light, stainless steel hanger hooks, and adjustable rope hangers.

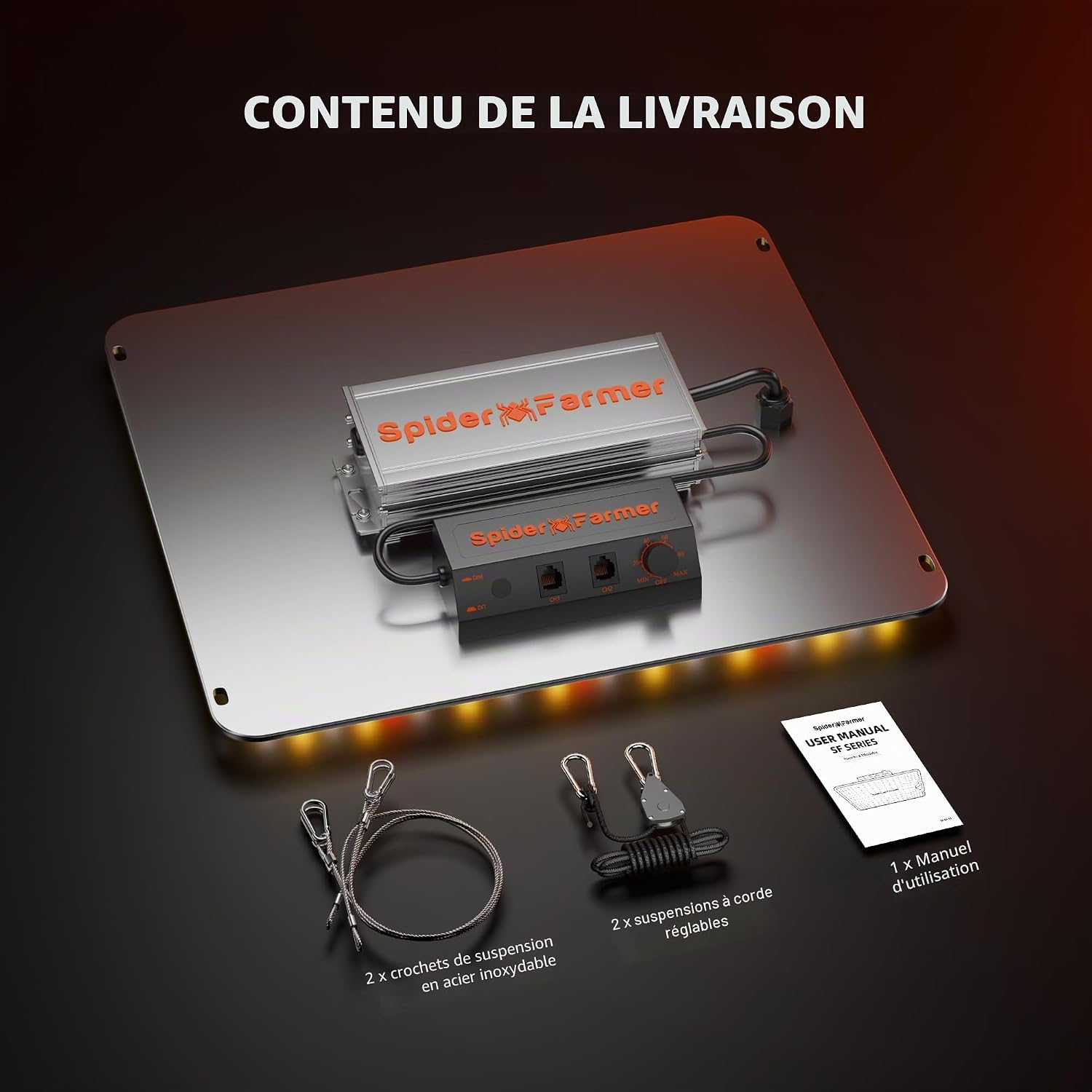

Contenuto della confezione

The package contains: 1x SF1000 LED Grow Light, 2x Stainless Steel Hanger Hooks, 2x Adjustable Rope Hangers, and 1x User Manual.

Fasi di installazione

1. Disimballare la luce: Carefully remove the SF1000 LED Grow Light and all accessories from the packaging. Inspect for any visible damage.
2. Fissare le grucce: Connect the stainless steel hanger hooks to the designated mounting points on the top of the grow light.
3. Montare la luce: Use the adjustable rope hangers to suspend the light from a sturdy support structure within your grow tent or cultivation area. Ensure the light is level and securely fastened.
4. Regola l'altezza: Initially, position the light at the recommended height for your plant's current growth stage. Refer to the 'Operating Instructions' section for specific height recommendations.
5. Connetti alimentazione: Plug the power cord into the light's driver, then connect the power cord to a suitable electrical outlet. Ensure the dimmer knob is in the 'OFF' position before connecting to power.

The SF1000 is designed for easy setup, typically taking only a few minutes without complex installation procedures.

Istruzioni per l'uso

Power and Dimming Control

The SF1000 features a dimmer knob and a dimmer button for precise control over light intensity.

• Manopola dimmer: Rotate the knob to adjust the light intensity from 0% to 100%. Turning the knob fully counter-clockwise to the 'OFF' position will power off the light.
• Pulsante dimmer: This button allows switching between internal dimming (DIM) and external dimming (EXT) control. For standard operation, ensure it is set to DIM.

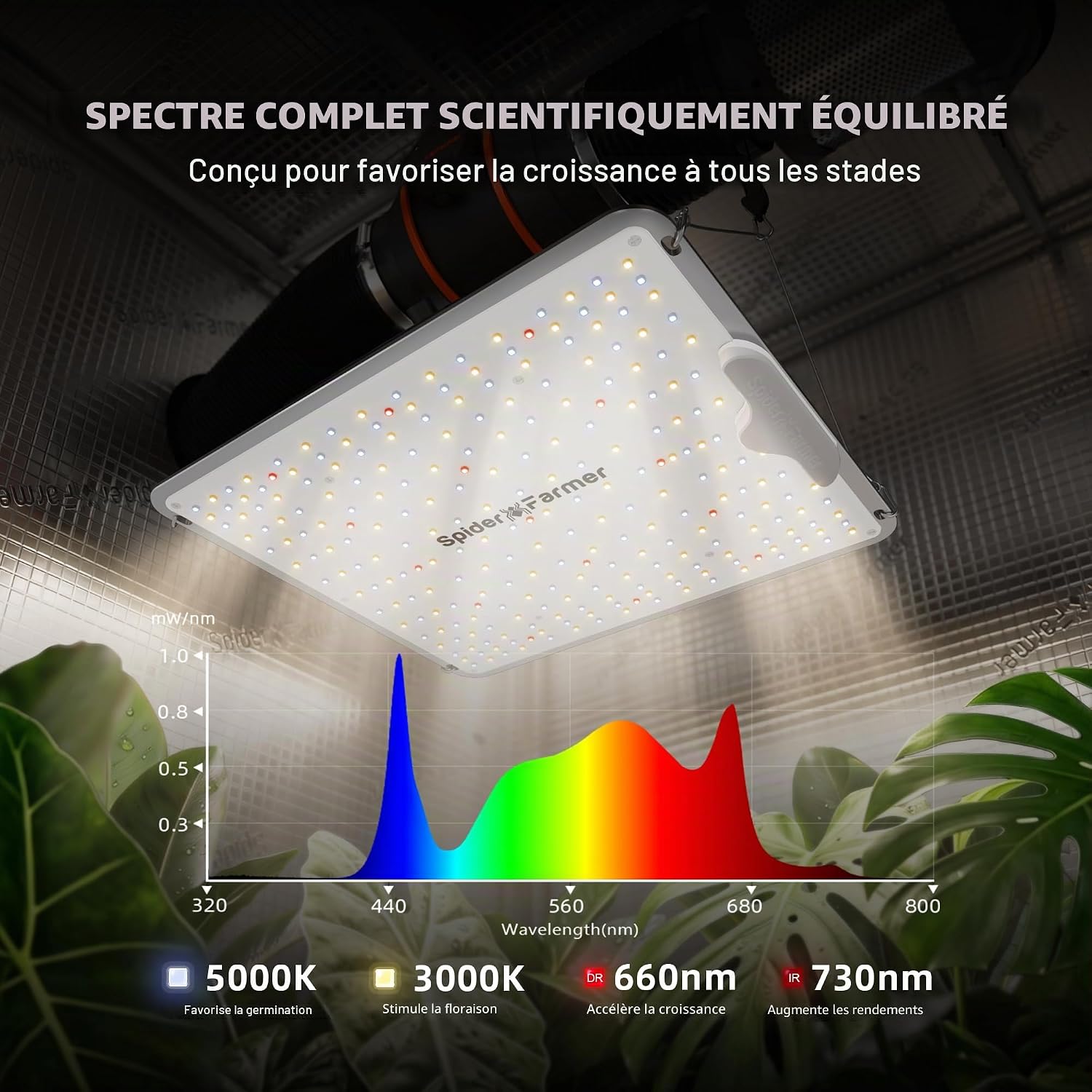

Full Spectrum Output

The SF1000 provides a scientifically balanced full spectrum, including white, blue, red, and IR light, suitable for all plant life stages. The 3000K spectrum supports flowering, while 5000K promotes germination. 660nm red light and IR are crucial for accelerating growth and increasing produce.

Consigli di coltivazione consigliati

Adjust the light distance, dimming level, and light cycle according to the plant's growth stage per risultati ottimali.

Funzionalità di controllo intelligente

The SF1000 series grow lights are compatible with GGS series controllers, allowing for advanced features such as timer settings, 0-100% dimming, and automatic dimming based on real-time PPFD data. This enables uniform light intensity across large cultivation areas and commercial operations.

Manutenzione

The SF1000 LED Grow Light is designed for durability and minimal maintenance.

• Pulizia: Periodically wipe the light surface with a dry, soft cloth to remove dust and debris. Ensure the light is unplugged before cleaning. Do not use liquid cleaners directly on the light.
• Gestione del calore: The enhanced aluminum plate and driver design ensure efficient heat dissipation, resulting in low heat output and silent operation (no fan noise). Ensure adequate airflow around the light for optimal performance and longevity.
• Ispezione dei cavi: Regularly check power cables and connections for any signs of wear or damage. Replace any damaged components immediately.

Risoluzione dei problemi

If you encounter issues with your SF1000 LED Grow Light, refer to the following common problems and solutions:

• La luce non si accende:
  • Check if the power cord is securely plugged into both the light driver and the electrical outlet.
  • Ensure the dimmer knob is turned clockwise from the 'OFF' position.
  • Verificare che la presa elettrica funzioni collegandovi un altro dispositivo.
• L'intensità della luce è bassa:
  • Adjust the dimmer knob to increase the light intensity.
  • Ensure the dimmer button is set to 'DIM' for internal control, or that your external controller is properly configured if using 'EXT'.
• Uneven Plant Growth:
  • Check the light's hanging height and ensure it is level. Refer to the 'Recommended Growing Tips' for optimal distances.
  • Ensure plants are evenly spaced beneath the light to receive consistent illumination.
• Rumore insolito:
  • The SF1000 operates silently due to passive cooling. If you hear unusual noise, disconnect power immediately and contact customer support.

For issues not covered here, please contact Spider Farmer customer support.

Specifiche

Key technical specifications for the Spider Farmer SF1000 LED Grow Light:

Informazioni sulla garanzia

Spider Farmer fornisce un Garanzia del produttore di 5 anni on its full-spectrum LED grow lights. This warranty is supported by a local maintenance center. For any warranty claims or questions, please contact Spider Farmer customer service directly.

Assistenza clienti

If you have any questions regarding the installation, operation, or maintenance of your Spider Farmer SF1000 LED Grow Light, please do not hesitate to contact our customer support team. You can reach us via email through the official Spider Farmer websito o sulla tua piattaforma di acquisto.
