Wiltec 900W Drywall Sander Model 61857 Instruction Manual

1. Introduzione

Thank you for choosing the Wiltec 900W Drywall Sander Model 61857. This powerful and versatile tool is designed for efficient sanding of walls, ceilings, and edges, making it ideal for renovation and construction projects. Its integrated vacuum function ensures a cleaner working environment by directly collecting sanding dust. Please read this manual thoroughly before operating the device to ensure safe and optimal performance.

2. Istruzioni di sicurezza

Quando si utilizzano utensili elettrici, osservare sempre le precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche e lesioni personali.

• Leggi tutte le istruzioni: Familiarizzare con i comandi e con l'uso corretto dello strumento.
• Indossare adeguati dispositivi di protezione individuale (DPI): Always wear safety glasses, a dust mask, and hearing protection. Gloves are recommended.
• Garantire un'area di lavoro sicura: Keep the work area clean, well-lit, and free from obstructions. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Sicurezza elettrica: Assicurarsi che l'alimentazione corrisponda al voltage specified on the tool. Do not expose power tools to rain or wet conditions. Avoid body contact with earthed or grounded surfaces.
• Fissare il pezzo in lavorazione: Always secure the material being sanded to prevent movement during operation.
• Evitare l'avvio accidentale: Prima di collegare l'utensile, assicurarsi che l'interruttore sia in posizione di spegnimento.
• Maintain the tool: Mantenere gli utensili da taglio affilati e puliti per prestazioni migliori e più sicure. Seguire le istruzioni per la lubrificazione e la sostituzione degli accessori.
• Scollegare l'alimentazione: Scollegare sempre la spina dalla fonte di alimentazione prima di effettuare qualsiasi regolazione, cambiare accessori o riporre l'utensile.
• Non esagerare: Mantieni sempre una posizione e un equilibrio adeguati.
• Controllare eventuali parti danneggiate: Before further use, carefully check the tool for any damage. Ensure all guards and other parts are in working order.

3. Contenuto della confezione

Dopo aver disimballato, verificare che tutti i componenti siano presenti e integri:

• Wiltec 900W Drywall Sander (Model 61857)
• 6 x Sanding Discs (various grits)
• 2 spazzole di carbone
• 1 x Suction Hose (2 meters long)
• 1 x sacchetto antipolvere
• 1 x Connection Adapter
• 1 chiave a brugola

Figure 1: Wiltec Drywall Sander with included accessories (dust bag, hose, sanding discs).

4. Impostazione

Follow these steps to prepare your drywall sander for use:

1. Fissare la maniglia ausiliaria: Secure the auxiliary handle to the designated mounting point on the sander body. Use the provided Allen key to tighten it firmly.
2. Collegare il tubo di aspirazione: Attach one end of the 2-meter suction hose to the dust extraction port on the sander. Ensure a snug fit.
3. Attach the Dust Bag: Connect the other end of the suction hose to the dust bag. The integrated vacuum system will direct sanding debris into this bag.
4. Install a Sanding Disc: The sander uses a 180mm sanding pad. Align the holes on the sanding disc with the holes on the sanding pad and press firmly to secure it via the hook-and-loop fastening system.

Figure 2: Sander with sanding pad and replacement discs.

Figure 3: Sander with dust extraction hose attached.

5. Istruzioni per l'uso

Operating the Wiltec drywall sander is straightforward. Always ensure you are wearing appropriate PPE before starting.

1. Collegamento elettrico: Plug the sander into a suitable 230V power outlet.
2. Regolazione della velocità: The sander features five adjustable speed levels, ranging from 1400 to 2700 revolutions per minute (rpm). Use the speed control switch to select the desired speed. The integrated display will show the selected speed. Start with a lower speed for delicate work or softer materials and increase as needed for more aggressive sanding.
3. Avvio della levigatrice: Press the power switch to turn on the sander.
4. Tecnica di levigatura: Apply gentle, even pressure to the surface. Move the sander in smooth, overlapping circular motions. Avoid pressing too hard, as this can reduce efficiency and damage the surface or the sanding disc. The integrated vacuum function will automatically collect dust as you sand.
5. Working on Walls and Ceilings: The ergonomic design and auxiliary handle allow for comfortable operation on both vertical and overhead surfaces. The integrated light helps illuminate the work area for better visibility.
6. Arresto della levigatrice: Release the power switch to turn off the sander. Wait for the sanding pad to come to a complete stop before setting the tool down.

Figure 4: Sander in operation on a wall, showing the integrated light.

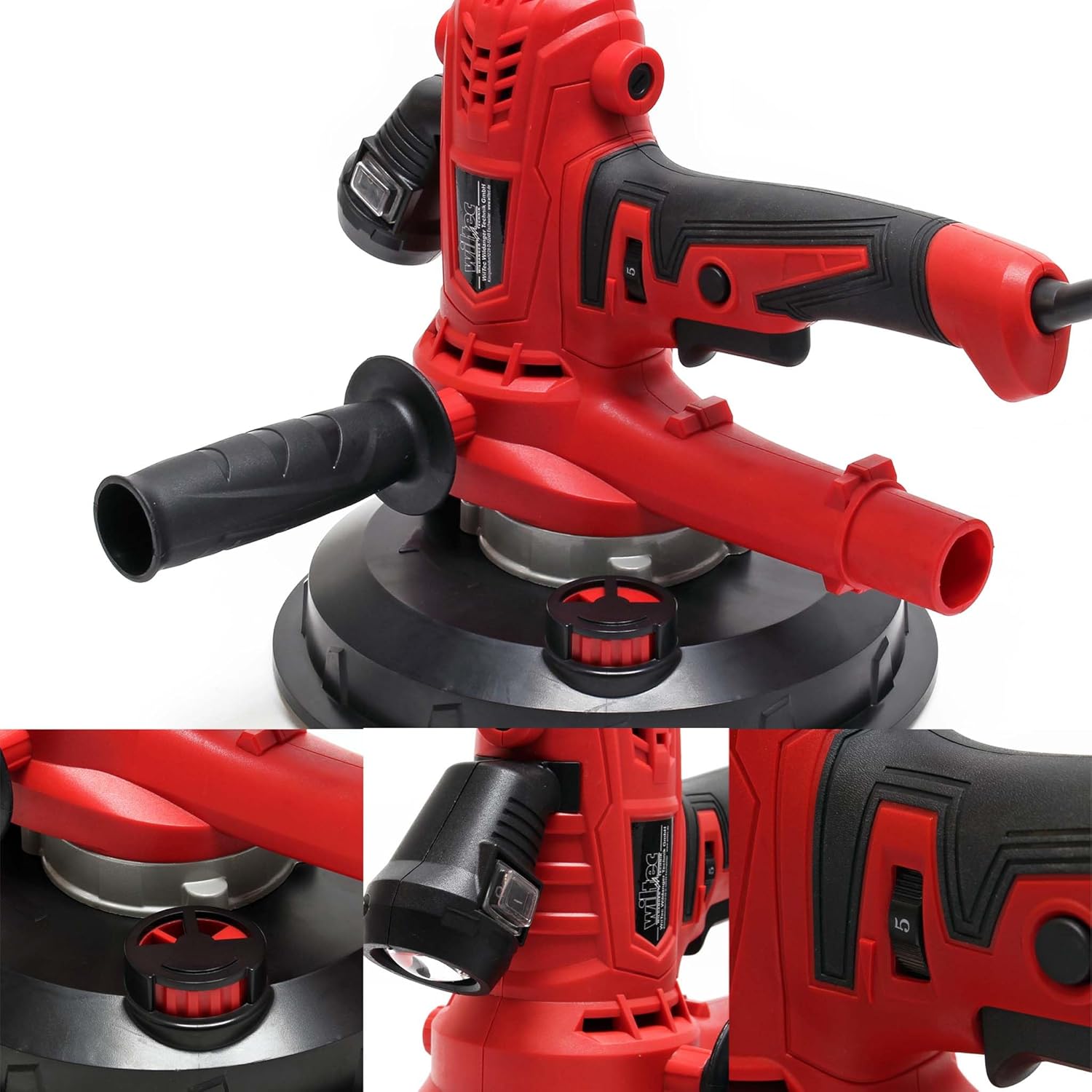

Figure 5: Close-up of the speed control and integrated light.

6. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your Wiltec drywall sander.

• Pulizia: After each use, disconnect the power and clean the tool with a dry cloth. Remove any dust or debris from the ventilation slots to prevent overheating. Do not use water or chemical cleaners.
• Sostituzione del disco abrasivo: When a sanding disc becomes worn or clogged, peel it off the hook-and-loop pad and replace it with a new one. Ensure the new disc is correctly aligned.
• Dust Bag Maintenance: Regularly empty the dust bag to maintain effective dust collection. A full dust bag will reduce the efficiency of the vacuum system. Clean the dust bag periodically to remove fine dust particles.
• Sostituzione delle spazzole di carbone: The sander includes two spare carbon brushes. If the motor performance decreases or sparks become visible, the carbon brushes may need replacement. Consult a qualified technician or refer to specific instructions for your model for safe replacement. Always disconnect power before attempting this.
• Magazzinaggio: Store the sander in a dry, secure place, out of reach of children.

7. Risoluzione Dei Problemi

If you encounter issues with your drywall sander, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Wiltec customer support.

8. Specifiche

9. Garanzia e supporto

Wiltec products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided at the time of purchase or visit the official Wiltec website. For technical support, spare parts, or service inquiries, please contact Wiltec customer service directly. Ensure you have your model number (61857) and purchase details available when contacting support.
