Manuale utente del sistema di microfoni wireless G-MARK X320FM

Introduzione

This user manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your G-MARK X320FM Wireless Microphones System. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Prodotto finitoview

Caratteristiche principali

• Unique LED Light Design: Microphones feature an LED halo for visual feedback.
• Frequenza regolabile: Dual UHF technology with a selectable frequency range of 520 MHz to 560 MHz, allowing for frequency changes if interference occurs.
• Plug and Play, Auto Pairing: Automatic frequency synchronization between receiver and microphones upon power-on.
• Costruzione robusta: Microphones are constructed from metal for durability and impact resistance.
• Schermo LCD: Professional receiver features an LCD screen displaying channels and frequencies.
• Ampia applicazione: Compatibile con amplifiers, speakers, audio mixers, and other PA systems, suitable for karaoke, DJ events, parties, church, weddings, speeches, conferences, and outdoor events.

Contenuto della confezione

The G-MARK X320FM Wireless Microphones System package includes the following items:

• 1 scatola ricevitore
• 2 microfoni palmari wireless UHF
• Cavo audio 1 x 6.35 mm
• 1 x adattatore di alimentazione
• 2 x Antenne
• 2 x Anti-skid Rings
• 1 x Manuale utente

Figure 1: Contents of the G-MARK X320FM package, including the receiver, two handheld microphones, power adapter, audio cable, antennas, and anti-skid rings.

Identificazione dei componenti

Receiver Front and Rear Panels

Figura 2: Fronte view of the G-MARK X320FM receiver, showing the display, volume controls, and power switch. Rear view details XLR outputs, MIX OUT, power input, and antenna connections.

• Pannello frontale: Features UP/VOL and DW/VOL buttons for channel A and B, CHA/CHB frequency displays, RF/AF indicators, and a central power switch.
• Pannello posteriore: Includes ANT-A and ANT-B antenna connectors, BALANCED OUT-A and BALANCED OUT-B XLR outputs, a MIX OUT (AF A+B) 6.35mm audio output, and a DC9-12V power input.

Handheld Microphone Details

Figura 3: dettagliata view of the G-MARK X320FM handheld microphone, showing the microphone head, internal components, battery compartment, and AFH switch for frequency selection.

• Testa del microfono: Metal mesh grille for protection and clear sound quality.
• Corpo: Struttura in metallo resistente.
• Display: Shows battery level and current frequency.
• Pulsante di accensione: Per accendere/spegnere il microfono.
• Vano batteria: Located at the bottom of the microphone for battery insertion.
• AFH Switch: Allows for channel selection (A, B, C, D) on the microphone.

Istruzioni di installazione

1. Installazione della batteria

To install batteries in the handheld microphones:

1. Svitare la parte inferiore del microfono per accedere al vano batteria.
2. Inserire due batterie AA, assicurandosi della corretta polarità.
3. Riavvitare saldamente la parte inferiore.

2. Collegamento del ricevitore

Connect the receiver to your audio system using the provided 6.35mm audio cable or XLR cables (not included for XLR). Ensure you connect to the Presa MIC sul tuo amplifier, speaker, or audio mixer, not the AUX jack.

Figure 4: Diagram illustrating how to connect the G-MARK X320FM receiver to various audio devices like a professional music mixer, amplifier, or karaoke machine. Note that connection to laptops, iPads, phones, or TVs is generally not compatible.

3. Collegamento dell'antenna

Screw the two antennas onto the ANT-A and ANT-B connectors on the rear panel of the receiver. Position them vertically for optimal signal reception.

4. Accensione

Connect the power adapter to the DC9-12V input on the receiver and plug it into a power outlet. Press the central POWER button on the receiver to turn it on. Then, press the POWER button on each handheld microphone to turn them on.

Istruzioni per l'uso

1. Automatic Pairing (Flash Match)

The G-MARK X320FM system features automatic frequency synchronization. Once the receiver and microphones are powered on, they will automatically pair and lock to an available frequency. The receiver's display will show the synchronized frequency.

Figure 5: Illustrates the 'Flash Match' feature where the microphone and receiver automatically lock frequency immediately after power on.

2. Regolazione della frequenza

If you experience interference, you can manually adjust the frequency on the handheld microphone. The receiver's frequency for that channel will automatically change to match the microphone's new frequency.

1. Locate the AFH switch inside the microphone's battery compartment.
2. Use the switch to select a different channel (A, B, C, or D).
3. Observe the receiver's display; the frequency for the corresponding channel will update.

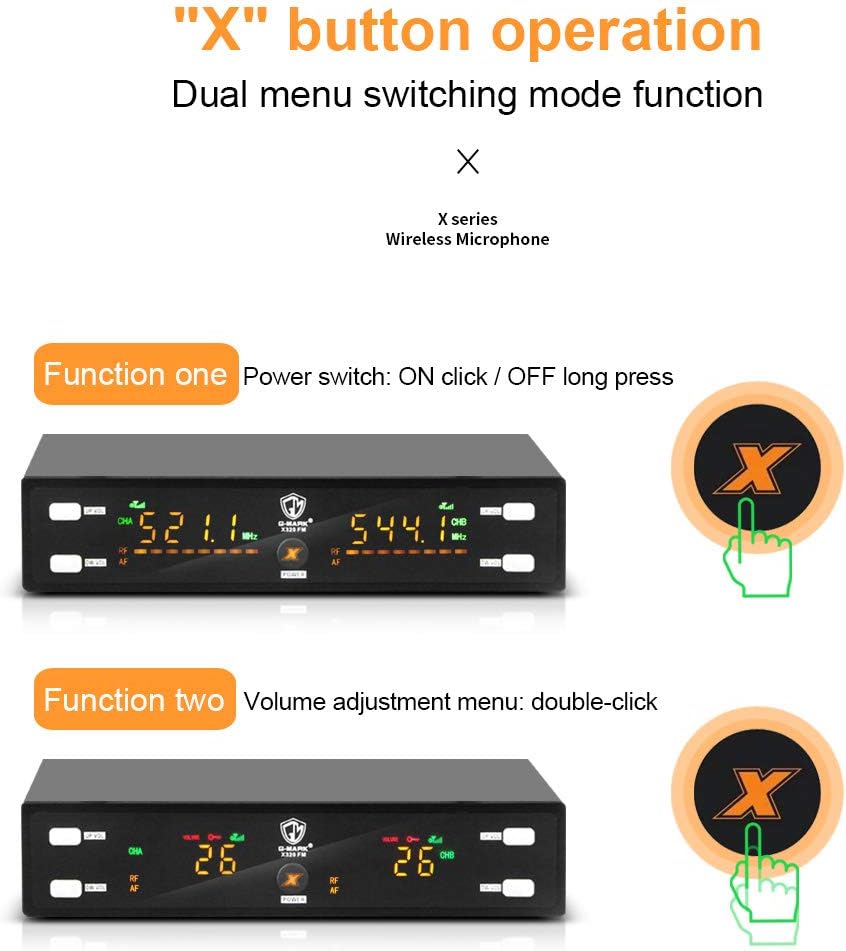

3. Regolazione del volume

Adjust the volume for each microphone channel directly on the receiver:

1. For Channel A, use the 'UP/VOL' and 'DW/VOL' buttons on the left side of the receiver.
2. For Channel B, use the 'UP/VOL' and 'DW/VOL' buttons on the right side of the receiver.
3. The volume level will be displayed on the receiver's LCD screen.

4. Frequency Lock/Unlock

To prevent accidental frequency changes, you can lock the receiver's frequency. To unlock, double-click the UP/VOL and DW/VOL buttons simultaneously on the desired channel.

Manutenzione

• Pulizia: Utilizzare un panno morbido e asciutto per pulire il ricevitore e i microfoni. Evitare l'uso di detergenti liquidi o solventi.
• Cura della batteria: Rimuovere le batterie dai microfoni se non vengono utilizzati per un periodo prolungato, per evitare perdite.
• Magazzinaggio: Conservare il sistema in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Gestione: Handle microphones and receiver with care to avoid physical damage.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

For warranty information, technical support, or any inquiries regarding your G-MARK X320FM Wireless Microphones System, please contact G-MARK customer service through the official channels provided at the point of purchase or on the G-MARK websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
