UpStart Components 754-0349 Drive Belt Instruction Manual

1. Introduzione

This manual provides essential information for the installation, maintenance, and safe operation of your UpStart Components 754-0349 Drive Belt. This replacement drive belt is designed for use with specific lawn tractor models, including the Yard Man 13AU604H401 (2002) Lawn Tractor, and is compatible with original part numbers such as 954-0339A.

Please read these instructions thoroughly before attempting any installation or maintenance to ensure proper function and safety.

2. Prodotto finitoview

The UpStart Components 754-0349 Drive Belt is a high-quality replacement part engineered for durability and reliable performance in lawn tractor drive systems. It is constructed from premium materials to withstand the demands of outdoor power equipment operation.

• Materiale: Premium quality, designed for longevity.
• Dimensioni: Approximately 1/2 inch (width) x 79-3/32 inches (length).
• Funzione: Transmits power from the engine to the drive wheels of the lawn tractor.

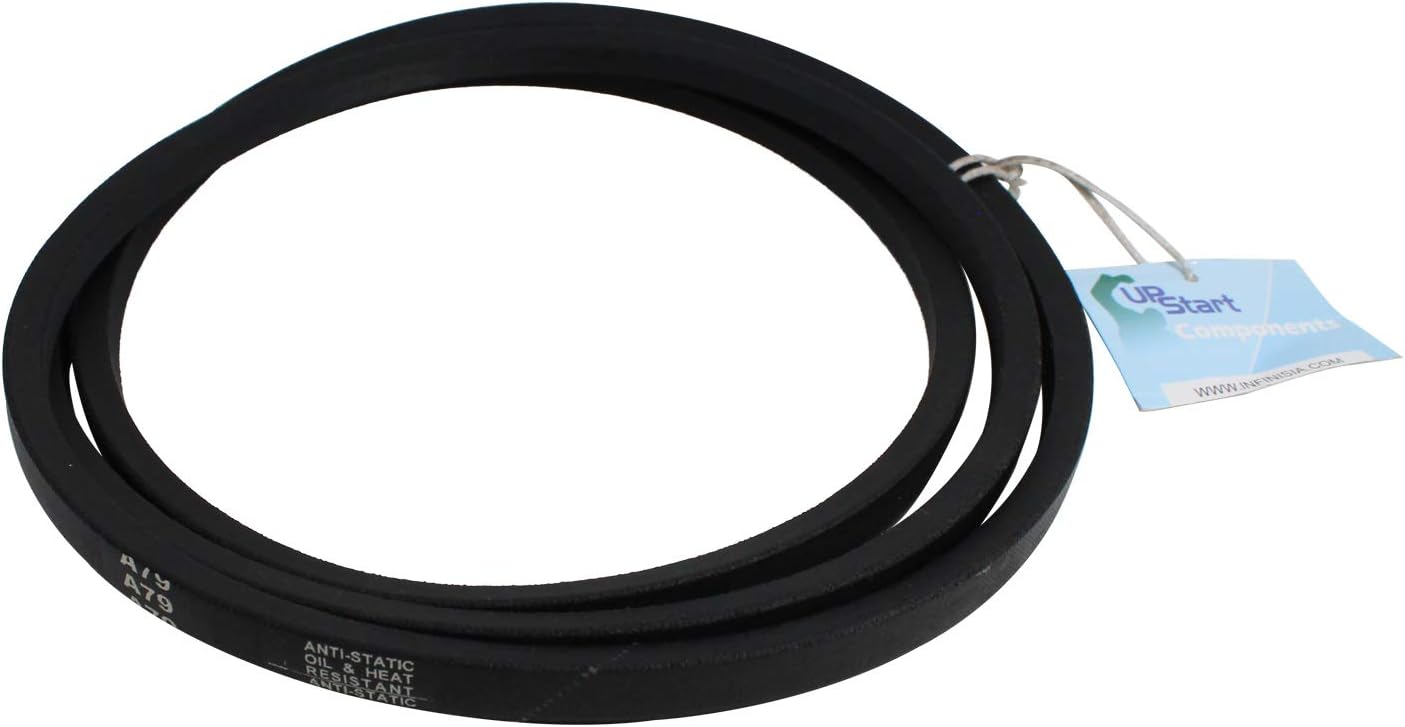

Image 1: The UpStart Components 754-0349 Drive Belt, shown coiled. This image displays the overall appearance and material of the belt.

3. Compatibilità

This drive belt is a replacement for various original equipment manufacturer (OEM) part numbers and is compatible with several lawn tractor models. Always verify your original part number and dimensions before purchasing per garantire il corretto montaggio.

Compatibile con:

• Yard Man 13AU604H401 (2002) Lawn Tractor
• Sostituisce i numeri di parte OEM:
  • 754-0339
  • 754-0349
  • 954-0339A
  • 954-0349
  • Cub Cadet 754-0349
  • Cub Cadet 954-0349
  • MTD 754-0339
  • MTD 754-0349
  • MTD 954-0339A
  • MTD 954-0349
  • Rotante 6843
  • Stens 265-536
  • Toro 112-0317

4. Installazione (configurazione)

Replacing a drive belt requires mechanical aptitude and adherence to safety procedures. Refer to your lawn tractor's specific service manual for detailed instructions on accessing and replacing the drive belt. The following are general guidelines.

Precauzioni di sicurezza:

• Always disconnect the spark plug wire(s) to prevent accidental engine starting.
• Wear appropriate personal protective equipment, including heavy-duty work gloves and eye protection.
• Ensure the lawn tractor is on a flat, stable surface and the parking brake is engaged.
• Lasciare raffreddare completamente il motore e tutti i componenti caldi prima di iniziare il lavoro.

Passaggi generali di installazione:

1. Accedi al sistema di azionamento: Depending on your tractor model, this may involve removing the mower deck, footrests, or other covers to gain access to the drive belt pulleys.
2. Documento attuale percorso della cinghia: Before removing the old belt, take photos or draw a diagram of its exact routing around all pulleys and tensioners. This is crucial for correct installation of the new belt.
3. Alleviare la tensione: Locate the belt tensioner pulley(s) and relieve tension on the old belt. This often involves moving a lever or loosening a bolt.
4. Rimuovere la vecchia cinghia: Carefully remove the old drive belt from all pulleys. Inspect the old belt for wear patterns, which can indicate other issues.
5. Inspect Pulleys and Bearings: While the belt is off, inspect all pulleys for wear, damage, or excessive play. Ensure they spin freely. Replace any worn components.
6. Installare la nuova cinghia: Route the new UpStart Components 754-0349 Drive Belt according to your diagram or photos. Ensure it is seated correctly in all pulley grooves.
7. Applicare tensione: Re-apply tension to the belt system. Double-check that the belt is properly aligned and not twisted.
8. Rimontare: Reinstall any covers, footrests, or the mower deck that were removed.
9. Operazione di prova: Reconnect the spark plug wire(s). Start the engine and slowly engage the drive system to ensure the belt operates smoothly without slipping or unusual noises.

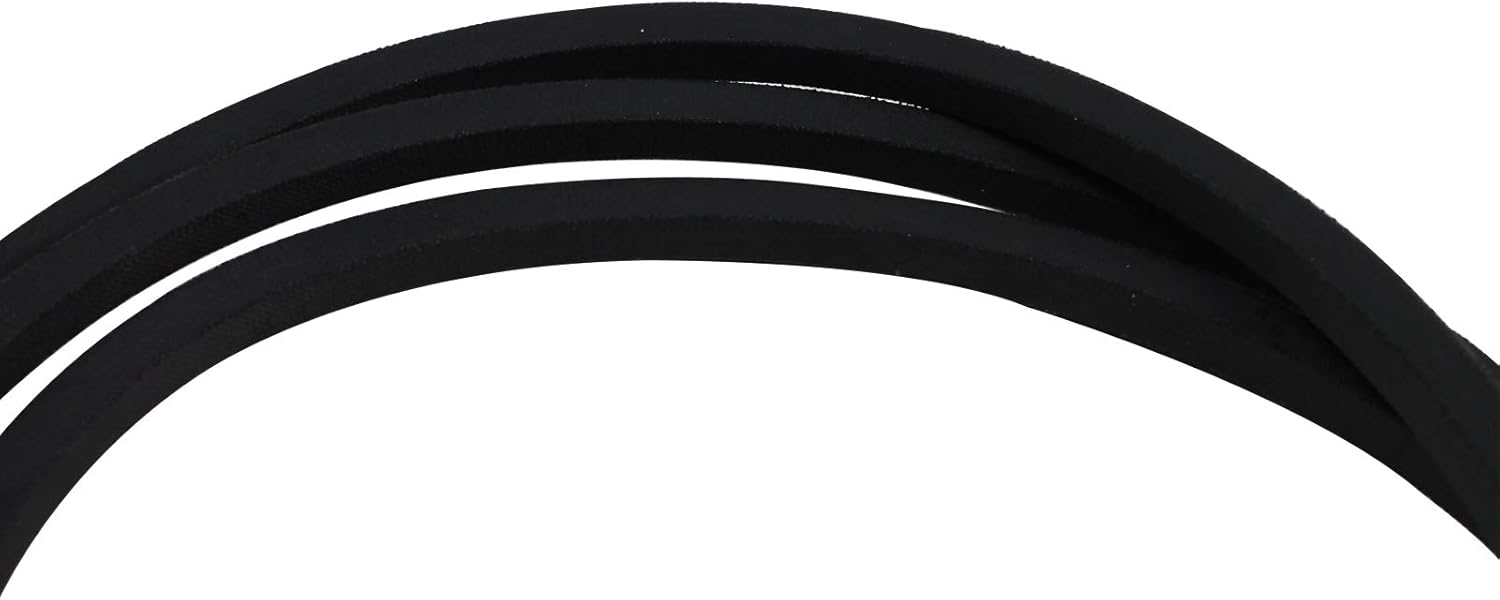

Immagine 2: Un primo piano view of the drive belt, highlighting its construction and flexibility. This detail is important for proper routing and seating on pulleys.

5. Manutenzione

Una corretta manutenzione prolunga la durata della cinghia di trasmissione e garantisce prestazioni ottimali del trattorino tagliaerba.

• Ispezione regolare: Periodically inspect the drive belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any significant damage is observed.
• Mantenere pulito: Mantenere la cinghia e le pulegge libere da sporco, residui d'erba, olio e altri detriti. I contaminanti possono causare usura prematura e slittamento.
• Controllare la tensione: Ensure the belt tension is correct according to your tractor's service manual. Incorrect tension can lead to slippage or excessive wear.
• Evitare il sovraccarico: Do not overload your lawn tractor, as this can put undue stress on the drive belt and other components.

6. Risoluzione Dei Problemi

If you experience issues with your drive system after belt replacement, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, consult a qualified service technician or your lawn tractor's service manual.

Image 3: The drive belt laid flat, demonstrating its full length and uniform thickness. This view helps in understanding the belt's structure for proper installation.

7. Specifiche

8. Informazioni sulla sicurezza

Dare sempre priorità alla sicurezza quando si lavora con apparecchiature elettriche e pezzi di ricambio. Il mancato rispetto delle istruzioni di sicurezza può causare gravi lesioni.

• Read and understand your lawn tractor's owner's manual before performing any maintenance.
• Ensure the engine is off, cool, and the spark plug wire is disconnected before working on the belt.
• Utilizzare gli strumenti adatti al lavoro.
• Tenere bambini e animali domestici lontani dall'area di lavoro.
• Dispose of old parts responsibly.

9. Garanzia e supporto

This product is an UpStart Components Brand replacement part. Any warranties for this product are offered solely by UpStart Components. This product is not affiliated with any original equipment manufacturers (OEMs) and is not covered under any warranties offered by the original manufacturers. For specific warranty details or support, please contact UpStart Components directly.

For further assistance, refer to the service manual provided by the manufacturer of your lawn tractor.
