AITRIP ESP8266 ESP-01 Serial Wireless WiFi Module

Introduzione

The ESP8266 ESP-01 is a highly integrated Wi-Fi module designed to provide a complete and self-contained networking solution. It can function as a standalone application host or offload Wi-Fi networking functions from another application processor. This module is suitable for various applications including smart grids, intelligent transportation, smart home devices, and industrial control systems.

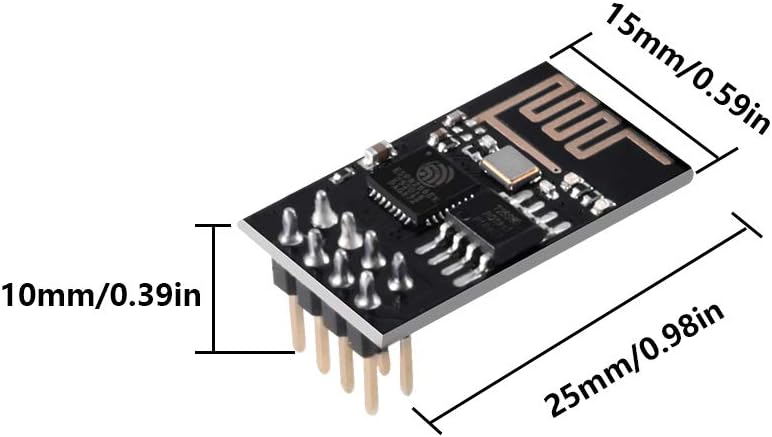

Figura 1: Oltreview of the AITRIP ESP8266 ESP-01 WiFi Module.

Caratteristiche principali

• Modello: ESP-01.
• Compatibilità: Compatible with Arduino and NodeMCU platforms.
• Modalità operative: Supports Access Point (AP), Station (STA), and combined AP+STA modes.
• Requisiti di potenza: Operates strictly on 3.3V DC.
• Memoria Flash: 1MB (8Mbit) SPI Flash.
• Standard Wi-Fi: Supports 802.11 b/g/n protocols.
• Modalità di sicurezza: WPA, WPA2.
• Serial/UART Baud Rate: 115200 punti base.
• I/O voltage Tolleranza: Maximum 3.6V.

Impostare

Proper setup is crucial for the reliable operation of your ESP8266 ESP-01 module. Please follow these guidelines carefully.

Alimentazione elettrica

The ESP-01 module requires a stable 3.3V CC power supply. Applying a voltage higher than 3.6V, such as 5V, will permanently damage the module. Ensure your power source can provide sufficient current, as the module can draw up to 70mA during regular operation and more during Wi-Fi transmission peaks.

Pinout and Connections

The ESP-01 module features an 8-pin header for power, serial communication, and GPIO. Refer to the diagrams below for pin identification.

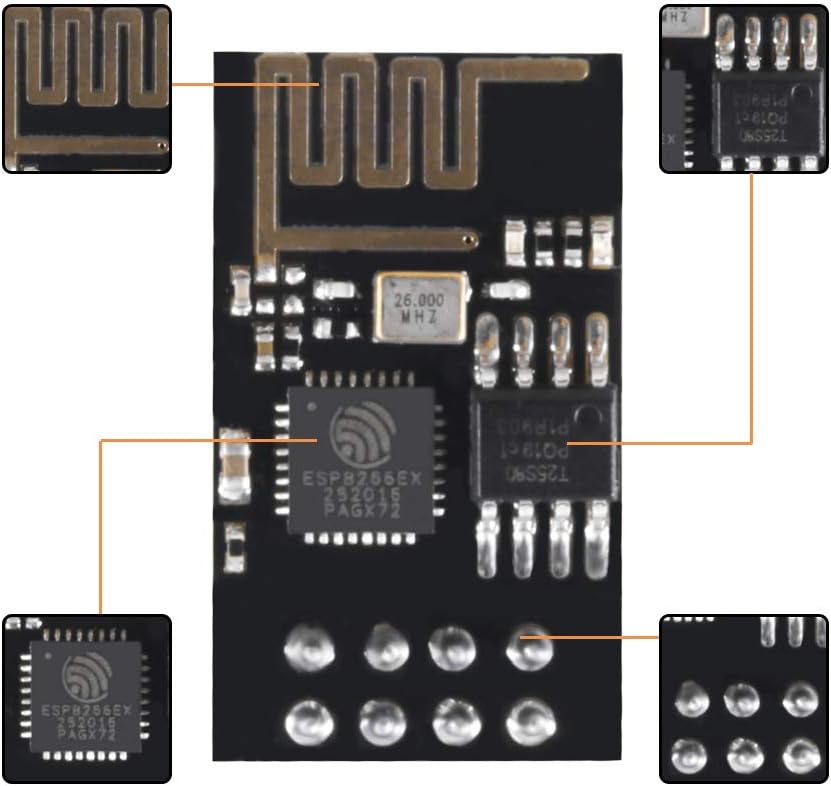

Figura 2: in alto view of the ESP-01 module highlighting key components and pin locations.

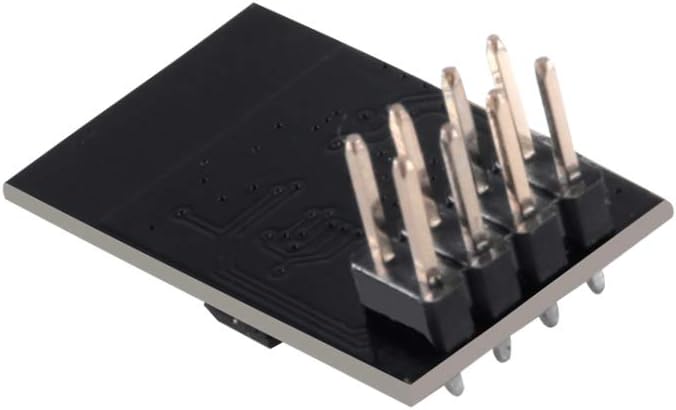

Figura 3: In basso view of the ESP-01 module showing the pin arrangement.

Common pins include VCC (3.3V), GND (Ground), TX (Transmit), RX (Receive), CH_PD (Chip Enable), RST (Reset), GPIO0, and GPIO2. For initial programming or communication, connect TX to RX and RX to TX of your serial adapter (e.g., USB-to-TTL converter) and ensure CH_PD is pulled high (to 3.3V) for normal operation.

Firmware lampeggiante

To program the ESP-01 module, you will typically need a dedicated USB-to-ESP-01 programmer or a compatible serial adapter. Ensure GPIO0 is pulled low (to GND) during power-up to enter flash mode. After flashing, remove the GPIO0-to-GND connection and reset the module for normal operation.

Operativo

The ESP-01 module can operate in various Wi-Fi modes and is controlled via AT commands or custom firmware.

Modalità Wi-Fi

• Modalità Stazione (STA): The module connects to an existing Wi-Fi network (e.g., your home router).
• Modalità punto di accesso (AP): The module creates its own Wi-Fi network, allowing other devices to connect to it.
• Modalità AP+STA: The module acts as both an Access Point and a Station simultaneously.

Comandi AT

When running the default AT firmware, the module responds to a set of AT commands sent over the serial interface. These commands allow you to configure Wi-Fi settings, establish TCP/UDP connections, and control GPIOs. The default serial baud rate is 115200 bps.

Firmware personalizzato

For more advanced applications, you can flash custom firmware (e.g., using the Arduino IDE with ESP8266 core or NodeMCU firmware) to directly control the module's functionality without relying on AT commands.

Manutenzione

To ensure the longevity and optimal performance of your ESP8266 ESP-01 module, observe the following maintenance practices:

• Maneggiare con cura: Electronic components are sensitive. Avoid dropping the module or subjecting it to physical stress.
• Scarica statica: Always handle the module in an anti-static environment to prevent damage from electrostatic discharge (ESD).
• Condizioni ambientali: Keep the module in a dry environment, away from moisture, extreme temperatures, and corrosive substances.
• Alimentazione elettrica: Always use a regulated 3.3V power supply. Incorrect voltage is a common cause of module failure.
• Pulizia: If necessary, gently clean the module with a soft, dry brush or compressed air to remove dust. Avoid using liquids.

Risoluzione dei problemi

If you encounter issues with your ESP8266 ESP-01 module, consider the following troubleshooting steps:

• Il modulo non si accende:
  • Verify the power supply is exactly 3.3V DC.
  • Check all power connections (VCC, GND) for proper contact.
  • Ensure the CH_PD (Chip Enable) pin is connected to 3.3V.
• Cannot Communicate via Serial:
  • Confirm TX and RX lines are correctly cross-connected (module TX to adapter RX, module RX to adapter TX).
  • Set your serial monitor's baud rate to 115200 bps.
  • Ensure your serial adapter is also operating at 3.3V logic levels.
• Firmware Flashing Fails:
  • Ensure GPIO0 is pulled to GND during power-up to enter flash mode.
  • Check for bent or damaged pins on the module or programmer.
  • Verify the correct drivers are installed for your USB-to-serial adapter.
• Problemi di connettività Wi-Fi:
  • Ensure the module's antenna is not obstructed by metal or other materials.
  • Check Wi-Fi credentials (SSID, password) if operating in STA mode.
  • Confirm the module is within range of the Wi-Fi access point.

Specifiche

Detailed technical specifications for the AITRIP ESP8266 ESP-01 module:

Figure 4: Dimensions of the ESP-01 module.

Informazioni sulla garanzia

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for any warranty claims. For specific details regarding warranty terms and conditions, please refer to the seller's policy or contact AITRIP customer support.

Supporto

For technical assistance, troubleshooting guidance, or further inquiries regarding your AITRIP ESP8266 ESP-01 module, please contact our customer support team. You may find additional resources, tutorials, and community forums online dedicated to ESP8266 development, which can provide valuable information and project ideas.

Risorse online: Cercare 'ESP8266 ESP-01 tutorials' or 'NodeMCU ESP-01 programming' for extensive community support.
