RioRand 300W 5-50V PWM DC Brushless Electric Motor Speed Controller User Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of the RioRand 300W 5-50V PWM DC Brushless Electric Motor Speed Controller. Please read this manual thoroughly before use to ensure proper and safe operation.

Prodotto finitoview

The RioRand DC Brushless Motor Speed Controller is designed for efficient and reliable control of three-phase brushless motors, including those without Hall sensors. Its wide voltage range and high power capability make it suitable for various applications.

Caratteristiche principali

• DC three-phase brushless Hall-free control board, compatible with motors without Hall sensors.
• Ampio volumetage input: 5-50V.
• High power output: 300W.
• Speed control supports three signal inputs: PWM signal, PLC 0-5V analog voltage, and 1-4.2V Hall handle input.
• Motor output for sampling overcurrent protection.

2. Impostazione

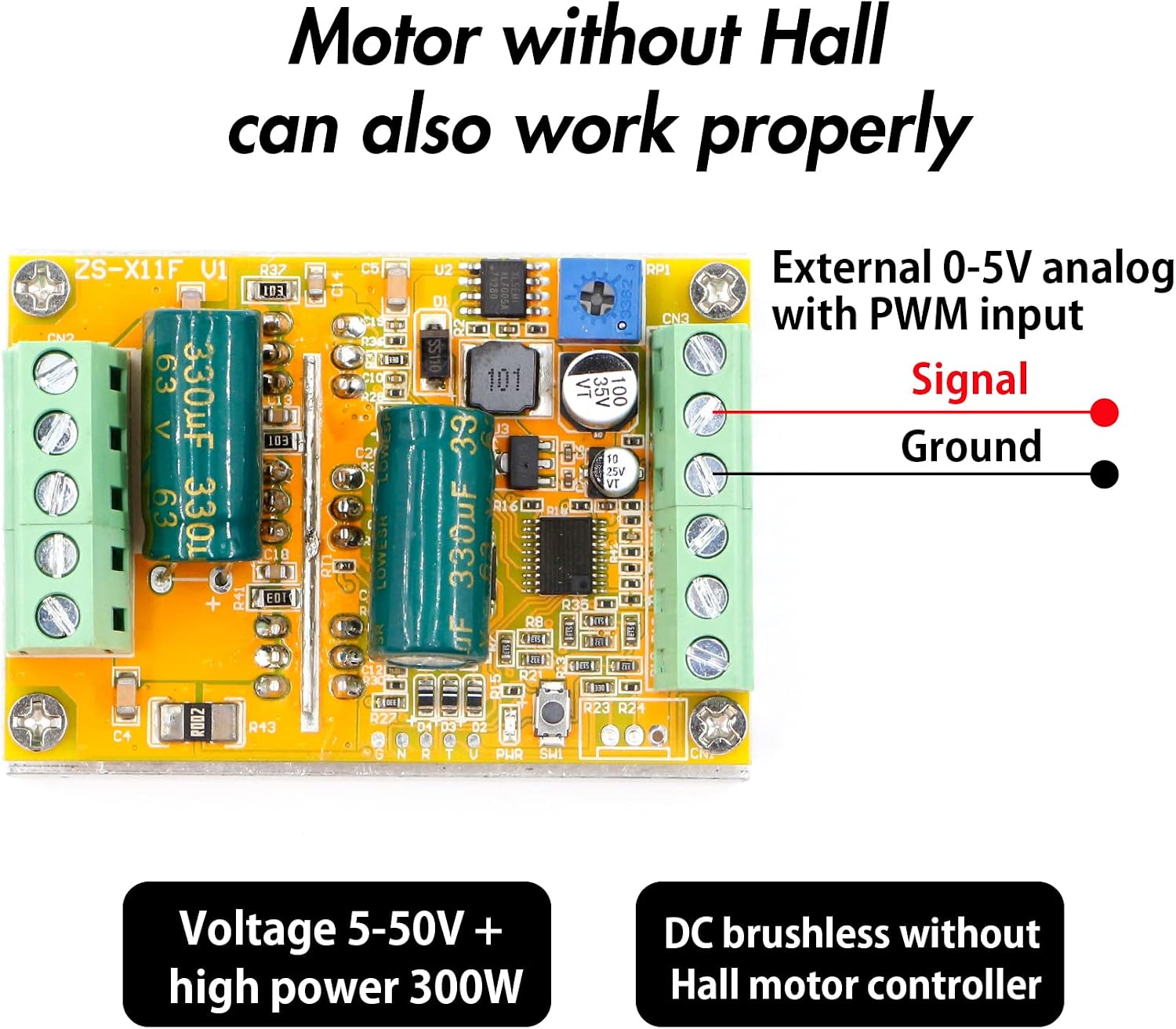

Schema elettrico

Carefully follow the wiring diagrams below to connect the motor speed controller. Ensure all connections are secure and correct to prevent damage.

Configurazione iniziale

The board features a speed regulating potentiometer. In PWM input or external potentiometer control modes, this potentiometer needs to be adjusted to the minimum setting (fully counter-clockwise) to allow external control.

3. Istruzioni per l'uso

Controllo della velocità

The controller supports multiple methods for speed regulation:

• On-board Potentiometer: Adjust the blue potentiometer on the board to control motor speed. Clockwise increases speed, counter-clockwise decreases speed.
• Ingresso segnale PWM: Connect an external PWM signal to the designated input. The board will respond to the duty cycle of the PWM signal.
• PLC 0-5V Analog Input: Use a PLC or similar device to provide a 0-5V analog voltage signal for speed control.
• 1-4.2V Hall Handle Input: For applications requiring a Hall handle, connect it to the specified input.

Ensure the correct input mode is selected via the switch button on the board (refer to Figure 5 for details).

Video dimostrativi del prodotto

The following videos demonstrate the functionality of the RioRand motor speed controller:

4. Manutenzione

To ensure the longevity and optimal performance of your RioRand motor speed controller, observe the following maintenance guidelines:

• Polarità dell'alimentatore: Always ensure the power supply positive and negative poles are connected correctly. Reversing polarity will cause permanent damage to the board.
• Evitare i cortocircuiti: Due to the high current capabilities, do not intentionally cause a short circuit during normal operation, as this will damage internal components.
• Wiring Insulation: As this is a bare board module, pay close attention to wire insulation when wiring to prevent accidental contact and short circuits. Avoid strong voltage contact with the board.
• Compatibilità motore: Do not connect motors with incompatible voltage, current, or power phase specifications to avoid damage.
• Pulizia: Keep the board clean and free from dust and debris to prevent overheating and malfunction.

5. Risoluzione Dei Problemi

If you encounter issues with your motor speed controller, consider the following:

• Motor Not Starting or Irregular Operation: Verify all wiring connections are secure and correctly matched according to the diagrams. Check that the input signal (PWM, analog, Hall handle) is within the specified range and the correct input mode is selected.
• Protezione da sovracorrente attivata: If the motor output experiences a short circuit or excessive load, the overcurrent protection may activate. Reduce the load or check for short circuits in the motor wiring.
• Nessuna alimentazione/Spia luminosa spenta: Controllare l'alimentazione voltage and ensure it is within the 5-50V range. Confirm that the power supply polarity is correct.

For any unclear wiring or usage concerns, or if problems persist, please contact customer support for assistance.

6. Specifiche

7. Garanzia e supporto

RioRand is committed to providing high-quality products. For any questions, technical support, or warranty inquiries regarding your motor speed controller, please contact the seller or manufacturer directly. It is recommended to retain your purchase receipt for warranty purposes.
