SONGMICS OSC007B01 Ergonomic Sit-Stand Stool Instruction Manual

Introduzione

Thank you for choosing the SONGMICS OSC007B01 Ergonomic Sit-Stand Stool. This dynamic stool is designed to promote a healthier and more active working posture, allowing for movement and flexibility throughout your day. Featuring a 360° swivel, adjustable height, and a comfortable padded seat, it is suitable for various work environments. Please read this manual carefully before assembly and use to ensure proper function and safety.

Informazioni sulla sicurezza

  • Do not use the stool on uneven or slippery surfaces to prevent falls.
  • Avoid lifting both feet off the ground simultaneously while seated, as this may affect stability.
  • Do not exceed the maximum tilt angle of the stool (approximately 17°) to maintain balance.
  • Do not sit on the very edge of the stool; always center your weight on the seat.
  • I bambini dovrebbero usare questo prodotto sotto la supervisione di un adulto.
  • Pregnant individuals should use the stool with caution.
  • Ensure the maximum static load capacity of 110 kg (242 lbs) is not exceeded.

Contenuto della confezione

Prima del montaggio, verificare che tutti i componenti siano presenti e integri:

  • 1 x Work Stool Seat
  • 1 x Footrest (circular)
  • 1 x 5-Star Base
  • 1 x cilindro di sollevamento a gas
  • 5 ruote

Installazione e assemblaggio

Assembly of the SONGMICS OSC007B01 stool is designed to be straightforward and quick. No complex tools are required.

  1. Fissare le rotelle alla base: Insert each of the 5 castors into the designated holes at the end of each arm of the 5-star base. Push firmly until they click into place.
  2. Inserire il pistone a gas: Place the gas lift cylinder into the central hole of the assembled 5-star base.
  3. Fissare il poggiapiedi: Slide the circular footrest over the gas lift cylinder. Ensure it is oriented correctly.
  4. Attacca il sedile: Carefully place the stool seat onto the top of the gas lift cylinder. Apply gentle downward pressure to secure it.

Your stool is now assembled and ready for use. For visual guidance, refer to the product images showing the assembled stool and its components.

Diagram showing the dimensions of the SONGMICS OSC007B01 ergonomic stool, including seat diameter, height range, footrest diameter, and base diameter.
Figura 1: Assembled stool with key dimensions. The seat diameter is 38.5 cm, height adjusts from 59.5 cm to 81 cm, footrest diameter is 45 cm, and base diameter is 51.5 cm. The seat also features 360-degree rotation.

Istruzioni per l'uso

The SONGMICS OSC007B01 stool offers several adjustable features to customize your seating experience:

Regolazione dell'altezza

To adjust the stool's height, locate the ring mechanism directly under the seat. While standing, press this ring upwards. The gas lift will allow the seat to move freely. Adjust to your desired height between 59.5 cm and 81 cm, then release the ring to lock the height in place.

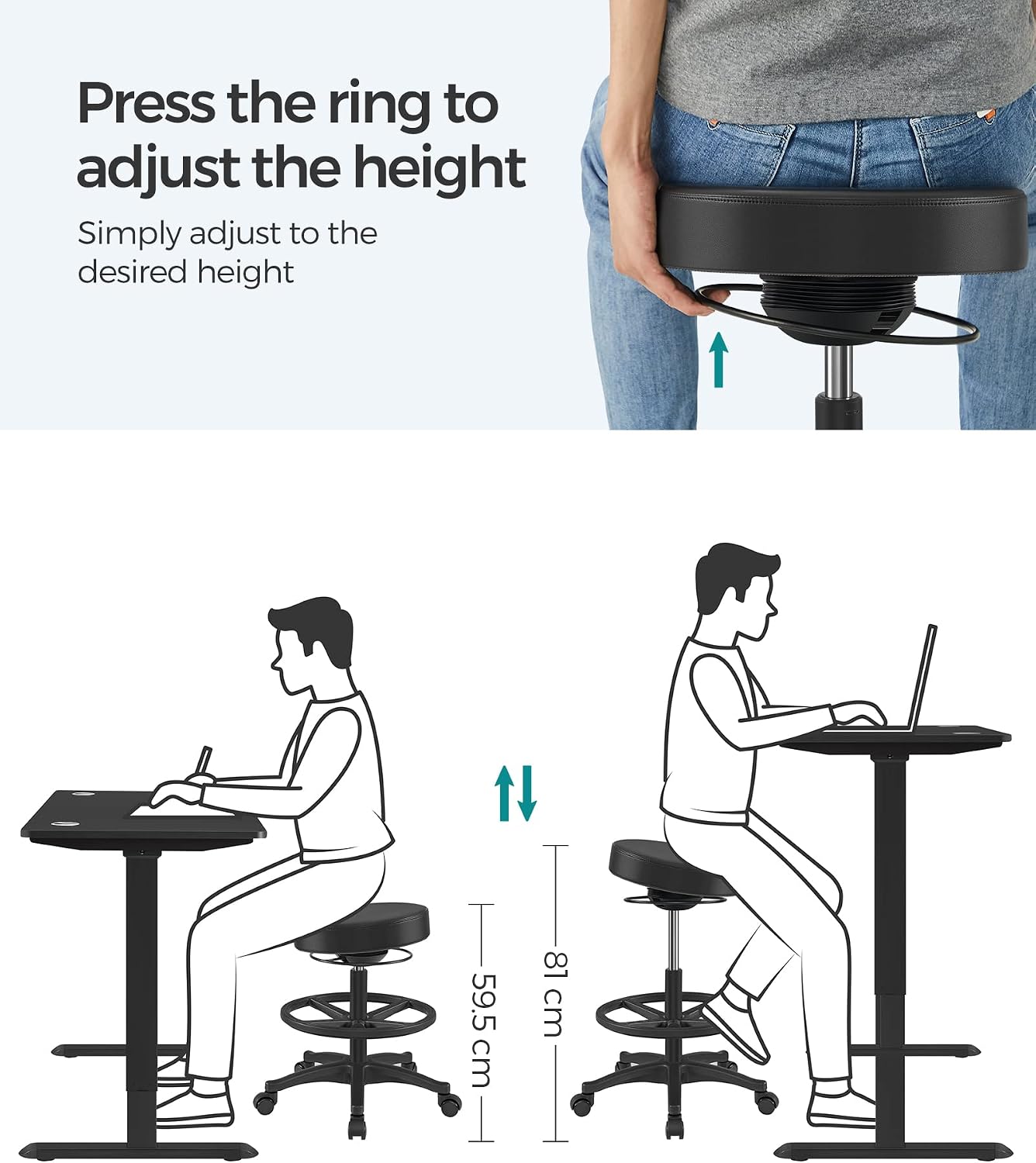

Image illustrating how to adjust the height of the stool by pressing a ring under the seat. It shows a person pressing the ring and the stool adjusting between 59.5 cm and 81 cm, suitable for both sitting and standing desk use.
Figura 2: Adjusting the stool height. Press the ring under the seat to raise or lower it to your preferred working height.

Seat Swivel and Tilt

The stool seat is designed to swivel 360 degrees, providing full rotational freedom. Additionally, the seat offers a dynamic tilt of up to 17 degrees, allowing you to gently rock back and forth or side to side. This movement helps to relieve fatigue and encourages an active sitting posture.

Diagram showing the 360-degree swivel and 17-degree tilt functionality of the stool seat. One image shows the seat rotating, and another shows it tilting to one side.
Figura 3: Seat swivel and tilt. The seat rotates 360 degrees and tilts up to 17 degrees for dynamic movement.

Regolazione del poggiapiedi

The circular footrest can be adjusted to provide optimal support for your feet. To adjust, locate the knob on the side of the footrest. Loosen the knob, slide the footrest up or down to your desired position, and then tighten the knob securely. This allows for a comfortable foot placement regardless of the seat height.

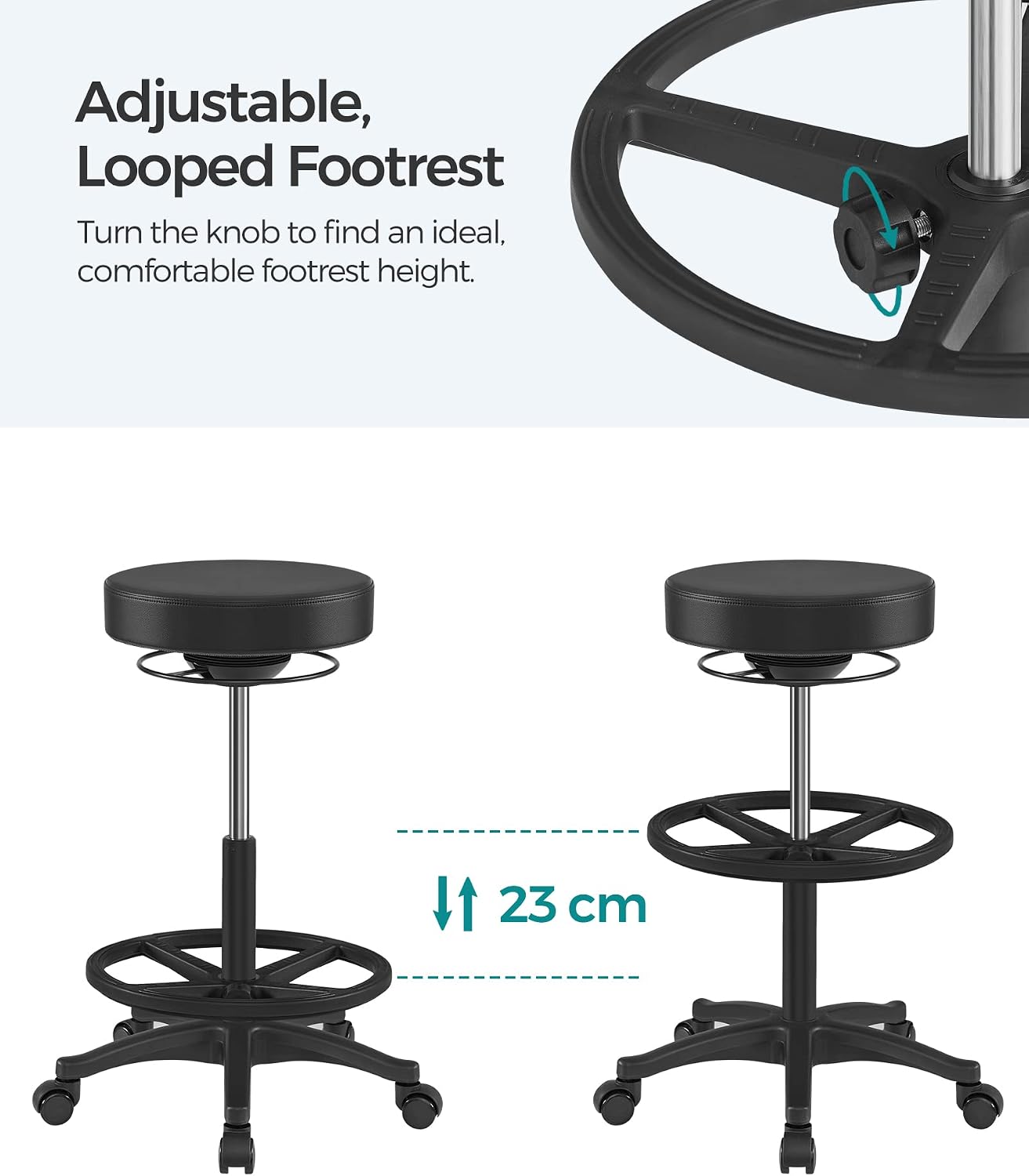

Image demonstrating the adjustable footrest. It shows a close-up of the knob used to adjust the footrest height and two stools with the footrest at different heights, indicating a 23 cm adjustment range.
Figura 4: Adjustable footrest. Turn the knob to set the footrest to a comfortable height, with an adjustment range of approximately 23 cm.

Pressure-Sensitive Safety Castors

The stool is equipped with pressure-sensitive castors designed for safety. When you sit down, the castors automatically lock, preventing unwanted movement and ensuring stability. When you rise from the stool, the castors unlock, allowing for easy mobility.

Close-up image of the pressure-sensitive safety castors. Icons show that castors lock when a person sits down and unlock when a person rises, preventing accidental movement.
Figura 5: Pressure-sensitive safety castors. These castors lock when weight is applied and unlock when weight is removed.

Manutenzione

To ensure the longevity and optimal performance of your SONGMICS OSC007B01 stool, follow these simple maintenance guidelines:

  • Pulizia: Wipe the stool's surfaces, including the PU seat and metal components, with a soft, damp panno. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi che potrebbero danneggiare la finitura.
  • Controlli regolari: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario per mantenere stabilità e sicurezza.
  • Evitare il sovraccarico: Non superare la capacità di peso massima di 110 kg (242 libbre).
  • Protect Flooring: While the PU castors are designed to be floor-friendly, consider using a floor mat, especially on delicate surfaces, for added protection.
Image showing the construction of the stool cushion with high-density foam and a PU cover, highlighting its softness and ease of cleaning with a damp stoffa.
Figura 6: Cushion construction and cleaning. The PU cover is easy to clean with a damp stoffa.

Risoluzione dei problemi

Se riscontri problemi con le feci, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

ProblemaPossibile causaSoluzione
Le feci risultano instabili o traballanti.Collegamenti allentati; pavimento irregolare.Check and tighten all assembly connections. Ensure the stool is on a flat, even surface.
Difficoltà nella regolazione dell'altezza.Gas lift mechanism stuck or damaged; obstruction.Ensure the height adjustment ring is fully engaged. Check for any obstructions around the gas lift. If the issue persists, contact customer support.
Castors not locking/unlocking.Insufficient weight applied; castor mechanism obstructed.Ensure sufficient weight is applied to the seat for castors to lock. Check castors for debris or damage.
Footrest slides down after adjustment.Footrest knob not tightened sufficiently.Ensure the footrest adjustment knob is tightened firmly after setting the desired height.

Specifiche

  • Numero modello: OSC007B01
  • Colore: Nero
  • Materiali: Polyester fabric, high-density foam, PU (Polyurethane) cover, Nylon, Steel
  • Dimensioni complessive (P x L x A): 51.5 cm x 51.5 cm x (59.5-81) cm
  • Diametro del sedile: 38.5 centimetri
  • Spessore del cuscino: 7.5 centimetri
  • Footrest Diameter: 45 centimetri
  • Diametro base: 51.5 centimetri
  • Altezza del sedile regolabile: 59.5 centimetri - 81 centimetri
  • Peso del prodotto: 7.8 kg (17.2 libbre)
  • Capacità di carico statico massima: 110 kg (242 libbre)
  • Assemblaggio richiesto: SÌ

Garanzia e supporto

SONGMICS is committed to providing high-quality products. For any questions, concerns, or issues regarding your OSC007B01 ergonomic sit-stand stool, please contact SONGMICS customer support. Please have your model number (OSC007B01) and purchase information ready when contacting support.

For detailed warranty information, please refer to the documentation provided at the time of purchase or visit the official SONGMICS websito.
