VOLTCRAFT LSG-4 Wire Tracker, Signal Tracer, Continuity Tester, Multimeter User Manual

1. Introduzione

This manual provides detailed instructions for the safe and effective use of the VOLTCRAFT LSG-4. The LSG-4 is a versatile digital multimeter that combines the functions of a wire tracker, signal tracer, continuity tester, and a standard multimeter. It is designed for detecting cables and wires, tracing their routes, and performing various electrical measurements.

2. Informazioni sulla sicurezza

Always read and understand all safety warnings and instructions before operating the device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Non utilizzare il dispositivo se appare danneggiato o non funziona correttamente.
• Ensure the device is turned off before connecting or disconnecting test leads.
• Always use the correct function and range for your measurements.
• Adhere to all local and national safety regulations.
• The device is designed for use in dry conditions. Avoid exposure to moisture.
• Tenere fuori dalla portata dei bambini.

3. Prodotto finitoview

The VOLTCRAFT LSG-4 is a robust and reliable tool for electrical professionals and DIY enthusiasts. It features a tone generator and a highly sensitive inductive receiver for precise cable tracing, even through walls up to 15 cm deep. Its integrated multimeter functions cover standard electrical measurements, making it a comprehensive solution for various tasks. The device is protected by a durable rubber casing, making it suitable for demanding work environments.

Image 1: The VOLTCRAFT LSG-4 device, showing both the main multimeter unit and the inductive probe.

4. componenti

• LSG-4 DMM Unit: The main digital multimeter unit with display, function dial, and input jacks.
• LSG-4 Probe: The inductive receiver unit for tracing signals.
• Puntali di prova: Red and black test leads for multimeter functions.
• Cavo RJ11: For connecting the tone generator to telephone lines or network cables.
• Clip a coccodrillo: For connecting the tone generator to bare wires.

Image 2: The LSG-4 multimeter unit with connected test leads and an RJ11 cable, along with crocodile clips.

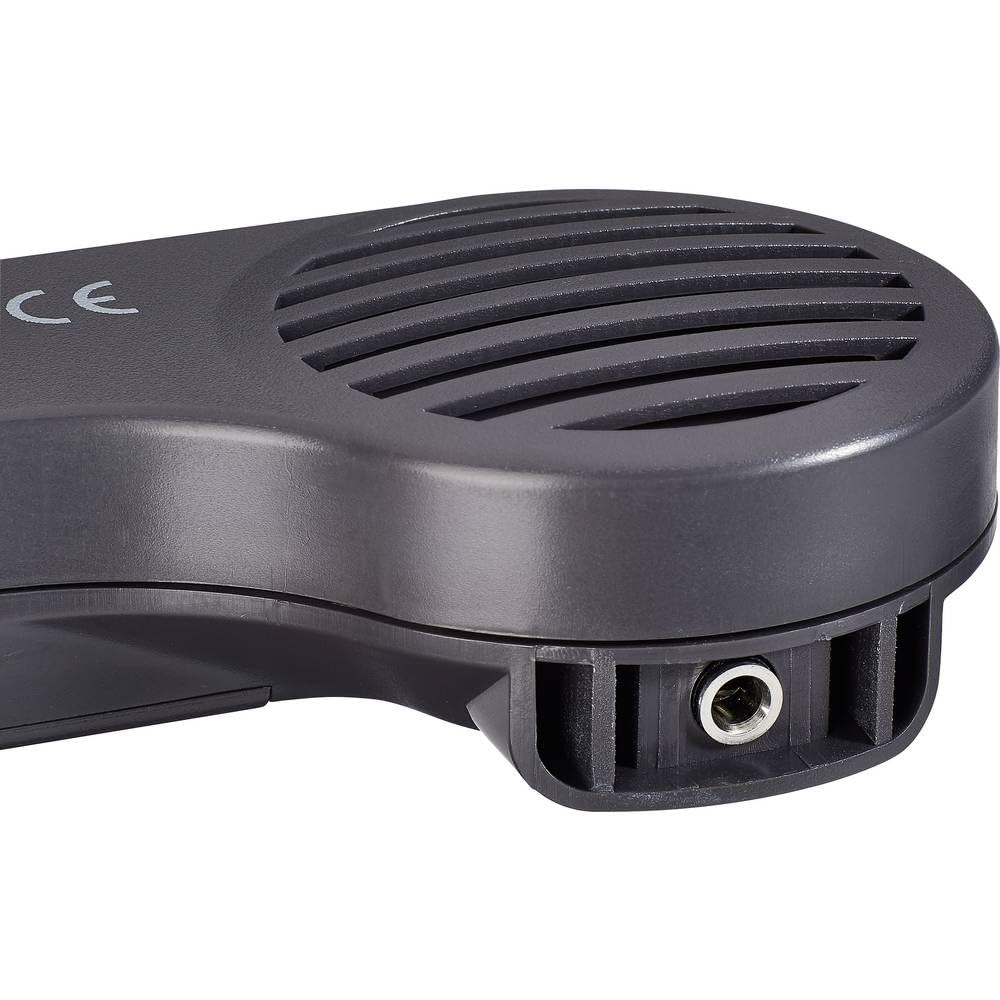

Immagine 3: Un primo piano view of the LSG-4 probe, highlighting its speaker and input jack.

5. Impostazione

5.1 Installazione della batteria

The LSG-4 is battery-powered. Open the battery compartment on the back of the DMM unit and the probe unit. Insert the required batteries, ensuring correct polarity. Close the compartment securely.

5.2 Collegamento dei puntali di prova (per le funzioni del multimetro)

For multimeter measurements, insert the red test lead into the VΩmA jack and the black test lead into the COM jack on the DMM unit.

5.3 Connecting Tone Generator (for Wire Tracking)

To use the wire tracking function, connect the tone generator output from the DMM unit to the cable you wish to trace:

• Connessione RJ11: Plug the RJ11 cable into the dedicated RJ11 port on the DMM unit and the other end into the network or telephone jack of the cable to be traced.
• Clip a coccodrillo: Attach the crocodile clips to the tone generator output on the DMM unit, then securely clip them to the bare ends of the wire to be traced.

6. Istruzioni per l'uso

6.1 Wire Tracking and Signal Tracing

1. Connect the tone generator to the cable as described in Section 5.3.
2. Turn on the DMM unit and select the 'Tone' function.
3. Turn on the LSG-4 probe.
4. Adjust the sensitivity of the probe using its control dial to optimize signal detection.
5. Move the tip of the probe along the suspected path of the cable. The probe will emit an audible tone when it detects the signal from the tone generator.
6. Follow the strongest signal to accurately trace the cable's route.

6.2 Funzioni del multimetro

The LSG-4 offers standard multimeter functions. To use these:

1. Collegare i puntali di prova come descritto nella Sezione 5.2.
2. Turn on the DMM unit and select the desired measurement function (e.g., V_AC, La_DC, Ω, Cont).
3. Touch the test probes to the circuit or component you wish to measure.
4. Leggere il valore della misurazione sul display.
5. Use the 'Hold' button to freeze the current reading on the display.
6. The 'MAX' button can be used to capture the maximum measured value.

7. Manutenzione

• Pulizia: Pulire il dispositivo con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi.
• Sostituzione della batteria: Replace batteries when the low battery indicator appears on the display to ensure accurate measurements.
• Magazzinaggio: Conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme. Rimuovere le batterie se si prevede di non utilizzarlo per periodi prolungati.
• Calibrazione: Per mantenere la precisione delle misurazioni, si consiglia di effettuare una calibrazione regolare da parte di personale qualificato.

8. Risoluzione Dei Problemi

• Nessun display/alimentazione: Controllare l'installazione delle batterie e assicurarsi che siano cariche.
• Letture imprecise: Ensure test leads are properly connected and the correct function/range is selected. Replace batteries if low.
• Weak/No Signal during Tracing: Ensure the tone generator is connected correctly and active. Adjust probe sensitivity. Check for excessive interference from other electrical sources.
• Continuity Test Fails: Assicurarsi che il circuito sia diseccitato. Controllare che i puntali non siano danneggiati.

9. Specifiche

10. Garanzia e supporto

VOLTCRAFT products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official VOLTCRAFT website. For technical support, troubleshooting assistance, or spare parts, please contact VOLTCRAFT customer service or your authorized dealer.

Nota: le specifiche sono soggette a modifiche senza preavviso. Fare sempre riferimento alla documentazione del prodotto più aggiornata per informazioni più accurate.
