Kastar Ni-MH 3.6V 1200mAh Replacement Battery Pack User Manual

1. Prodotto finitoview

The Kastar Ni-MH 3.6V 1200mAh replacement battery pack is designed to provide reliable power for a wide range of compatible cordless phones and devices. This high-capacity battery ensures extended operation and is built with safety and environmental protection in mind.

Caratteristiche principali:

• Alta capacità: 1200mAh for extended device usage.
• Tecnologia Ni-MH: Rechargeable and environmentally friendly, free from Hg/Cd/Pb.
• Garanzia di sicurezza: Features mix-protection additive for enhanced material stability and extended lifespan up to 1200 cycles.
• Bassa autoscarica: Progettato per mantenere la carica più a lungo quando non in uso.
• Guscio in acciaio DBCK: Provides protection against explosion due to overpressure.

Modelli compatibili:

This battery is compatible with numerous models and part numbers, including but not limited to:

• RADIO SHACK / Tandy: 23271, 23295, 26305, 43682, 43682A, 438024, 438026, 960-1377, 23-271, 23-295, 43-682, 43-682A, 43-8024, 43-8026, 960-1465, 23-810, 43-1101, 9601377, 438024, 9601465, 23810, 431101, CS90012, CS-90012, CS90166, CS-90166, ET682, ET-682
• AUDIOVOX: BT911, DST961, DT911, DT921, DT921C, DT931, DT931C, BT-911, DST-961, DT-911, DT-921, DT-921C, DT-931, DT-931C
• BELL SOUTH: BS2931, TL6502, TL-6502
• GE: TL96502, TL86502, TL-86502, TL26502, TL-26502, TL-96502
• AFFILATO: CL-905, CL-960id, CL-980id, CL905, CL960id, CL980id
• SPRINT: 1910C, SPT-920, SSPP-937
• TELE-PHONE: TEL-620, TEL-813, TEL-909, TEL-1215
• AMERITECH: 804134000, AM1933, VT1910C, VT-1910C, VT1930C, VT-1930C, VT2910C, VT-2910C, VT9000, VT-9000
• Battery Biz: B-725, B725
• Dantona: BATT23, BATT999, BATT-23, BATT-999
• Empire: CPB-465, CPB465, CPB-483, CPB483, GP60AAM
• Energizzante: P-7360, P7360
• Hi Capacity: B-725, B725
• Interstate: ATEL0890, TEL0890, ATEL0745, TEL0745, P7310, P7360
• Lenmar: CB-0323, CB0323
• Recoton: T122, T-122, T117, T-117
• SONY: BP-T23, BPT23, BP-T93, BY00H8

2. Configurazione e installazione

Follow these steps to properly install your new Kastar replacement battery pack into your compatible device.

Fasi di installazione:

1. Dispositivo di spegnimento: Ensure your cordless phone or device is powered off and disconnected from any charging base or power source.
2. Individuare il vano batteria: Identify and open the battery compartment, typically located on the back or bottom of the device. Refer to your device's original manual if needed.
3. Rimuovere la vecchia batteria: Carefully disconnect and remove the old battery pack. Note the orientation of the connector.
4. Inserire una nuova batteria: Align the connector of the Kastar replacement battery with the port inside the compartment. Gently push to ensure a secure connection. Place the battery pack into the compartment.
5. Chiudi scomparto: Chiudere saldamente il coperchio del vano batterie.
6. Carica iniziale: Place the device on its charging base or connect it to its power adapter. Allow the battery to charge fully for at least 12-16 hours before its first use, even if the device indicates a full charge sooner. This conditions the battery for optimal performance.

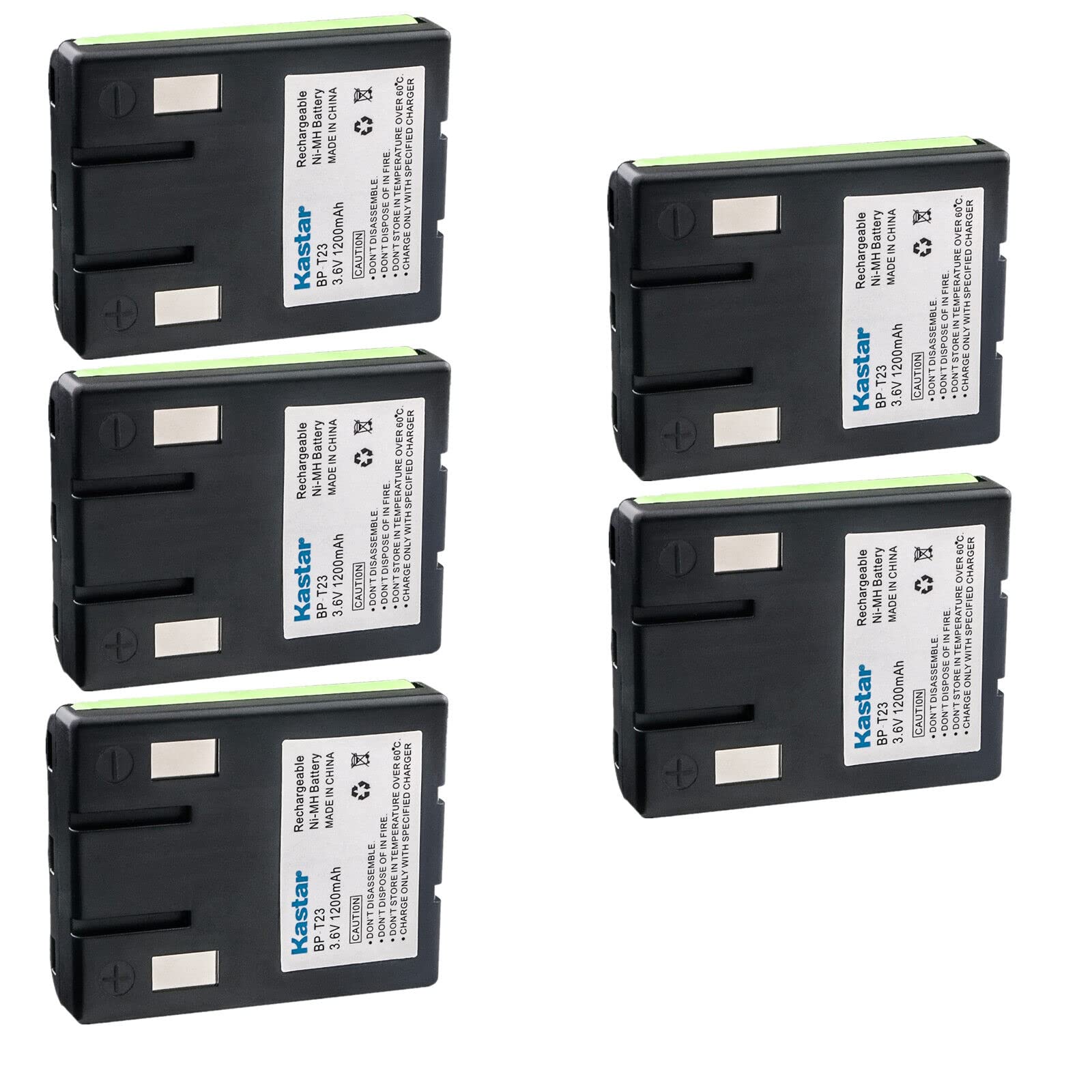

Image: The Kastar Ni-MH 3.6V 1200mAh replacement battery pack, showing its compact design and connector.

3. Istruzioni per l'uso

Once installed and fully charged, your Kastar battery pack is ready for use in your compatible device.

Uso generale:

• Ricarica regolare: For optimal battery life, return your cordless phone or device to its charging base when not in use.
• Evitare scariche profonde: While Ni-MH batteries are less prone to memory effect than older Ni-Cd batteries, it is still beneficial to avoid completely draining the battery before recharging.
• Indicatori di carica: Observe your device's charging indicators to confirm the battery is receiving power.

4. Manutenzione e cura

Proper maintenance extends the life and performance of your Kastar battery pack.

Linee guida per la ricarica:

• Always use the original charger or a compatible charger designed for your device.
• Avoid overcharging for prolonged periods (e.g., leaving on charger for weeks without use) if your device's charger does not have smart charging features.
• Charge the battery in a well-ventilated area, away from direct sunlight or extreme temperatures.

Magazzinaggio:

• Se si conserva la batteria per un periodo prolungato, caricarla fino a circa il 50% della sua capacità.
• Store in a cool, dry place, away from direct heat and moisture.
• Durante lo stoccaggio, ricaricare la batteria ogni 3-6 mesi per evitare che si scarichi completamente.

Pulizia:

• Keep battery contacts clean. Use a dry, soft cloth to wipe away any dust or debris.
• Do not use liquid cleaners or solvents on the battery.

5. Risoluzione Dei Problemi

If you encounter issues with your Kastar battery pack, consider the following common solutions:

Problemi comuni e soluzioni:

• Il dispositivo non si accende:
  • Assicurarsi che la batteria sia installata correttamente e che il connettore sia ben fissato.
  • Verify the battery compartment cover is closed properly.
  • Confirm the battery has been charged for the recommended initial period.
• Batteria non in carica:
  • Check that the device is properly seated on its charging base or that the power adapter is securely connected.
  • Inspect the charging contacts on both the device and the base for dirt or corrosion. Clean if necessary.
  • Assicurarsi che la presa di corrente sia funzionante.
• Shortened Operating Time:
  • La batteria potrebbe non essere completamente carica. Attendere un ciclo di carica completo.
  • Battery life naturally diminishes over time and with usage cycles. If the battery is old, replacement may be necessary.
  • Ensure the device is not operating in an environment with extreme temperatures, which can affect battery performance.

Se questi passaggi non risolvono il problema, consultare la sezione Garanzia e supporto per ulteriore assistenza.

6. Specifiche

7. Informazioni sulla sicurezza

Please read and follow these safety precautions to prevent injury or damage to your battery and device.

• Non smontare, schiacciare, forare o cortocircuitare la batteria.
• Do not expose the battery to extreme heat (above 60°C / 140°F) or direct sunlight.
• Non smaltire le batterie nel fuoco, poiché potrebbero esplodere.
• Keep batteries away from water or other liquids.
• Tenere le batterie fuori dalla portata dei bambini e degli animali domestici.
• In caso di perdite dalla batteria, evitare il contatto con la pelle e gli occhi. In caso di contatto, sciacquare immediatamente con abbondante acqua e consultare un medico.
• Only use the battery with compatible devices and chargers as specified.
• Dispose of used batteries responsibly according to local regulations. Many retailers and recycling centers offer battery recycling programs.

8. Garanzia e supporto

Kastar stands behind the quality of its products. For warranty information or technical support, please contact Kastar customer service.

You can find more information and contact details by visiting the official Kastar store or support page:

Visit the Kastar Store on Amazon

When contacting support, please have your product model number (MH-5B-BPT23-V) and purchase information readily available.
