1. Introduzione
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your TOTAL 5-Piece Air Tool Kit, model TATK051. Please read and understand all instructions before using the tools. This kit is designed for various pneumatic applications, including painting, cleaning, and tire inflation.
2. Istruzioni di sicurezza
Always follow basic safety precautions when using air tools to reduce the risk of personal injury or damage to the equipment.
- Indossare protezioni per gli occhi: Always wear ANSI-approved safety goggles or a face shield when operating air tools.
- Indossare protezioni acustiche: Prolonged exposure to noise from air tools can cause hearing damage.
- Indossare protezioni respiratorie: When spraying paint or cleaning with solvents, use an appropriate respirator.
- Mantenere pulita l'area di lavoro: Keep the work area well-lit and free of clutter.
- Pezzo sicuro: Fissare sempre il pezzo in lavorazione per evitare che si muova durante il funzionamento.
- Check Air Hoses: Inspect air hoses for cuts, bulges, or worn connections before each use.
- Utilizzare la pressione dell'aria corretta: Do not exceed the maximum recommended air pressure for any tool.
- Scollegare l'alimentazione dell'aria: Scollegare sempre l'alimentazione dell'aria prima di sostituire gli accessori, eseguire la manutenzione o quando l'utensile non è in uso.
- Evitare l'avviamento accidentale: Assicurarsi che il grilletto non sia premuto quando si collega l'alimentazione dell'aria.
- Tenere lontani i bambini: Do not allow children or untrained persons to operate air tools.
3. Contenuto della confezione
The TOTAL 5-Piece Air Tool Kit TATK051 includes the following components:
- 1 x Air Spray Gun (1000cc capacity)
- 1 x Air Washing Gun (750cc capacity)
- 1 x Air Blow Gun
- 1 x Tire Inflator with Pressure Gauge
- 1 x Recoil Air Hose
Immagine 3.1: Passoview of the TOTAL 5-Piece Air Tool Kit components.
4. Impostazione
Before using any tool from the kit, ensure your air compressor is properly set up and capable of providing the required air pressure and volume.
- Collegare il tubo dell'aria: Attach one end of the recoil air hose to your air compressor's quick-connect coupler. Ensure a secure connection.
- Strumento di connessione: Attach the desired air tool to the other end of the recoil air hose using its quick-connect fitting.
- Imposta la pressione dell'aria: Adjust your air compressor's regulator to the recommended operating pressure for the specific tool you are using. Refer to the specifications section for details.
- Controllo iniziale: Before operation, perform a quick check for any air leaks at connections.
5. Istruzioni per l'uso
5.1. Air Spray Gun (1000cc)
The air spray gun is designed for applying paint, lacquer, and other coatings.
- Preparare il materiale: Ensure the coating material is properly thinned and mixed according to the manufacturer's instructions.
- Riempi la tazza: Pour the prepared material into the 1000cc aluminum cup. Securely attach the cup to the spray gun.
- Regola impostazioni: Adjust the fluid nozzle (140-180mm range) and air cap for the desired spray pattern and material flow. Test on a scrap piece of material.
- Tecnica di spruzzatura: Hold the gun perpendicular to the surface, maintaining a consistent distance. Use smooth, overlapping passes. Release the trigger at the end of each pass.
- Pulire dopo l'uso: Thoroughly clean the spray gun immediately after each use to prevent material from drying inside.

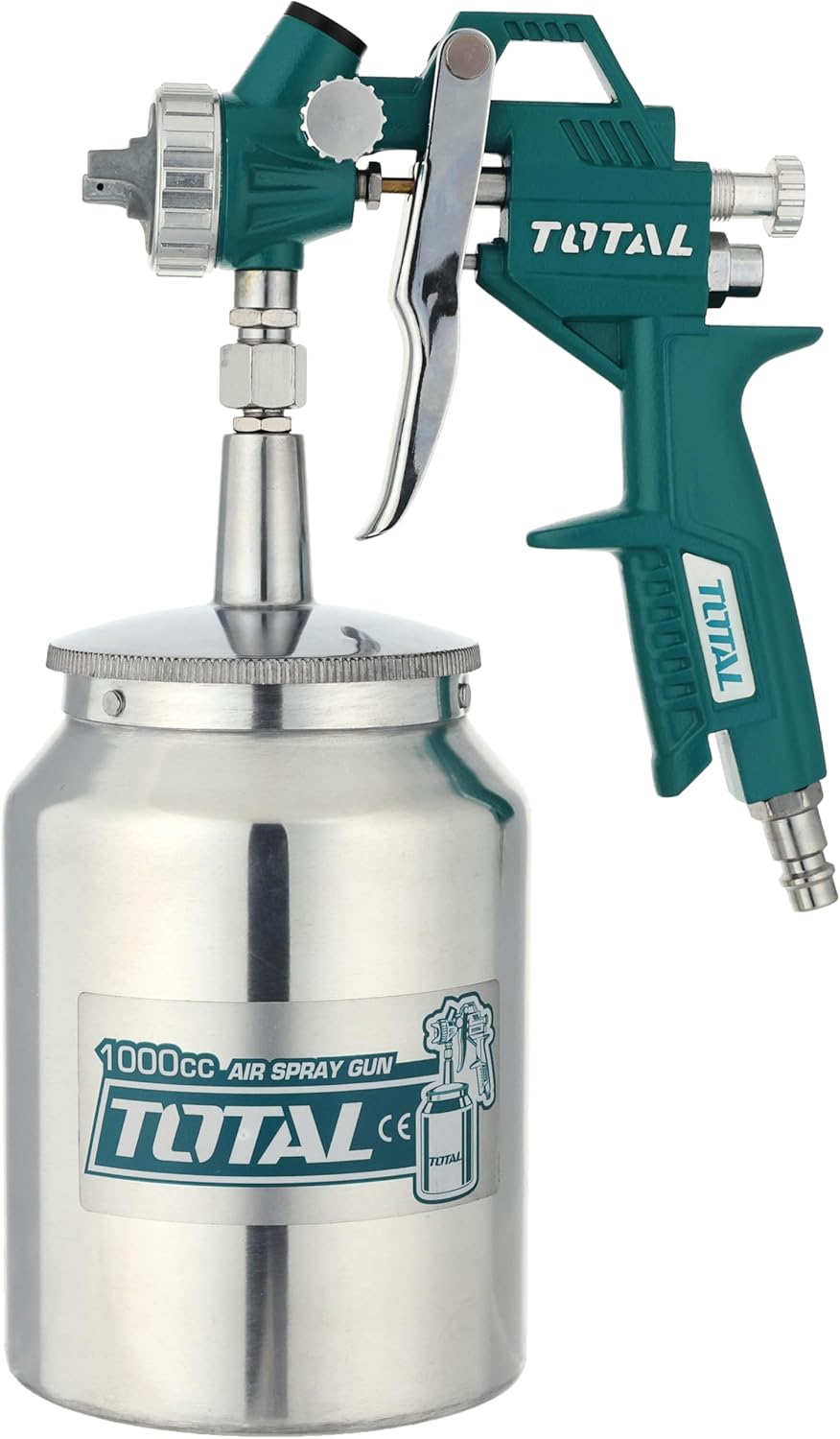

Image 5.1.1: The TOTAL 1000cc Air Spray Gun.
Image 5.1.2: Dimensions of the TOTAL Air Spray Gun.
5.2. Air Washing Gun (750cc)
The air washing gun is suitable for cleaning engines, machinery, and other surfaces with cleaning solutions.
- Riempi la tazza: Fill the 750cc cup with the appropriate cleaning solution.
- Connetti aria: Connect the washing gun to the air hose.
- Operare: Aim the nozzle at the surface to be cleaned and press the trigger. Adjust the nozzle for desired spray pattern.
- Pulire dopo l'uso: Rinse the cup and gun with water after use to prevent clogging.
Image 5.2.1: The TOTAL 750cc Air Washing Gun.
5.3. Air Blow Gun
The air blow gun is used for clearing dust, debris, and drying surfaces.
- Connetti aria: Attach the blow gun to the air hose.
- Operare: Point the nozzle away from yourself and others, then press the trigger to release compressed air.
- Sicurezza: Never point the blow gun at people or animals. Always wear eye protection.
5.4. Tire Inflator with Pressure Gauge
This tool allows for accurate inflation of tires and other inflatable items.
- Connetti aria: Attach the tire inflator to the air hose.
- Collegare alla valvola: Securely attach the inflator chuck to the tire valve stem.
- Leggi la pressione: The integrated gauge will display the current tire pressure.
- Gonfiare: Squeeze the trigger to add air. Release the trigger to stop inflation and re-check the pressure.
- Sgonfiare: If over-inflated, use the bleed button (if present) to release air until the desired pressure is reached.
5.5. Recoil Air Hose
The recoil air hose provides flexible air supply to your tools and retracts for compact storage.
- Connessione: Use quick-connect fittings to attach to the compressor and air tools.
- Magazzinaggio: Allow the hose to recoil naturally after use. Avoid kinks or sharp bends during storage.
6. Manutenzione
Regular maintenance ensures the longevity and optimal performance of your air tools.
- Lubrificazione: Apply a few drops of pneumatic tool oil into the air inlet of each tool before and after each use, or at least once daily if used frequently.
- Pulizia: Keep all tools clean and free of dirt and debris. For spray and washing guns, flush with appropriate cleaning solutions or water after each use.
- Ispezionare le connessioni: Regularly check all quick-connect fittings and hose connections for wear or damage. Replace as needed.
- Magazzinaggio: Store tools in a clean, dry environment away from extreme temperatures and corrosive materials.
7. Risoluzione Dei Problemi
This section addresses common issues you might encounter with your air tool kit.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Low air pressure/Poor performance | Insufficient compressor output, air leaks, clogged air inlet. | Check compressor settings, inspect hose and connections for leaks, clean air inlet. |
| Spray gun sputtering/uneven spray | Clogged nozzle/air cap, improper material thinning, low air pressure. | Clean nozzle and air cap, adjust material viscosity, increase air pressure. |
| Perdite d'aria alle connessioni | Loose fittings, worn O-rings, damaged hose. | Tighten fittings, replace worn O-rings, replace damaged hose. |
| Tire inflator not reading pressure | Improper connection to valve stem, faulty gauge. | Ensure secure connection to valve stem, test with another gauge if possible. |
8. Specifiche
Key technical specifications for the TOTAL 5-Piece Air Tool Kit TATK051:
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | TATK051 |
| Marca | TOTALE |
| Tipo | Accessory Sets |
| Peso dell'articolo | 2.24 chilogrammi |
| Dimensioni del prodotto | Dimensioni: 10 x 20 x 37 cm |
| Materiale | Alluminio |
| Colore | Multicolore |
| Batterie richieste | NO |
| Air Spray Gun Capacity | 1000cc |
| Air Washing Gun Capacity | 750cc |
| Pressione nominale | 150 bar |
| Pressione massima | 320 bar |
9. Informazioni sulla garanzia
This TOTAL product is covered by the manufacturer's standard warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the warranty card included with your purchase or contact TOTAL customer service directly. Keep your proof of purchase for warranty validation.
10. Supporto
If you have any questions, require technical assistance, or need to order replacement parts, please contact TOTAL customer support. Contact information can typically be found on the product packaging or the official TOTAL websito.
