ABCCANOPY 10x20 Outdoor Patio Gazebo with Mosquito Netting Instruction Manual

Introduzione

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your ABCCANOPY 10x20 Outdoor Patio Gazebo with Mosquito Netting. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

The ABCCANOPY 10x20 Outdoor Patio Gazebo is designed to provide shade and protection from insects, featuring a sturdy engineered steel frame and Rip-Lock canopy material. It is suitable for various outdoor settings such as lawns, gardens, backyards, and decks.

Informazioni sulla sicurezza

Importanti precauzioni di sicurezza:

• Always ensure the gazebo is securely anchored to the ground to prevent tipping, especially in windy conditions.
• Keep children and pets away from the gazebo when using the hooks on the frame top for decorative purposes to avoid entanglement or injury.
• Non utilizzare fiamme libere o apparecchi di riscaldamento all'interno del gazebo.
• In case of strong winds, heavy rain, or snow, it is recommended to remove the canopy and netting to prevent damage to the structure.
• Ispezionare regolarmente tutti i componenti per verificare la presenza di usura, danni o collegamenti allentati. Sostituire immediatamente le parti danneggiate.

Istruzioni di installazione

Assembly of the ABCCANOPY 10x20 Outdoor Patio Gazebo requires at least two adults. Follow these general steps for proper installation. Refer to the included assembly diagram for specific part identification and connection points.

1. Disimballare i componenti: Carefully remove all parts from the packaging and verify against the parts list. Lay them out on a clean, flat surface.
2. Assemblare il telaio: Connect the main support beams and corner posts according to the assembly diagram. Ensure all connections are secure. The frame is constructed from high-grade engineered steel for durability.
3. Fissare la tettoia: Drape the Rip-Lock canopy material over the assembled frame. Ensure the double-vented roof is correctly positioned to allow for air circulation and reduce wind stress.
4. Install Mosquito Netting: Attach the removable mosquito netting walls to the frame. The netting features smooth zippers for easy opening and closing.
5. Fissare il gazebo: Anchor the gazebo securely to the ground using appropriate stakes or weights to prevent movement or tipping.

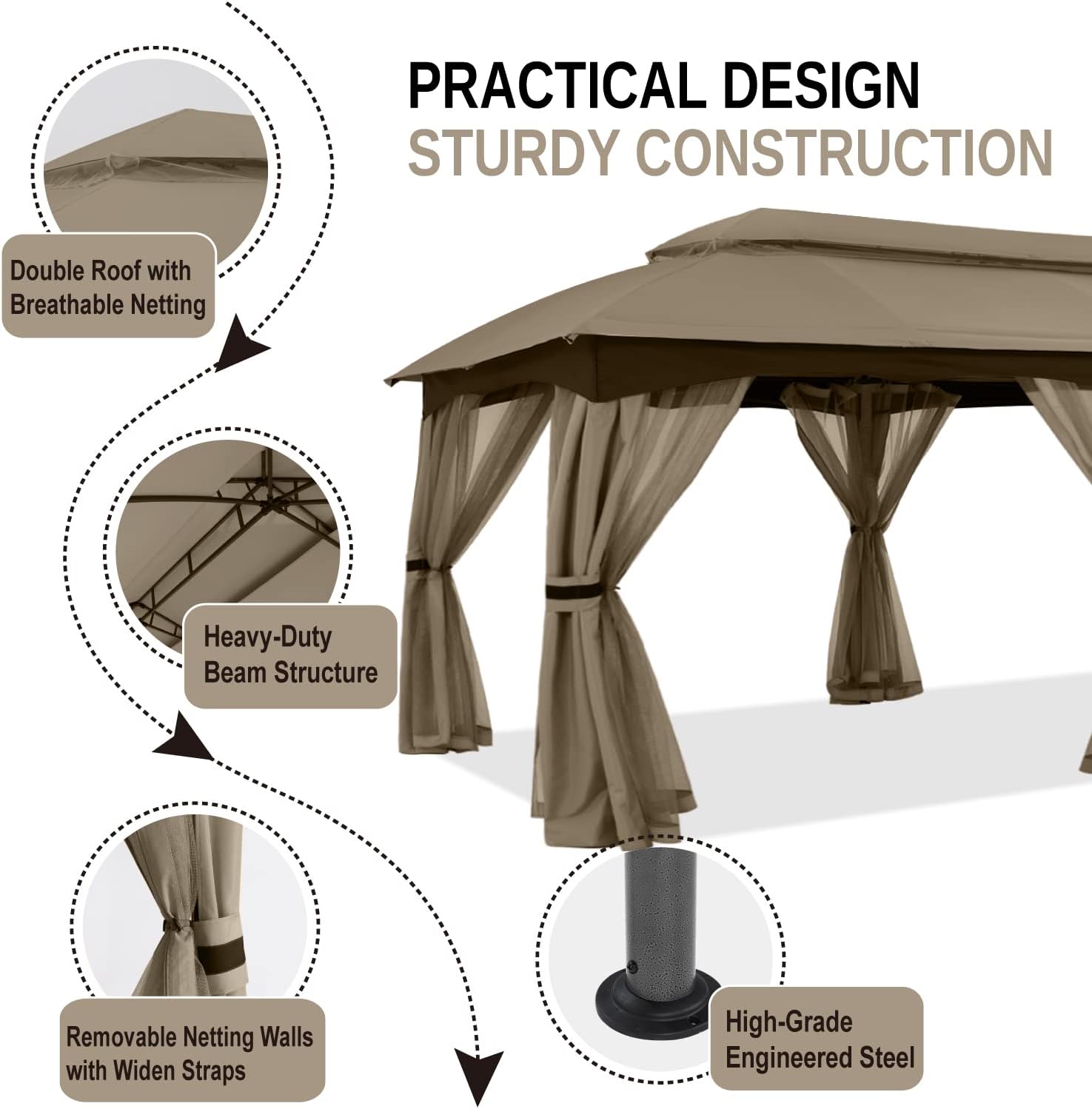

Immagine: dettagliata view of the gazebo's practical design, highlighting the double roof, beam structure, netting straps, and steel frame.

Image: Product dimension diagram illustrating the overall size of the gazebo.

Istruzioni per l'uso

• Zanzariere: The gazebo includes removable netting walls with smooth zippers. Zip them closed to keep insects out, or use the integrated straps to tie them back to the posts for an open feel.
• Circolazione dell'aria: The double-vented roof design enhances air circulation, providing a cooler environment and reducing wind stress on the canopy.
• Canopy Hook: A central hook is provided inside the canopy for hanging lightweight items such as lamps or decorative elements. Do not exceed the weight limit specified in the assembly instructions.

Image: Visual representation of the canopy's ventilation, water resistance, and UV protection features.

Manutenzione

• Pulizia della tettoia e della rete: Clean the Rip-Lock fabric canopy and mosquito netting with mild soap and water. Rinse thoroughly and allow to air dry completely before storage or re-installation. Do not use harsh chemicals or abrasive cleaners.
• Ispezione del telaio: Periodically inspect the engineered steel frame for any signs of rust, bending, or loose connections. Tighten any loose bolts or screws. Apply rust-preventative paint to any scratched areas to prolong the life of the frame.
• Rimessaggio invernale: In regions with harsh winter conditions (snow, ice, extreme cold), it is highly recommended to disassemble the canopy and netting and store them in a dry, protected area to prevent damage and extend product lifespan.
• Ancoraggio: Regularly check the security of ground anchors, especially after strong winds or heavy rain.

Risoluzione dei problemi

• Accumulo d'acqua sulla chioma: Ensure the canopy is tautly installed and the double roof is properly aligned to allow water runoff. In heavy rain, water can sometimes accumulate if the fabric sags. Consider adding additional support if persistent pooling occurs.
• Frame Instability/Bending: Verify all frame connections are securely fastened. Ensure the gazebo is properly anchored to the ground. This gazebo is designed for general outdoor use; extreme weather conditions (e.g., strong winds, heavy snow loads) can cause structural damage. Disassemble or reinforce the structure during such conditions.
• Fading Fabric: Prolonged exposure to direct sunlight can cause fabric colors to fade over time. This is a natural process for outdoor textiles. Regular cleaning and proper storage when not in use can help mitigate this.
• Mosquito Netting Issues: If zippers are stiff, apply a silicone-based lubricant. If netting is torn, repair or replace as needed to maintain insect protection.

Specifiche

Garanzia e supporto

For any quality or damage issues, please contact ABCCANOPY customer service directly. Refer to your purchase documentation for specific warranty terms and contact information. It is recommended to retain your proof of purchase for warranty claims.

Spesso è possibile trovare i dettagli di contatto dell'assistenza sul sito web del produttore websito o tramite il rivenditore presso il quale è stato acquistato il prodotto.
