Manuale di istruzioni per l'orologio al quarzo da uomo OLEVS

1. Introduzione

Thank you for choosing the OLEVS Men's Quartz Watch. This timepiece combines classic design with modern functionality, featuring a precise quartz movement, durable stainless steel construction, and practical features for daily wear. Please read this manual carefully to understand the proper use and care of your watch.

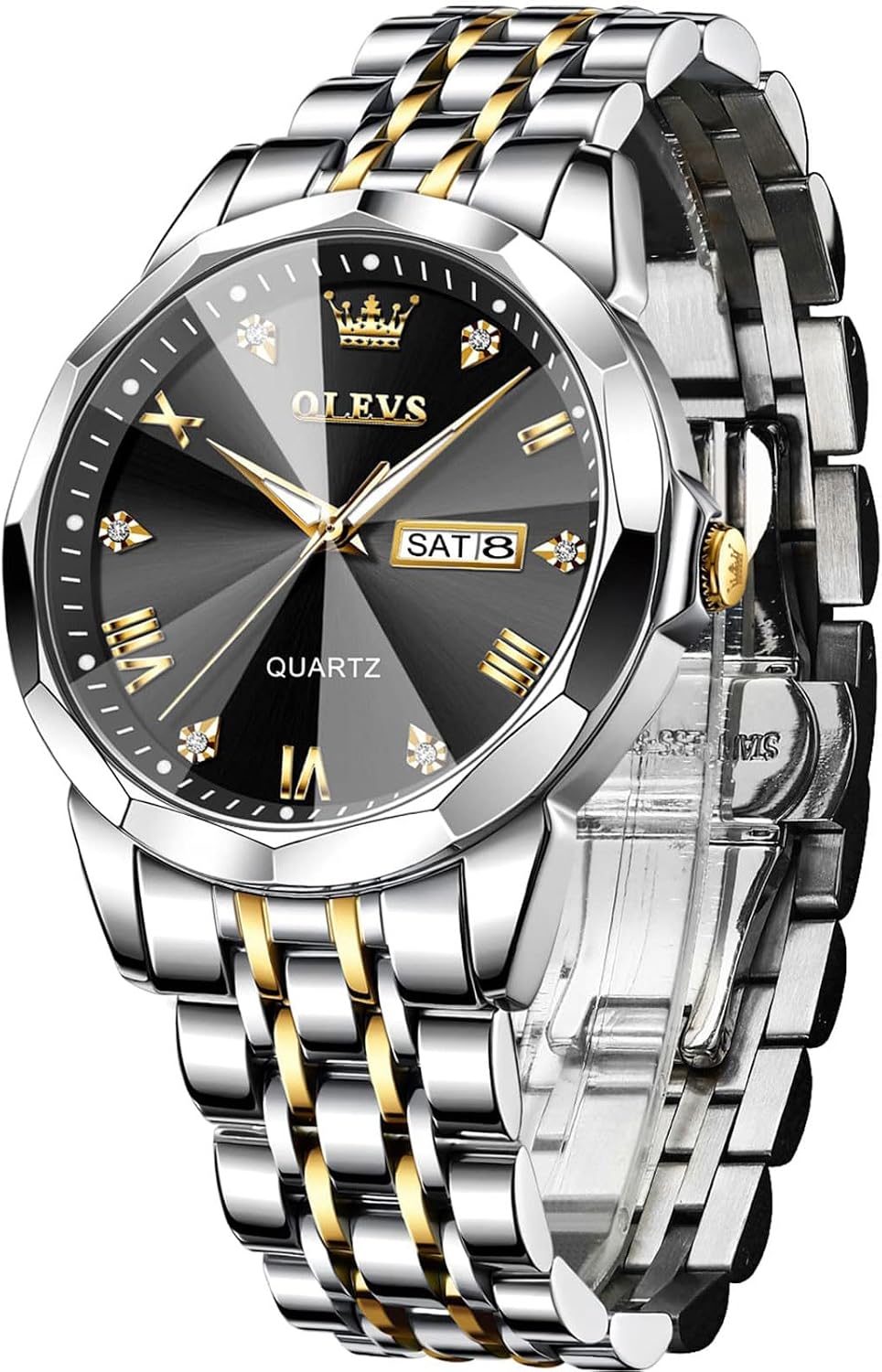

Figure 1: OLEVS Men's Quartz Watch (Model 9931-Gold black)

Key features of your OLEVS watch include:

• Fashion Classic Design: Rhombus three-dimensional dial with subdials, simple analog display, and elegant design suitable for various occasions.
• Movimento al quarzo di precisione: Garantisce un cronometraggio accurato.
• Resistenza all'acqua 30M: Withstands daily splashes or short immersion in water. Not suitable for bathing, swimming, diving, or hot water contact.
• Funzione luminosa: Hands and markers glow in the dark after exposure to strong light, providing visibility at night.
• Costruzione durevole: Features a high hardness coated glass mirror and a stainless steel strap.

2. Impostazione

2.1 Regolazione del cinturino dell'orologio

Your OLEVS watch comes with a stainless steel band that can be adjusted to fit your wrist. A band adjustment tool is typically included. Follow these steps to remove or add links:

1. Locate the small circular holes on the side of the watch band links. These indicate the removable pins.
2. Place the band in the active slot of the strap removal tool.
3. Gently push the slot into the appropriate position, aligning the tool's pin with the watch band pin.
4. Ruotare il perno superiore dell'impugnatura dell'utensile di rimozione per allinearlo con il rivetto sulla striscia di acciaio.
5. Simply rotate the handle manually to push out the rivet. Remove the desired number of links from each side of the clasp for a balanced fit.
6. To reassemble, insert the pins back into the links in the opposite direction, ensuring they are fully seated.

Figure 2: Watch Band Adjustment Steps

3. Istruzioni per l'uso

3.1 Impostazione di data e ora

To set the time and date on your OLEVS watch:

1. Pull the crown (the knob on the side of the watch) out to the first click position to adjust the date. Turn the crown clockwise or counter-clockwise until the correct date is displayed.
2. Pull the crown out to the second click position to adjust the time. Turn the crown to move the hour and minute hands until the correct time is set.
3. Once the time and date are set, push the crown back in to its original position to start the watch movement.

3.2 Funzione luminosa

The hands and markers of your OLEVS watch are coated with a luminous material. To activate the glow-in-the-dark feature, expose the watch to a strong light source (e.g., sunlight, bright lamp) for 30-40 seconds. The watch will then emit a glow in low-light conditions, providing easy readability.

Figura 3: Funzione luminosa in condizioni di scarsa illuminazione

4. Manutenzione

4.1 Resistenza all'acqua

Your OLEVS watch is rated for 30 meters (3 ATM) of water resistance. This means it is suitable for daily splashes, rain, or short immersion in water. However, it is non progettato per:

• Bathing or showering (especially with hot water, as steam can penetrate seals).
• Swimming or diving.
• Operating the crown or pushers while the watch is wet or submerged.

Always ensure the crown is fully pushed in before any contact with water. If water condensation appears inside the watch, have it inspected by a professional immediately to prevent damage.

Figure 4: Water Resistance and Other Features

4.2 Pulizia

Per mantenere l'aspetto del tuo orologio, puliscilo regolarmente con un panno morbido e asciutto. Per il cinturino in acciaio inossidabile, un panno leggermenteamp È possibile utilizzare un panno e asciugare immediatamente. Evitare l'uso di prodotti chimici aggressivi o materiali abrasivi, poiché potrebbero danneggiare la finitura dell'orologio.

5. Risoluzione Dei Problemi

Se riscontri problemi con il tuo orologio OLEVS, consulta i seguenti problemi comuni e le relative soluzioni:

6. Specifiche

Detailed specifications for your OLEVS Men's Quartz Watch:

Nota: tutte le misure sono misurate manualmente; potrebbero esserci errori ragionevoli. Fare riferimento al prodotto reale.

Figura 5: Parametri del prodotto

7. Garanzia e supporto

For any questions or support regarding your OLEVS watch, please contact the seller or refer to the product listing for warranty information. OLEVS is committed to providing quality products and customer satisfaction.

You can visit the official OLEVS store for more information and product offerings: Negozio OLEVS su Amazon
