1. Introduzione
This manual provides essential information for the safe and effective use of your UpBright 26.5V AC/DC Adapter. This adapter is specifically designed to charge NEQUARE S12, S12 Pro, and S12Pro series cordless stick vacuum cleaners. Please read these instructions thoroughly before use and retain them for future reference.
Image 1.1: The UpBright 26.5V AC/DC Adapter with its power cord.
2. Compatibilità del prodotto
The UpBright 26.5V AC/DC Adapter is compatible with the following NEQUARE cordless stick vacuum cleaner models:
- NEQUARE S12 Series
- NEQUARE S12 Pro
- NEQUARE S12Pro
Nota importante:
- This adapter is designed for direct charging of the vacuum cleaner. It is Non compatibile with charging docks or stations.
- The vacuum cleaner's battery voltage is 22.2V. The charger's output voltage is 26.5V. This is normal and necessary for proper charging.

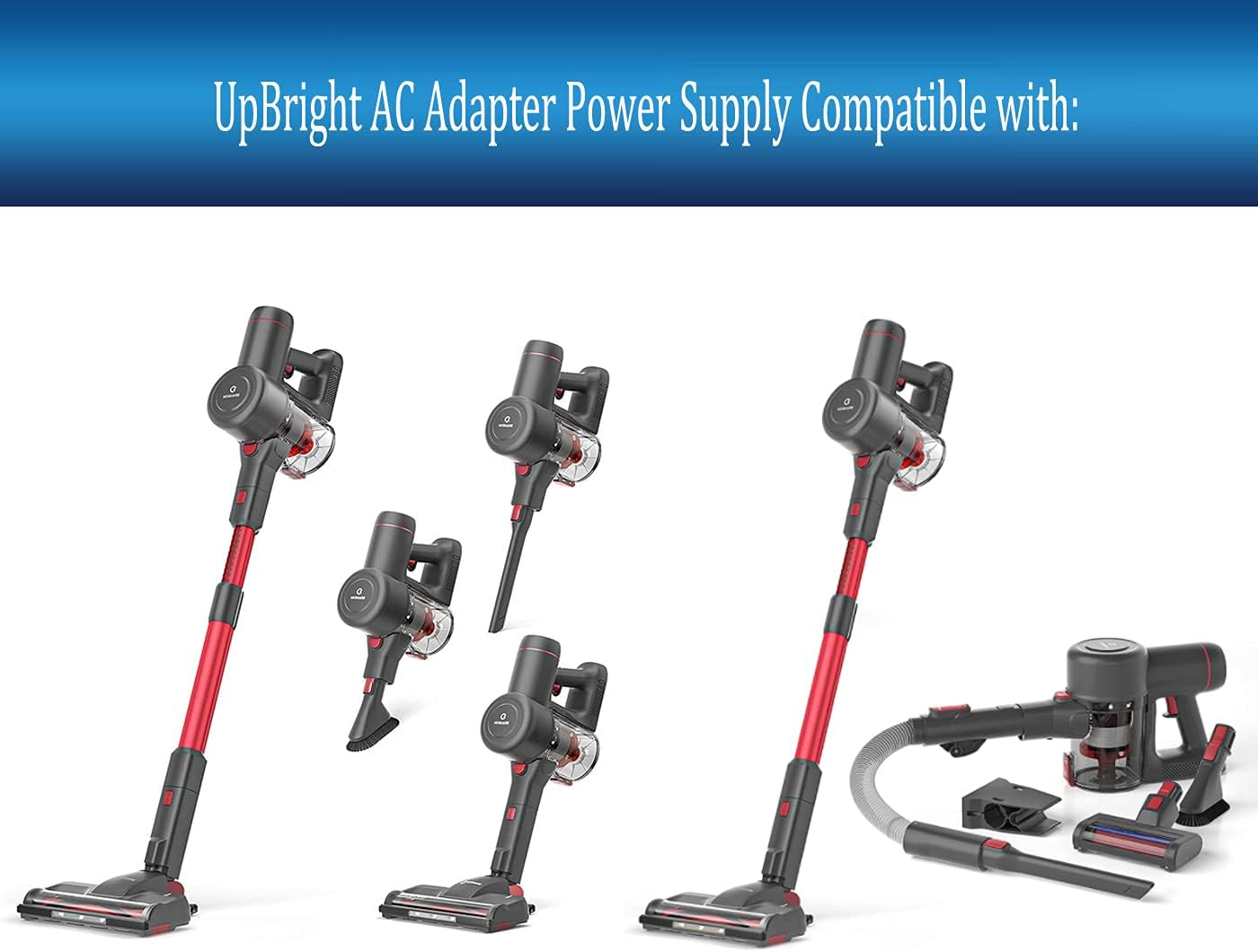

Image 2.1: Various models of NEQUARE S12 series vacuum cleaners compatible with this adapter.
3. Configurazione e connessione
- Ispezionare l'adattatore: Before first use, visually inspect the adapter and cable for any signs of damage. Do not use if damaged.
- Collegamento al vuoto: Locate the charging port on your NEQUARE S12 series vacuum cleaner. Insert the adapter's DC output plug firmly into the vacuum's charging port.
- Collegare alla presa di corrente: Plug the AC input prongs of the adapter into a standard 100-240VAC 50/60Hz wall outlet.
- Verifica della ricarica: The vacuum cleaner's indicator light should illuminate, indicating that charging has begun. Refer to your vacuum cleaner's manual for specific charging indicator behavior.
4. Istruzioni per l'uso
Once connected, the adapter will automatically begin charging the vacuum cleaner's battery. The adapter features advanced power management chips for safe and efficient charging.
Protezioni di sicurezza:
The UpBright adapter is equipped with multiple safety features to protect your device and the adapter itself:
- OVP (oltre voltage Output Protection): Prevents damage from excessive output voltage.
- OCP (Over Current Output Protection): Guards against damage from excessive output current.
- SCP (Short Circuit Output Protection): Protegge dai cortocircuiti.
Image 4.1: The UpBright adapter highlighting its built-in safety protection features.
5. Manutenzione e cura
- Pulizia: Disconnect the adapter from both the power outlet and the vacuum cleaner before cleaning. Use a soft, dry cloth to wipe the adapter. Do not use liquid cleaners or solvents.
- Magazzinaggio: When not in use, store the adapter in a cool, dry place, away from direct sunlight and moisture. Avoid tightly winding the cable to prevent damage.
- Gestione: Do not drop, disassemble, or attempt to repair the adapter. This can void the warranty and create safety hazards.
- Condizioni ambientali: Avoid exposing the adapter to extreme temperatures, humidity, or corrosive environments.
6. Risoluzione Dei Problemi
If you encounter issues with your UpBright AC/DC Adapter, please refer to the following common solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| L'aspirapolvere non si carica. | Adattatore non collegato correttamente. | Ensure the adapter is fully plugged into both the wall outlet and the vacuum cleaner's charging port. |
| L'aspirapolvere non si carica. | Problema con la presa di corrente. | Provare la presa di corrente con un altro dispositivo per accertarsi che funzioni. |
| L'aspirapolvere non si carica. | Incorrect charging method. | Confirm you are using direct charging and not attempting to charge via a dock, as this adapter is not compatible with docks. |
| L'adattatore risulta caldo durante l'uso. | Funzionamento normale. | It is normal for the adapter to feel slightly warm during charging. If it becomes excessively hot or emits smoke/odor, disconnect immediately and cease use. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
7. Specifiche
| Numero di modello | NEQUARE S12 Series Power Supply |
| Ingresso volumetage | 100-240 V CA, 50/60 Hz |
| Volume di uscitatage | 26.5V CC |
| Corrente di uscita | 0.5 A (500 mA) |
| Uscita Wattage | 13.25W |
| Protezioni | OVP (oltre voltage Protezione), OCP (Protezione da sovracorrente), SCP (Protezione da cortocircuito) |
| Dimensioni | Circa 3 x 2 x 1 pollici |
| Peso | Circa 3 once |
| Tipo di connettore | Proprietary DC Barrel Connector |
8. Garanzia e supporto
Informazioni sulla garanzia:
Your UpBright AC/DC Adapter comes with the following warranty:
- Rimborso entro 30 giorni: Eligible for a refund within 30 days of purchase.
- Cambio 24 mesi: Eligible for an exchange within 24 months of purchase.
Conservare la prova d'acquisto per eventuali richieste di garanzia.
Immagine 8.1: Es.ample of a UpBright warranty certificate and various international plug adapters (not included with all purchases).
Assistenza clienti:
For technical assistance, warranty claims, or any questions regarding your UpBright AC/DC Adapter, please contact your retailer or the UpBright customer service department through the contact information provided with your purchase or on the official UpBright websito.
