Introduzione
This manual provides essential information for the safe and efficient operation of your MASUNN EL LED Flexible Tube Driver. This device is a 220V AC home drive controller designed to power EL (Electroluminescent) wire LED flexible tubes ranging from 1 to 20 meters in length. Please read these instructions carefully before use and retain them for future reference.
Informazioni sulla sicurezza
- Garantire l'alimentazione voltage corrisponde ai requisiti del dispositivo (CA 220 V).
- Do not expose the driver to water or excessive moisture.
- Avoid disassembling the unit. Refer all servicing to qualified personnel.
- Tenere fuori dalla portata dei bambini.
- Scollegare il dispositivo dalla presa di corrente prima di pulirlo o quando non viene utilizzato per lunghi periodi.
Contenuto della confezione
Verifica che tutti gli articoli siano presenti nel tuo pacco:
- 1 x MASUNN AC 220V Home Drive Controller
Istruzioni di installazione
- Collegare l'adattatore di alimentazione: Insert the DC plug of the power adapter into the input jack on the MASUNN EL LED Flexible Tube Driver. Ensure a secure connection.

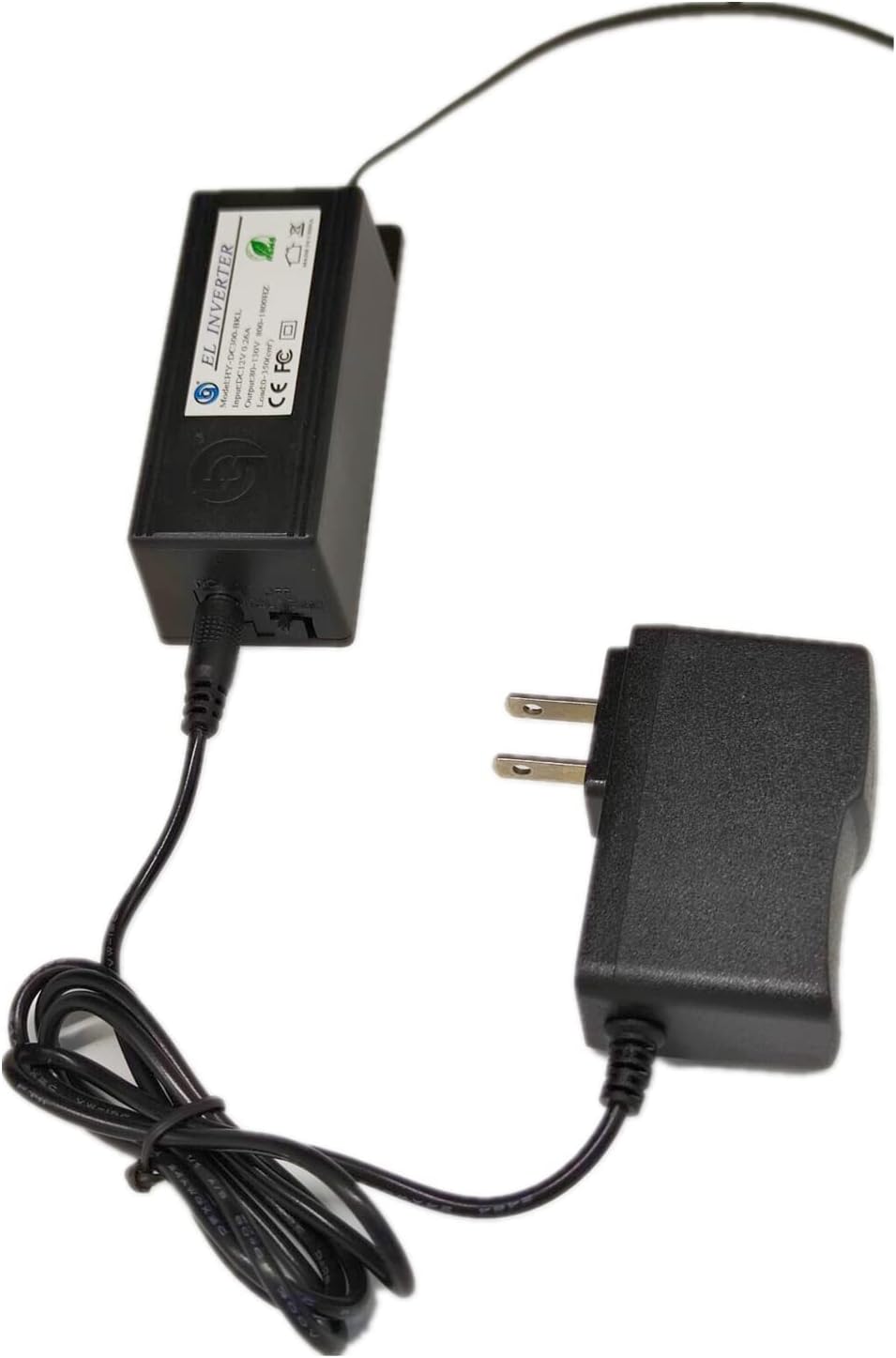

Image: The MASUNN EL LED Flexible Tube Driver connected to its power adapter.
- Connect the EL Wire: Plug the connector of your EL wire (not included) into the output port of the MASUNN driver. This port is typically a small, two-pin connector.
Image: The MASUNN EL LED Flexible Tube Driver showing the output port for EL wire connection.
- Collegare alla presa di corrente: Plug the power adapter into a standard AC 220V wall outlet. The driver is now ready for operation.
Image: The MASUNN EL LED Flexible Tube Driver fully connected to an EL wire and a 220V AC wall outlet.
Istruzioni per l'uso
The MASUNN EL LED Flexible Tube Driver features a simple control switch to manage the lighting modes of your connected EL wire.
- Accensione/spegnimento: Once connected to the power outlet, locate the switch on the driver unit.
- Seleziona modalità: Toggle the switch to cycle through the available lighting modes:
- Luce costante: The EL wire will illuminate continuously.
- Lampeggiante: The EL wire will flash intermittently.
- Spento: The EL wire will be turned off.
Image: The MASUNN EL LED Flexible Tube Driver actively powering a coiled blue EL wire, demonstrating its function.
Manutenzione
- Pulizia: Disconnect the driver from the power source before cleaning. Wipe the unit with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Magazzinaggio: Store the driver in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Ispezione: Periodically inspect the power cord and connections for any signs of damage. If damage is found, discontinue use and replace the affected component if possible, or contact support.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| EL wire does not light up. | Nessuna potenza al conducente. EL wire not connected properly. Faulty EL wire. | Check if the power adapter is securely plugged into the wall outlet and the driver. Ensure the EL wire is firmly connected to the driver's output port. Test with a different EL wire if available. |
| EL wire flickers or is dim. | Collegamento allentato. EL wire length exceeds driver capacity. Faulty EL wire. | Verificare la tenuta di tutti i collegamenti. Ensure the EL wire length is within the 1-20 meter range. Test with a different EL wire. |
| Driver unit is hot. | Overload (EL wire too long). Scarsa ventilazione. | Ensure EL wire length is within specified limits. Place the driver in a well-ventilated area. If overheating persists, discontinue use. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | MASUNN |
| Numero di modello | 0000128 |
| Alimentazione in ingresso | CA 220V |
| Volume di uscitatage | CC 12V |
| Compatible EL Wire Length | 1 - 20 metri |
| Funzioni | Constant Light, Flashing, Off |
| Dimensions (Middle Part) | Dimensioni: 55 x 33 x 30 mm |
| Peso dell'articolo | 160 grammi (inclusa la confezione) |
| Materiale | Ac (likely plastic/ABS) |
| Batterie richieste | NO |
Informazioni sulla garanzia
Warranty information for this product is not available in the provided details. Please refer to your purchase documentation or contact the retailer for specific warranty terms.
Assistenza clienti
For further assistance or inquiries regarding your MASUNN EL LED Flexible Tube Driver, please contact your point of purchase or refer to the MASUNN official website if available. Specific customer support contact details were not provided.
