1. Introduzione
Thank you for choosing the Hulkman Alpha85 Portable Jump Starter. This device is designed to provide a powerful and reliable solution for starting vehicles with dead batteries, as well as serving as a versatile power bank and emergency flashlight. With a peak current of 2000A and a 20000mAh lithium battery, it can jump-start vehicles with up to 8.5L gasoline or 6.0L diesel engines. Please read this manual carefully before use to ensure safe and optimal operation.

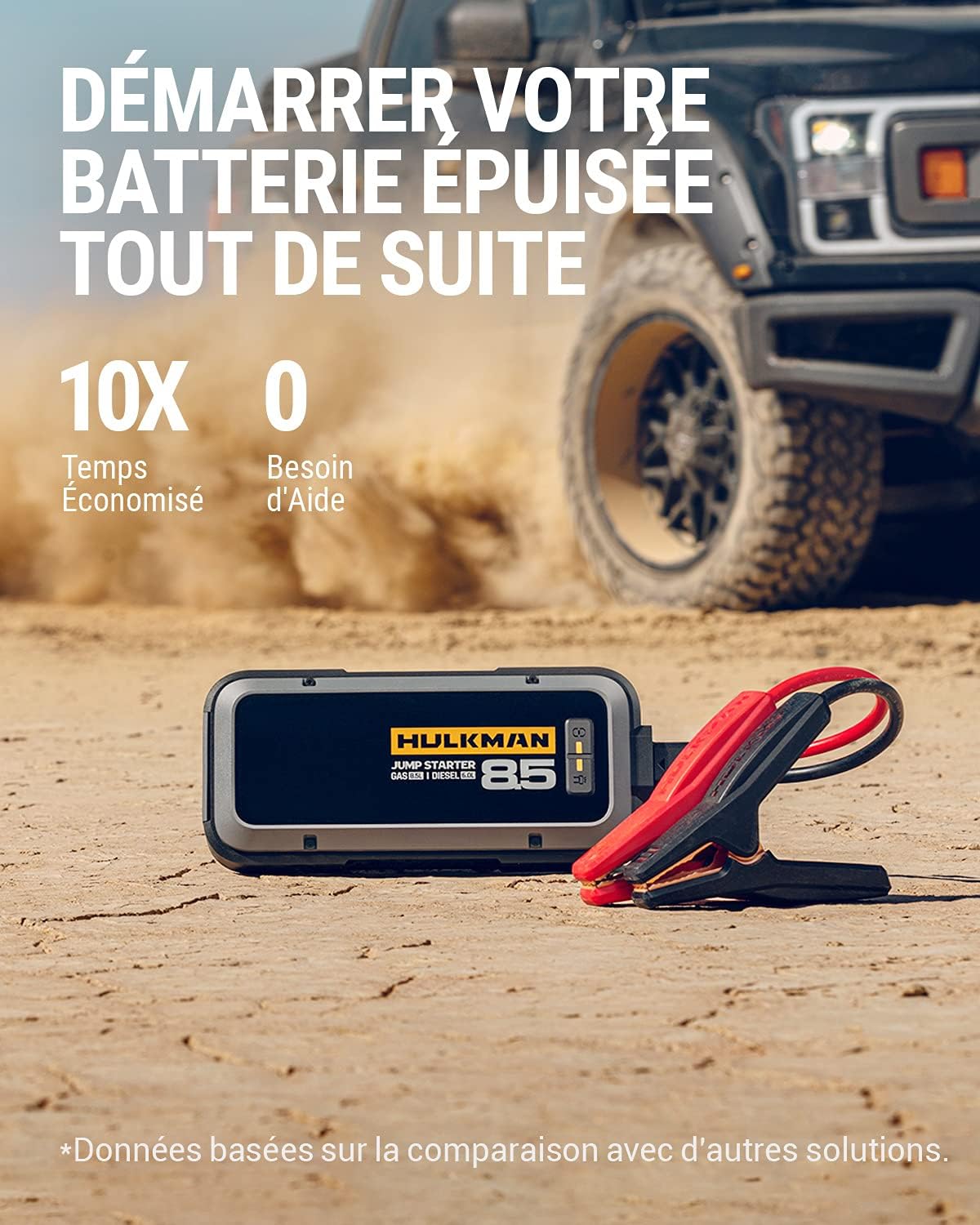

Image: The Hulkman Alpha85 Jump Starter, ready for use, with its smart clamps connected. A vehicle is visible in the background, suggesting its primary function.
2. Cosa c'è nella scatola
Assicurati che nel pacco siano presenti tutti i seguenti elementi:
- Alpha 85 Jump Starter Unit
- Rubber-Coated Booster Clamps
- Cavo USB di tipo C.
- 12V DC Cigarette Lighter Adapter
- User Manual & Warranty Information
Image: A clear layout of all components included in the Hulkman Alpha85 package, showing the jump starter, clamps, various cables, and documentation.
3. Installazione e addebito iniziale
3.1 Carica iniziale
Before first use, fully charge your Alpha85 unit. Connect the provided USB Type-C cable to the jump starter and a compatible USB power source. For fastest charging (approximately 1.5 hours from 0% to full), use a Hulkman 65W fast charger (sold separately). The intelligent 3.3-inch LED screen will display the charging progress.
3.2 Mantenimento della carica
To ensure optimal performance and battery longevity, it is recommended to recharge the Alpha85 unit every three months or after each jump-start. The unit requires at least 20% charge to initiate a jump-start.
Image: A close-up of the Alpha85's digital display, indicating the current battery charge level as a percentage.
4. Istruzioni per l'uso: avviamento di emergenza di un veicolo
The Hulkman Alpha85 is designed for easy and safe jump-starting. Follow these three simple steps:
- Collegare: Ensure the Alpha85 unit is sufficiently charged (at least 20%). Connect the red clamp to the positive (+) terminal of your vehicle's dead battery and the black clamp al terminale negativo (-). Il cl intelligenteamprileverà automaticamente la connessione della batteria.
- PRONTO: Once connected correctly, the intelligent LED screen on the Alpha85 will display "READY". This indicates the unit is prepared to deliver power. If an error message appears, refer to the troubleshooting section.
- Andare: Start your vehicle's engine. Once the engine starts, immediately disconnect the clamps from the battery, first the black (negative) clamp, quindi il rosso (positivo) clamp.
The Alpha85 can jump-start vehicles with up to 8.5L gasoline engines and 6.0L diesel engines. It provides up to 60 jump-starts on a single full charge.
Image: The Hulkman Alpha85 Jump Starter with its smart clamps attached to a vehicle battery, illustrating the connection process.
Image: A close-up of the Alpha85's screen displaying the word "READY" in green, indicating it is prepared for a jump-start.
Image: An illustration demonstrating the engine displacement capacities the Alpha85 can handle, including 8.5L gasoline and 6.0L diesel engines.
5. Multifunction Features
5.1 Power Bank portatile
The Alpha85 doubles as a powerful 20000mAh power bank. It features USB-A and USB-C ports, allowing you to charge various electronic devices such as smartphones, tablets, and other USB-powered gadgets.
5.2 Uscita 12 V CC
Un 10-amp 12-volt port is included to power 12V DC equipment, such as tire inflators, inverters, and portable refrigerators.
Torcia elettrica 5.3 LED
The built-in 400-lumen LED flashlight offers five modes: normal, strobe, SOS, and two additional emergency modes. This is a valuable tool for roadside emergencies or general illumination.
Image: The Alpha85 unit connected via USB-A and USB-C ports, simultaneously charging a smartphone, tablet, and other small electronic devices.
Image: A child in a car seat using the Alpha85 to charge a tablet, highlighting its utility as a portable power source for various situations.
6. Caratteristiche di sicurezza e protezioni
The Hulkman Alpha85 is equipped with multiple safety features to ensure user protection and prevent damage to the device or vehicle:
- Tecnologia antiscintilla: Prevents sparks during connection, enhancing safety.
- Protezione da inversione di polarità: Avvisa e protegge da cl erratiamp connessioni.
- Protezione da cortocircuito: Protezioni contro i cortocircuiti.
- Protezione da sovracorrente: Previene i danni causati da un flusso di corrente eccessivo.
- Over-Voltage Protezione: Protegge contro il voltage picchi.
- Protezione da sovraccarico: Previene il sovraccarico della batteria.
- Protezione da sovratemperatura: Monitora e regola la temperatura interna.
- Resistenza all'acqua IP65: Fornisce protezione contro la polvere e i getti d'acqua a bassa pressione.
- Resistenza alla caduta: Robust construction designed to withstand accidental drops.
The 3.3-inch smart screen visually displays product status and protection indicators, making operation intuitive and safe.
Image: A close-up of the Alpha85's display, showing a full charge (100%) and various safety icons, indicating active protection features.
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | Hulkman |
| Numero di modello | Alfa 85 |
| Corrente di picco | 2000 Amps |
| Capacità della batteria | 20000 mAh / 74 Wh |
| Composizione della batteria | Agli ioni di litio |
| Voltage | 12 Volt |
| Dimensioni del prodotto (L x P x A) | 22 x 9.4 x 4 cm (8.66 x 3.7 x 1.57 pollici) |
| Peso dell'articolo | 1.64 chilogrammi (3.62 libbre) |
| Temperatura di esercizio | Da 5°F a 113°F (da -15°C a 45°C) |
| Compatibilità del motore | Fino a 8.5 l benzina / 6.0 l diesel |
| Valutazione della resistenza all'acqua | Grado di protezione IP65 |
8. Risoluzione Dei Problemi
If you encounter issues with your Hulkman Alpha85, please refer to the following common problems and solutions:
- L'unità non si accende: Ensure the unit is charged. If the battery is completely depleted, it may take a few minutes of charging before the screen activates.
- "READY" not displayed after connecting clamps:
- Controllare che il clampsiano collegati saldamente ai terminali corretti della batteria (rosso al positivo, nero al negativo).
- Assicurarsi che la batteria del veicolo sia caricatage is not extremely low (below 1V).
- The vehicle battery might be severely damaged.
- Vehicle does not start after "READY" is displayed:
- Ensure the Alpha85 has sufficient charge (at least 20%).
- The vehicle's battery may be too large for the Alpha85's capacity, or the engine may have other issues.
- Try waiting 30-60 seconds after connecting before attempting to start the vehicle.
- Messaggio di errore sullo schermo: Refer to the specific error code or icon displayed on the screen. Common icons indicate reverse polarity, short circuit, or over-temperature. Disconnect the unit and re-evaluate the situation.
Per problemi persistenti, contattare l'assistenza clienti Hulkman.
9. Garanzia e supporto
The Hulkman Alpha85 Jump Starter comes with a Garanzia di 2 anni senza pensieriQuesta garanzia può essere estesa a 3 anni upon product registration. Hulkman also provides supporto tecnico a vita per questo prodotto.
If you have any questions, require assistance, or need to claim warranty service, please do not hesitate to contact Hulkman customer support. Contact details can typically be found on the official Hulkman websito o tramite la tua piattaforma di acquisto.
