Mobiletto YITAHOME a 3 cassetti File Manuale dell'utente dell'armadio

1. Introduzione

Thank you for choosing the YITAHOME 3-Drawer Mobile File Cabinet. This manual provides essential information for the safe and efficient use of your new cabinet. Please read these instructions carefully before installation and operation, and retain them for future reference.

2. Istruzioni di sicurezza

• Ensure the cabinet is placed on a level and stable surface to prevent tipping.
• Non superare la capacità di peso massima di 150 libbre (68 kg) per la superficie superiore.
• Avoid opening more than one drawer at a time to maintain stability and prevent the cabinet from tipping over.
• Keep fingers clear of drawer slides when opening and closing drawers.
• Non permettere ai bambini di arrampicarsi o giocare con il mobile.
• Regularly check all hardware connections to ensure they remain tight and secure.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare il montaggio:

• 1 x Mobile File Cabinet (fully assembled)
• 1 x Accessory Kit (containing casters and keys)
• 1 x Manuale di istruzioni

4. Setup: Attaching Casters

The YITAHOME 3-Drawer Mobile File Cabinet arrives fully assembled, with the exception of the casters. Follow these steps to attach the wheels:

1. Carefully lay the cabinet on its side on a soft, protective surface to avoid scratching the finish.
2. Locate the pre-drilled holes on the bottom corners of the cabinet.
3. Insert the stem of each caster into the corresponding hole.
4. Twist each caster clockwise until it is securely tightened. Ensure the two lockable casters are installed on the front side of the cabinet for easy access.
5. Once all casters are attached, carefully return the cabinet to an upright position.

Guida video all'installazione

For a visual guide on the cabinet's features and assembly, please watch the video below:

5. Istruzioni per l'uso

5.1 Utilizzo del cassetto

The cabinet features three drawers for organized storage:

• I due cassetti superiori: Ideal for storing office supplies such as pens, staplers, notebooks, and other small items.
• Cassetto inferiore: Designed to accommodate letter-sized files. Utilize hanging file cartelle per un'organizzazione efficiente.

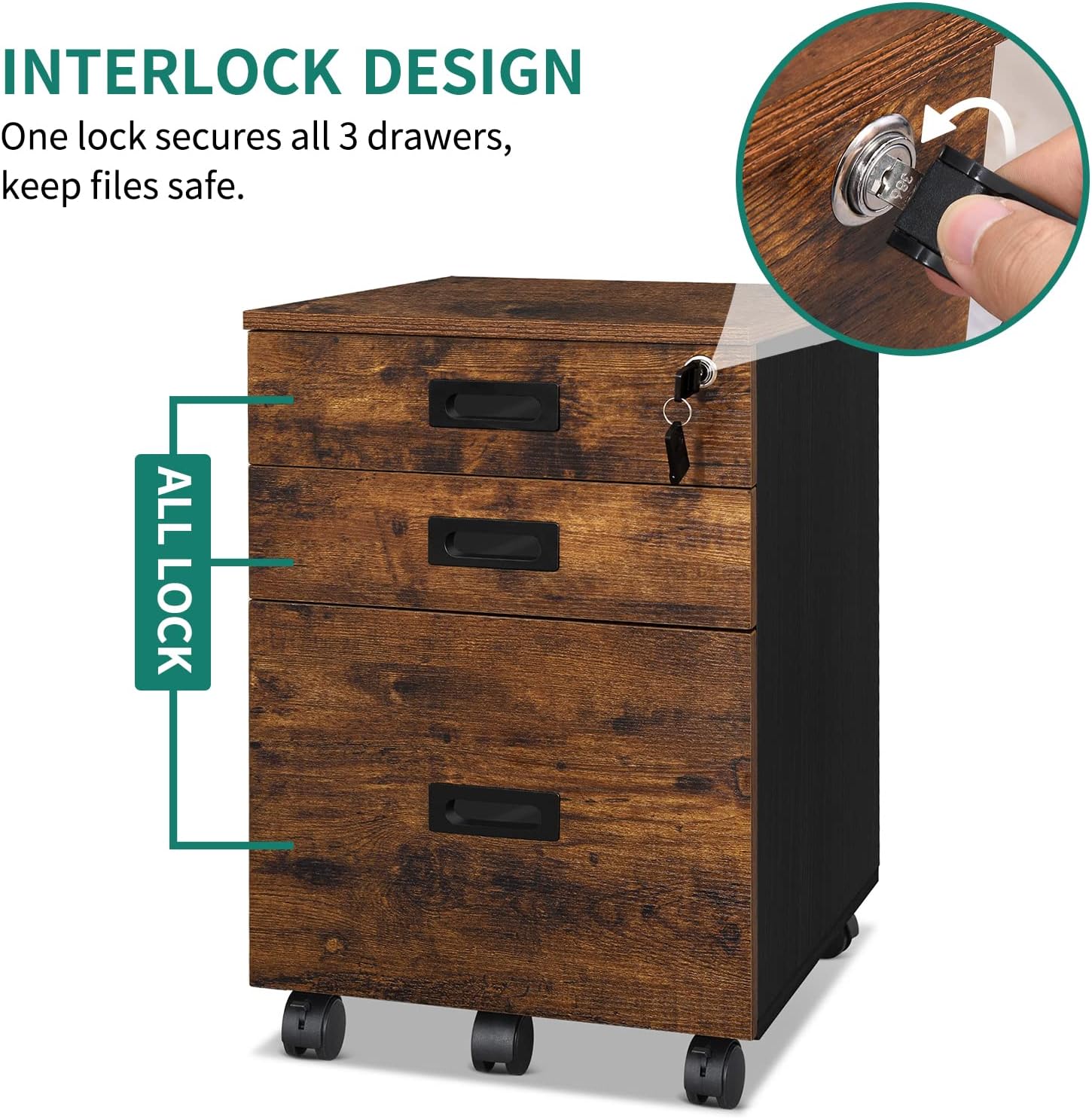

5.2 Meccanismo di bloccaggio

The cabinet is equipped with an interlock system to secure all three drawers simultaneously.

1. To lock the drawers, ensure all drawers are fully closed.
2. Insert the key into the lock cylinder located on the top right side of the cabinet.
3. Turn the key clockwise to engage the locking mechanism. All three drawers will be secured.
4. Per sbloccare, inserire la chiave e ruotarla in senso antiorario.

5.3 Mobilità e stabilità

The cabinet features five industrial-grade casters for easy movement. Two of these casters are lockable to provide stability when the cabinet is in a desired position. A central caster prevents tipping when drawers are fully extended.

• To move the cabinet, unlock the two front casters by flipping their levers.
• To secure the cabinet in place, engage the locks on the two front casters.

6. Manutenzione

• Pulizia: Pulisci le superfici del mobile con un panno morbido eamp panno. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi, poiché possono danneggiare la finitura.
• Guide per cassetti: Controllare periodicamente che le guide dei cassetti funzionino correttamente. Se dovessero risultare rigide, è possibile applicare una piccola quantità di lubrificante a base di silicone.
• Ruote: Per garantire un rotolamento fluido, tenere le rotelle libere da capelli, polvere e detriti.
• Hardware: Regularly inspect all screws and fasteners to ensure they are tight. Re-tighten if necessary.

7. Risoluzione Dei Problemi

• Drawers are difficult to open or close: Check if the cabinet is on a level surface. Ensure drawers are not overloaded. Inspect drawer slides for obstructions or damage.
• Cabinet is unstable or tips easily: Verify that the cabinet is on a flat surface. Ensure only one drawer is open at a time. Check if casters are properly installed and tightened.
• Le rotelle non girano fluidamente: Clean any debris (hair, dust) from the caster wheels. Ensure the caster locks are disengaged.
• Lock mechanism is not working: Ensure all drawers are fully closed before attempting to lock. Check if the key is fully inserted and turned correctly.

If you encounter issues not covered here, please contact YITAHOME customer support for assistance.

8. Specifiche

9. Garanzia e supporto

YITAHOME is committed to providing quality products and customer satisfaction. For any questions, concerns, or to report issues with your product, please contact YITAHOME customer support. Refer to your purchase documentation or the YITAHOME official websito per dettagli specifici sulla garanzia e informazioni di contatto.
