A-Premium Power Steering Pump Instruction Manual

1. Prodotto finitoview

This manual provides essential information for the installation, operation, and maintenance of your A-Premium Power Steering Pump. This component is designed to assist in steering, reducing the effort required to turn the steering wheel, and is a direct replacement for the original equipment.

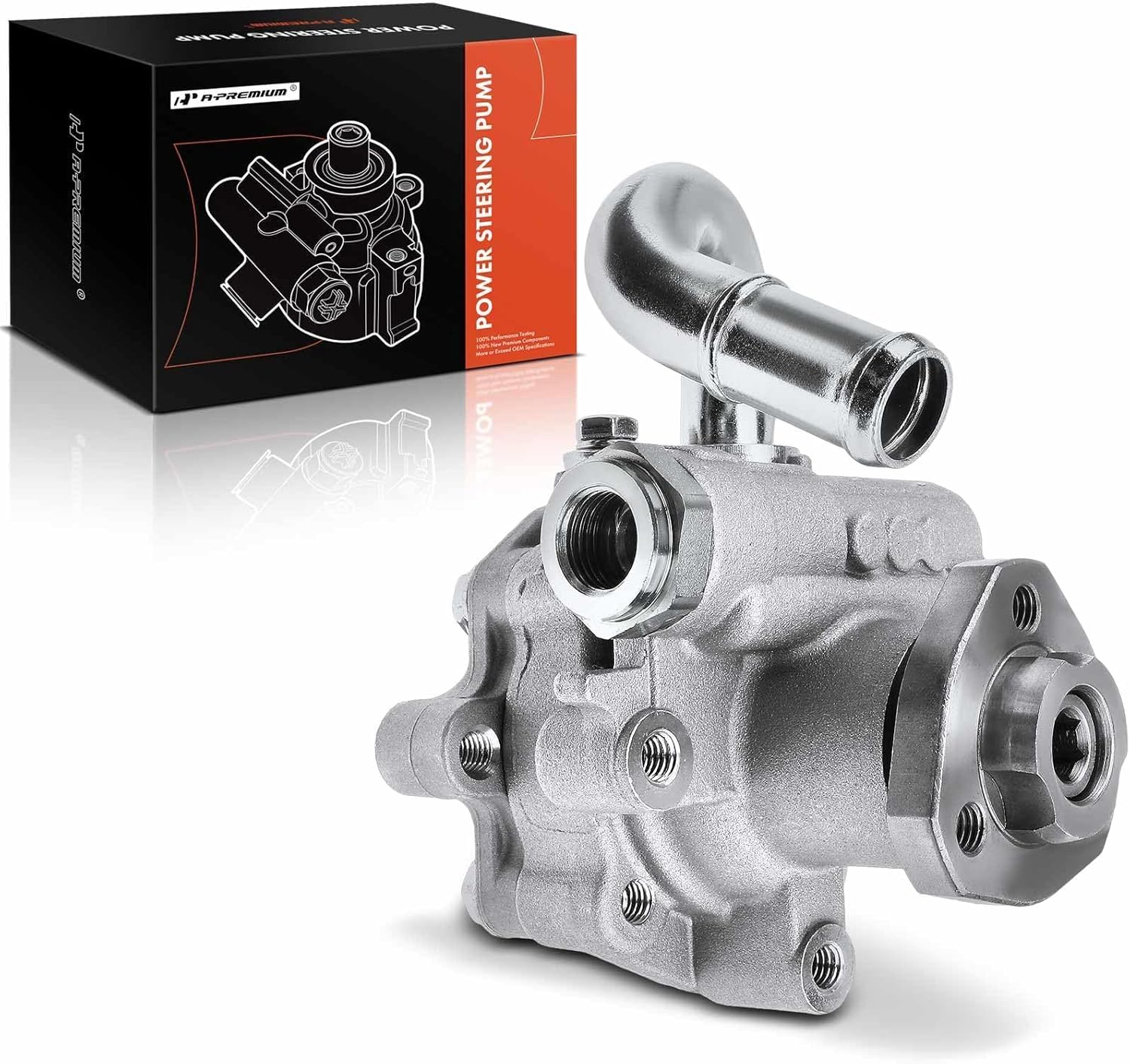

Image 1: A-Premium Power Steering Pump, showing its main body and connection points.

2. Montaggio del veicolo

This A-Premium Power Steering Pump is compatible with the following vehicle models:

• Volkswagen Beetle: 2006-2010 (2.0L, 2.5L engines)
• Volkswagen Beetle Cabrio: 2010 (2.5L engine)

Numeri di riferimento: 1J0422152C, 1J0422152K, 21-5487

Numero modello: APPSP0567

3. Specifiche del prodotto

Immagine 2: Primo piano view of the power steering pump's inlet and outlet ports, highlighting construction details.

4. Installation Precautions and Procedure

Proper installation is critical for the performance and longevity of the power steering pump. It is highly recommended to consult your vehicle's specific shop manual for detailed instructions or seek assistance from a qualified mechanic if you lack the necessary skills.

Image 3: Visual guide illustrating key installation precautions and steps.

4.1. Preinstallazione

• Drain the previous power steering fluid completely before installing the new pump.
• Replace with recommended fluid by the Original Equipment Manufacturer (OEM).

4.2. Exhaust Steps (After Installation)

After installing the power steering pump, the system requires proper fluid exhaust (bleeding) to remove air. Follow these steps:

1. Fill the reservoir with clean steering fluid up to the maximum level.
2. Lift the vehicle so that the front axle is not under load (wheels are off the ground).
3. With the engine off, turn the steering wheel slowly from one extreme to the other (twice).
4. Refill the reservoir with clean steering fluid up to the maximum level.
5. To prevent air intake, start the engine and add clean steering fluid to the reservoir at the same time.
6. Turn the steering wheel slowly from one side to the other (repeat 10-15 times). NON fare hold the steering wheel at the extreme positions for more than 5 seconds. NON fare turn the wheel sharply at the extreme positions, which may cause foam in the fluid. Repeat the above steps until no bubbles appear.
7. Fill the reservoir with clean steering fluid up to the maximum level and replace the reservoir cap tightly.
8. Check the steering system to avoid leaks.
9. Shut off the engine. After shutting off the engine, the fluid level in the reservoir should rise. Check if the fluid level exceeds the maximum mark. If the fluid level exceeds the maximum mark by 5mm, try to repeat the exhaust process.
10. Vehicle driving (check the fluid level before and after driving).
11. While the engine is running, add clean steering fluid to the reservoir up to the maximum level.

These procedures help prevent potential issues after installing a new power steering pump. Replacing a power steering pump is a complex and time-consuming process. If the installation skills and tools are not available, professional assistance is strongly recommended.

5. Principi di funzionamento e caratteristiche

The A-Premium Power Steering Pump is engineered for reliable operation, providing consistent hydraulic pressure to the steering system.

5.1. Componenti interni

Immagine 4: Esploso view illustrating the internal components of the power steering pump, including the spool valve, spring, O-ring, front casing, oil ring, shaft, bearing, rear cover, cam ring, gasket, rotor with vane, and side plate.

The pump consists of precision-engineered components such as the spool valve, spring, O-rings, shaft, bearings, and a rotor with vanes, all working in conjunction to generate and regulate hydraulic pressure for steering assistance.

5.2. High Rotation Speed & Smooth Operation

Image 5: Illustration of the pump's internal components designed for high rotation speed, contributing to low friction, low noise, and low vibration.

The pump's design ensures stable operation, similar to OEM specifications, resulting in reduced friction, noise, and vibration during use.

5.3. High Oil Output

Image 6: Depiction of the power steering pump driven by an engine pulley belt, generating strong fluid pressure.

Driven by the engine through a pulley belt, the pump provides strong fluid pressure, which is essential for effective power steering assistance.

5.4. Enhanced Steering Performance

Image 7: Visual representation of the improved steering experience, including sensitive response, smooth steering, accurate steering, and safe & reliable operation.

The pump effectively reduces the force required to operate the steering wheel, contributing to sensitive response, smooth steering, accurate control, and overall safe and reliable vehicle operation.

5.5. Prevenzione delle perdite

Image 8: Diagram showing the internal sealing ring designed to prevent fluid leakage under high-pressure conditions.

The sealing ring is strategically installed inside the pump to prevent fluid leakage, even under high-pressure operating environments.

6. Manutenzione

Regular maintenance of your power steering system is crucial for optimal performance and longevity. This includes:

• Controllo del livello del fluido: Periodically check the power steering fluid level and top up as necessary with the OEM-recommended fluid.
• Condizione del fluido: Inspect the fluid for discoloration or metal flakes, which can indicate internal wear. If the fluid is dark or contains debris, a system flush and fluid replacement may be necessary.
• Ispezione delle perdite: Regularly check for any signs of fluid leaks around the pump, hoses, and steering rack. Address any leaks promptly.
• Hose and Belt Inspection: Ensure all power steering hoses are in good condition, free from cracks or hardening. Check the drive belt for proper tension and wear.

7. Risoluzione dei problemi comuni

This power steering pump is designed to resolve common issues associated with a failing pump. If you experience any of the following, consider inspecting your power steering system:

• Steering Fluid Leaks: Visible fluid drips or puddles under the vehicle, especially near the pump or hoses.
• Squealing Noise When Steering: A high-pitched noise, particularly when turning the steering wheel, often indicates low fluid, air in the system, or a failing pump.
• Heavy and Jerky Steering: Increased effort required to turn the steering wheel, or inconsistent steering feel.
• Metal Flakes in the Fluid: Inspecting the power steering fluid for metallic particles can indicate internal wear of the pump or other components.
• Power Steering Symbol on Dashboard: An illuminated warning light indicating a power steering system malfunction.

For any persistent issues, it is recommended to consult a qualified automotive technician.

8. Video di prodotto

9. Garanzia e supporto

A-Premium offers a one-year unlimited-mileage guarantee on this power steering pump. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official A-Premium websito.

10. Avviso importante

Attenzione: Please use the appropriate shop manual for your specific vehicle to obtain detailed installation instructions. If you do not have an installation manual or possess sufficient skills to install this part, it is strongly recommended that you seek assistance from a qualified mechanic.
